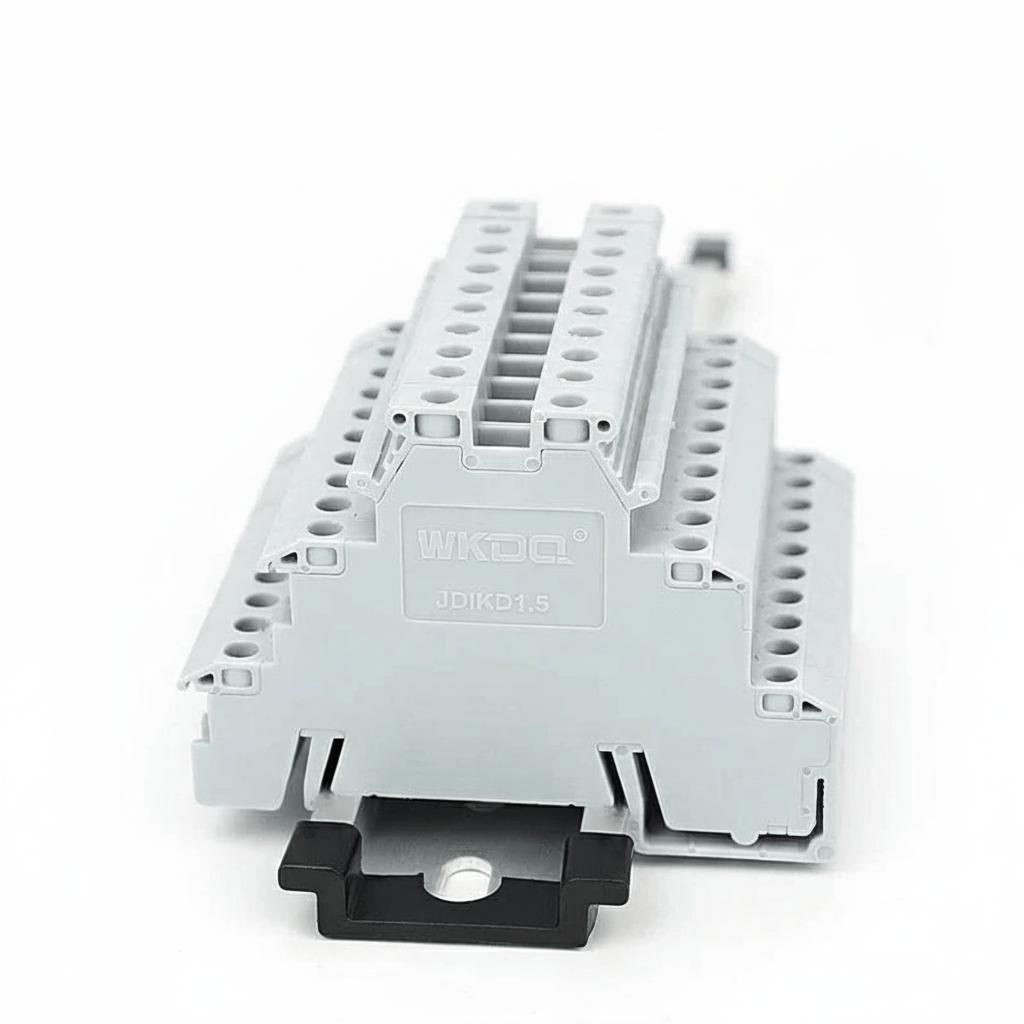

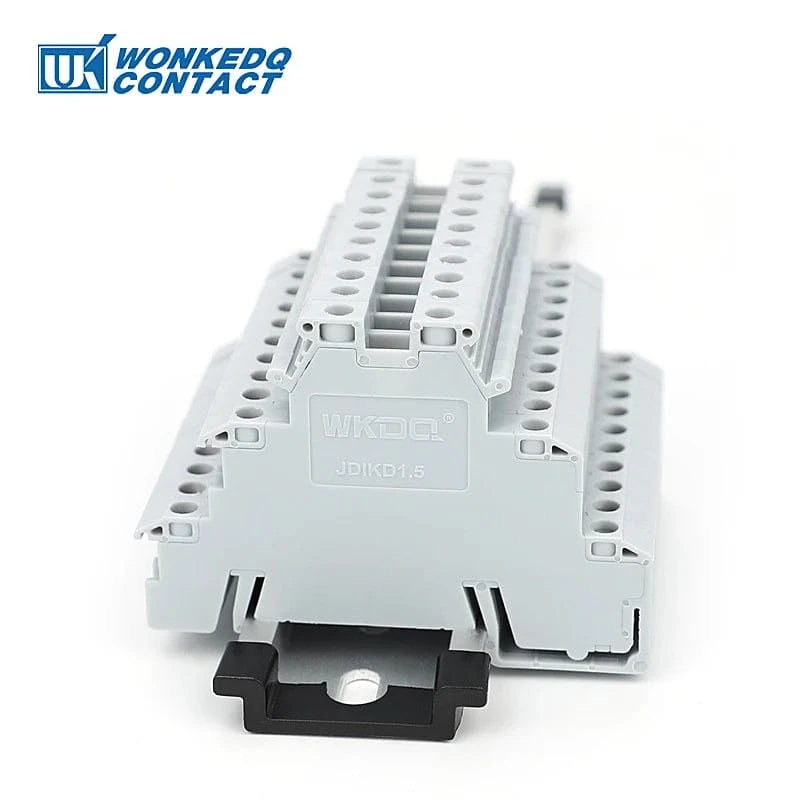

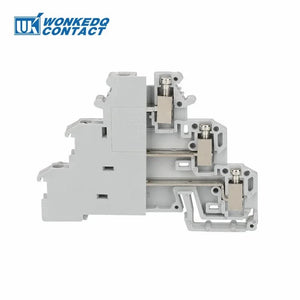

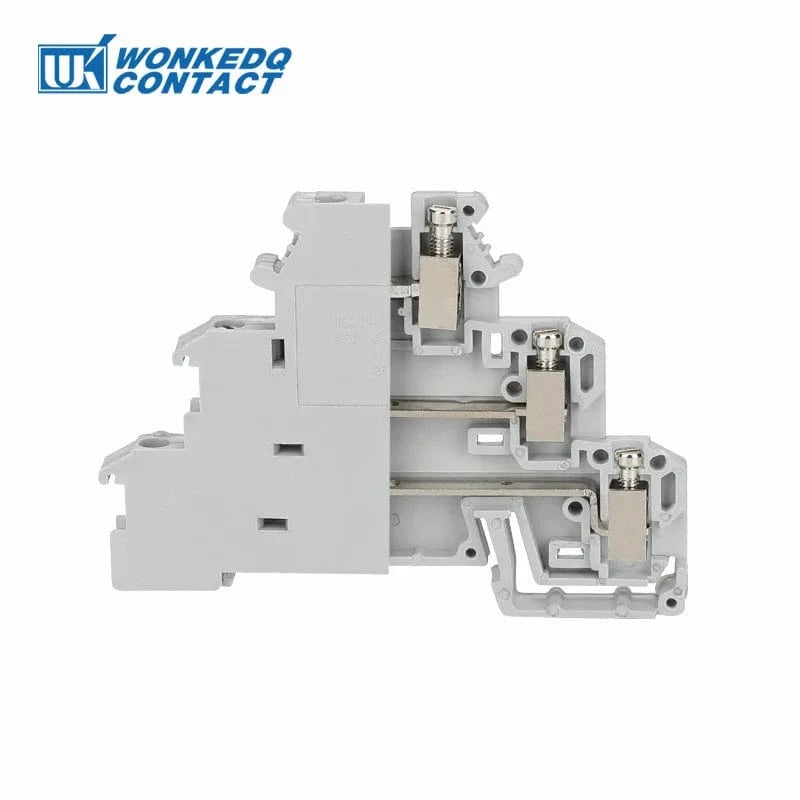

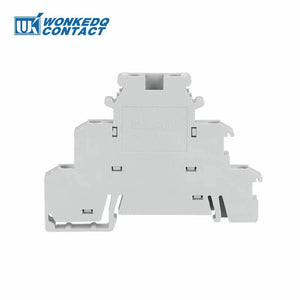

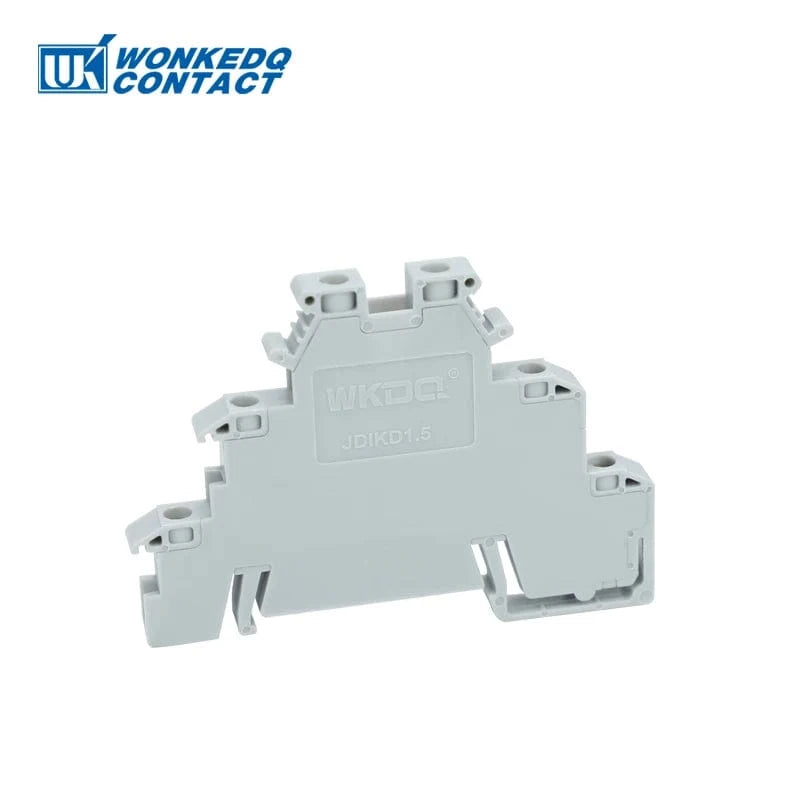

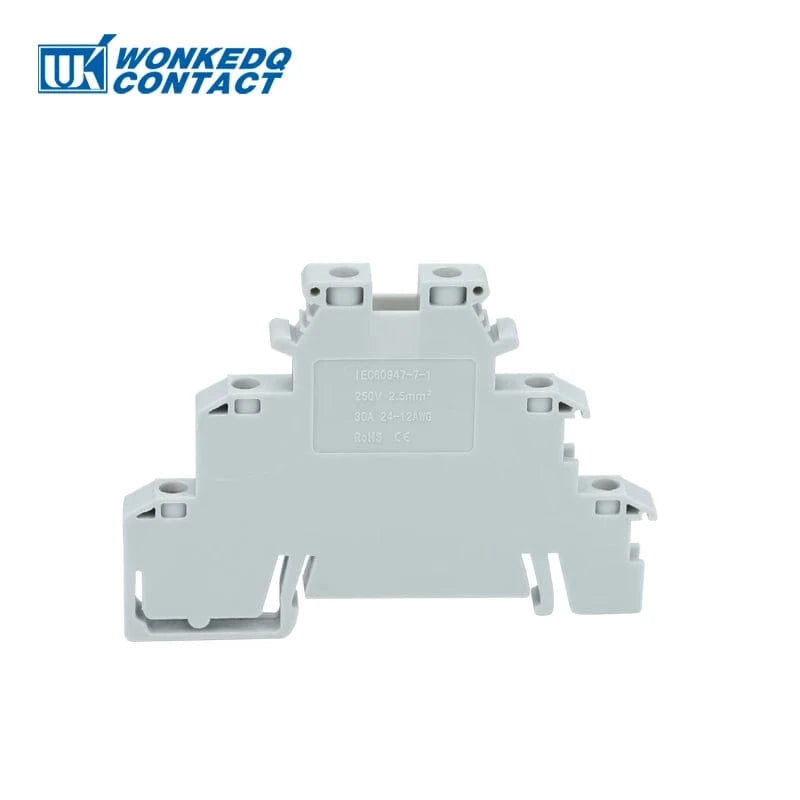

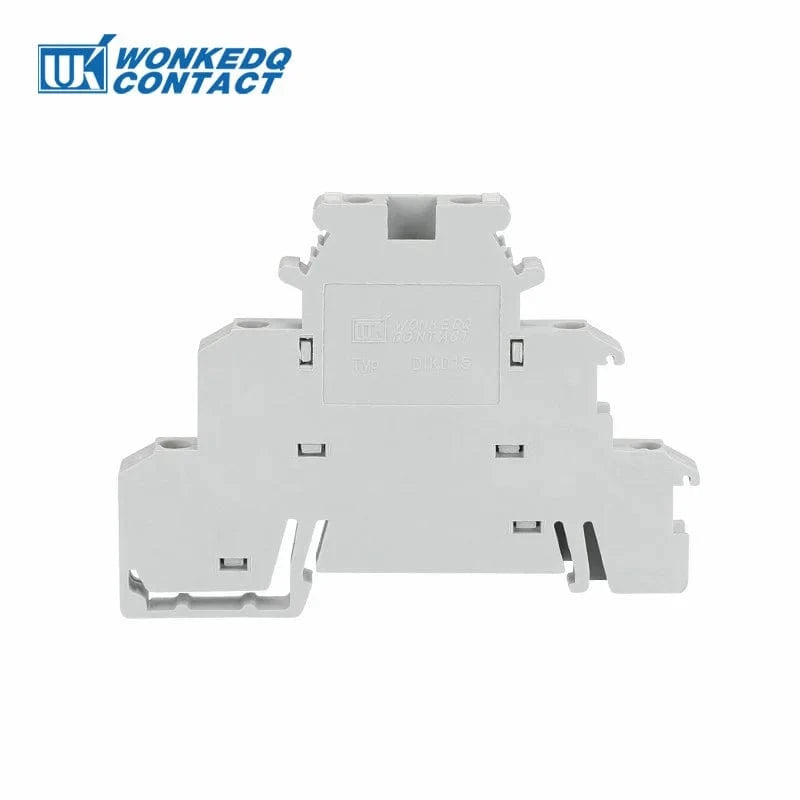

10Pcs DIKD 1.5 3 Levels Sensor Screw Connector 2.5 mm² 6-Conductor Electric Din Rail Triple Three Level Terminal Block DIKD1.5
Shipping calculated at checkout
SKU: 14:29#DIKD 1.5;200497261:200000932#10 Pcs
199988 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Conversions Tech DIKD-1.5 Screw Terminal Block — DIN Rail Mount, 250V 30A, CE & RoHS Certified

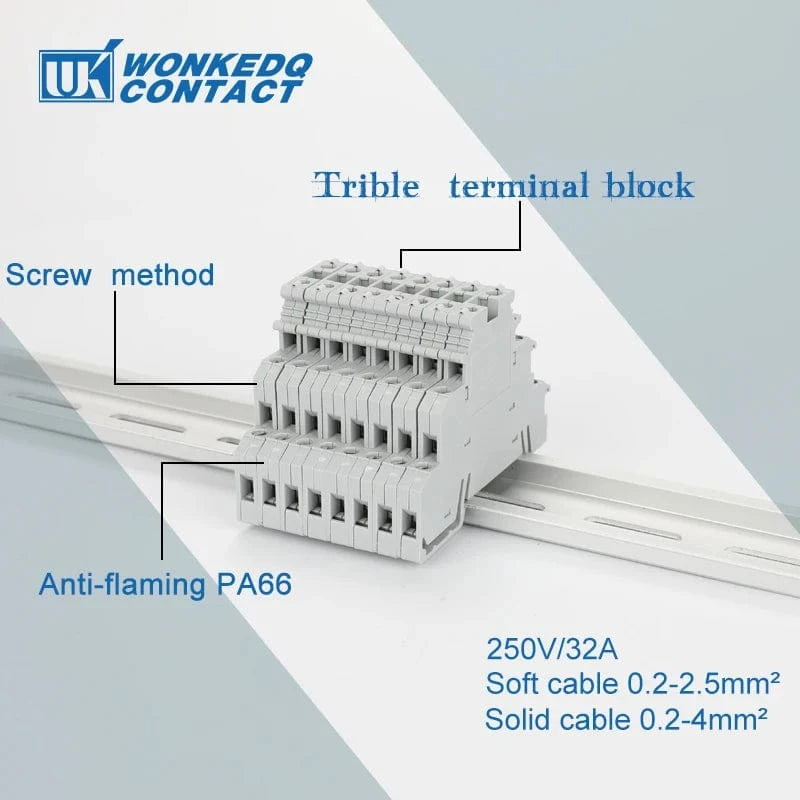

The Conversions Tech DIKD-1.5 Screw Terminal Block delivers reliable, high-performance electrical connections for industrial and automation systems. Designed for easy mounting on DIN Rail NS 35/7.5, this terminal block provides secure screw connections for conductor sizes from 24–12 AWG (0.2–4 mm² solid / 0.2–2.5 mm² stranded). Built with flame-retardant Nylon PA66 and precision-engineered metal contacts, it ensures stability, conductivity, and compliance with IEC 60947-7-1 standards.
Key Features
- Universal Screw Connection: Screw-type clamp provides strong, vibration-resistant conductor retention for solid or stranded wires.
- Wide Conductor Range: Supports 24–12 AWG (0.2–4 mm²) solid or flexible conductors for versatile wiring needs.
- Compact DIN Rail Design: Space-saving housing fits DIN Rail NS 35/7.5 for standardized industrial installations.
- High Electrical Rating: Rated for 250V / 30A for dependable power and signal connections.
- Durable Flame-Retardant Body: Constructed from Nylon PA66 (UL94V-0) for strength, safety, and long life.
- CE & RoHS Certified: Meets international safety and environmental compliance standards.

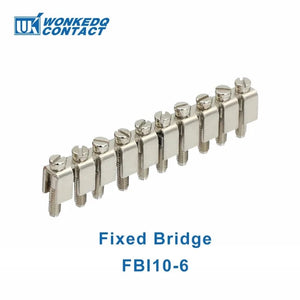

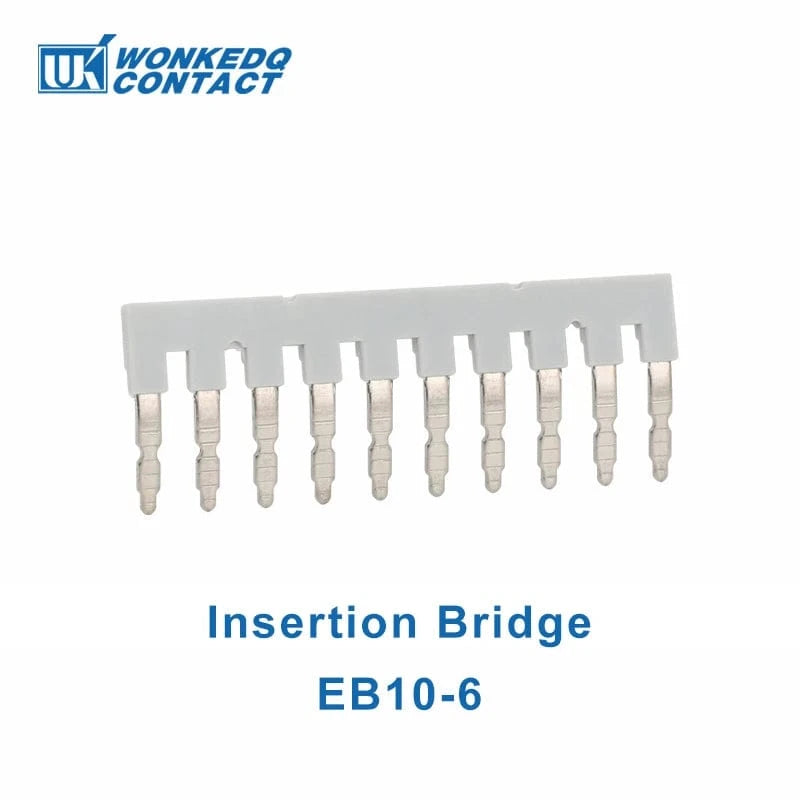

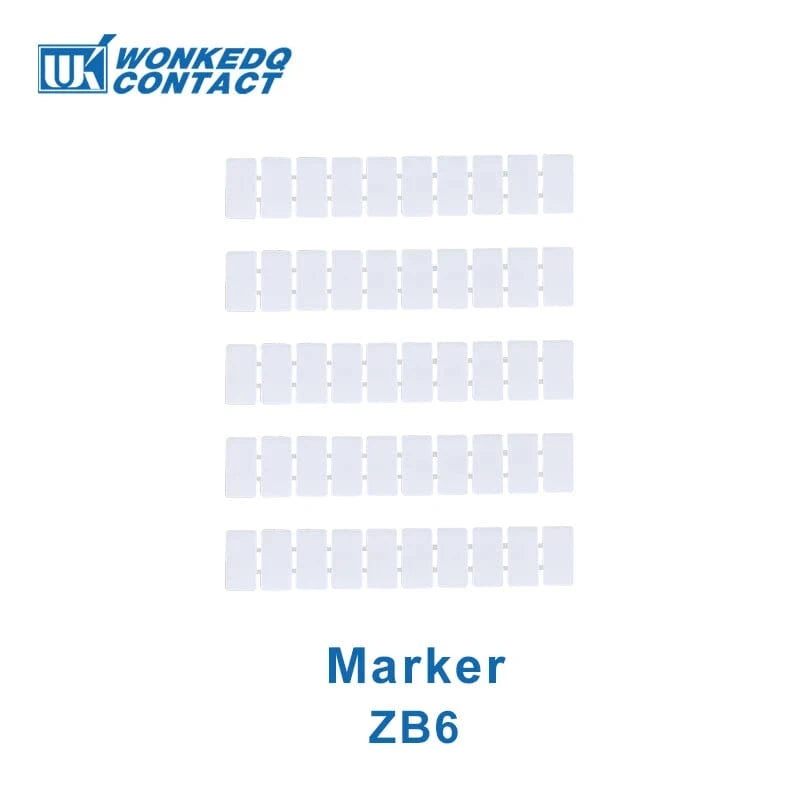

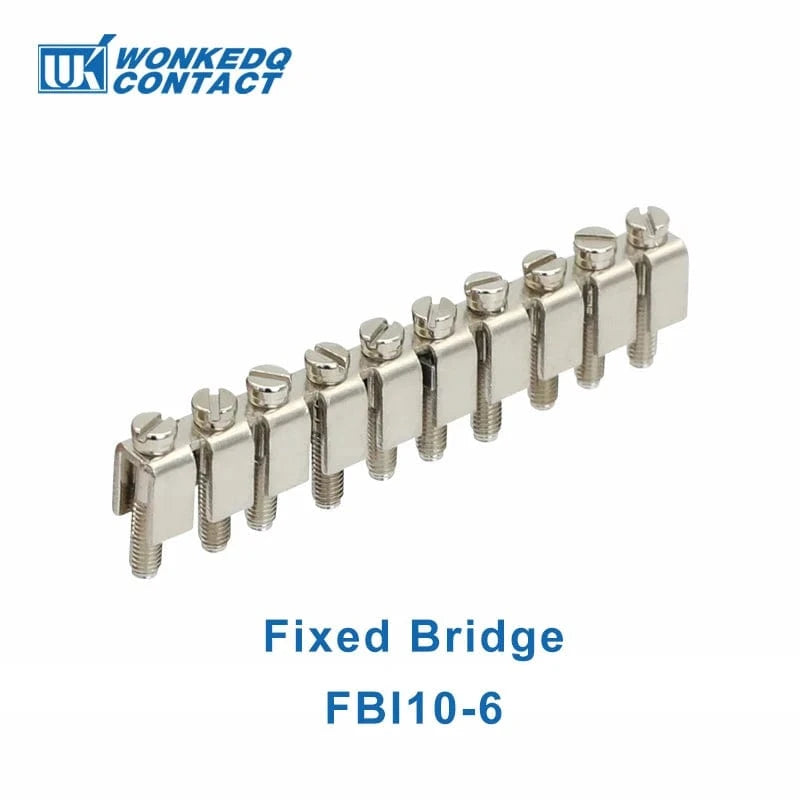

- Accessory Compatibility: Works with insertion bridges, fixed bridges, end covers, and marker systems.
- Available Colors: Grey, Blue, and Orange options for circuit identification.
- Modular System: Compatible with multi-pole bridging accessories for customized terminal assemblies.
- Customized Branding: Logo customization available for OEM and project requirements.
Technical Specifications
| Model Number | DIKD-1.5 |
| Type | Screw Terminal Block |
| Rated Voltage / Current | 250V / 30A |
| Conductor Size | 24–12 AWG |
| Cross-Section (Solid / Stranded) | 0.2–4 mm² / 0.2–2.5 mm² |
| Connection Method | Screw Connection |
| Mounting Type | DIN Rail NS 35 / 7.5 |
| Material | Nylon PA66 (Flame-Retardant) |
| Standard | IEC 60947-7-1 |
| Certifications | CE • RoHS • ISO 9001 • CQC |

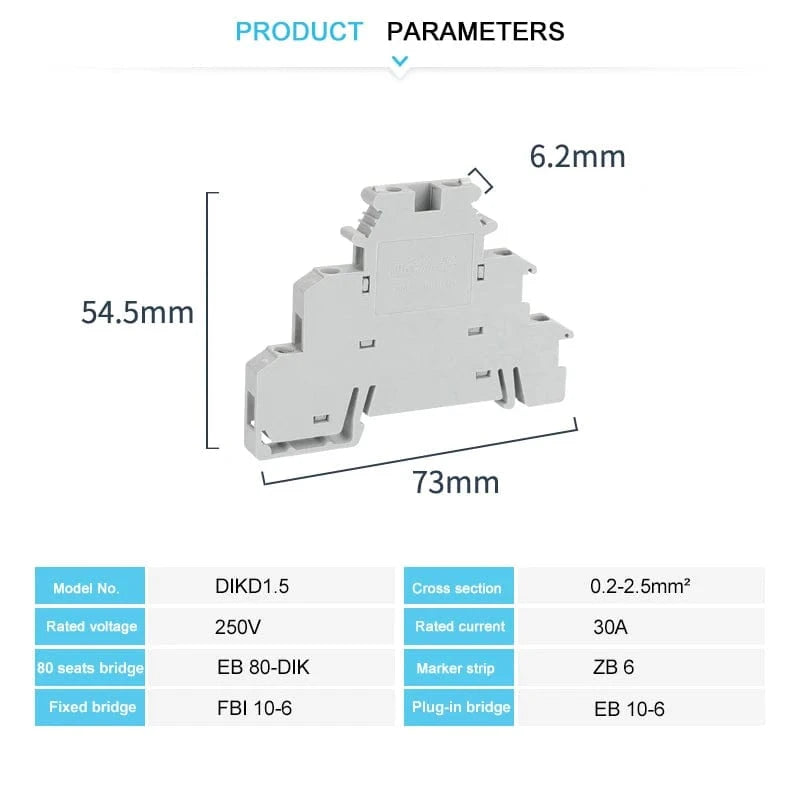

| Dimensions (L × H × W) | 73 × 54.5 × 6.2 mm |
| Weight | 20.5 Screw Terminal Block combines durability, modularity, and certified safety in one compact unit. Engineered for professional installations, it ensures reliable connectivity and ease of maintenance in complex electrical and automation systems. FAQs (Click to Expand)1. What conductor sizes does the DIKD-1.5 terminal block support?It supports wire sizes from 24–12 AWG (0.2–4 mm² solid / 0.2–2.5 mm² stranded). 2. What mounting type does it use?The DIKD-1.5 terminal block mounts securely on DIN Rail NS 35/7.5, the most common standard for industrial control panels. 3. What is the rated current and voltage?It’s rated for 30A at 250V AC, providing robust performance for power and control wiring applications. 4. Is it flame-retardant?Yes. The housing is made from Nylon PA66 with a UL94V-0 flame-retardant rating for enhanced safety. 5. What certifications does it carry?The DIKD-1.5 terminal block is certified to CE, RoHS, ISO 9001, and CQC standards. 6. Are accessories included?Accessories are sold separately but available for purchase, including bridges, markers, and end stoppers compatible with the DIKD series. 7. What color options are available?It’s available in grey, blue, and orange for circuit identification and aesthetic organization. 8. Can this terminal block be customized?Yes. Custom logos and configurations are available for OEM or project-specific requirements. 9. What international standard does it meet?It complies with the IEC 60947-7-1 standard for low-voltage terminal blocks. 10. How many contacts does it support?The DIKD-1.5 can be configured with 1–10 contacts depending on system layout and modular assembly requirements. Why Choose Conversions TechConversions Tech manufactures professional-grade electrical and automation components that meet international standards for quality, reliability, and safety. Our terminal blocks and accessories are engineered to simplify installation, ensure long-lasting connectivity, and deliver dependable performance in industrial environments. |
