12V Blade Fuse 6 Circuit ATC/ATO Waterproof Fuse Box Holder 6 Way Fuse Block with LED Indicator for 12V/24V Automotive
Shipping calculated at checkout
SKU: 208844449:5557472#48 V;209018456:-2#100A
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

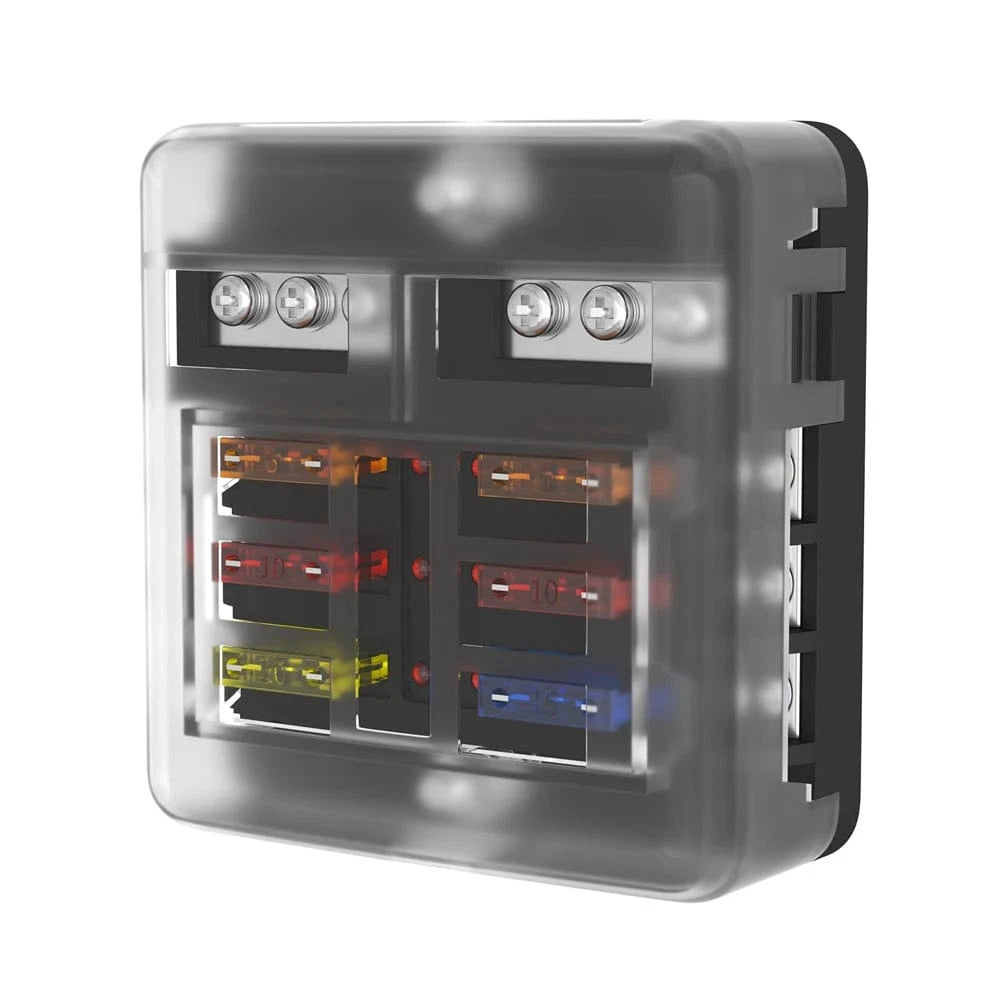

Conversions Tech 6-Way Blade Fuse Block with LED Indicator — 12V–36V, 100A Rated
The Conversions Tech 6-Way Blade Fuse Block (Model FB-1713) is designed for clean, organized, and safe power distribution across automotive, marine, and off-grid applications. Supporting both 12V and 24V systems, this fuse box accommodates standard ATO/ATC blade fuses and includes built-in LED indicators for quick fault detection. Constructed from flame-retardant PBT thermoplastic and equipped with a ground bus, it offers high reliability and convenience for professional and DIY electrical setups.
Key Features

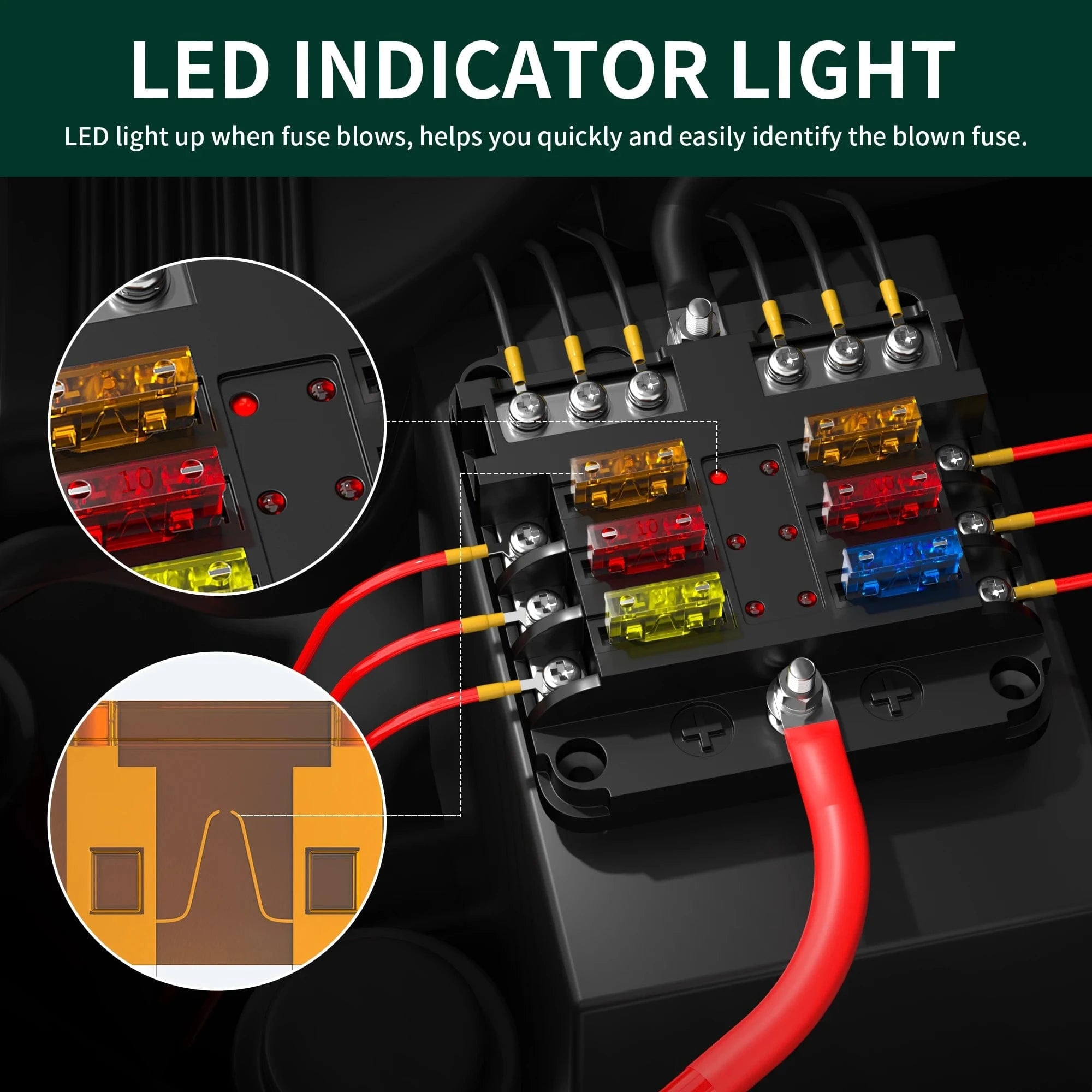

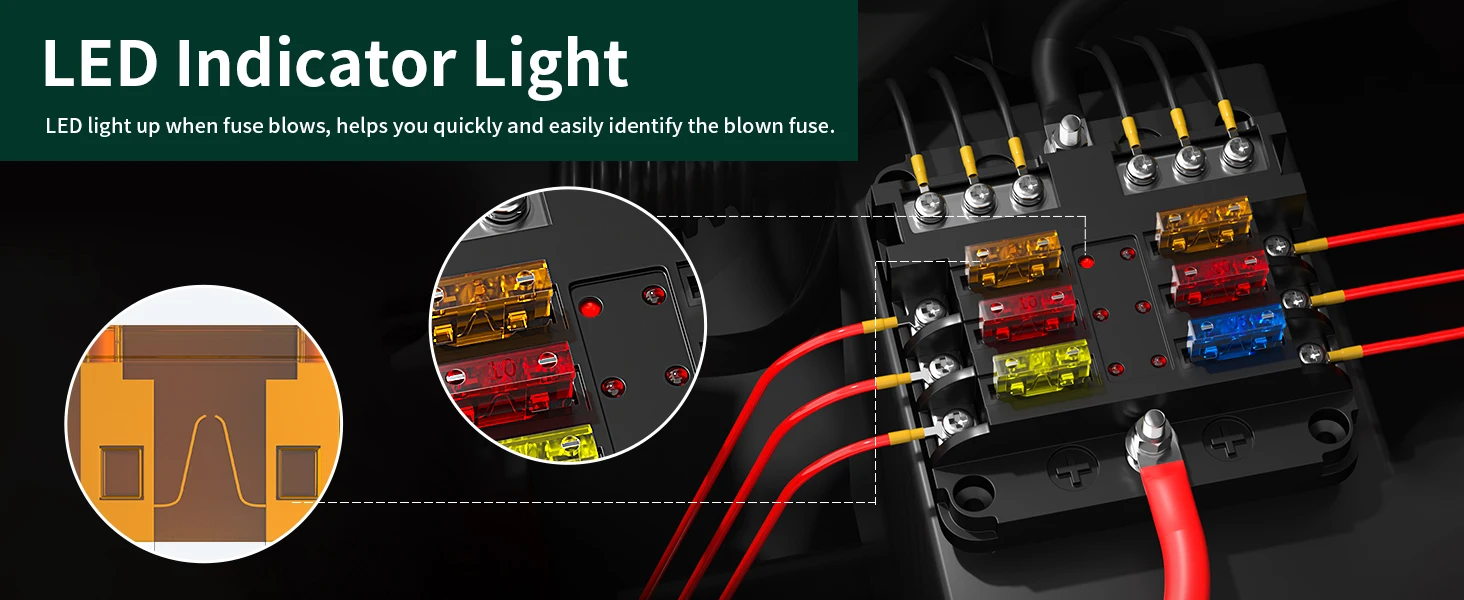

- LED Safety Indicator: Integrated red LED lights instantly alert you when a fuse is blown, making troubleshooting fast and simple.
- Safe & Durable Materials: Made of environmentally friendly PBT (polybutylene terephthalate) — offering high heat resistance, insulation, and flame retardancy.

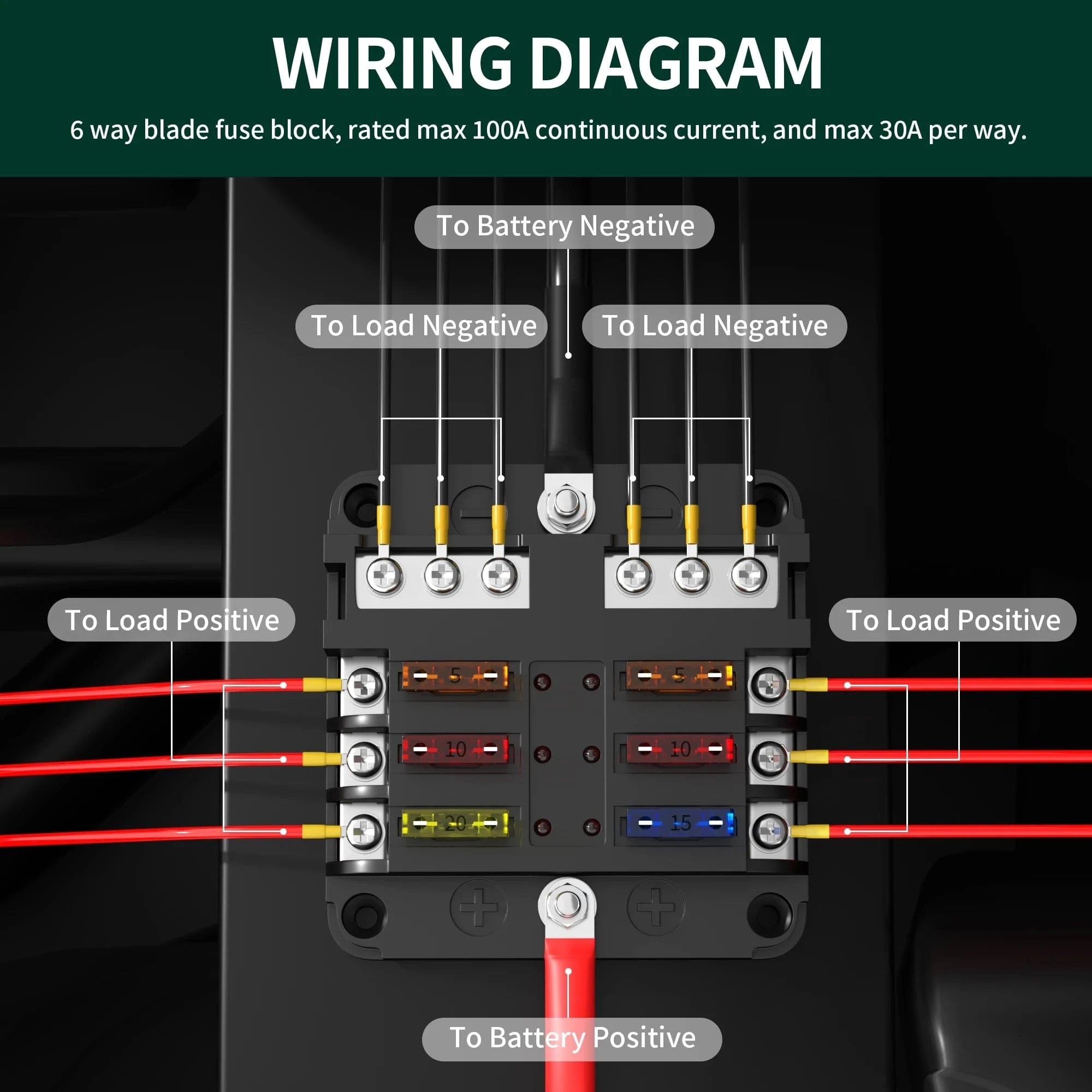

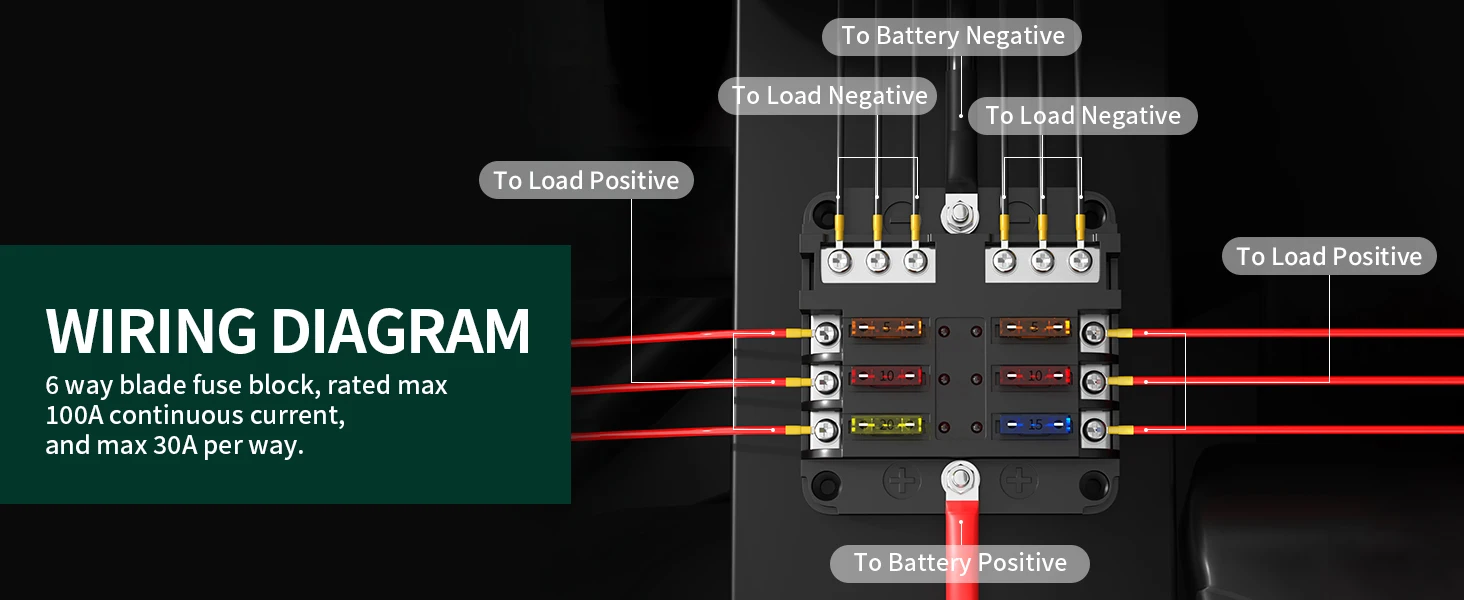

- Clean Wiring Layout: Includes 6 fused circuits and 6 ground terminals to keep wiring organized and accessible.
- Optimal Power Capacity: Rated at 100A total capacity (30A per circuit) to protect multiple devices simultaneously.
- Free Blade Fuses Included: Comes with a full set of 20A, 15A, 10A, and 5A fuses for immediate use.
- Excellent Conductivity: Internal components made from nickel-plated copper for low resistance and long-lasting performance.
- Universal Mounting: Compact, rectangular design fits cars, boats, RVs, trucks, and off-grid solar systems.
- Water-Resistant Construction: Protective housing shields circuits from dust, moisture, and vibration.
- CE & RoHS Certified: Meets international safety and environmental standards.
- OEM Available: Custom labeling and branding available for large orders.

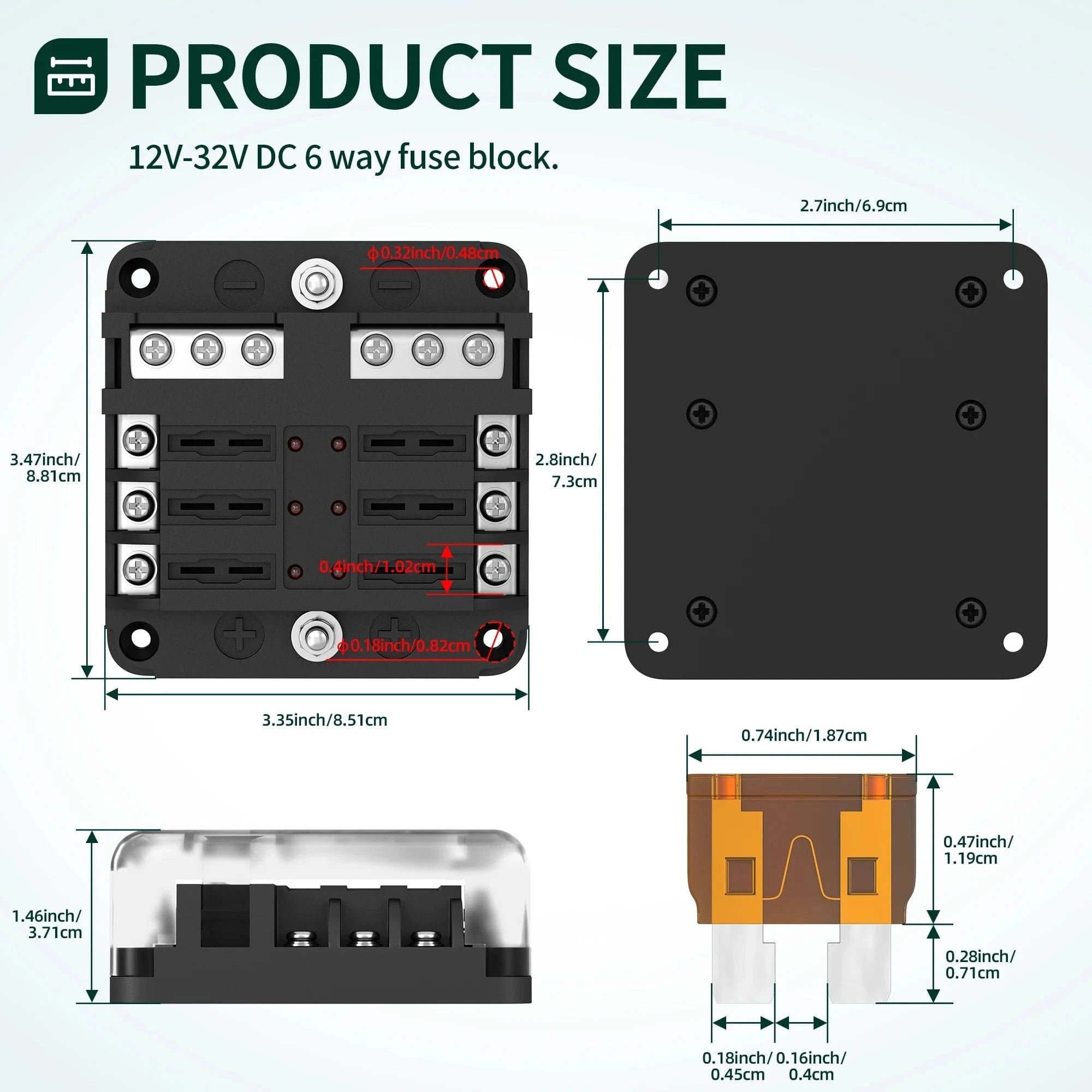

Technical Specifications
| Model Number | FB-1713 |
| Type | 6-Way Blade Fuse Block |
| Fuse Type | ATO / ATC Blade Fuse |
| Rated Voltage | 12V – 36V DC |
| Rated Current | 100A Total (30A per Circuit) |
| Material | PBT Plastic Housing, Copper Alloy Terminals |
| Indicator Type | LED Light for Blown Fuse Detection |
| Number of Poles | 6 Circuits + 6 Ground Points |
| Mounting Style | Surface Mount, Screw Installation |
| Certifications | CE • RoHS |
| Operating Temperature | -20°C to 85°C (-4°F to 185°F) |
| Place of Origin | China |

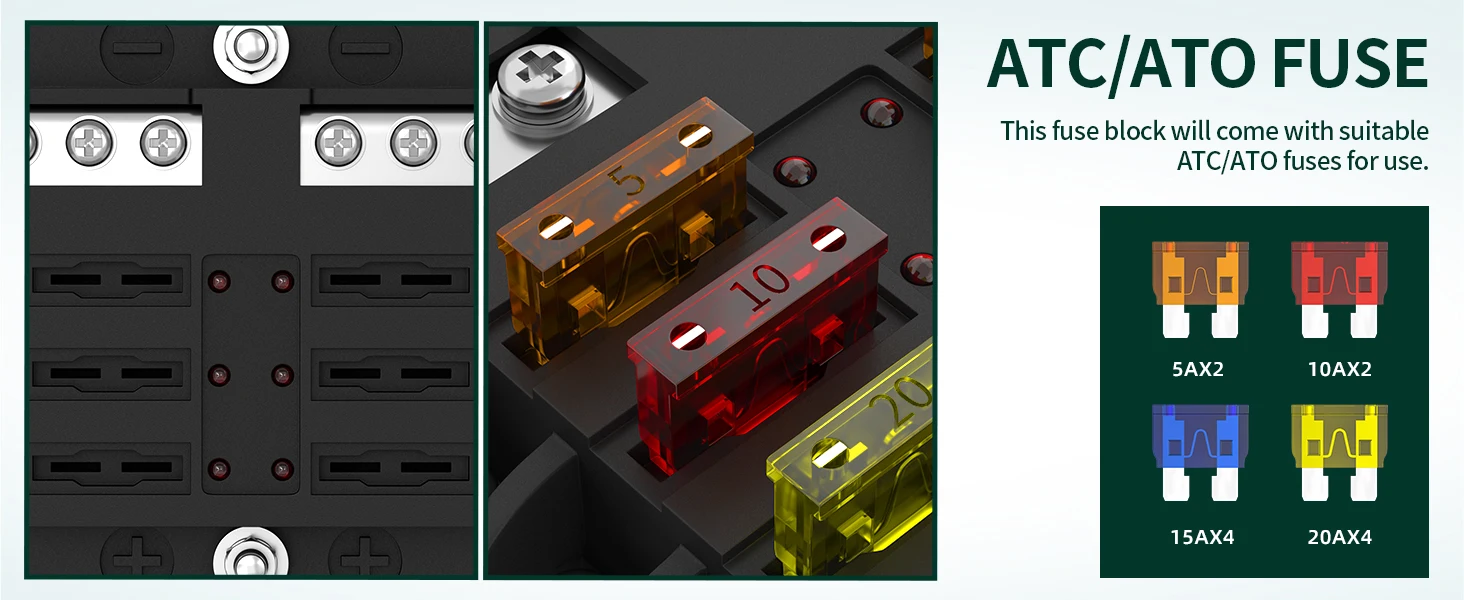

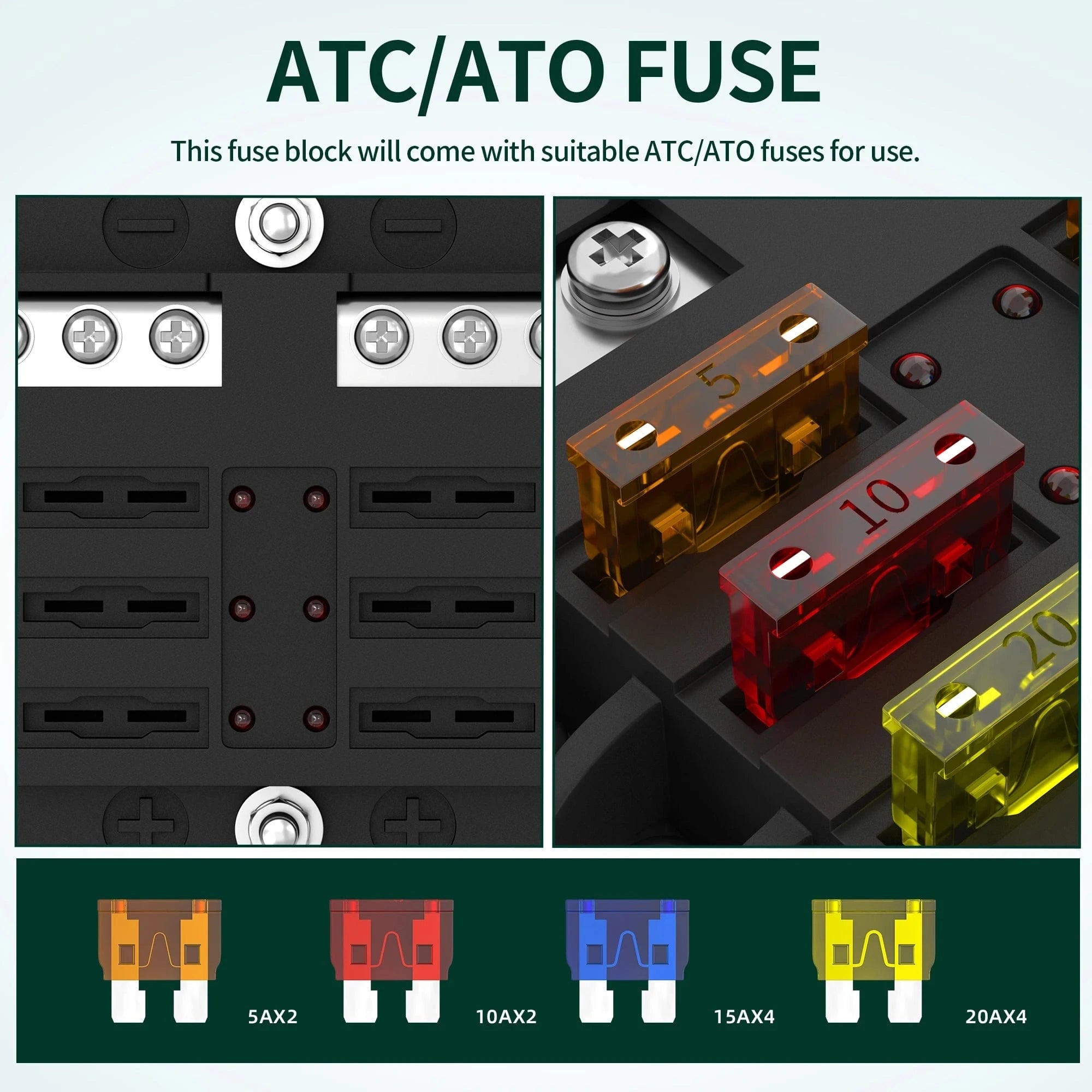

Package Includes
- 1 × 6-Way Fuse Block with LED Indicators
- 4 × 20A Fuses
- 4 × 15A Fuses
- 2 × 10A Fuses
- 2 × 5A Fuses

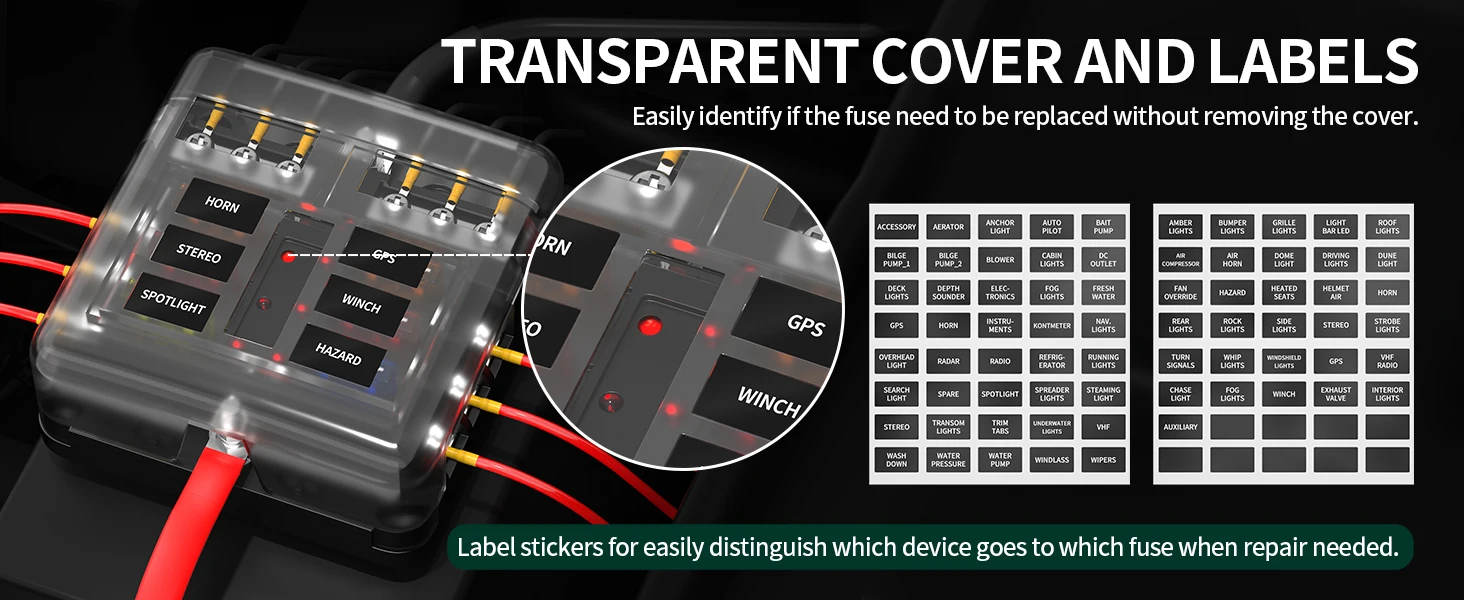

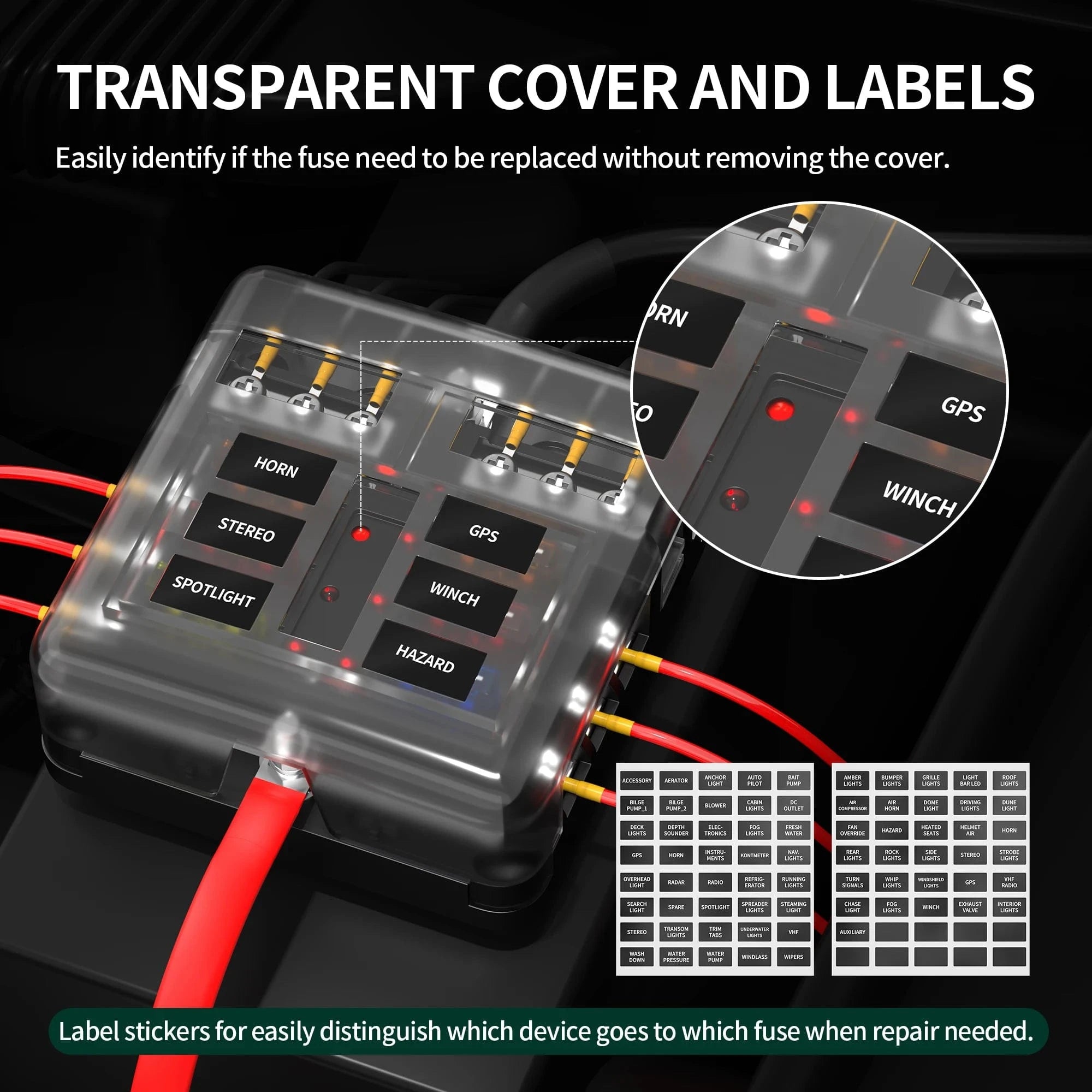

- 2 × Labels
- 4 × Mounting Screws
Applications
- Automotive and truck electrical systems
- Marine boats and yachts
- RVs and campers
- Solar power and off-grid systems
- Motorcycles, ATVs, and 12V accessories
The Conversions Tech 6-Way Blade Fuse Block is the ideal choice for safe, organized, and efficient circuit protection. With LED indicators, superior materials, and a compact layout, it keeps your wiring neat and your power system running safely and reliably.
FAQs (Click to Expand)
1. What type of fuses does this block use?
It uses standard ATO/ATC blade fuses (automotive-style flat fuses), which are easily replaceable and widely available.
2. Does the LED indicator light up when a fuse blows?
Yes. The red LED indicator illuminates next to the blown fuse, helping you quickly identify and replace the faulty circuit.
3. What materials is the fuse block made from?
It’s built from PBT flame-retardant plastic with copper alloy terminals for maximum safety and conductivity.
4. How many circuits does it support?
This fuse block supports 6 fused circuits plus 6 ground terminals for clean and organized wiring.
5. Is it waterproof?
It’s designed to be water-resistant and durable for automotive and marine environments, but it should be installed in a protected location.
6. What voltage range is supported?
Compatible with 12V and 24V DC systems, and can operate up to 36V DC for specific applications.
7. Can I install this in my RV or boat?
Yes. It’s ideal for RVs, boats, trucks, and off-grid setups where safe circuit distribution is required.
8. What is the total and per-circuit amperage rating?
The fuse block is rated at 100 amps total and 30 amps per circuit.
9. Are fuses included in the package?
Yes. The kit includes a complete set of 20A, 15A, 10A, and 5A fuses to get you started immediately.
10. Why choose Conversions Tech fuse blocks?
Conversions Tech fuse blocks are engineered with high-quality materials, precision construction, and built-in safety features like LED fault indication, providing superior reliability in every installation.
