Wire Ferrule Kit | 166/305 Pc, Silver-Plated Copper, 8 Sizes
Shipping calculated at checkout
SKU: 14:771#305pcs;200007763:201336100
Only 6 in stock
Open here
Silver-Plated Copper Wire Ferrule Kit — 8 Sizes, Boxed
Insulated bootlace ferrules (cord-end terminals) in a compartmented case — the correct way to terminate fine-stranded wire in screw and lever terminals. The ferrule sleeve captures every strand, prevents flare-out and stray-strand shorts, and gives the terminal screw a solid, gas-tight land per IEC 60228 Class 5/6 practice.

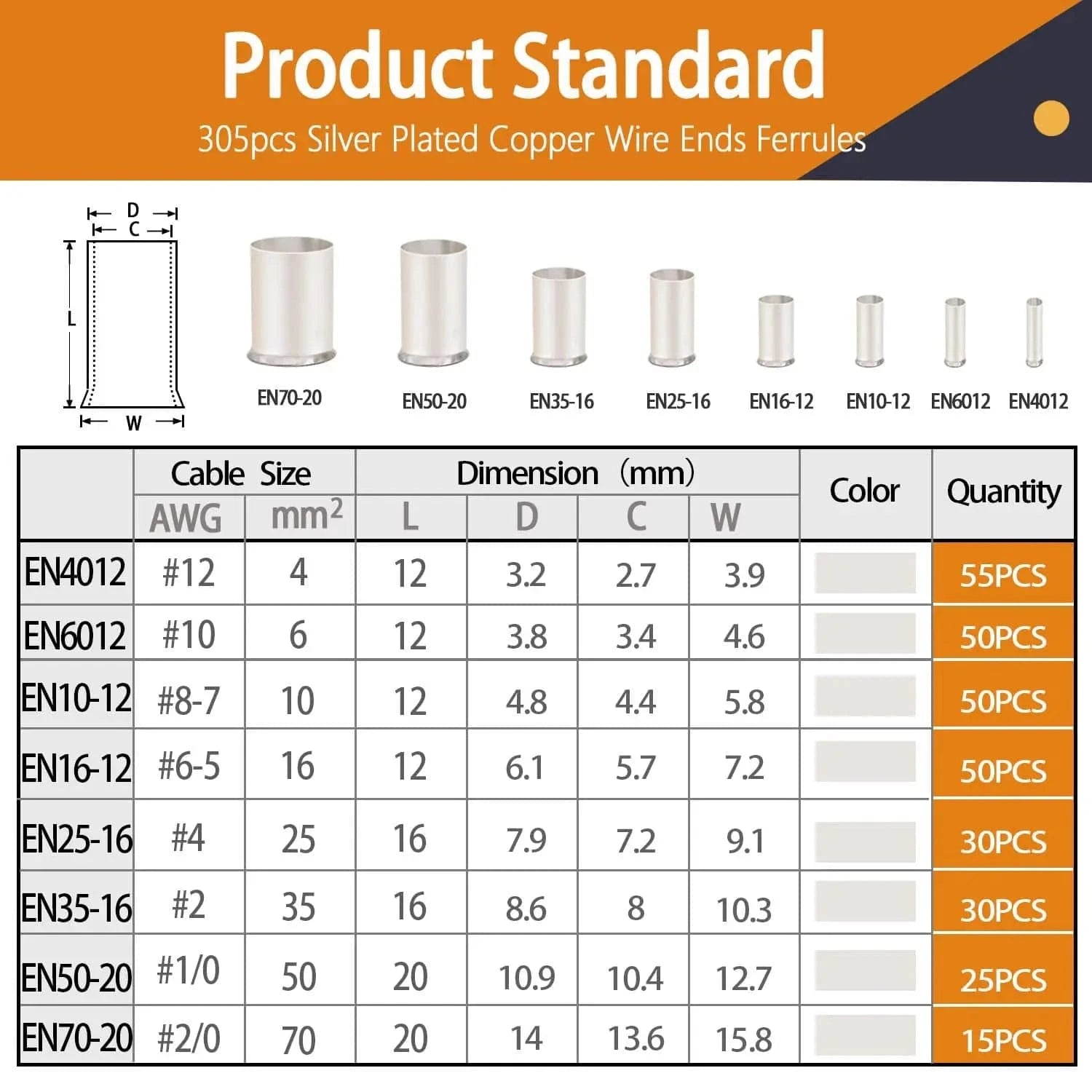

- 8 color-coded sizes covering typical control-panel range (AWG ~22–10), insulated entry funnels for fast insertion

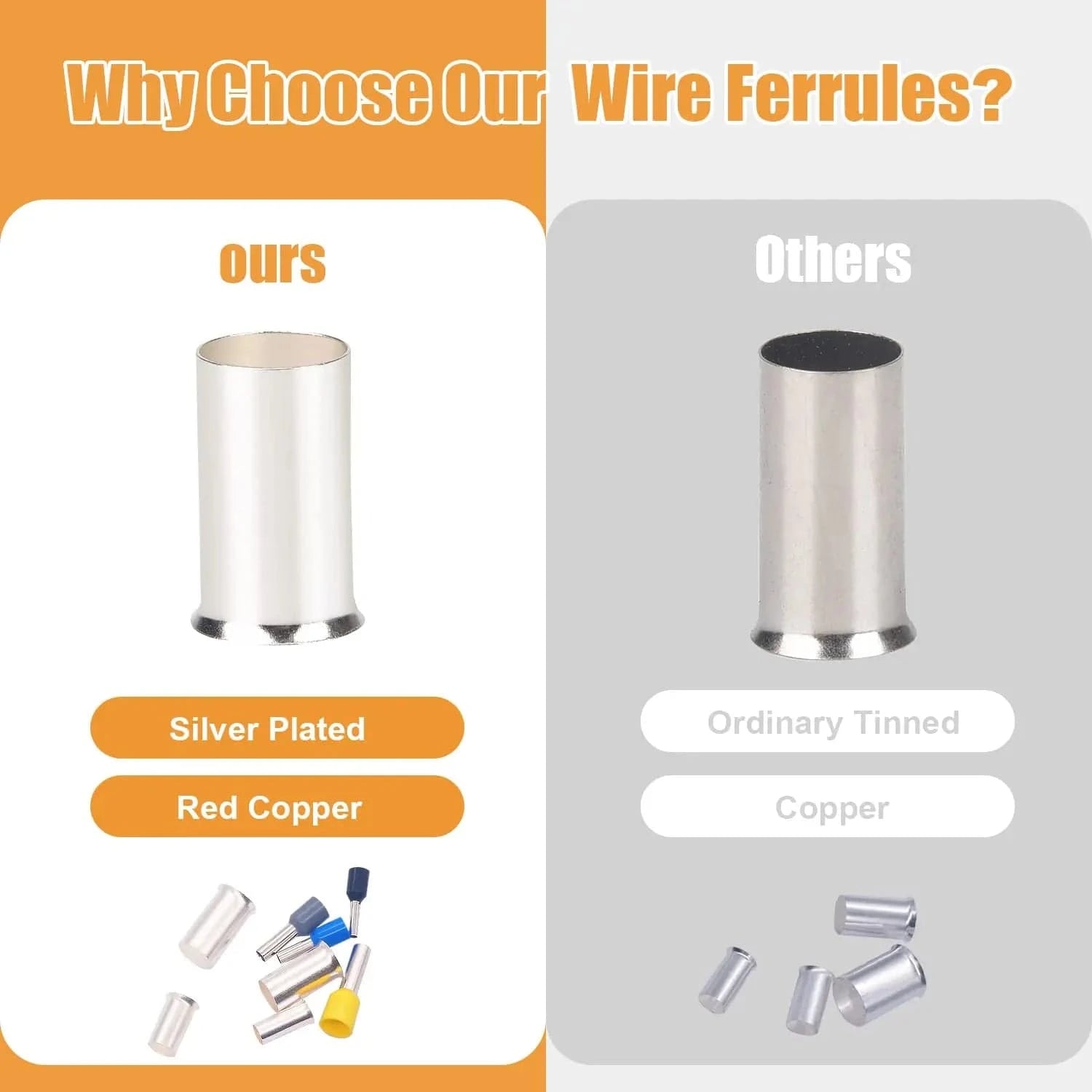

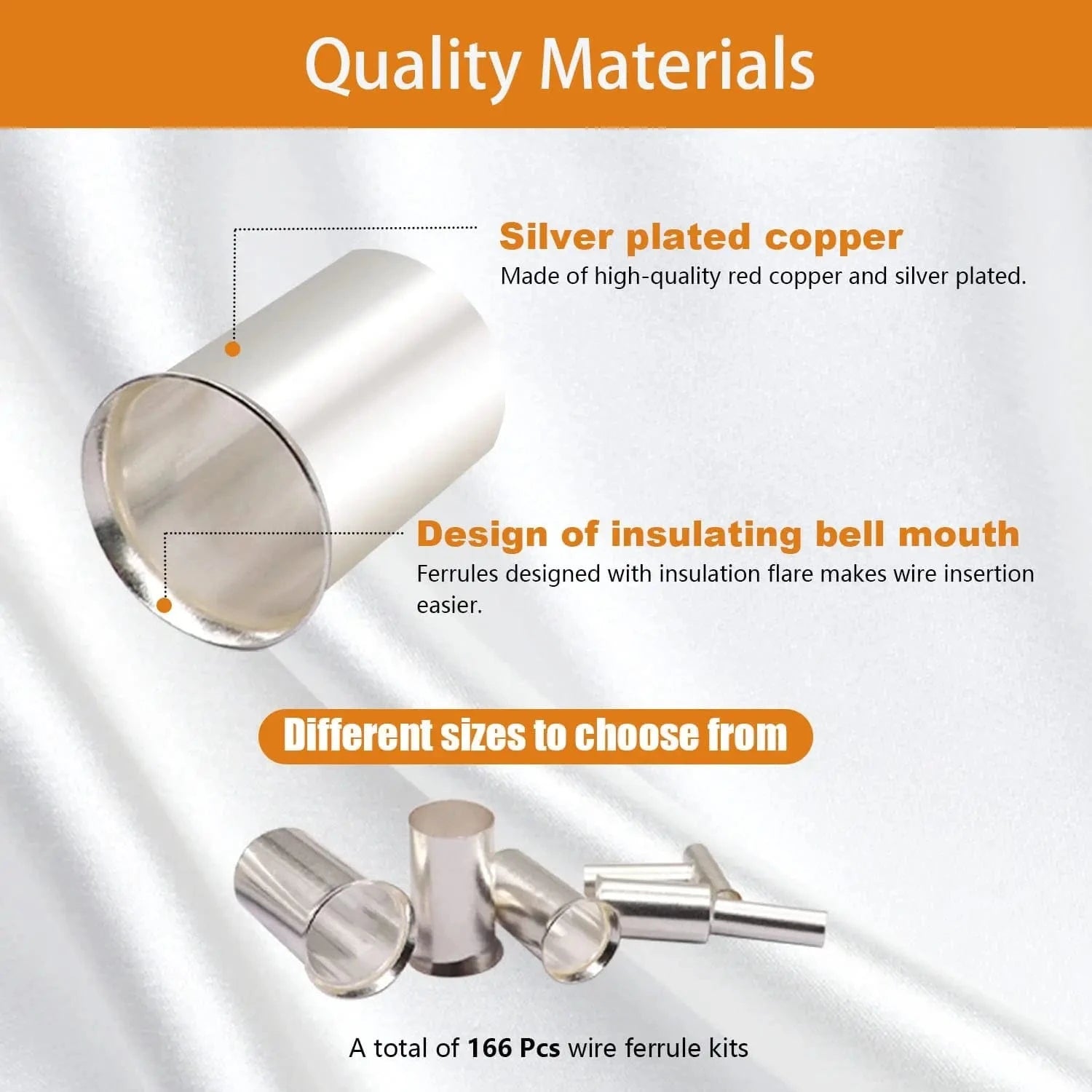

- Silver-plated copper sleeves — low contact resistance, corrosion resistant

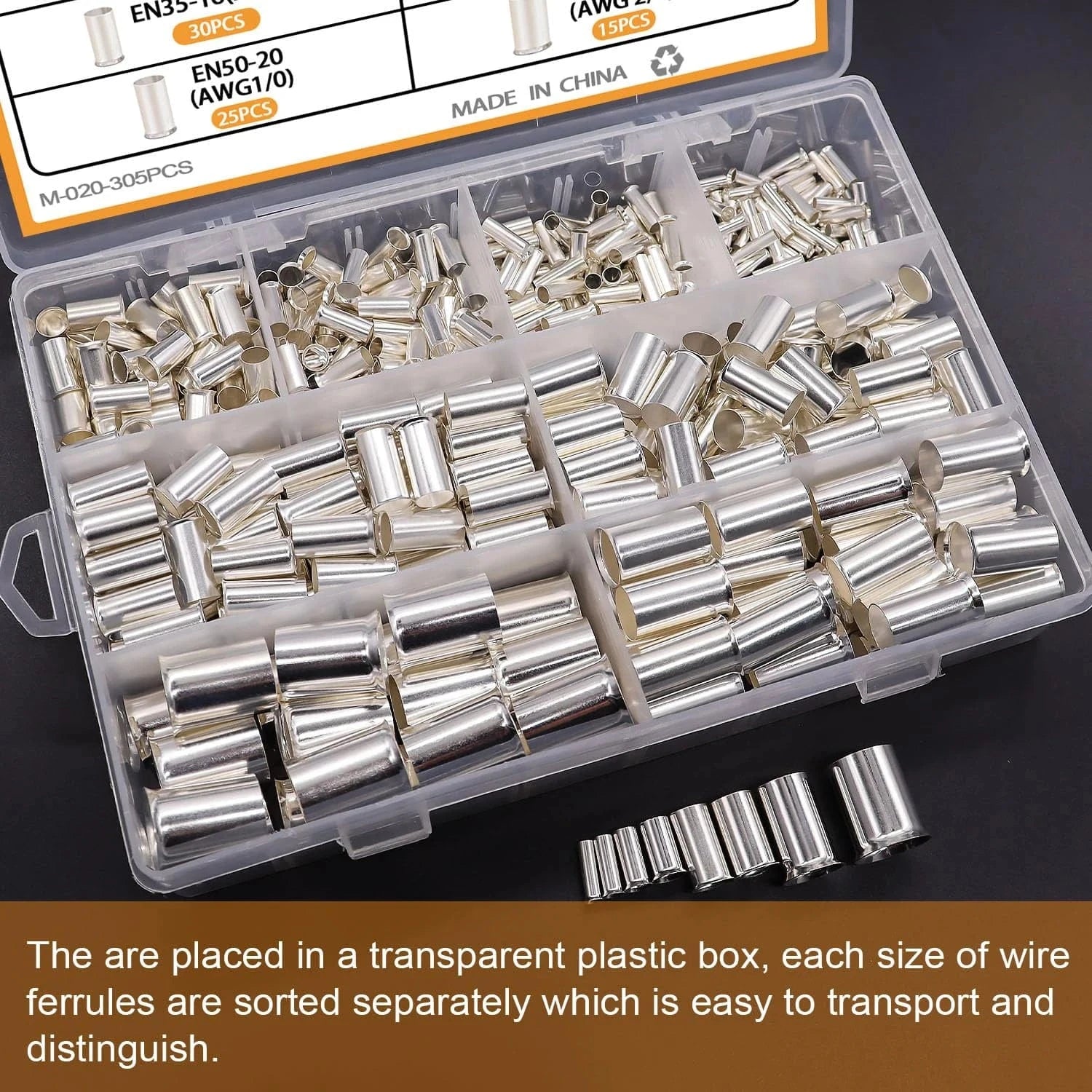

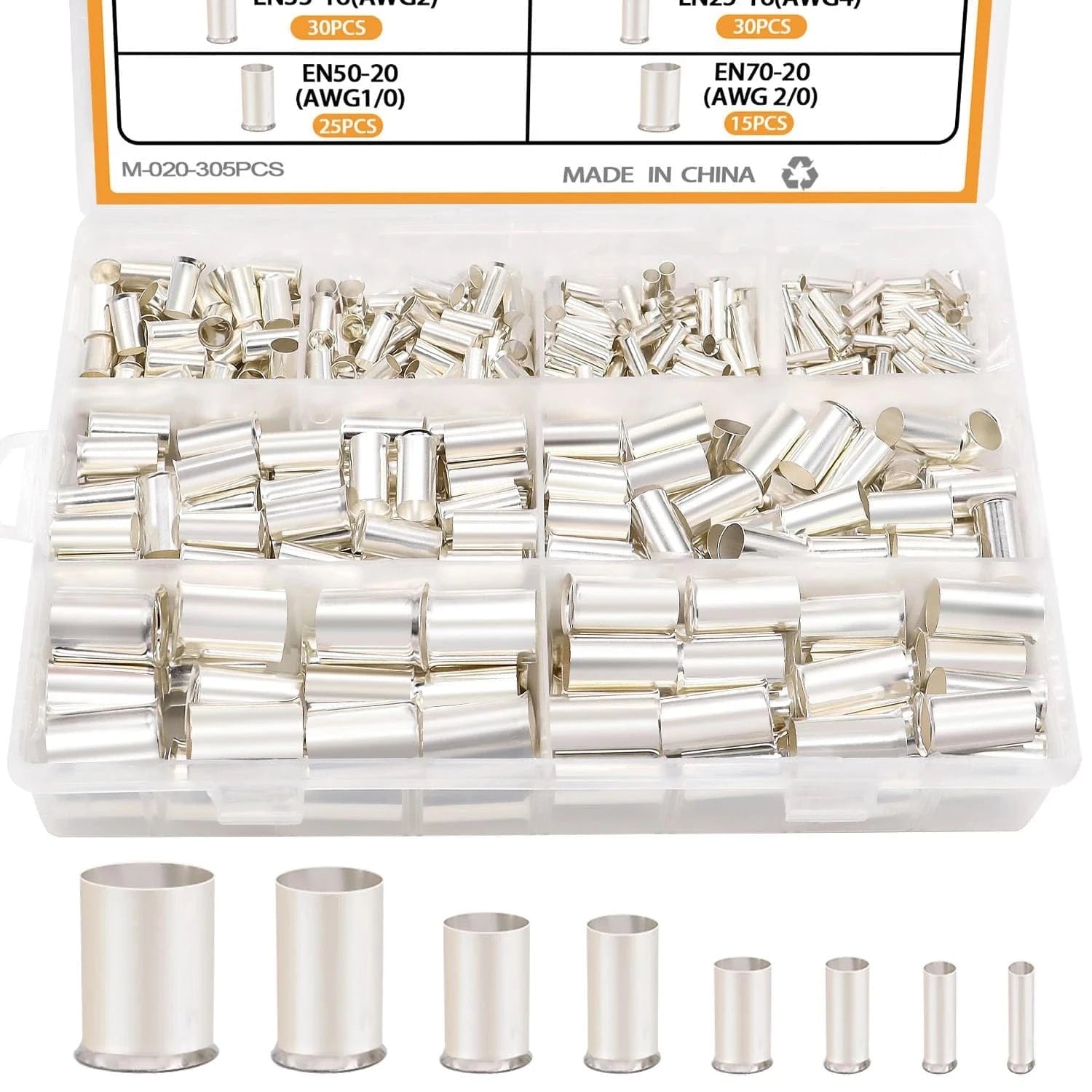

- 166-pc and 305-pc kits — assorted counts weighted toward the sizes panels actually use
- Pairs with our ferrule/hex crimpers — see the crimping tool collection for the matching tool

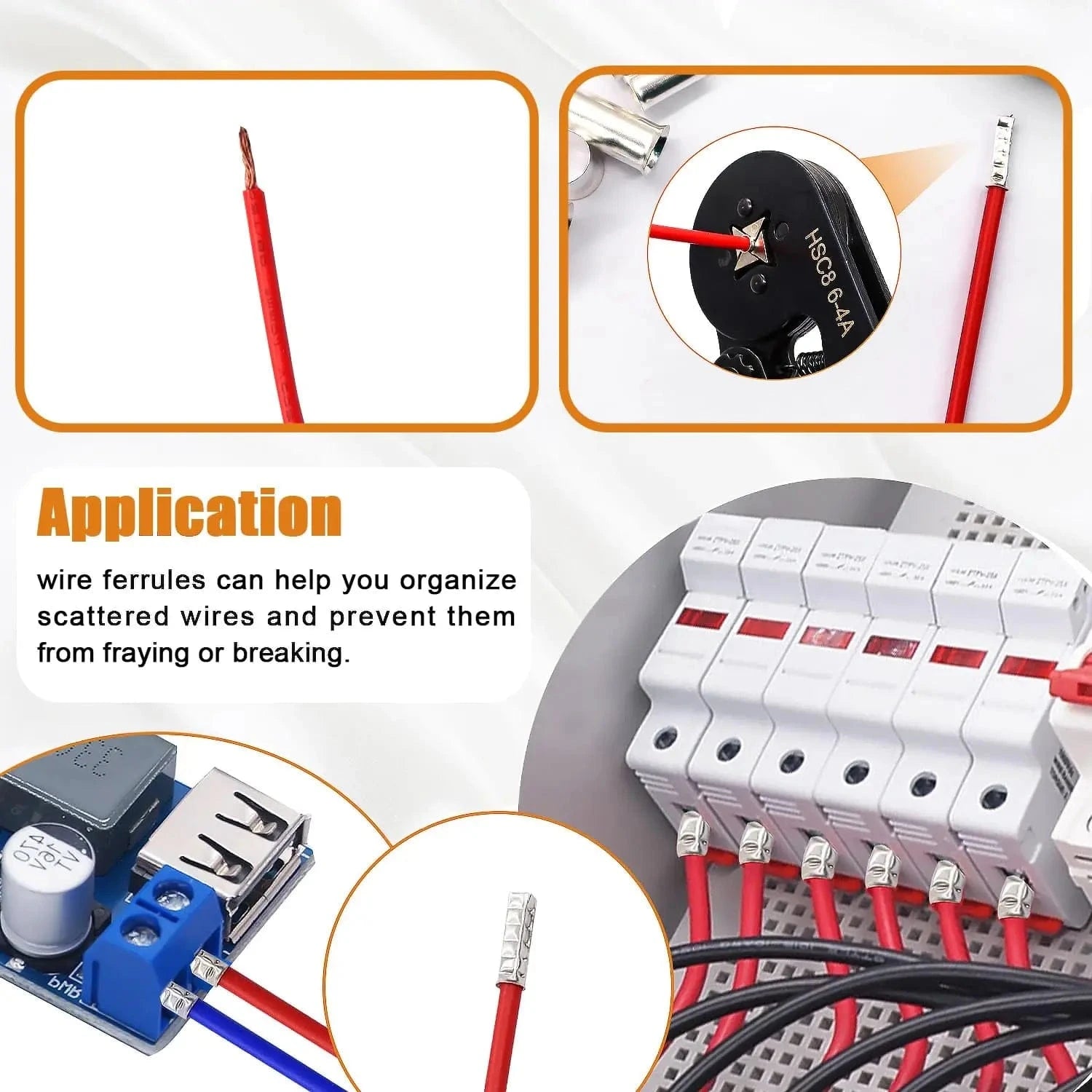

Typical duties: VFD and PLC control panels, inverter and solar charge-controller terminals, machine wiring, and any lever-nut or terminal-block landing on stranded conductor.
