1PCS ANM-H3 MEGA Auto Fuse Holder/ANM Bolt-on blade fuse holder Flat Type Fuse 30A50A 60A 70A 80A 100A 125A 175A 200A 225A -500A
Shipping calculated at checkout
SKU: 1234:203104824#30A;14:350686#1PCS Fuse
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

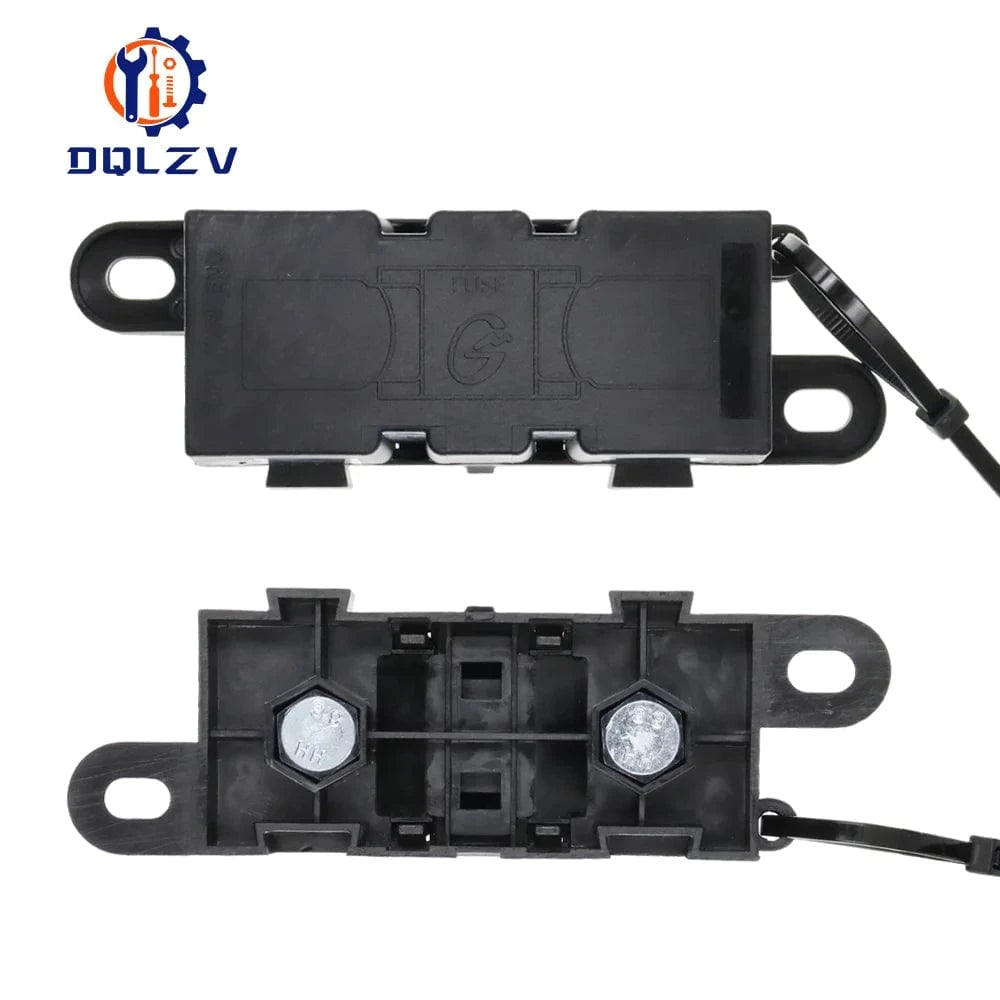

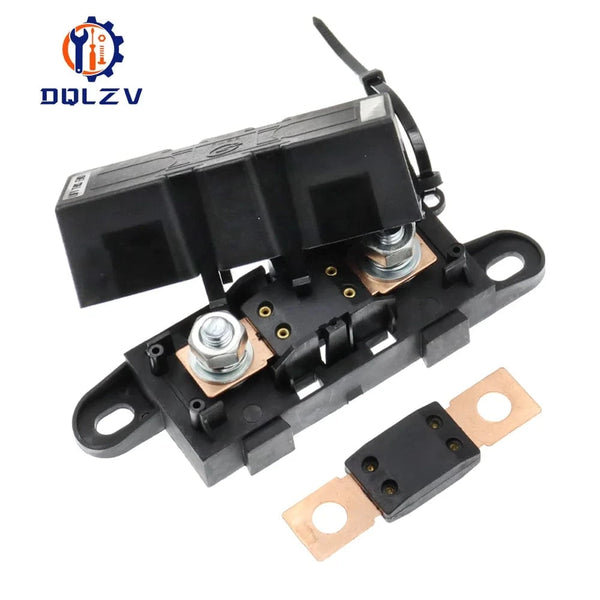

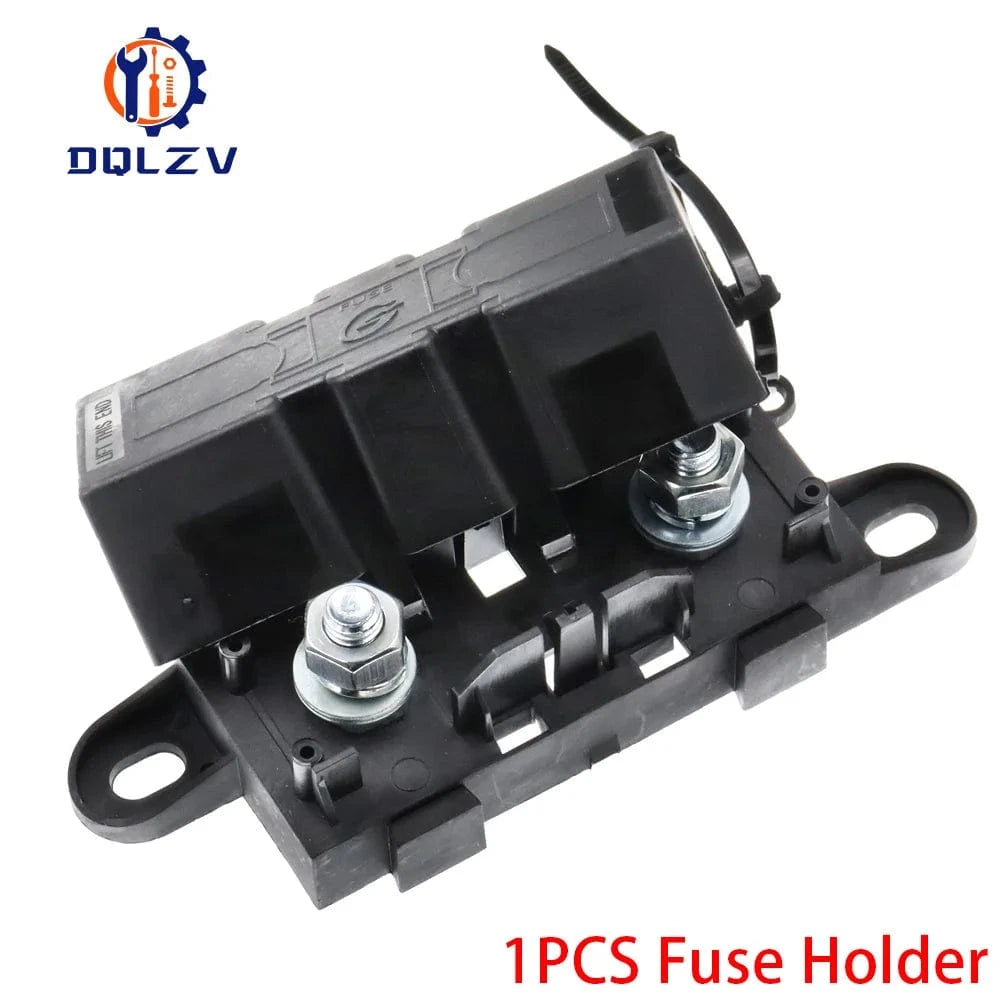

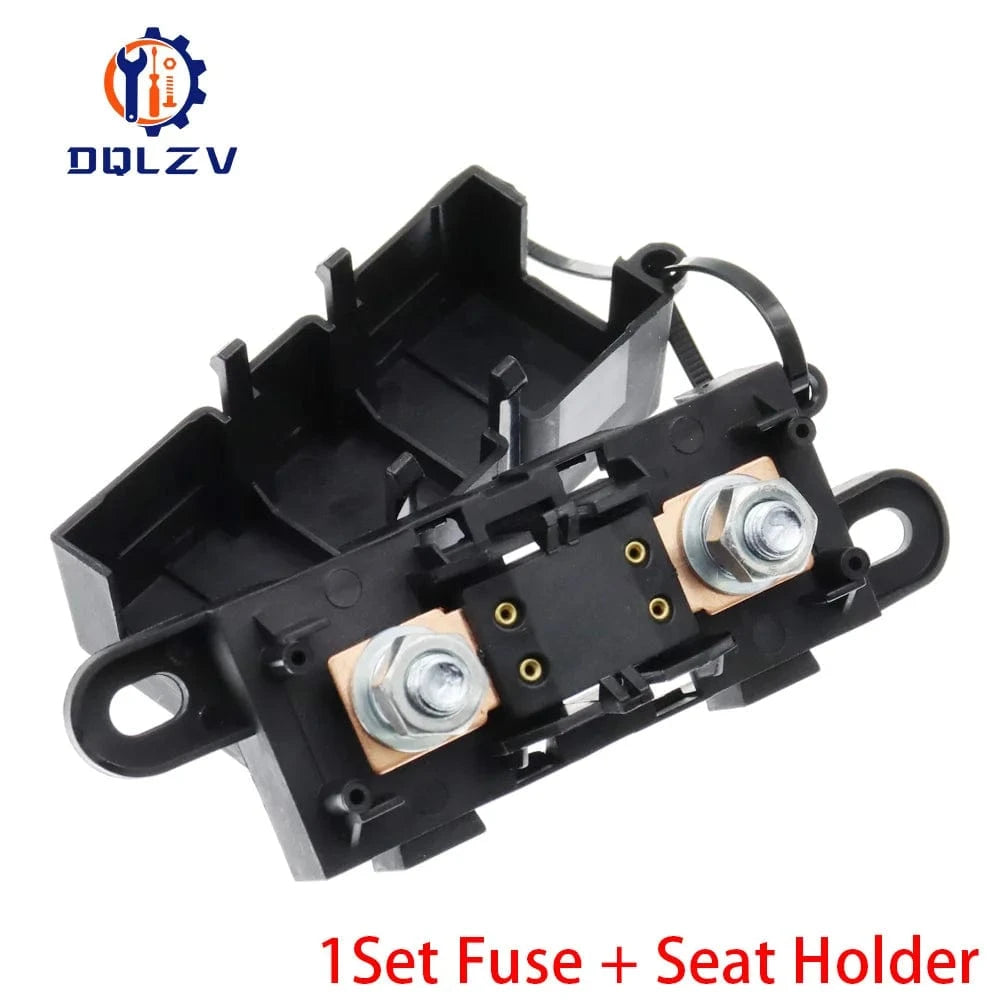

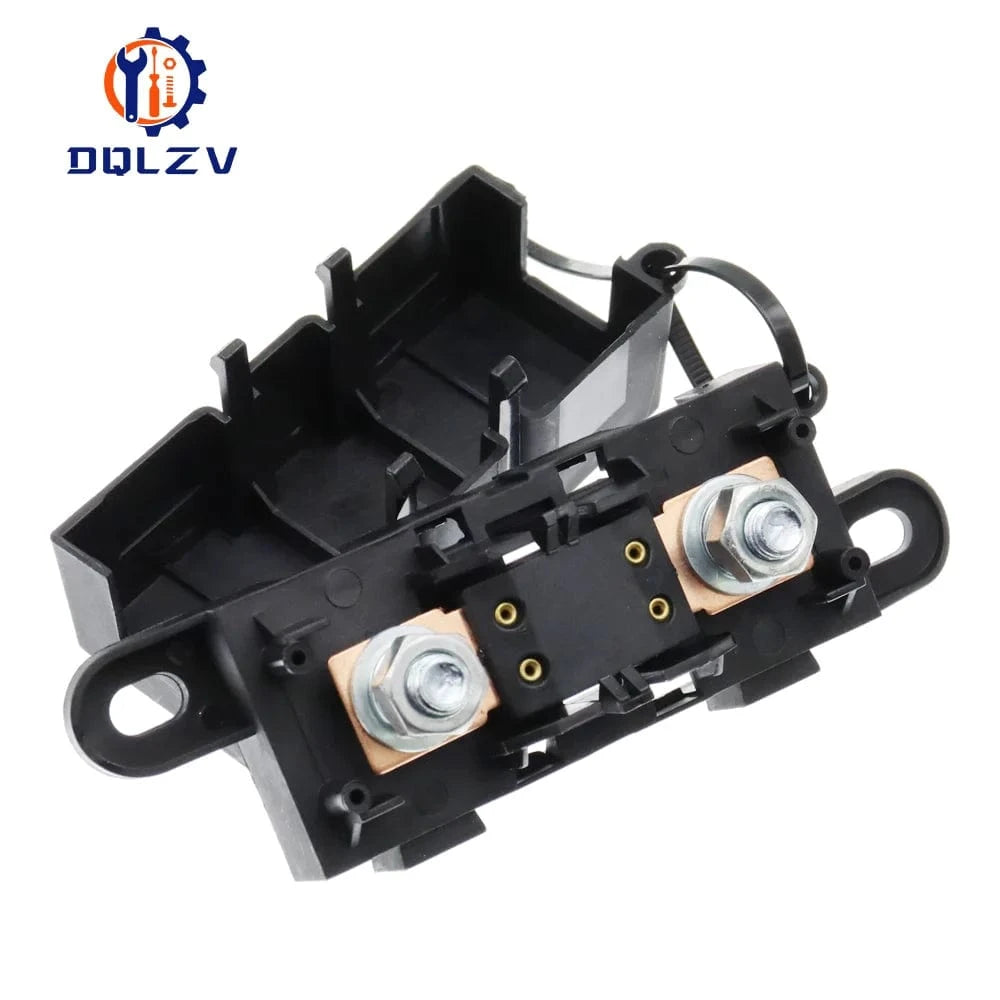

ANM-H3 / MEGA Bolt-Down Automotive Fuse Holder (32V, up to 500A)
Heavy-duty bolt-down holder for MEGA/ANM flat fuses. Copper conductors, M8 studs, and 5 Nm specified clamp torque for low impedance connections in 12/24/32V DC systems (car audio, auxiliary battery, inverters, winches, upfitting).
- 32V DC
- 50–500A support
- M8 threaded studs
- 5 Nm clamp torque
- Copper conductors
- CE / RoHS
- IEC safety principles

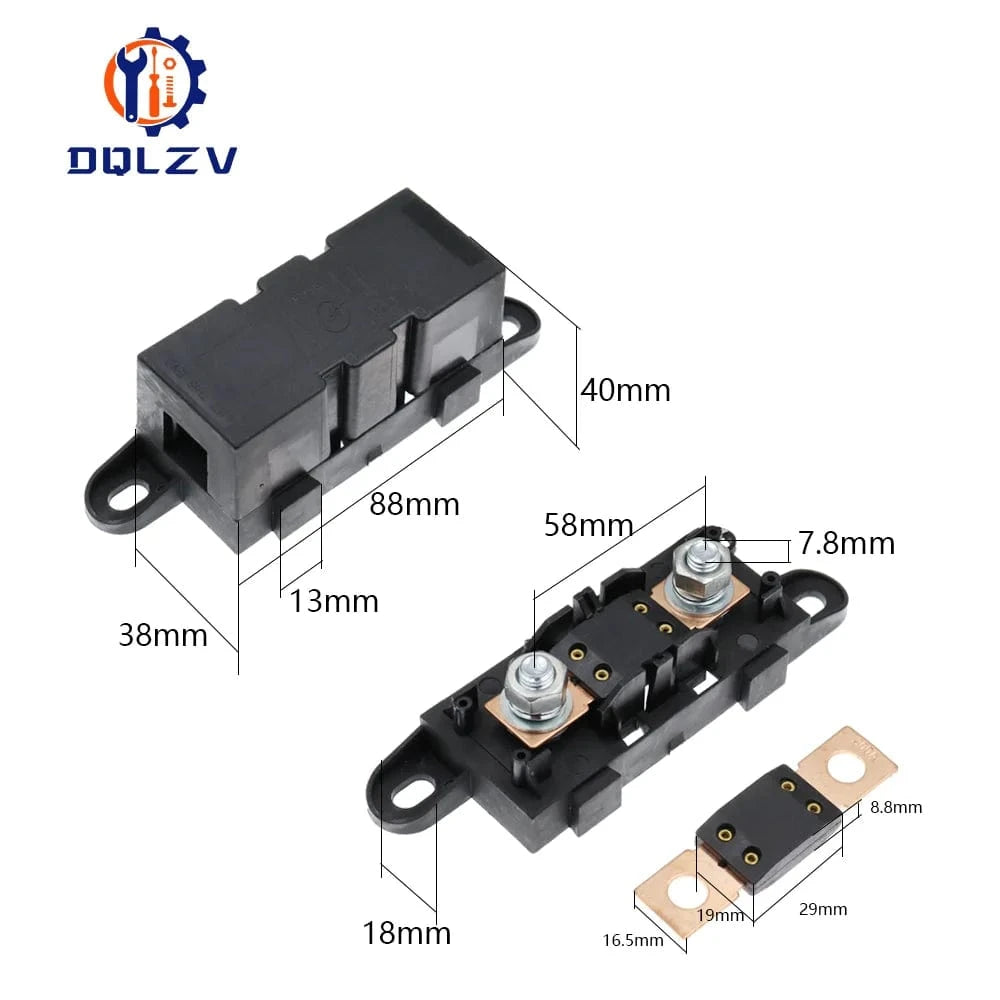

Technical Specifications
| Form Factor | ANM-H3 / MEGA-style flat, bolt-down fuse holder |
|---|---|
| Voltage Rating | 32 V DC |
| Supported Fuse Ratings | 50A, 60A, 70A, 80A, 100A, 125A, 150A, 175A, 200A, 225A, 250A, 300A, 350A, 400A, 450A, 500A |
| Breaking Capacity | Low (application-dependent; follow OEM fault studies) |
| Stud Size | M8 threaded studs (both poles) |
| Recommended Mounting Torque | 5 Nm (stud clamp torque) |
| Conductor Material | High-conductivity copper |
| Body / Insert | Round-hole, large flat insert for MEGA/ANM blades |
| Use Case | Automotive 12/24/32V DC: car audio, auxiliary battery, winch, inverter, DC-DC chargers, distribution |
| Compliance | CE, RoHS; designed to IEC safety principles for low-voltage DC |
| High-Concern Chemicals | None declared |
| Origin | Mainland China |
| Model | ANM-H3 (Round hole with large flat insert) |
Applications
- Car audio main power feeds & distribution blocks
- Auxiliary battery banks & DC-DC charging
- Inverters & high-current accessories
- Winches & recovery systems
- Upfitting / emergency lighting
- Marine & RV low-voltage DC circuits
Selection note: Size the fuse to cable ampacity and equipment inrush. Verify available fault current and ensure the chosen fuse curve is appropriate for the application.
Configure & Quote | Request Sample
FAQs
Which fuse formats fit this holder?
What system voltage is supported?
What torque should I use on the studs?
Is the holder high-interrupt rated?
What materials are used for the current path?
Can I use this for car audio amplifiers and sub systems?
How do I choose the fuse amp rating?
What ring lug size do I need?
Does it include a protective cover?
Where should I mount the holder?
Is it suitable for marine or RV use?
What’s the maximum fuse rating?
Are ANL/AML fuses compatible?
Is it CE and RoHS compliant?
Do you offer bulk/wholesale or OEM customization?
What tools do I need for installation?
How can I minimize voltage drop at high current?
Can I mount it in the engine bay?
Do you supply matching MEGA/ANM fuses?
How do I protect exposed terminals?
Is it suitable as a lithium battery main fuse holder?
What maintenance is recommended?
