2 PIN Electrical Wire Tinned Copper PVC Insulated Red Black Cable For Single Color LED Strip Light Extension Wire 18/26/28 AWG
Shipping calculated at checkout
SKU: 14:771#red black;183:131861448#16AWG;380:201441007#100m-328ft
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
2-Pin LED Extension Wire Cable (16–28 AWG) | Tinned Copper + PVC | 80°C 300V | Conversions Tech
The Conversions Tech 2-Pin LED Extension Wire is a purpose-built low-voltage interconnect cable engineered for LED lighting systems, power distribution, and device-to-device extension runs where clean polarity, stable conductivity, and reliable insulation performance are essential. Built with tinned copper conductors and a durable PVC insulation jacket, this cable is optimized for consistent electrical continuity, corrosion resistance, and easy termination in lighting, control, and auxiliary power applications.
Offered in multiple AWG options from 16 AWG through 28 AWG and configurable lengths ranging from short jumpers to long runs, this 2-conductor cable is ideal for LED strips, LED modules, accent lighting, signage lighting, and general low-voltage wiring where a compact, dependable two-wire solution is required.
Key Features & Technical Advantages
- 2-Conductor / 2-Pin Wiring: Designed for polarity-sensitive LED circuits and low-voltage DC distribution.

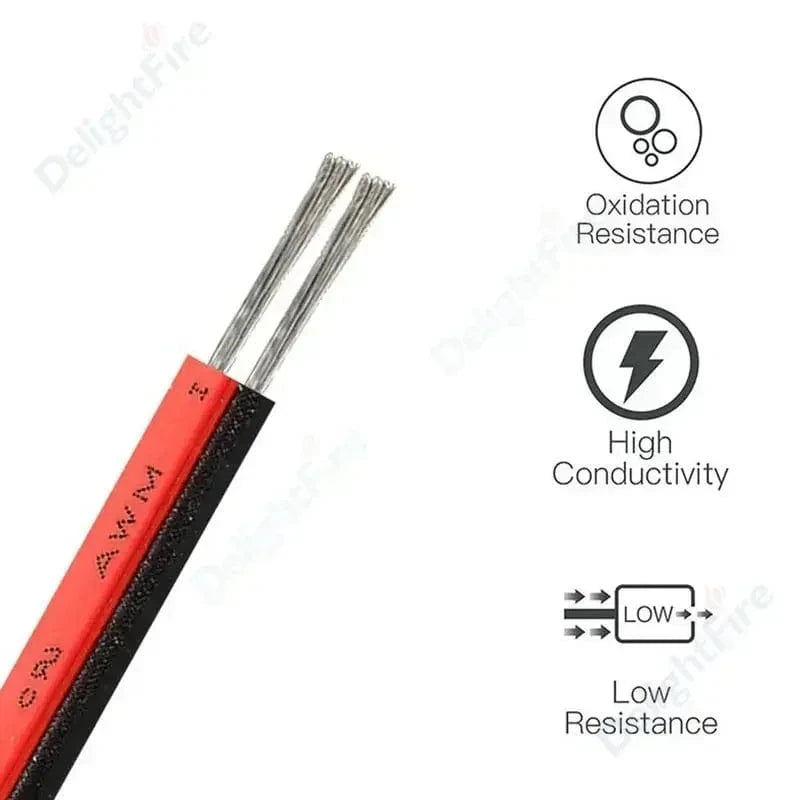

- Tinned Copper Conductors: Enhances corrosion resistance and solderability while supporting stable conductivity.

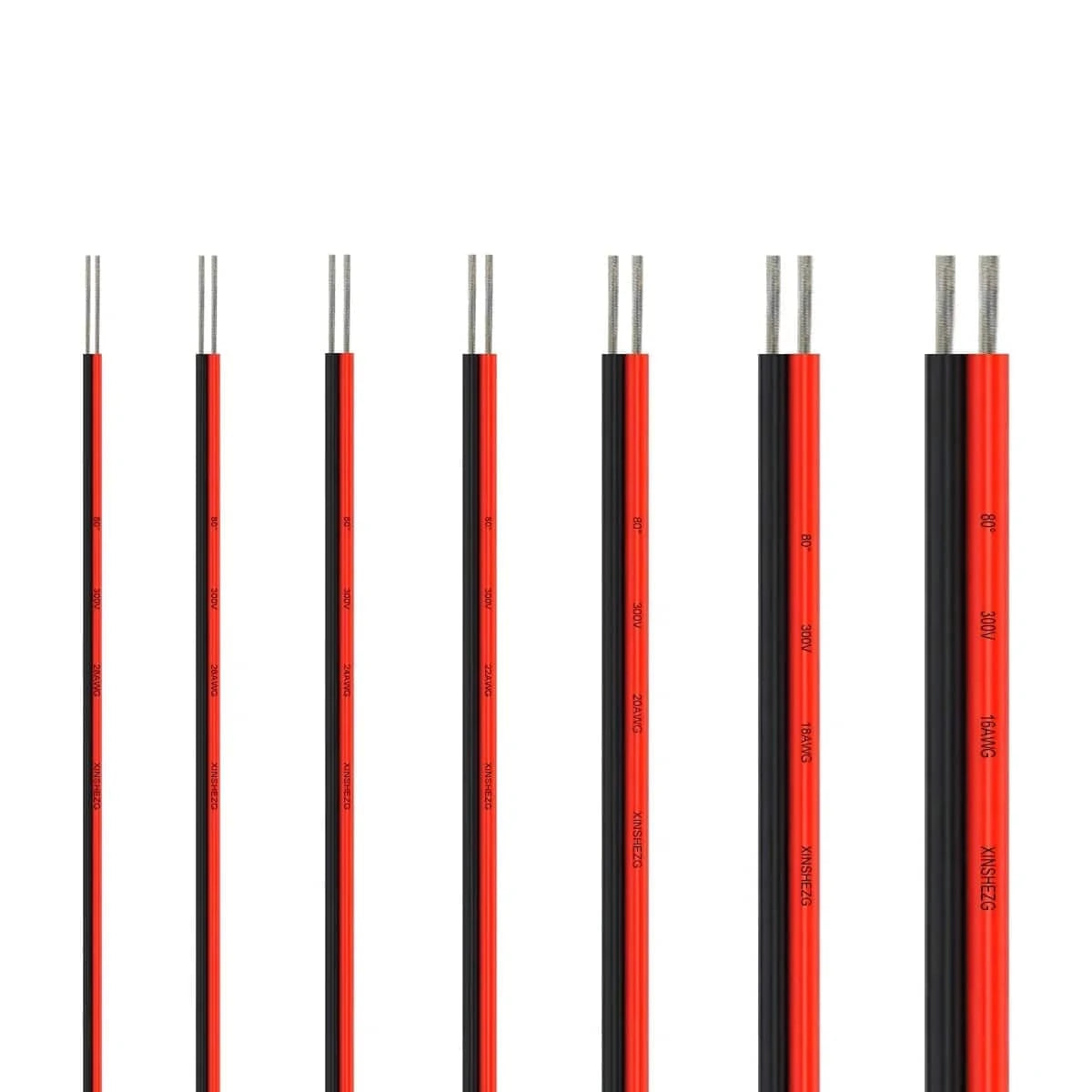

- Multiple Wire Gauge Options: Available in 16 / 18 / 20 / 22 / 24 / 26 / 28 AWG to match current load and distance.
- PVC Insulation Jacket: Provides dependable electrical insulation with flexibility for routing in tight spaces.
- 80°C Temperature Rating: Suitable for typical lighting channels, enclosures, and indoor/outdoor protected installations.
- 300V Insulation Rating: Supports low-voltage systems with robust dielectric margin (always follow local code and application requirements).
- Clean, Easy Termination: Strips cleanly for screw terminals, spring terminals, ferrules, splices, soldering, and connectors.
- Customizable Configuration: Length, color, and conductor type options available for project builds and OEM programs.
- Installer-Friendly: Flexible jacket supports neat cable management for LED channels, raceways, and equipment interconnects.
Technical Specifications
| Brand | Conversions Tech |
| Product Type | 2-Conductor LED Extension Wire Cable |
| Conductor Count | 2 Conductors (2-Pin / 2-Wire) |
| Conductor Material | Tinned Copper |
| Conductor Type | Solid (standard) / Custom options available |
| Insulation Material | PVC |
| Available Wire Gauges | 16 / 18 / 20 / 22 / 24 / 26 / 28 AWG |
| Temperature Rating | 80°C (typical) |
| Voltage Rating | 300V (insulation rating) |
| Available Lengths | 5m / 10m / 20m / 30m / 50m / 100m (or custom) |
| Primary Use | LED lighting extension, low-voltage power wiring |
| Compliance | RoHS |
| Customization | Length, color, gauge, labeling, and packaging available upon request |
AWG Selection Guidance (Recommended)
- 16–18 AWG: Higher-current LED runs, longer distances, reduced voltage drop
- 20–22 AWG: General LED strips/modules, moderate lengths
- 24–28 AWG: Low-current loads, short jumpers, signal-adjacent runs
Typical Applications
- LED strip and LED tape light extensions
- LED module and signage lighting interconnects
- Low-voltage DC power distribution
- Accent lighting for cabinetry, shelving, and architectural features
- Workstation and display lighting systems
- Equipment wiring and internal interconnects (within rated limits)
Package Contents
- 1 × 2-Conductor LED Extension Wire Cable (Selected AWG & Length)
Expandable FAQs
What is a 2-pin / 2-wire LED extension cable used for?
It’s used to extend power between LED drivers/controllers and LED strips/modules where two conductors are required (typically positive and negative for DC systems).
Is this cable polarity-sensitive?
Most LED DC systems are polarity-sensitive. Always confirm + and – orientation during installation to prevent damage or malfunction.
What AWG should I choose for my LED strip?
Choose based on current draw and run length. Larger conductors (lower AWG) reduce voltage drop for longer runs or higher loads.
Is the conductor tinned copper?
Yes. Tinned copper improves corrosion resistance and makes termination easier for soldering and crimping applications.
What is the voltage rating?
The PVC insulation is commonly rated at 300V. This is an insulation rating and does not imply the cable should be used for high-voltage building wiring.
Can I cut it to length and terminate it myself?
Yes. The PVC jacket strips cleanly with standard tools for use with connectors, ferrules, splices, screw terminals, or soldering.
Is this wire suitable for in-wall installations?
This cable is intended for equipment and low-voltage wiring applications. In-wall use depends on local code and may require CL2/CL3 or other rated cable types.
Can it be used outdoors?
It can be used in protected outdoor environments when properly housed or routed. For direct exposure, consider using outdoor-rated jacketed cable and sealed connectors.
Does Conversions Tech offer custom colors and lengths?
Yes. Custom length cuts, color options, gauge selections, labeling, and packaging are available for projects and OEM programs.
Is this cable RoHS compliant?
Yes. This product is supplied to meet RoHS requirements.
Why does AWG matter for LED lighting?
AWG impacts resistance and voltage drop. Longer runs and higher currents benefit from thicker wire (lower AWG) for better brightness consistency and performance.
Conversions Tech provides professional-grade wiring and connectivity components engineered to simplify installation, reduce failures, and deliver reliable performance across lighting and low-voltage applications.
