3 Lens Triple Screen Video Surveillance Camera Wifi Network CCTV Camera Wireless 360 Monitor Outdoor Waterproof Security Cameras
Shipping calculated at checkout
SKU: 200000891:200004524#WIFI Cam 32G Card;200009209:201447606
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

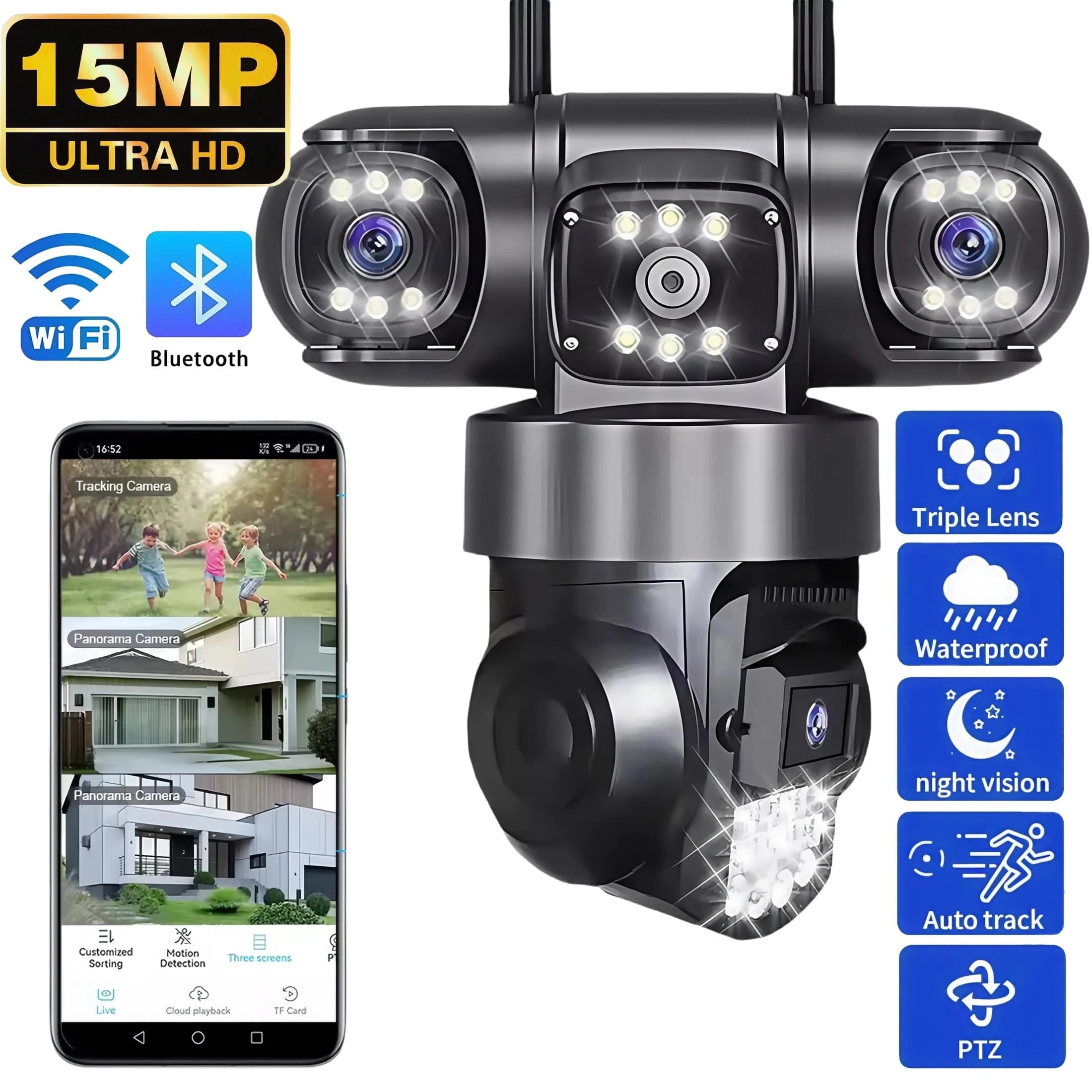

SWVW Tri-Lens Wi-Fi Dome Camera
Tri-lens system (5MP + 5MP + 5MP = 15MP capture) with 1080p Full-HD streaming, auto tracking, humanoid detection, color night vision, and V380 Pro app control.
Key Features
- Tri-Lens 15MP Capture: Three 5MP lenses provide broad coverage and detail; stream in 1080p for smooth remote viewing.
- AI Motion Suite: Motion detection, motion tracking, and humanoid detection to cut false alerts.
- Color Night Vision: Switchable full-color mode with white LEDs or IR (B/W); IR range approx. 15–20 m.
- Digital PT (Pan/Tilt) + 10× Digital Zoom: App-controlled 355° pan, 90° tilt, 10× digital zoom for flexible viewing.
- Two-Way Audio: Built-in mic/speaker; 1-ch RCA output available.
- H.265 Compression: Higher quality at lower bitrates, saving bandwidth and storage.

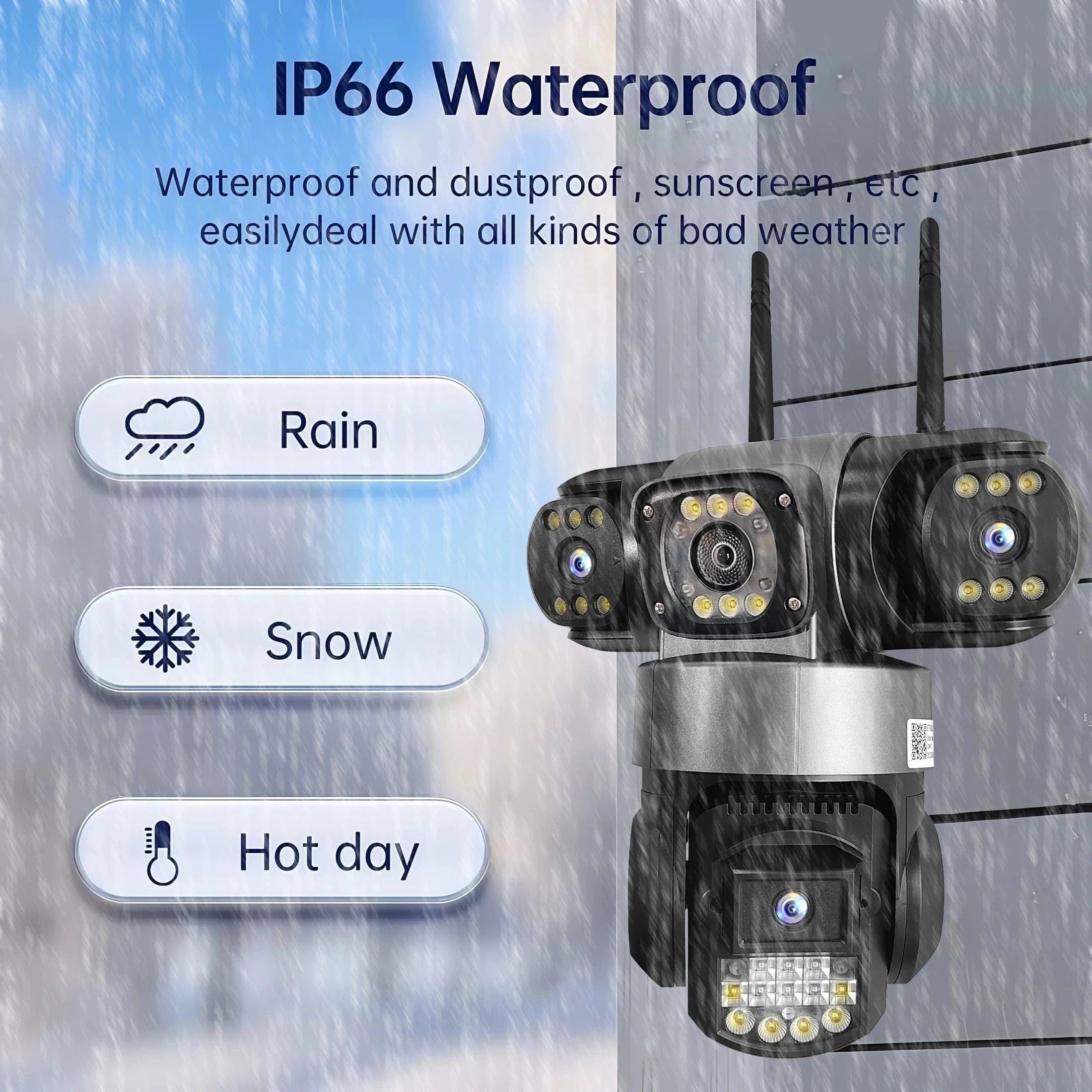

- IP66 Weatherproof: Rated for indoor/outdoor installs; operating −10 °C to 60 °C.
- V380 Pro App: iOS/Android remote view, alerts, playback; multi-user support.
- Flexible Storage: microSD™ up to 128 GB (loop) and optional cloud storage.
- Connectivity: 2.4 GHz Wi-Fi or wired LAN (no 5 GHz support).
Technical Specifications
| Brand / Model | SWVW / WiFi IP Camera |
|---|---|
| Style | Dome camera |
| Lens Quantity | Tri-lens (3 × 5MP) |
| Resolution | Capture up to 15MP (5+5+5); streaming 1080p Full-HD |
| Lens | 4 mm |

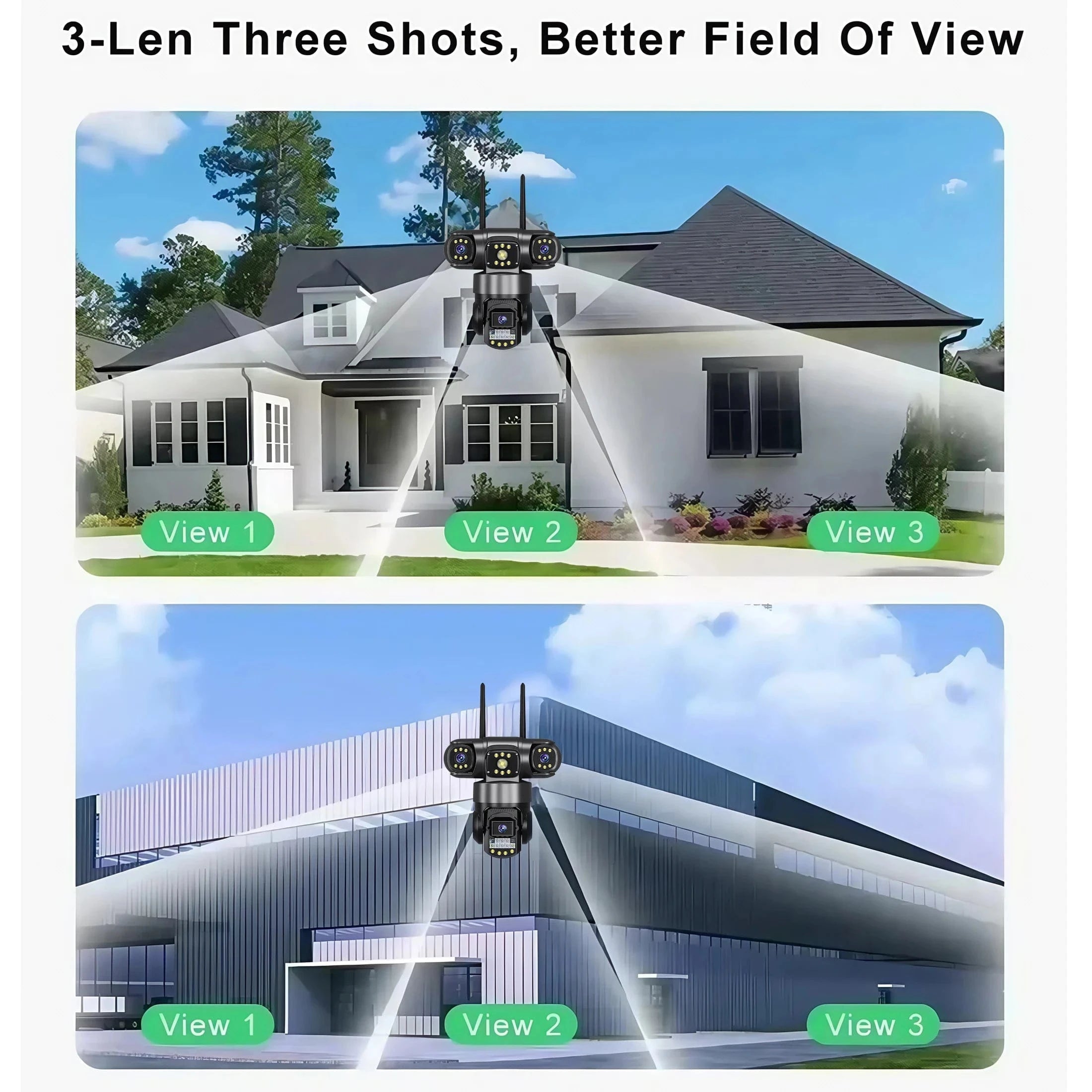

| Field of View | Approx. 180° |
| Pan / Tilt | 355° horizontal, 90° vertical |
| Zoom | 10× digital zoom (no optical) |
| Night Vision | IR 15–20 m; color night vision supported |
| AI Functions | Motion detection, motion tracking, humanoid detection |
| Audio | Two-way audio; 1-ch RCA output |
| Video Codec | H.265 |
| Network | Wi-Fi 2.4 GHz; RJ45 LAN |
| App | V380 Pro (iOS/Android) |
| Storage | microSD™ (TF) up to 128 GB; optional cloud |
| Ingress Rating | IP66 weatherproof |
| Power | DC 12 V, 2 A (mains powered) |
| Operating Temp | −10 °C to 60 °C |
| Shell Material | Plastic |
| Color | Grey |
| Certifications | CE, FCC, RoHS |

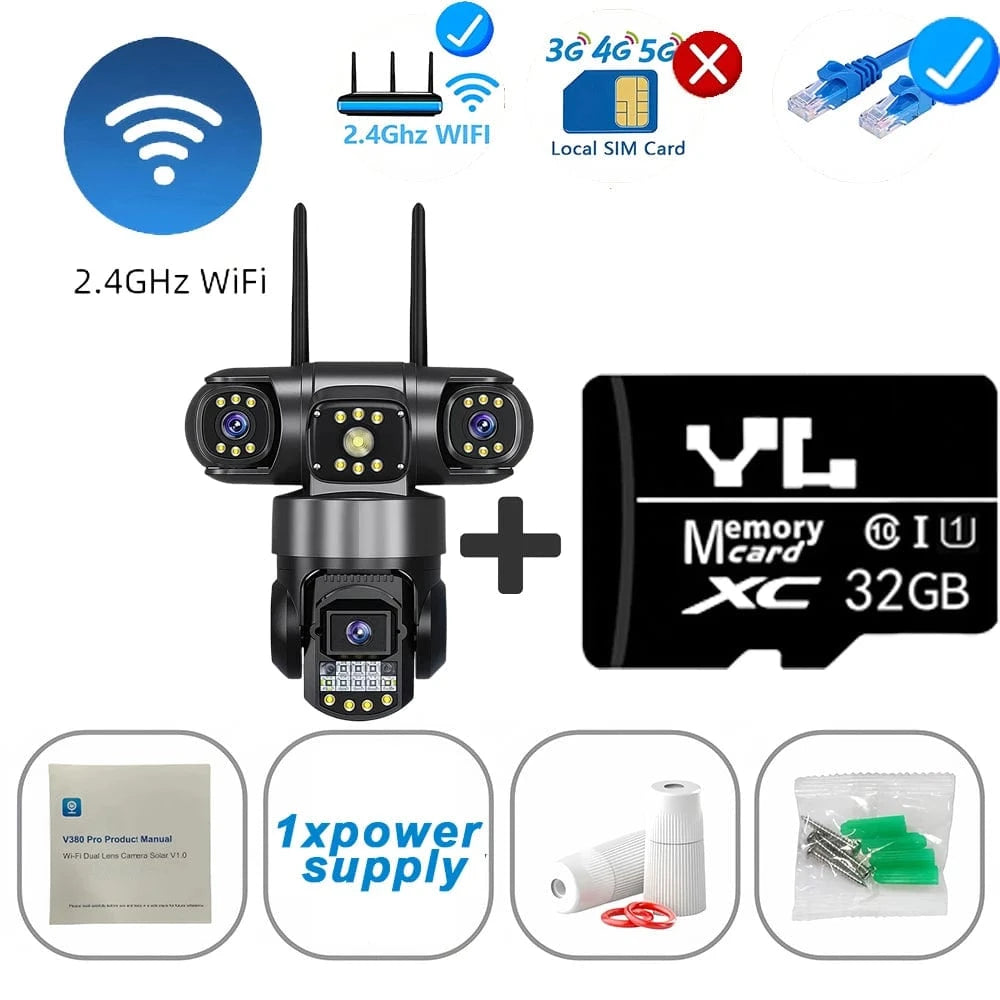

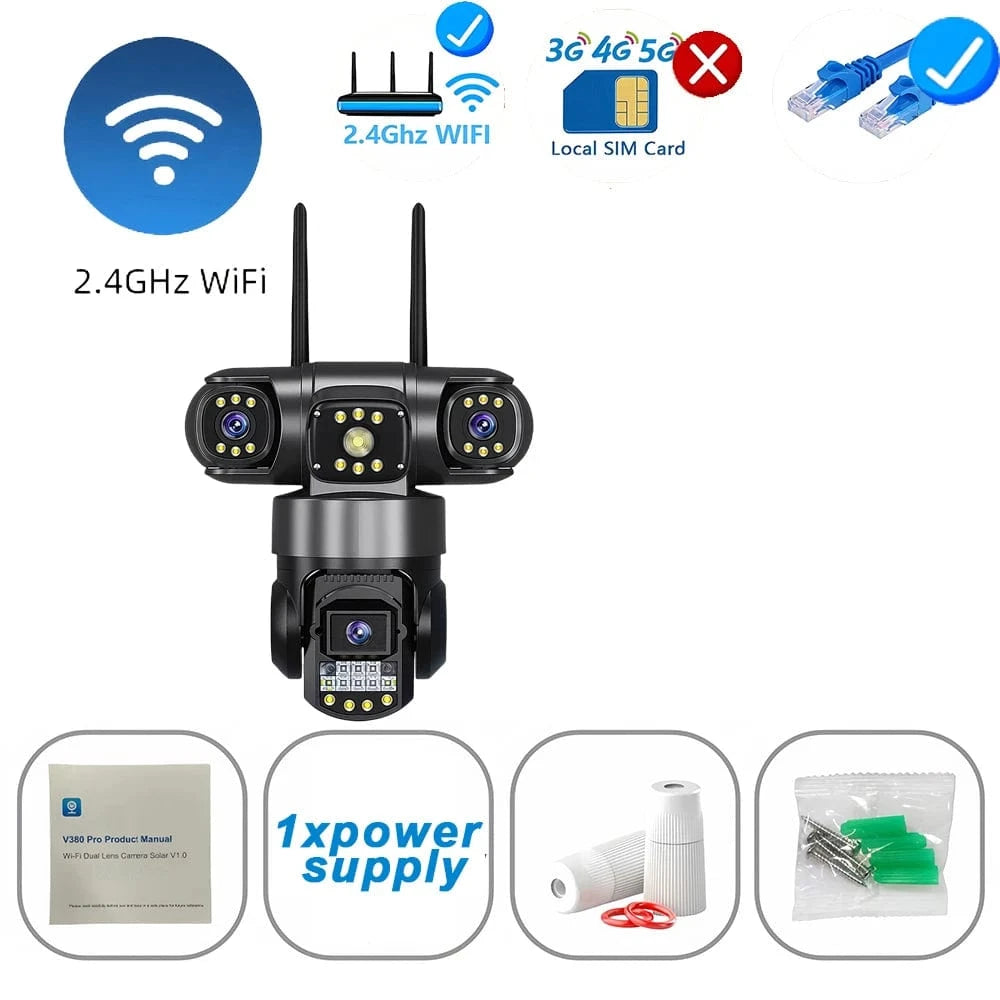

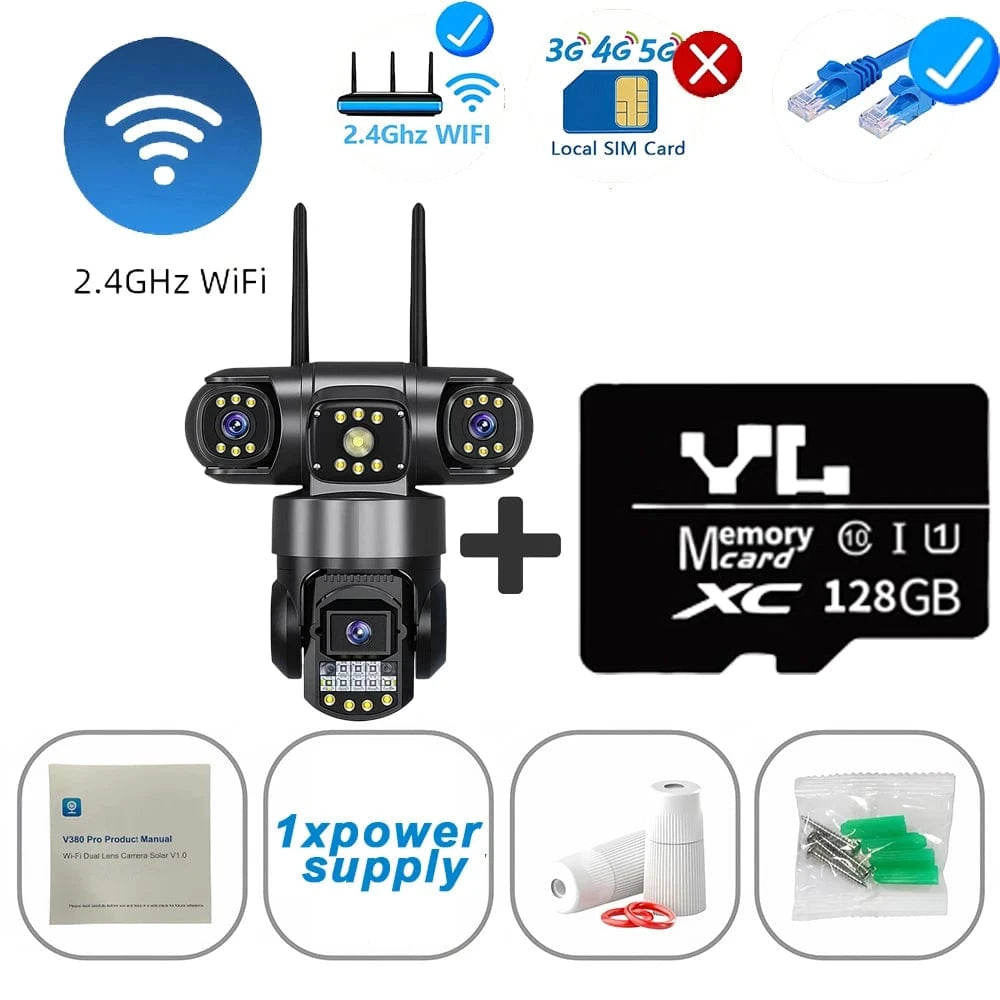

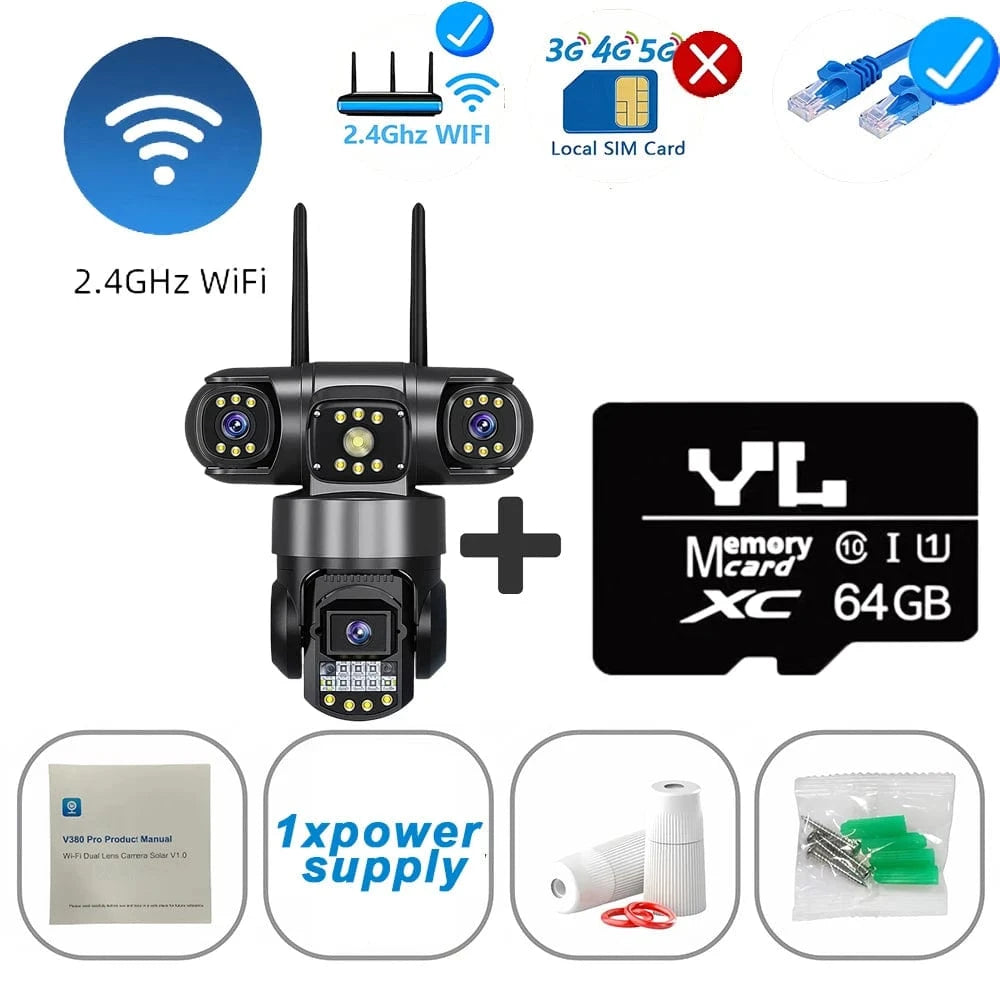

What’s in the Box
- SWVW Tri-Lens Wi-Fi Dome Camera
- Mounting hardware & quick start guide
- Power requirements: DC 12 V 2 A (plug type varies by region/bundle)
Notes & Setup Tips
- Wi-Fi: 2.4 GHz only. Enable your router’s 2.4 GHz SSID; 5 GHz is not supported.
- Zoom: 10× digital zoom. No optical zoom lens.
- Storage: Use a Class 10/U1 or better microSD™ card for reliable loop recording.
- Placement: Wall/ceiling mount; avoid direct headlight glare for best AI performance.
FAQs
Is this truly 15MP?
The tri-lens system uses three 5MP sensors (5+5+5=15MP) for capture. For smooth remote viewing, streams are typically 1080p.
Does it support 5 GHz Wi-Fi?
No. It connects via 2.4 GHz Wi-Fi or wired LAN.
What’s the difference between motion detection, tracking, and humanoid detection?
Motion detection flags activity; motion tracking pans/tilts to follow a subject; humanoid detection aims to reduce false alerts by focusing on human shapes.
Is the 10× zoom optical?
No. It is digital zoom. Use pan/tilt plus zoom for framing.
How do I get color night vision?
Enable full-color mode in the app to turn on white LEDs at night. You can choose IR (B/W), color, or smart dual-light modes.
What app do I use?
V380 Pro for iOS/Android. It supports live view, playback, alerts, and multi-user access.
Can I store video locally?
Yes. Insert a microSD™/TF card up to 128 GB. Loop recording overwrites the oldest clips when full. Cloud storage is optional.
Does it have two-way audio?
Yes. The camera has a built-in mic and speaker for talkback. An RCA audio output is also available.
What’s the operating temperature range?
−10 °C to 60 °C, suitable for most indoor/outdoor installs.
Can I use it with a PC?
Live view is via the mobile app; some users access streams on Windows/macOS through the vendor VMS tools. Functionality may vary.
How large an area can it cover?
Approx. 180° viewing angle with 355° pan and 90° tilt, allowing wide coverage from a single mount point.
Does H.265 save storage?
Yes. It maintains quality at lower bitrates compared with H.264, reducing bandwidth and storage needs.
What power supply do I need?
DC 12 V, 2 A regulated adapter. Use the correct plug type for your region.
Can I hard-wire it instead of Wi-Fi?
Yes. Connect the LAN port to your router/switch for a wired connection.
Is it weatherproof?
Yes. IP66-rated for dust and water resistance. Mount under eaves where possible for longevity.
Install tip: For best AI performance, mount 8–10 ft high, angled slightly downward, and set motion zones/sensitivity in the app to your scene.
