30FT 16AWG/3C SJTOW Retractable Extension Cord Reel Power Cord Reel for Convenient Use
Shipping calculated at checkout
SKU: DUP--10001:-101#Default
30 in stock
Open here

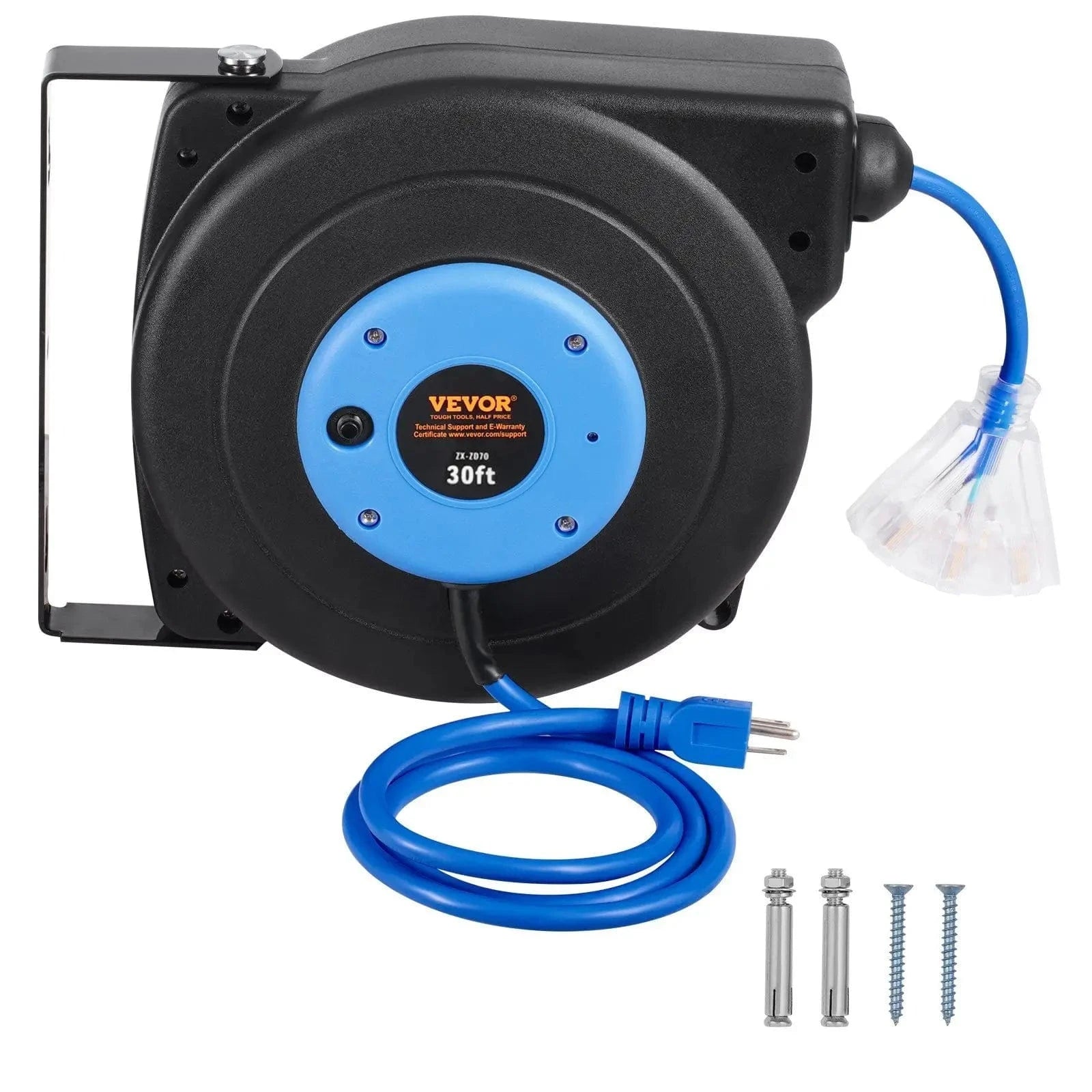

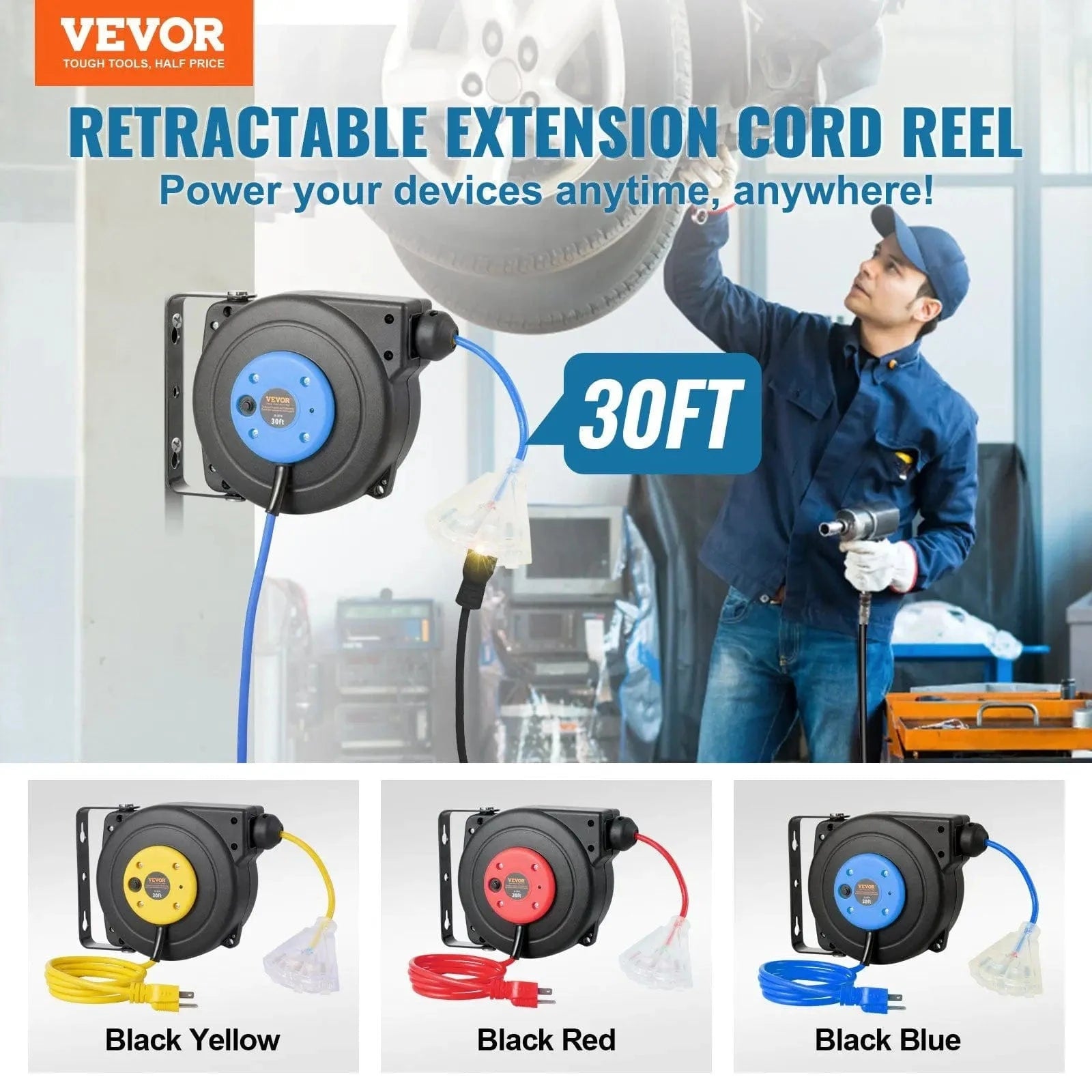

30FT Retractable Extension Cord Reel — 12AWG/3C SJTOW • 10A Breaker • Wall/Ceiling Mount
Tidy, safe, and ready when you are. This 30 ft retractable extension cord reel delivers dependable power with 12-gauge, 3-conductor SJTOW cable, a smooth auto-retract ratchet-lock mechanism, and an integrated 10A resettable circuit breaker. A 4.5 ft (≈1.4 m) lead-in cord simplifies placement near your outlet, while the oil/weather/UV-resistant SJTOW jacket stands up to garages, workshops, and light outdoor tasks.
Key Features & Benefits
- 30 ft Service Length + 4.5 ft Lead-In: Maximize reach without moving your outlet or tool bench.
- Heavy-Duty Cable: 12AWG/3C stranded copper with SJTOW jacket for abrasion, oil, UV, and incidental moisture resistance.
- 10A Safety Breaker: Built-in, resettable circuit breaker opens on overload and resets with a press after fault clearance.

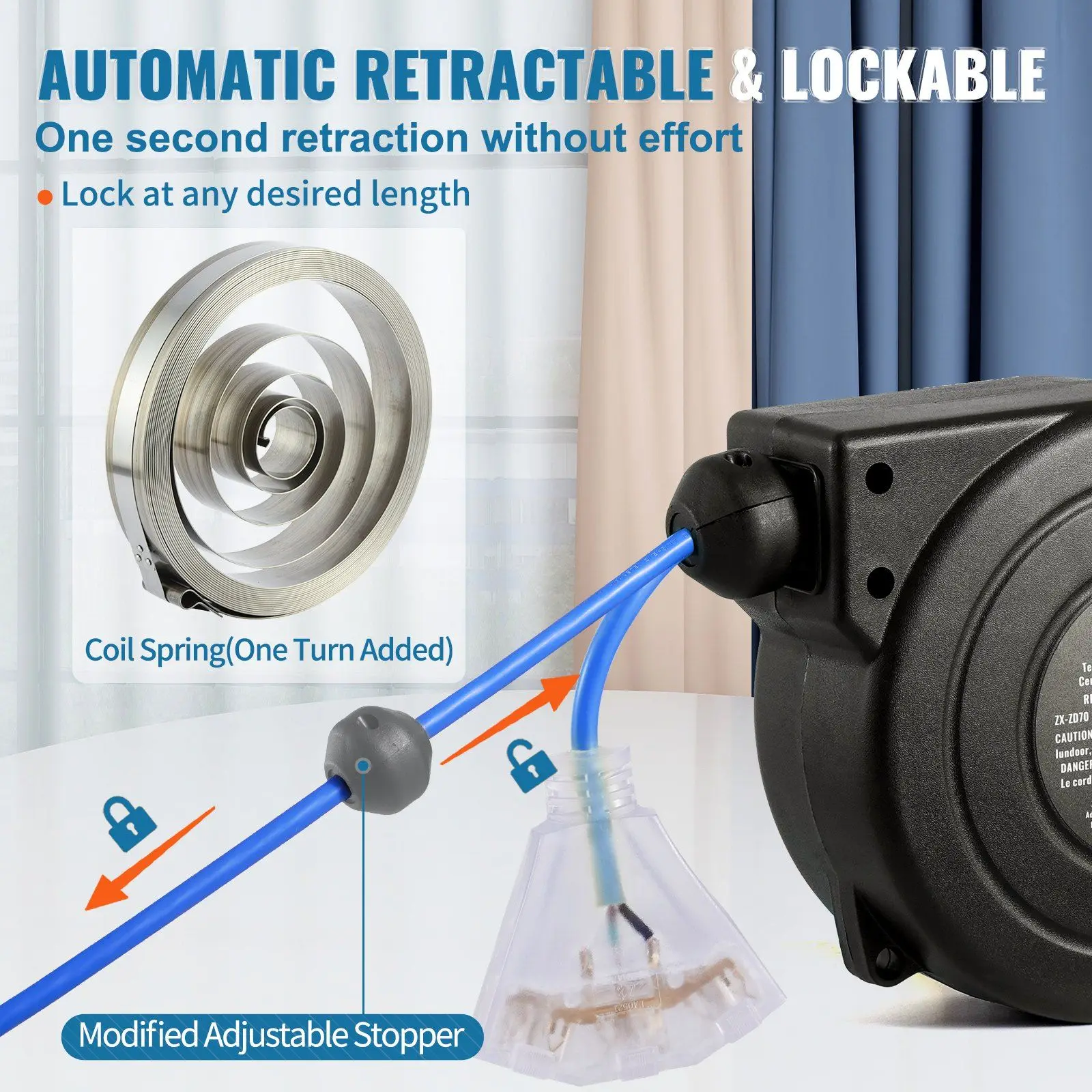

- Auto-Retract with Ratchet Lock: Pull to length; the reel indexes and locks. A light tug releases for smooth rewind.
- Mount Your Way: Wall or ceiling bracket mounting for ergonomic cable drops and clutter-free floors.
- Flame-Retardant, Impact-Resistant Housing: Engineered for everyday shop use.
- Tangle-Resistant Guide & Adjustable Stopper: Keeps payout controlled and the receptacle end at arm’s reach.
Technical Specifications
| Model Number(s) | D0100HADIHG (Assembly) / D0102HQ457U (Default Listing Ref.) |
| Cord Type | 12 AWG, 3-conductor (Hot / Neutral / Ground) — SJTOW jacket |
| Service Length | 30 ft (≈ 9.1 m) retractable |
| Lead-In Length | 4.5 ft (≈ 1.4 m) |

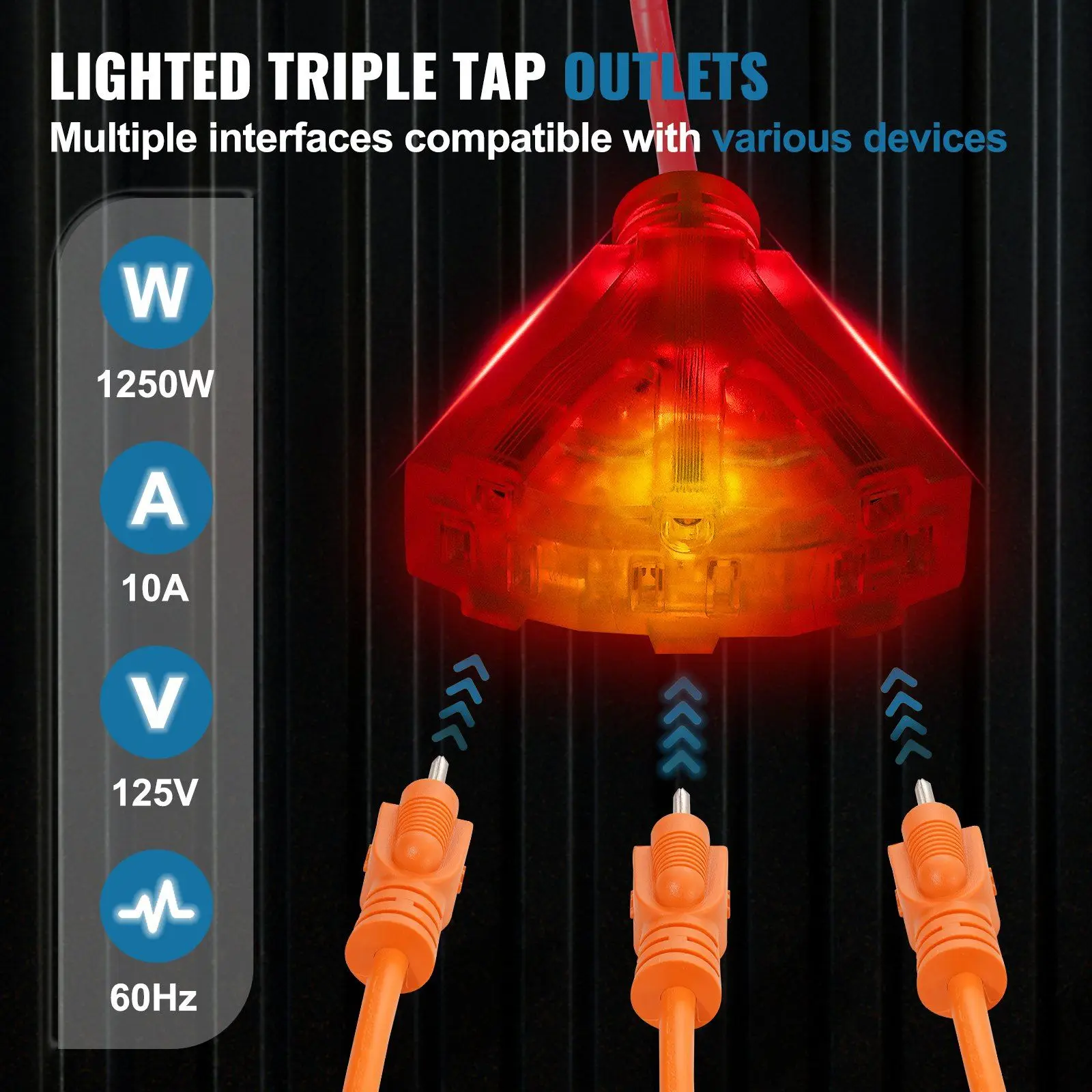

| Electrical Rating | Up to 10 A, 125 V AC, 60 Hz (max ≈ 1250 W) |
| Overcurrent Protection | Integrated 10A resettable circuit breaker |
| Outlet End | 3-prong grounded receptacle; adjustable cord stopper |
| Mounting | Wall or ceiling bracket included |
| Environmental | Flame-retardant housing; oil/weather/UV-resistant cable jacket |

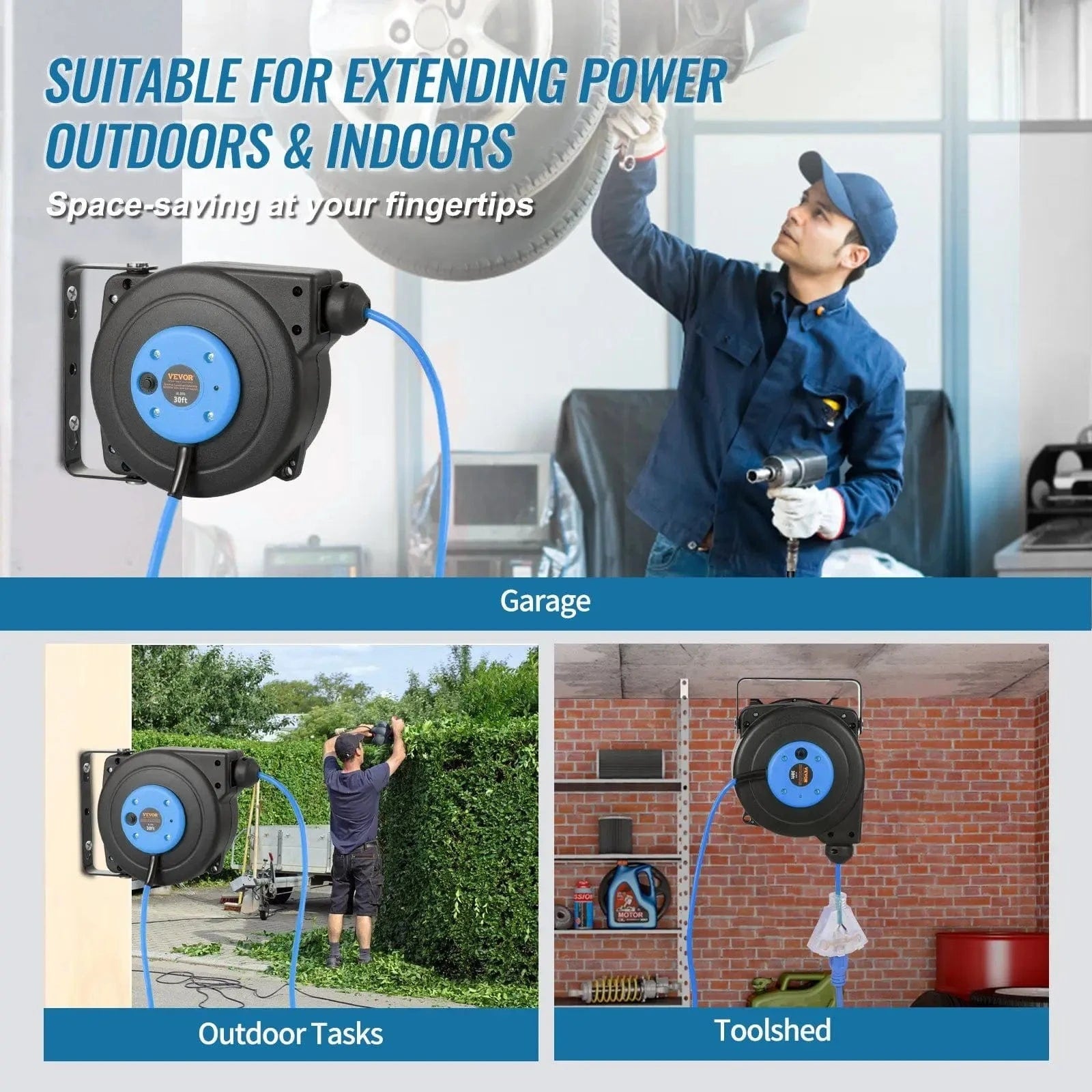

| Use Environments | Indoor / Light outdoor (keep terminations dry and elevated) |
Installation Notes
- Anchor the bracket into suitable studs/anchors; verify load capacity for dynamic pull forces.
- Route the cord with a clear, smooth path; avoid sharp edges that could abrade the jacket.
- For outdoor use, supply from a GFCI-protected outlet and protect connections from moisture.
Safety & Use
Do not exceed 10 A total load. Fully extend the cord for higher loads to reduce heat on the spool. Keep connections dry and off the ground. Not for permanent installation or submersion. Inspect jacket and plug routinely.
What’s in the Box
- Retractable extension cord reel (30 ft, 12AWG/3C SJTOW)
- Wall/ceiling mounting bracket and hardware (varies by kit)
- Adjustable cord stopper; user guide
Frequently Asked Questions (FAQs)
1) Why 12AWG if the breaker is 10A?
Heavier-gauge 12AWG minimizes voltage drop and heat, improving performance and durability, while the 10A breaker provides added safety for the reel assembly.
2) Is the cable outdoor-rated?
Yes. SJTOW is oil- and weather-resistant with good UV and abrasion performance. Keep terminations protected from moisture.
3) Can I mount it on the ceiling?
Absolutely. Use the included bracket and appropriate anchors for your ceiling material. Ensure the bracket orientation matches the manual.
4) How does the ratchet lock work?
Pull the cord; it indexes and locks at set points. A light tug disengages the pawl and triggers smooth auto-retraction.
5) What devices can I run?
Any 120 V device within 10 A / 1250 W (e.g., lights, chargers, low-draw power tools). High-draw heaters/compressors may exceed limits.
6) Does the reel have multiple outlets?
This configuration provides a single grounded receptacle to maintain current capacity and reduce heat at the drop.
7) Do I need to fully unwind the cord?
For light loads, partial payout is fine. For higher loads approaching 10 A, fully extend to minimize thermal buildup.
8) How do I adjust the cord stopper?
Loosen the stopper’s screws, slide to your preferred stop point, then retighten to keep the outlet end within easy reach.
9) Is maintenance required?
Keep the guide clean, check fasteners periodically, and inspect the spring function. Do not lubricate unless specified by the manual.
10) Can I daisy-chain with another extension cord?
Not recommended—daisy-chaining increases resistance and trip risk. Use a single, properly-rated cord for the run.
