50 Amp Generator Extension Cord 30 Ft STW 6/3 + 8/1 125V 250V Power Cord with N14-50P SS2-50R CS6364 Twist Lock Connectors
Shipping calculated at checkout
SKU: -10001:-101#Default
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

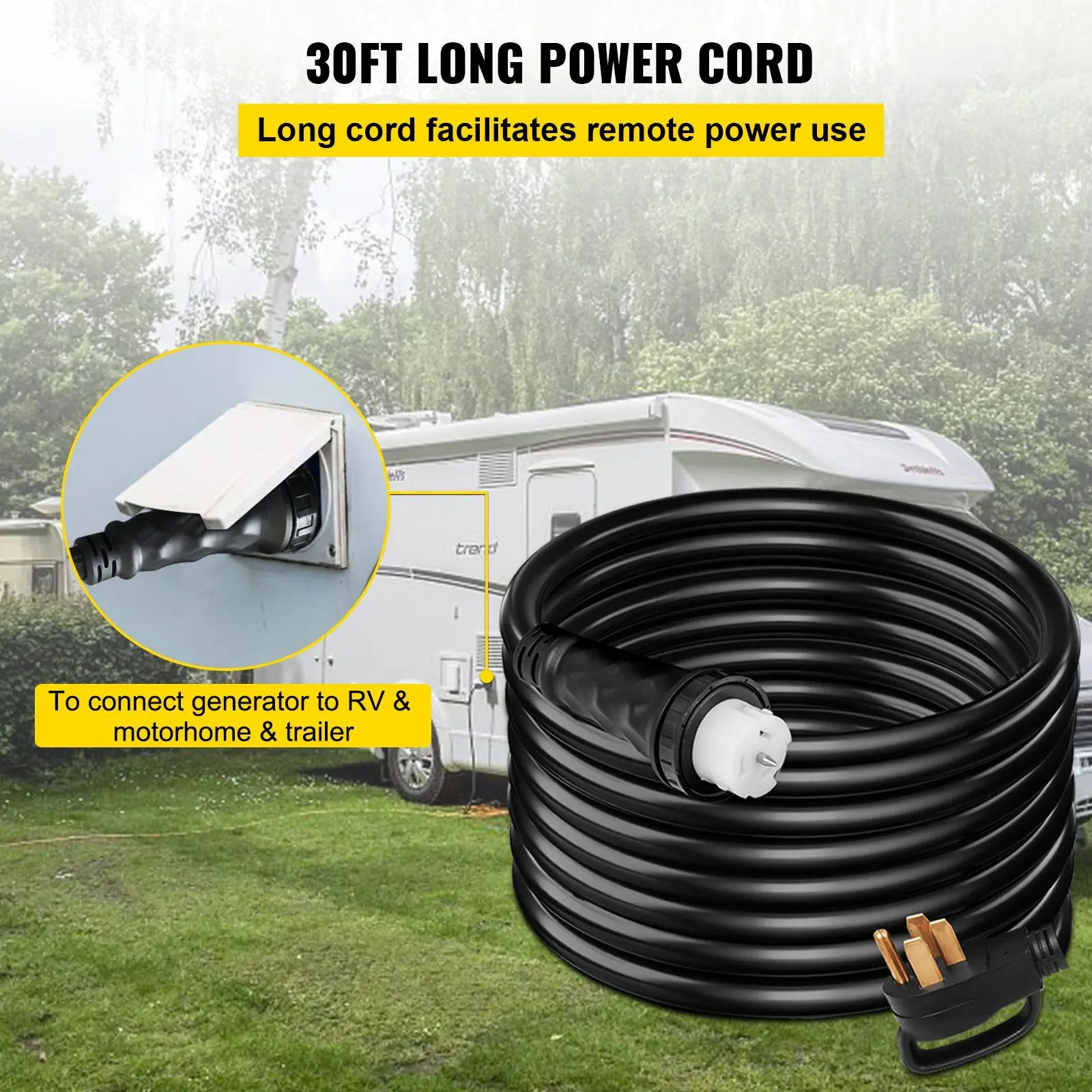

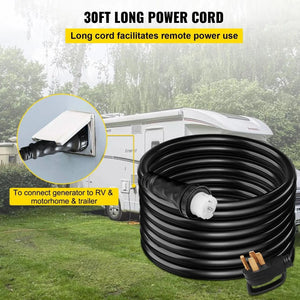

50A Generator & RV Power Cord — 30 ft • NEMA 14-50P → CS6364 Locking • STW 6/3 + 8/1 • 100% Copper
Deliver reliable 125/250 V power to RVs, transfer equipment, or temporary site power with this 30 ft, 50 amp heavy-duty cord. The straight-blade NEMA 14-50P plug mates with campground pedestals or 14-50 generator receptacles, while the CS6364 locking connector (California Standard) provides a twist-lock, collar-secured connection to compatible inlets. Built on STW 6/3 + 8/1 stranded pure copper with a rugged weather-resistant jacket, it’s ready for RV shore power, generator hookups, and mobile work sites.
Key Features & Benefits
- High-Capacity Delivery: Rated 50A, 125/250 V (up to 12,500 W) for demanding loads within circuit limits.
- Premium Copper Conductors: Low-resistance 6/3 + 8/1 build minimizes voltage drop and heat over distance.
- 14-50P → CS6364 Interface: Standard pedestal/generator plug to locking CS6364 connector for secure, weather-resistant mating to CS6365 inlets.
- All-Weather STW Jacket: Service-grade thermoplastic sheath resists abrasion, UV, and moisture for indoor/outdoor duty.
- Wide Temperature Range: Operates from −104 °F to 221 °F for year-round reliability.

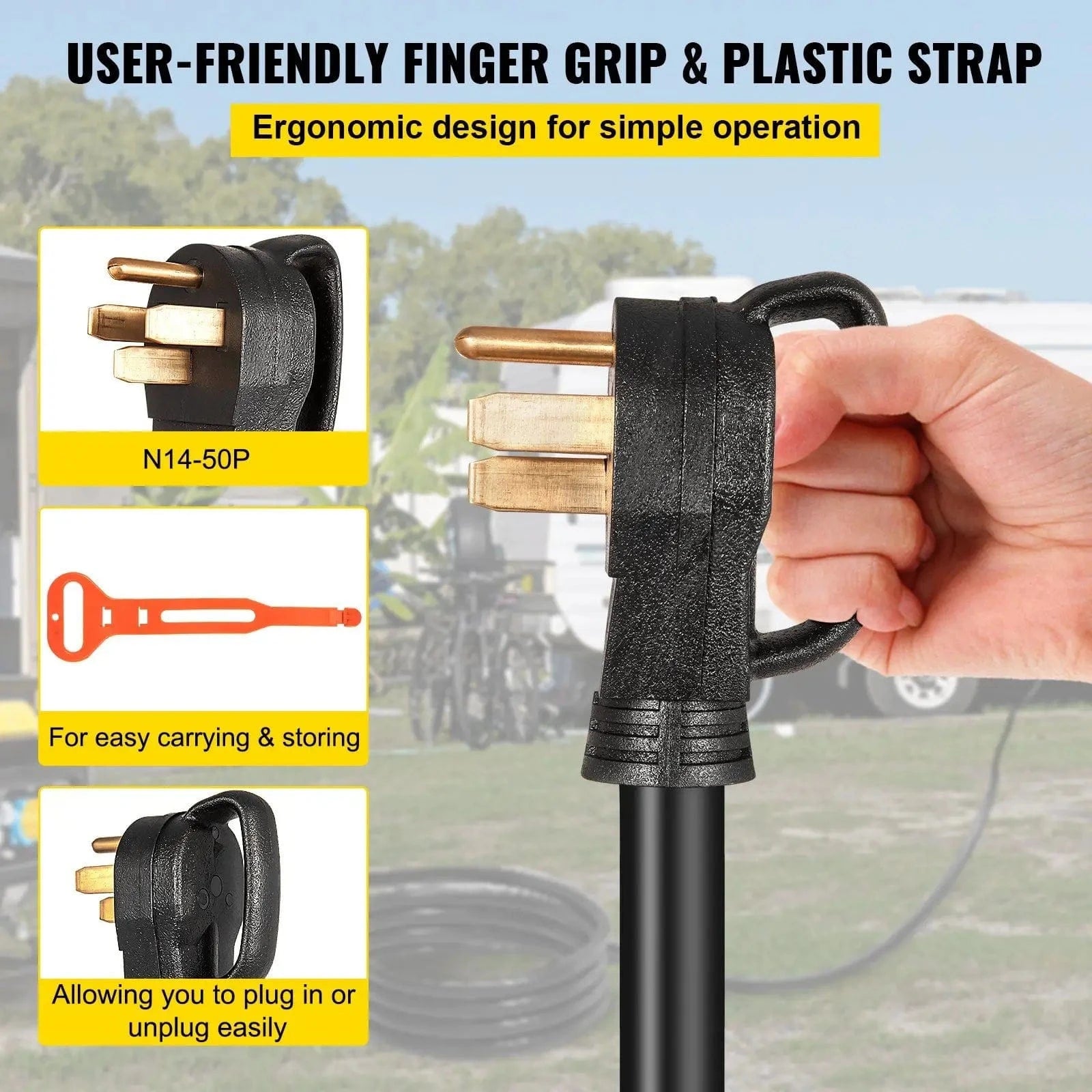

- Ergonomic Grip + Locking Collar: Easy-grip handle and threaded collar improve leverage and connection security.
- Storage Strap Included: Adjustable organizer keeps coils tidy in RV bays, garages, and job boxes.
Technical Specifications
| Model Number(s) | D0100HRS2GP (Assembly) / D0102HS0AKT (Default Listing Ref.) |
| Configuration | NEMA 14-50P (male, straight-blade) → CS6364 (female, locking with collar) |
| Electrical Rating | 50 A • 125/250 V AC • up to 12,500 W (load & circuit dependent) |

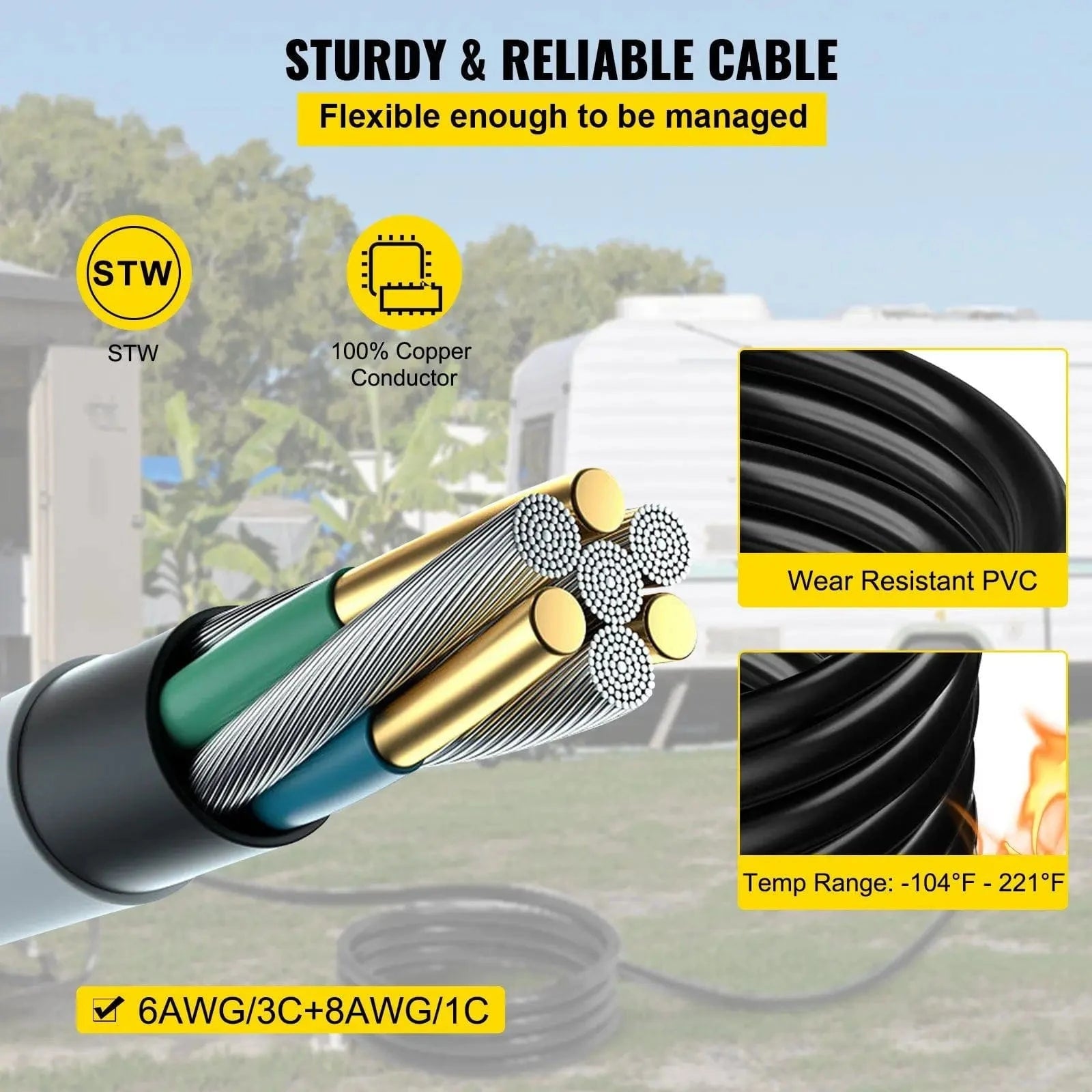

| Conductor Make-up | STW 6 AWG / 3C (Hot L1 / Hot L2 / Neutral) + 8 AWG / 1C (Ground), stranded 100% copper |
| Length | 30 ft (≈ 9.1 m) |
| Jacket Type | STW — weather/UV/abrasion resistant |
| Ingress Protection | IP44 (splash-resistant at mated connection) |
| Operating Temperature | −104 °F to 221 °F |
| Included | Cord with 14-50P plug & CS6364 locking connector; adjustable storage strap |
Applications
- RVs & Motorhomes: 50A shore-power extension from 14-50 pedestals to CS6365 inlets.

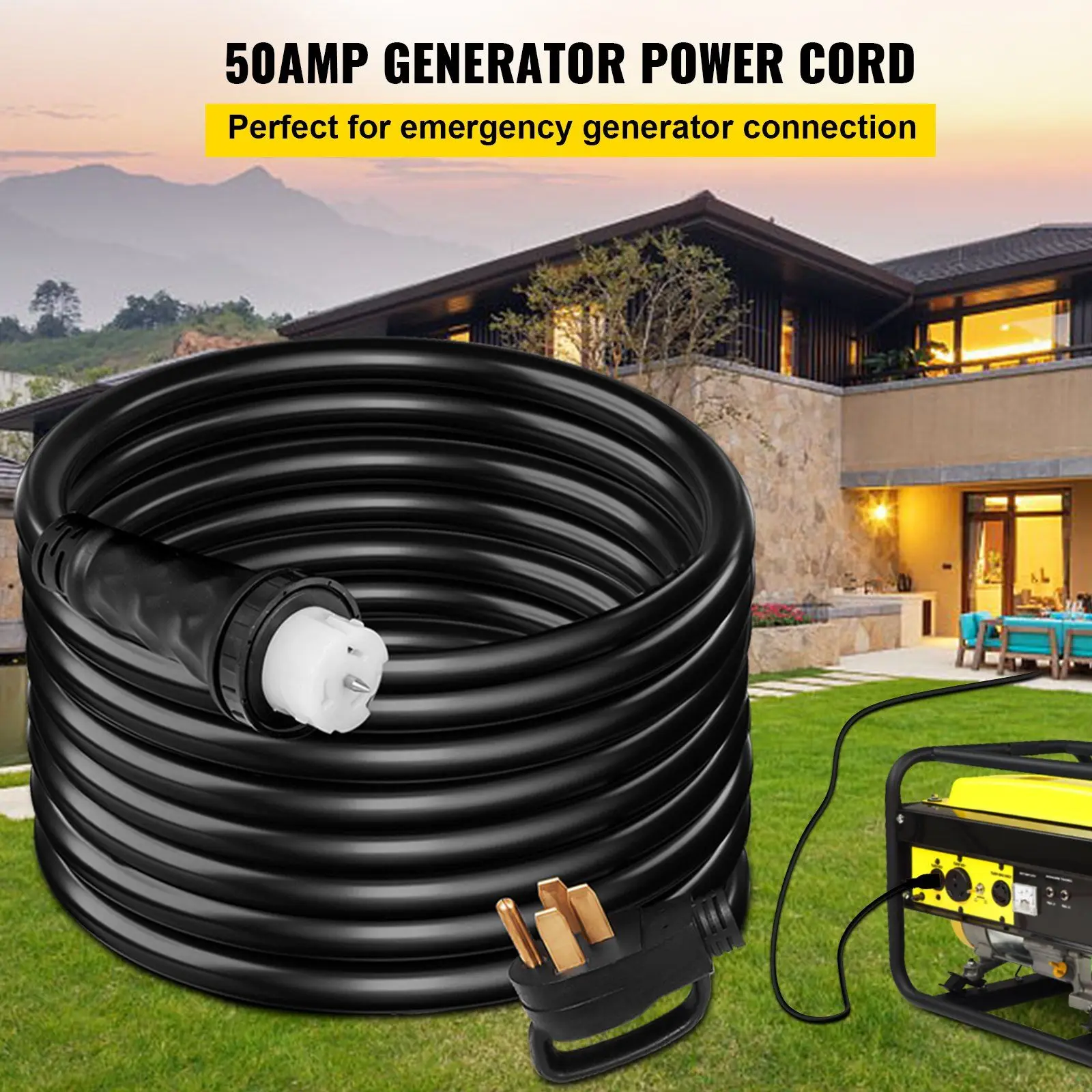

- Generator Hookups: Connect 14-50 generator receptacles to 50A CS6365 inlets (verify device ratings).
- Temporary Power: Mobile workshops, tailgating, events, and field service within 50A limits.
Safety & Use Notes
Verify connector standards (14-50P and CS6364/CS6365) match your equipment. Do not exceed 50 A. Keep connections dry and elevated; use approved weather covers where applicable. Fully uncoil under high load to reduce heat. Never back-feed a panel without a listed transfer device; follow local electrical codes and manufacturer instructions.

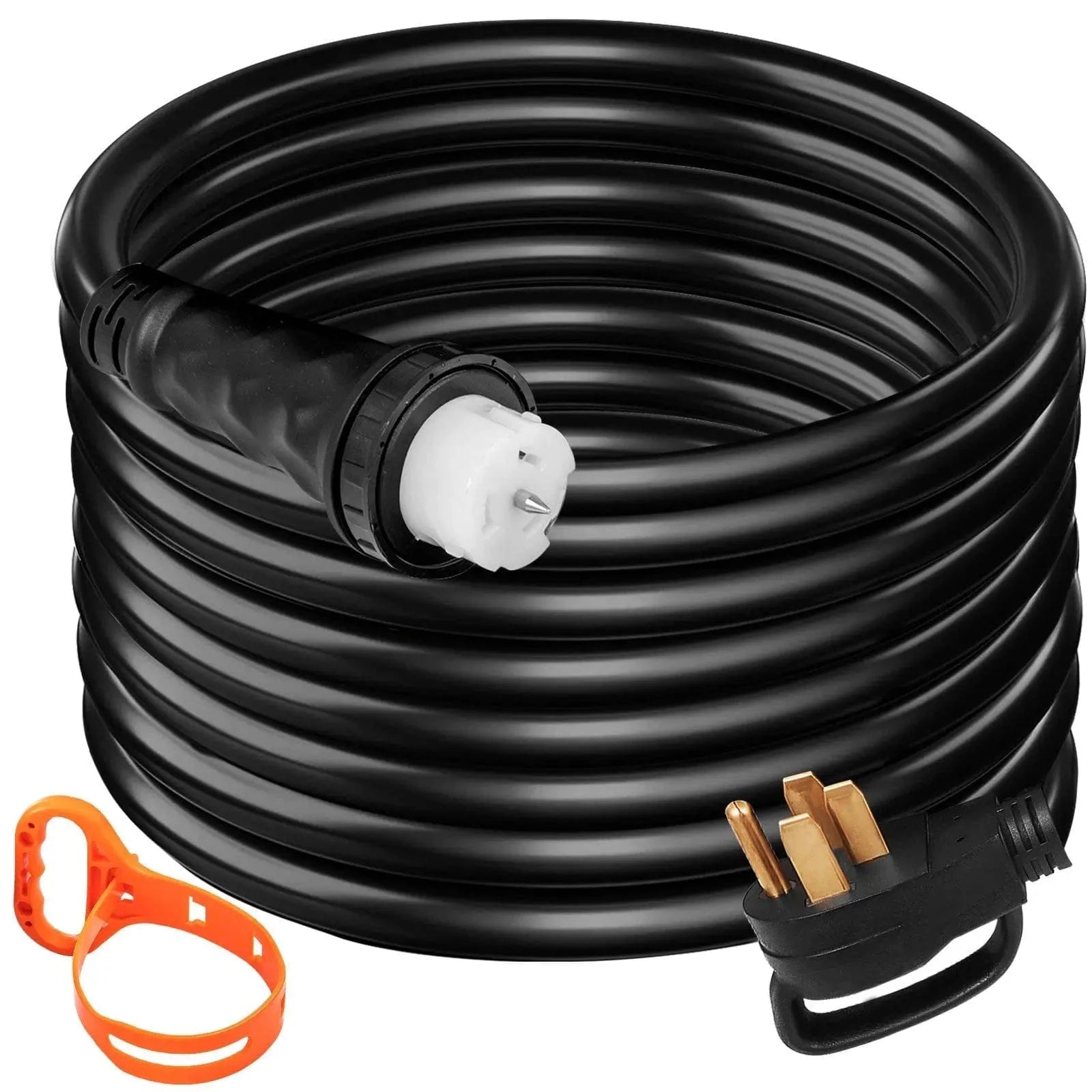

What’s in the Box
- 50A, 30 ft generator/RV extension cord — 14-50P → CS6364
- Adjustable storage/organizer strap
Frequently Asked Questions (FAQs)
1) What equipment does CS6364 connect to?
CS6364 is the locking female that mates to a CS6365 male inlet commonly found on RVs and some 50A power inlet boxes.
2) Is the plug end twist-lock?
No. NEMA 14-50P is straight-blade for pedestals/generators. The CS6364 end provides the locking connection.
3) Can I use this for EV charging?
Yes—if your EVSE uses a CS6365 inlet or you have a proper adapter and remain ≤ 50 A. Always follow EVSE/vehicle guidelines.
4) Will this power my entire home?
No. It’s for feeding approved inlet/transfer devices or RV inlets within 50 A limits, not for direct panel back-feed.
5) What wire sizes are inside?
6 AWG copper for the two hot legs and neutral; 8 AWG copper for ground (6/3 + 8/1).
6) Is it outdoor-rated?
Yes. The STW jacket is outdoor-capable. The mated connection is typically IP44—protect from direct spray and standing water.
7) Why only 30 ft?
Shorter runs help minimize voltage drop and heat at 50 A. For longer reach, consider a heavier-duty installation with appropriately sized conductors.
8) Does it include a locking collar?

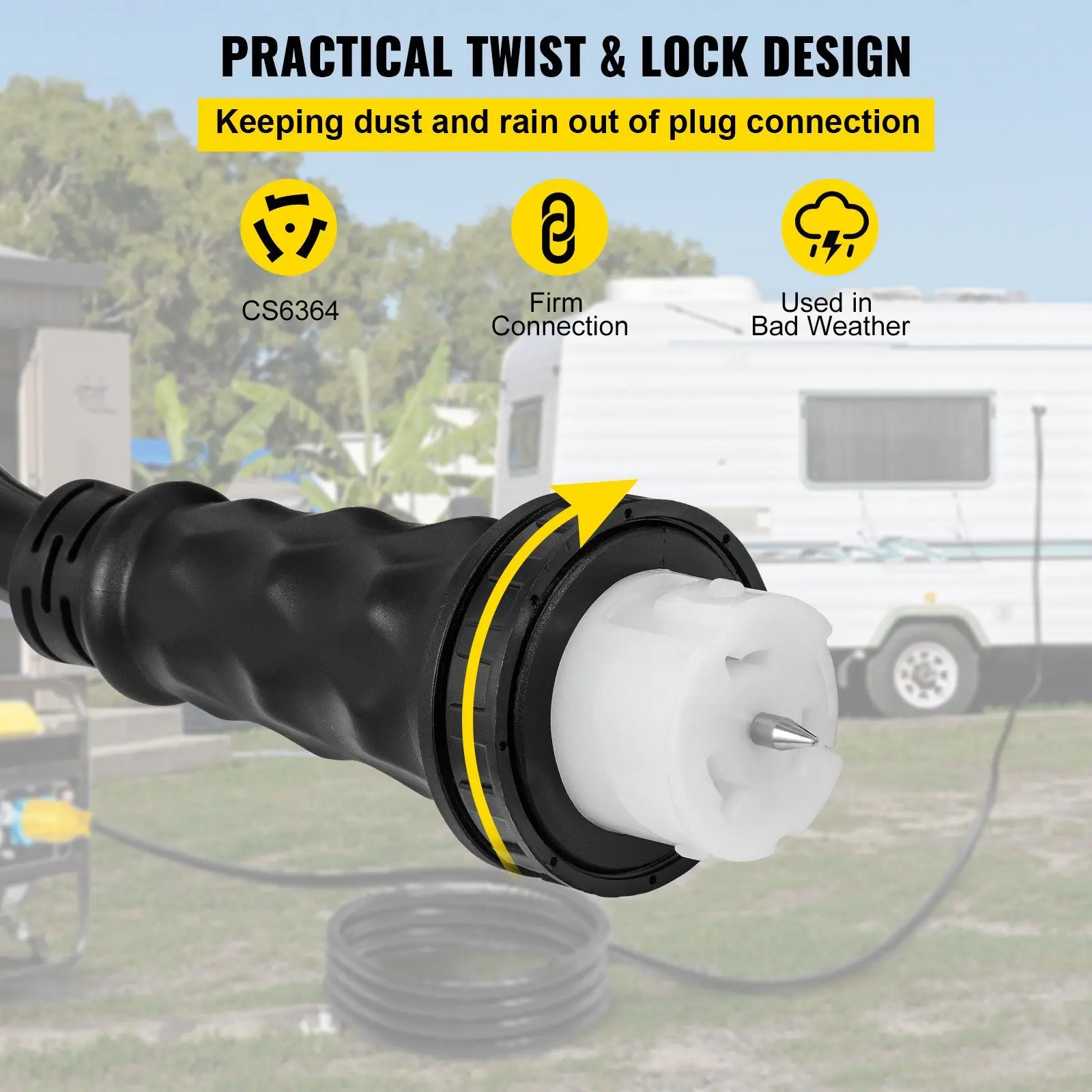

Yes. The CS6364 connector includes a threaded locking collar to secure to CS6365 inlets.
9) What’s the temperature range?
−104 °F to 221 °F (per listing), suitable for harsh cold and hot environments.
10) What comes in the package?
One 30 ft 50A cord (14-50P → CS6364) plus an adjustable storage strap.
