65FT 12AWG/3C SJTOW Retractable Extension Cord Reel Power Cord Reel for Convenient Use
Shipping calculated at checkout
SKU: -10001:-101#Default
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

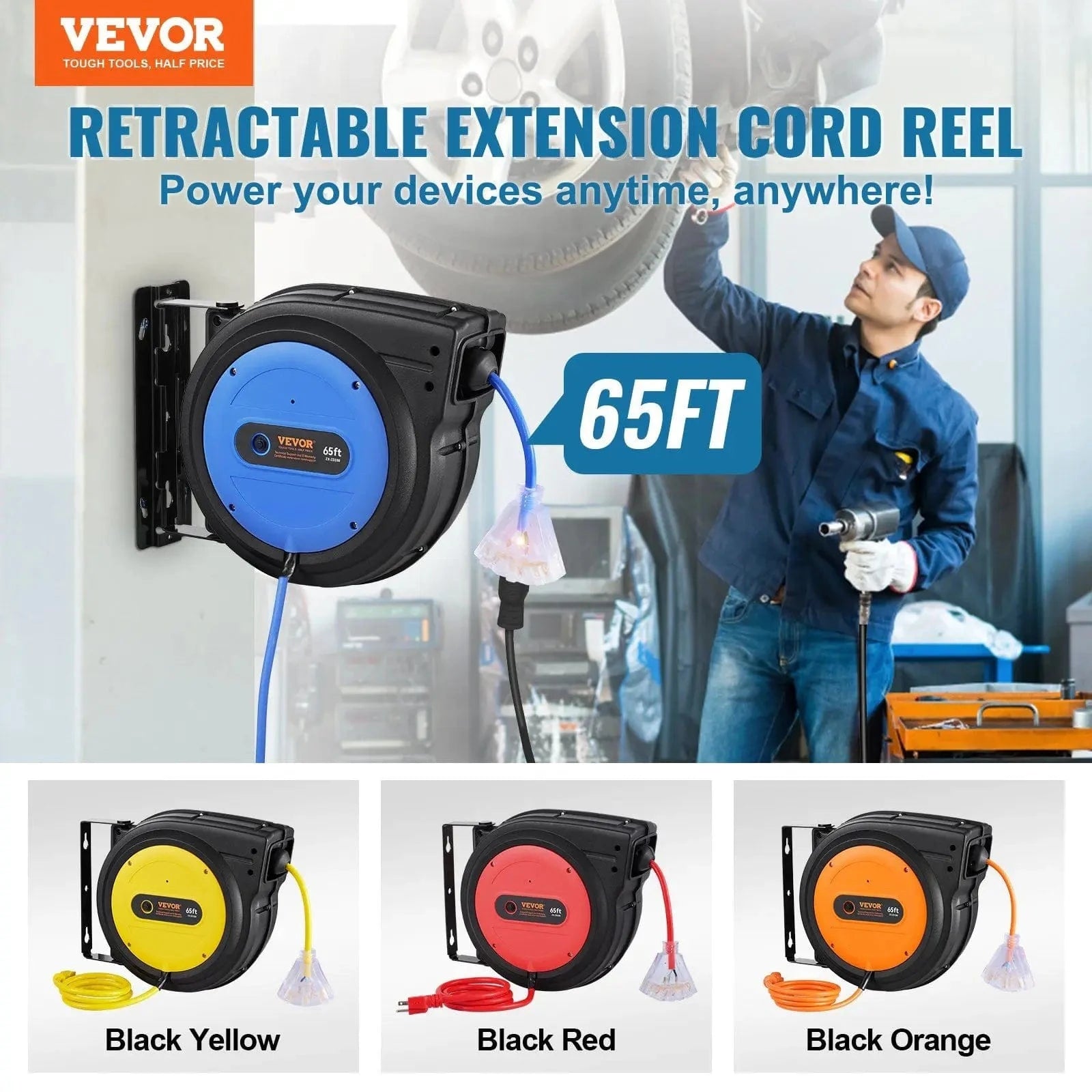

65FT Retractable Extension Cord Reel — 12AWG/3C SJTOW • 15A Breaker • Wall/Ceiling Mount
Power your workspace with a 65 ft retractable extension cord reel engineered for indoor/outdoor reliability. The heavy-duty 12AWG/3-conductor SJTOW cable, integrated 15A resettable circuit breaker, and auto-retract / ratchet-lock mechanism deliver safe, tidy power distribution for garages, shops, and job sites. A 4.5 ft (≈1.4 m) lead-in cord simplifies placement near your outlet while maximizing working reach.
Key Features & Benefits
- Long Reach + Lead-In: 65 ft service length with a 4.5 ft lead-in for flexible mounting and coverage.

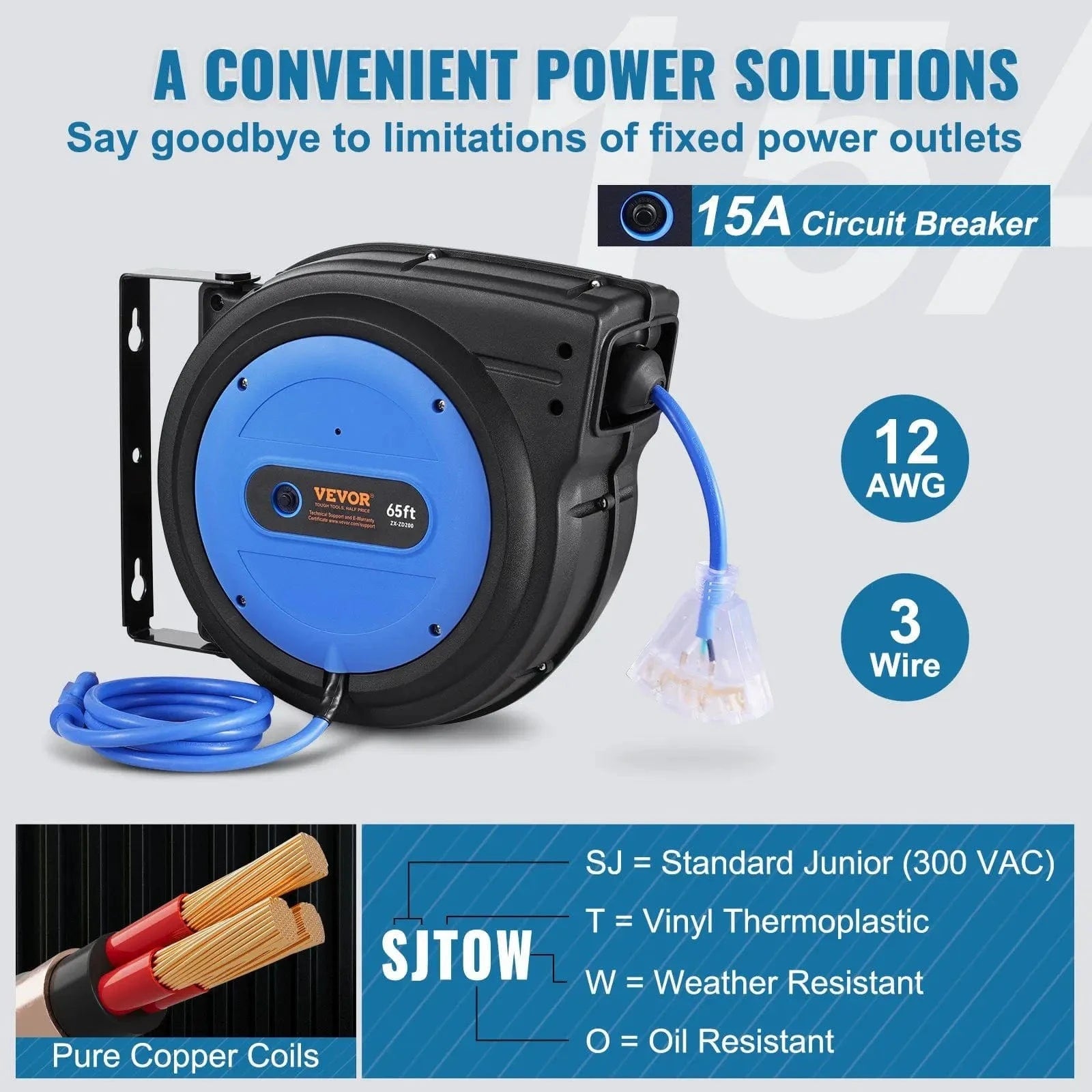

- Heavy-Duty Cable: 12AWG/3C SJTOW (oil- and weather-resistant) jacket withstands abrasion, UV, and incidental moisture.
- Integrated 15A Circuit Breaker: Trips when total load exceeds rating; push-button reset restores operation after overload is cleared.

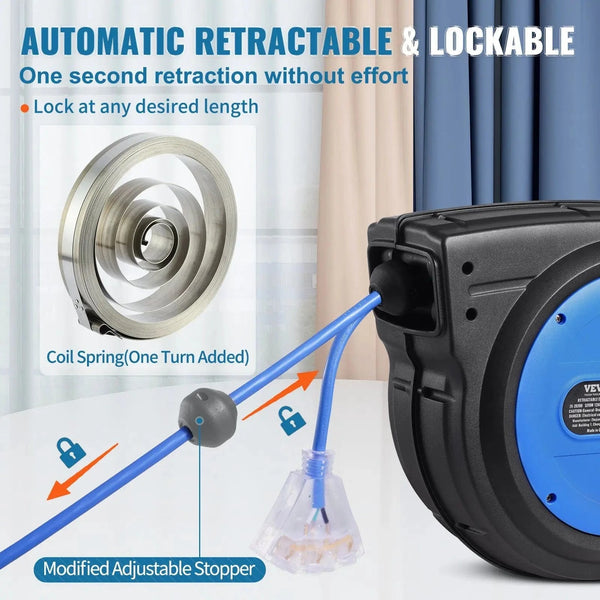

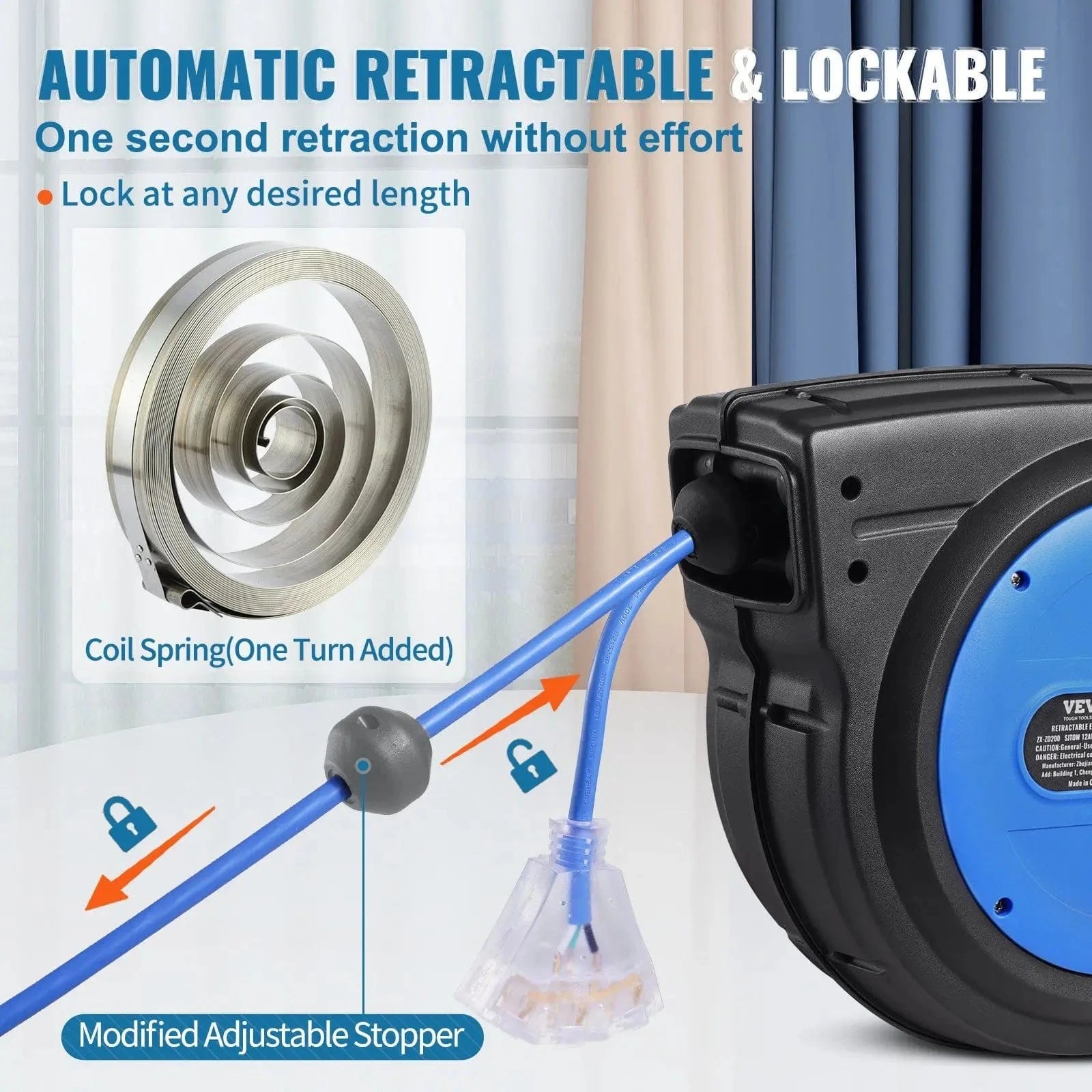

- Auto-Retract with Ratchet Lock: Smooth payout with positive indexing; pull to the desired length and lock, a light tug releases for clean rewind.
- Flame-Retardant Housing: Impact-resistant reel body designed for shop and garage environments.

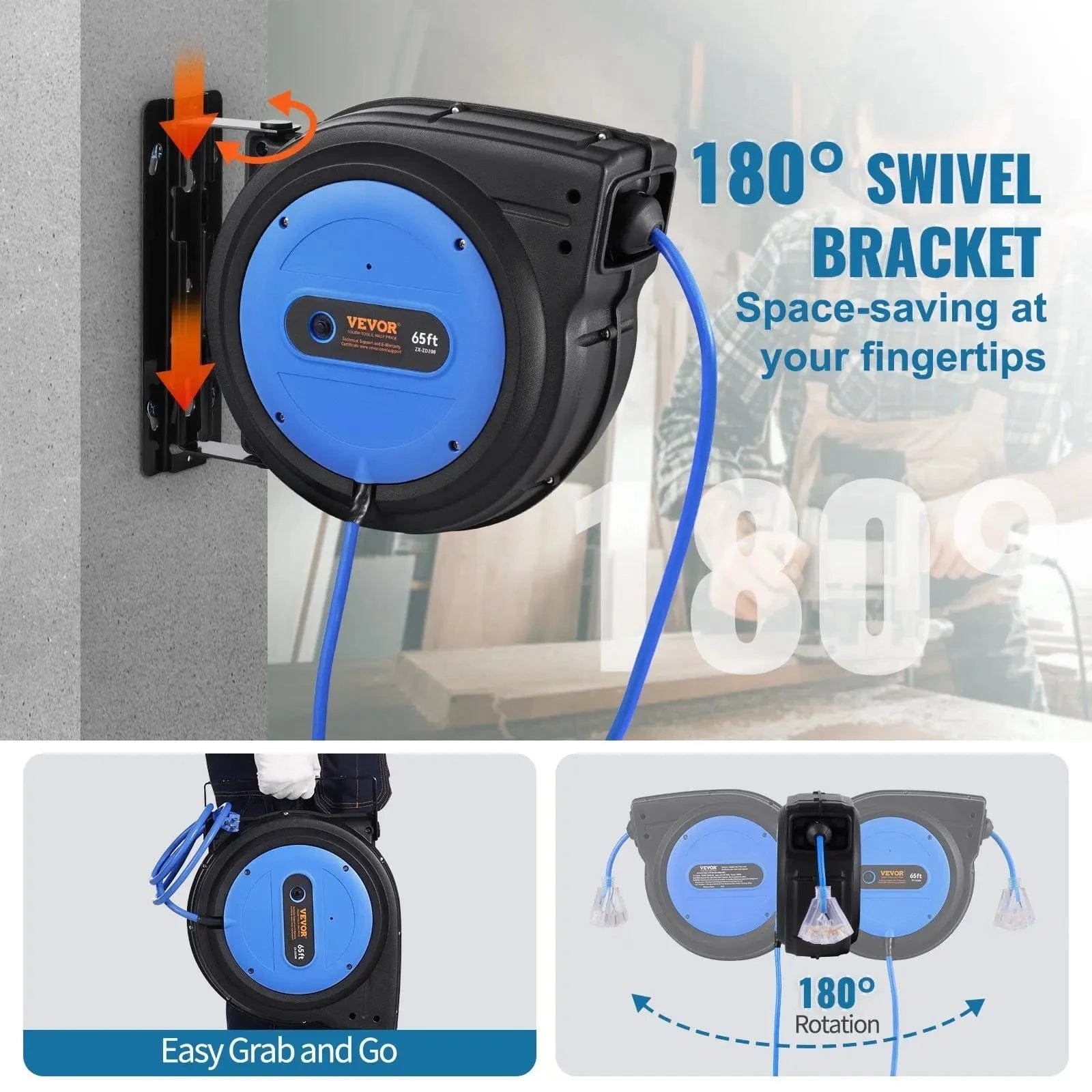

- Mount Your Way: Wall or ceiling bracket included; quick-release pin lets you remove the reel for storage or repositioning.
- Tangle-Resistant Guide & Stopper: Cable guide aligns the cord during rewind; adjustable bumper keeps the outlet end at arm’s reach.
Technical Specifications
| Model Number(s) | D0100HAD9WY (Assembly) / D0102HQ474A (Default Listing Ref.) |
| Cord Type | 12 AWG, 3-conductor (Hot / Neutral / Ground) |
| Jacket | SJTOW — oil, weather, and UV resistant; outdoor-capable |
| Service Length | 65 ft (≈ 19.8 m) retractable |
| Lead-In Length | 4.5 ft (≈ 1.4 m) |

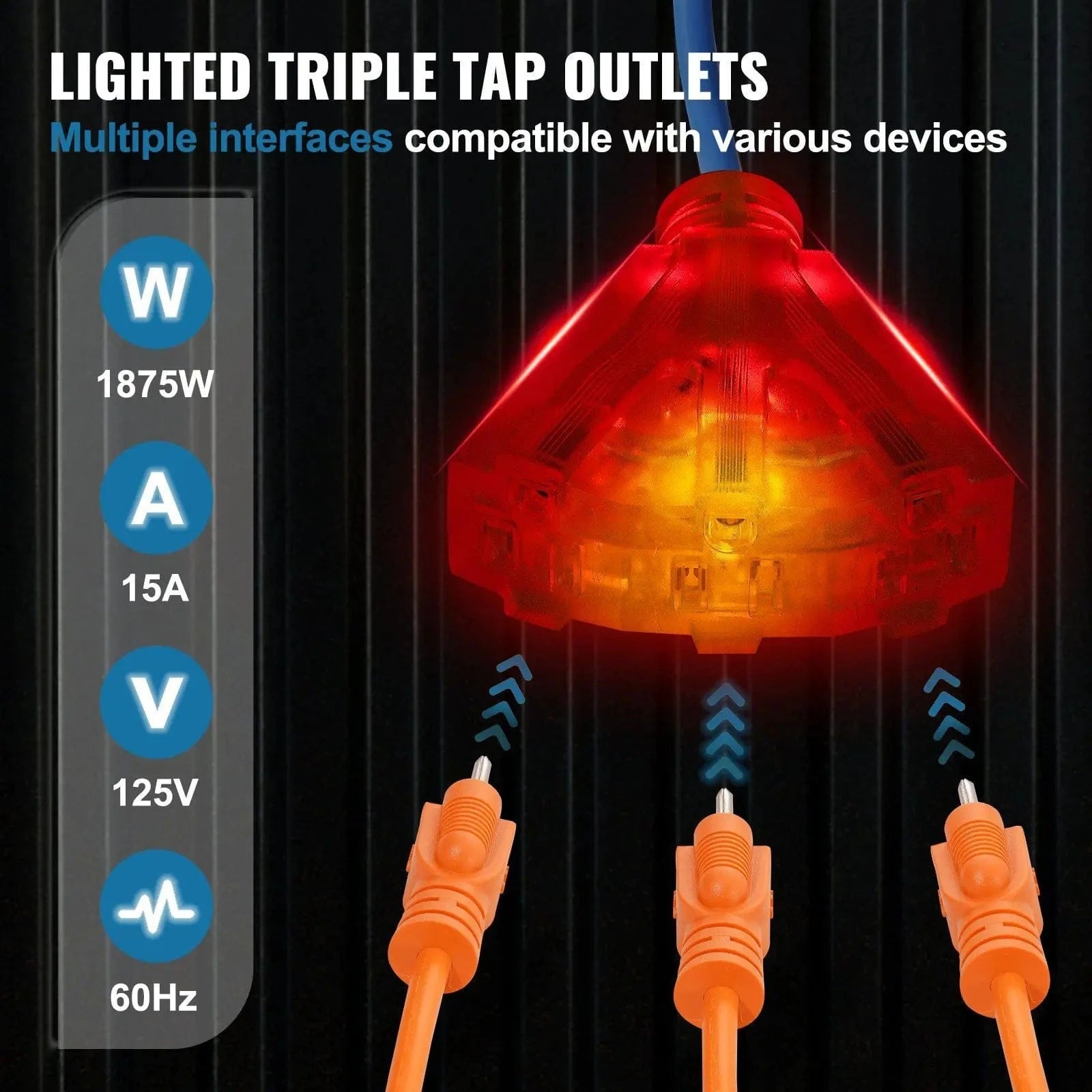

| Electrical Rating | 125 V AC, 15 A, 60 Hz (max 1875 W) |
| Overcurrent Protection | Integral 15A resettable circuit breaker |
| Mounting | Wall or ceiling; bracket included (ceiling requires screws; wall mount uses bracket slots) |
| Outlet End | 3-prong grounded receptacle; adjustable cord stopper |
| Environmental | Flame-retardant housing; tangle-resistant cable guide |
| Certifications | — |
Installation Notes
- Wall Mount: Hang using the supplied bracket slots; verify anchor capacity for the reel’s weight and dynamic loads.
- Ceiling Mount: Use the included bracket and proper screws/anchors (not included for all surfaces). Ensure the bracket is oriented per instructions to prevent detachment.
- Leave a smooth path for the cord to travel; avoid sharp edges that could abrade the jacket.
What’s in the Box

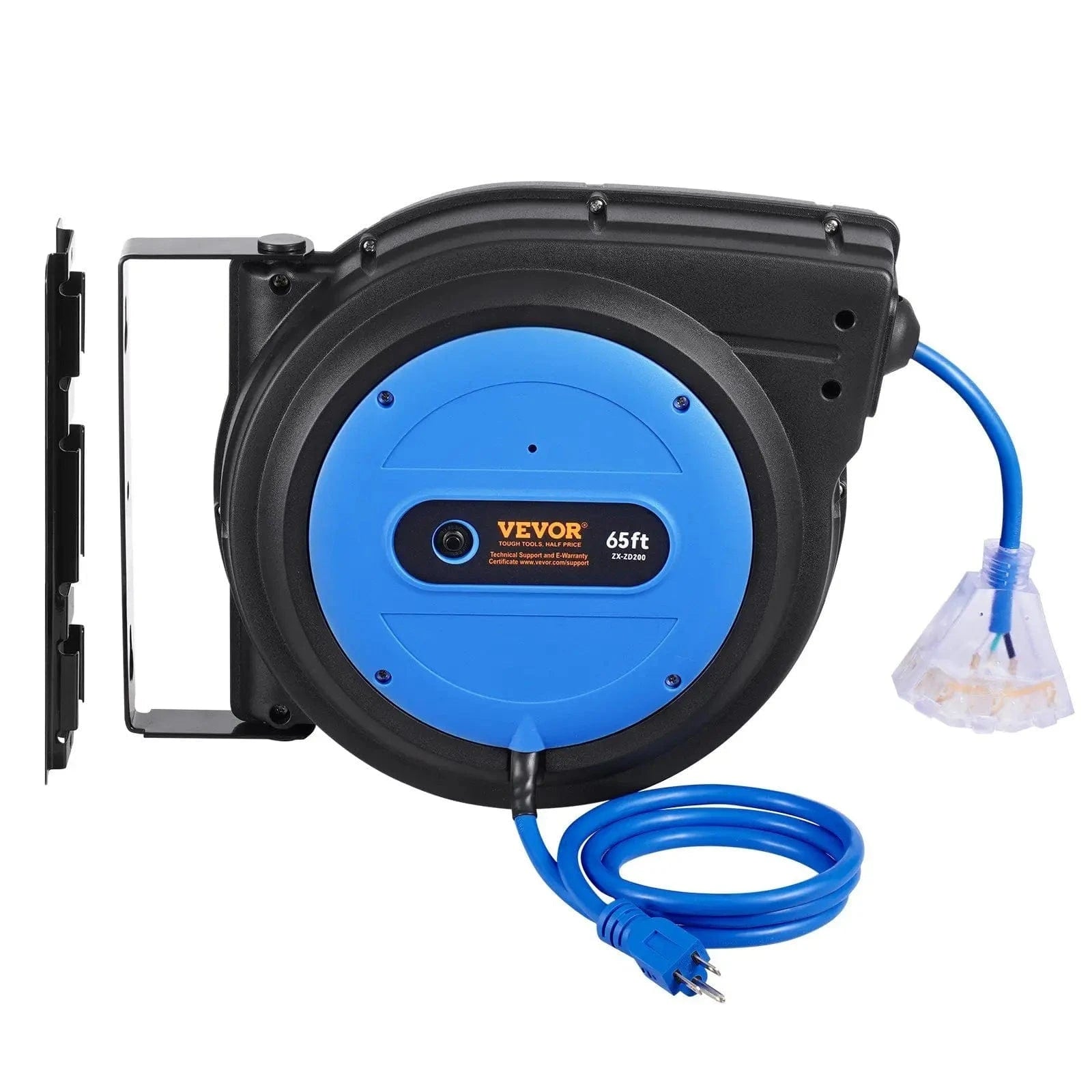

- Retractable extension cord reel (65 ft, 12AWG/3C SJTOW)
- Mounting bracket (wall/ceiling capable)
- Quick-release pin and hardware (varies by kit); user guide
Applications
- Garages & workshops — power tools, bench equipment, chargers
- Maintenance bays & fabrication — temporary task power
- Events & facilities — neat, long-reach power drops
- Light outdoor tasks — within 15 A rating and weather precautions
Safety & Use
Always fully extend high-load devices to reduce heat buildup on the spool. Do not exceed 15 A / 1875 W. Use GFCI-protected outlets outdoors. Keep connections dry and elevated; inspect the cable and housing regularly for wear.
Frequently Asked Questions (FAQs)
1) What gauge is the cable and why does it matter?
The reel uses 12AWG/3C copper. Thicker wire (lower AWG) reduces voltage drop and heat, improving tool performance at longer lengths.
2) How does the ratchet lock work?
Pull the cord to your desired length; the ratchet engages at indexed points. A gentle tug disengages the lock and initiates smooth auto-retraction.
3) Is the SJTOW jacket outdoor-rated?
Yes. SJTOW is oil-resistant and weather-resistant with good UV and abrasion performance, suitable for indoor/outdoor use.
4) What happens during overload?
The built-in 15A breaker trips to cut power. Remove the cause, allow a brief cool-down, then press the reset button to restore service.
5) Can I mount it on the ceiling?
Yes. The included bracket supports ceiling mounting. Use appropriate screws/anchors and follow the bracket orientation to prevent accidental release.
6) Does it have multiple outlets at the end?
This configuration provides a single grounded receptacle to maintain full current capacity and minimize heat at the drop.
7) Can I use space heaters or compressors?
Only if the nameplate current is ≤ 15 A and the cord is fully extended. High-draw loads require careful circuit management.
8) Will the reel retract if the cord is dirty or wet?
Wipe the jacket clean before retraction to protect the guide and maintain smooth rewind; keep connections dry.
9) How do I adjust the cord stopper?
Loosen the stopper’s screws, slide to the preferred position so the outlet end stops at a comfortable reach, then retighten.
10) Do I need to service the mechanism?
Periodically check fasteners, inspect the spring function, and keep the guide area free of debris. Do not lubricate unless specified by the manual.
