What is the thread type?

PG thread. If your enclosure uses NPT, select NPT glands or an adapter.

Why extended 15 mm threads?

They allow mounting on thicker panels while maintaining full locknut engagement and sealing.

Yes—Nylon PA66/ABS/PC materials are UV-resistant for outdoor use.

Do these provide strain relief?

Yes—compression seals grip the cable jacket for strain relief and environmental sealing.

Do I size by AWG or OD?

Size by actual cable outside diameter for a proper seal.

Can I use for RV/solar roof entries?

Yes—select the correct PG size and add compatible roof sealant.

Will IP68 hold on curved panels?

Use flat mounting or a shaped gasket for curved/irregular surfaces.

Can one gland carry multiple cables?

Use one gland per cable for IP68, or a multi-hole insert designed for multiple cables.

What tools are needed?

Step bit/punch and wrenches; tighten cap/locknut to spec.

Are these RoHS/CE compliant?

Yes—supplier declarations cover RoHS and CE.

Do you sell single sizes?

Yes—contact us for individual PG size packs.

How to maintain sealing over time?

Recheck torque after thermal/vibration cycles and inspect seals for aging.

Can I use with non-round cables?

Use round-jacket cables or multi-hole/shape-specific inserts for proper sealing.

What if my box has NPT threads?

Use NPT-threaded glands or PG-to-NPT adapters.

What’s included in the kit?

72 pcs assorted PG glands with locknuts and sealing washers; enclosure/cables not included.

Conversions Tech 72PCS IP68 Waterproof Nylon Cable Glands Kit Assorted Cord Grip Connector Set PG7 to PG29 for Electrical Junction Box

Conversions Tech black 72PCS IP68 Waterproof Nylon Cable Glands Kit Assorted Cord Grip Connector Set PG7 to PG29 for Electrical Junction Box

Sold Out
On Sale

Conversions Tech

72PCS IP68 Waterproof Nylon Cable Glands Kit Assorted Cord Grip Connector Set PG7 to PG29 for Electrical Junction Box

Name: 72PCS IP68 Waterproof Nylon Cable Glands Kit Assorted Cord Grip Connector Set PG7 to PG29 for Electrical Junction Box
Brand: Conversions Tech
SKU: 200329261:-1#black
Price: 16.28 USD
Availability: InStock

Sale price $16.28

Shipping calculated at checkout

🛡 Trade Pricing Program Contractors, wholesalers & distributors save 15–30% Apply — 60 seconds Sign In

SKU: 200329261:-1#black

Specification

black

Quantity

899999999 in stock

Shop with confidence

Same-day shipping by 2PM ET
UL / CSA listed products
Net 30-60 terms available
Engineering desk support
Competitive cross-reference pricing

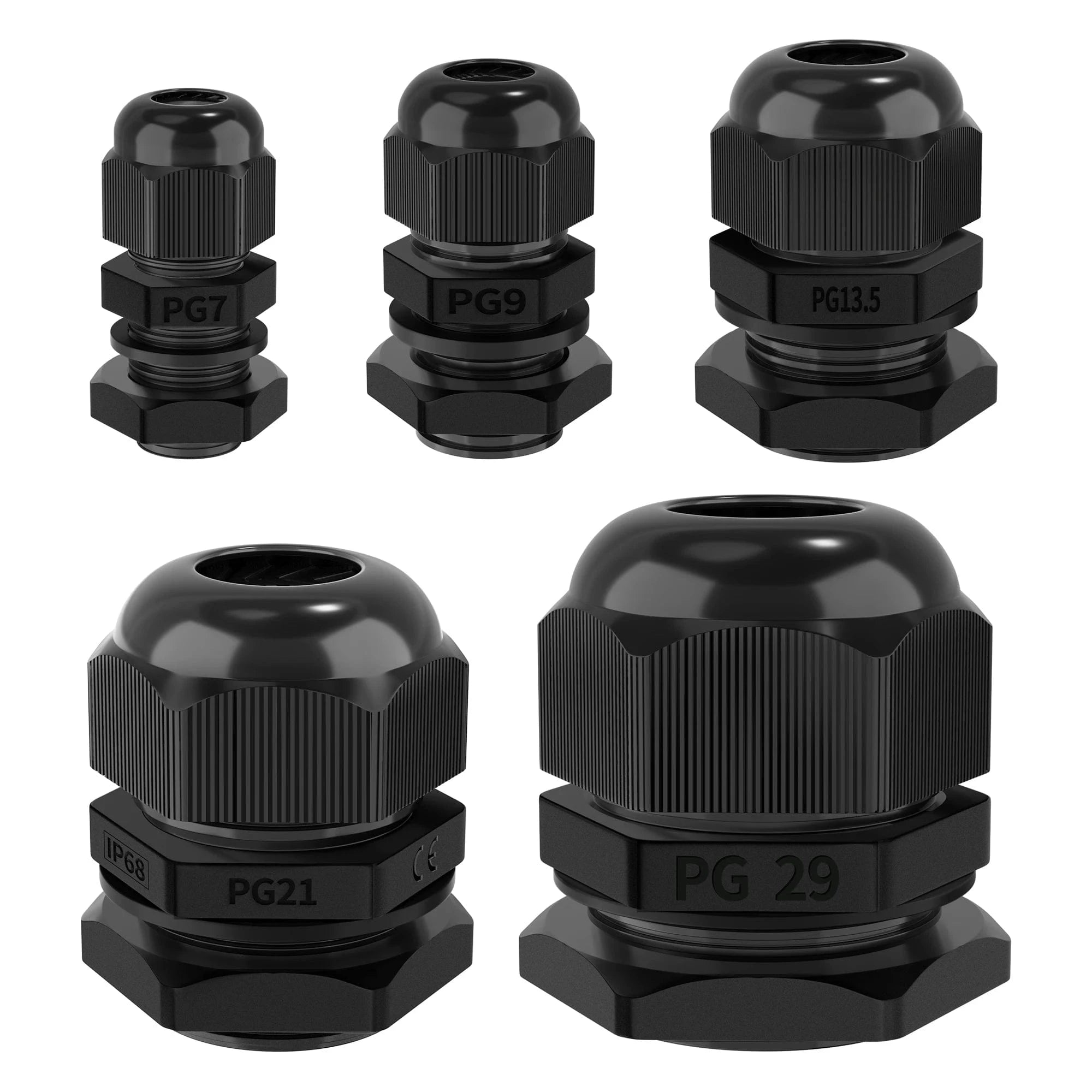

IP68 Waterproof Nylon Cable Glands Kit — 72-Piece Assorted PG7–PG29 (Extended-Thread, UV-Resistant)

Professional cord-grip assortment for electrical enclosures and roof/through-bulkhead entries. The kit spans PG7 to PG29 sizes to accommodate cable OD from ≈3 mm to 25 mm, using Nylon PA66 bodies, integrated rubber seals, and extended 15 mm threads for thicker wall panels. Rated IP68 for dust-tight and long-duration water immersion with UV-resistant construction—ideal for RV/van/solar, marine, outdoor signage, and industrial junction boxes.

Assorted kit: 72 pcs cable glands, sizes PG7–PG29
IP68 ingress protection with rubber washers & compression seals
Extended 15 mm thread length for thicker enclosure walls
Material: Nylon PA66 body, ABS/PC cap/locknut (black), UV & corrosion resistant
Operating temp: −40 °C to +85 °C
Tool-less seal compression; PG thread standard
Applications: Cable protection & strain relief in electrical boxes, RV/boat roof entries, solar combiner boxes, LED controllers

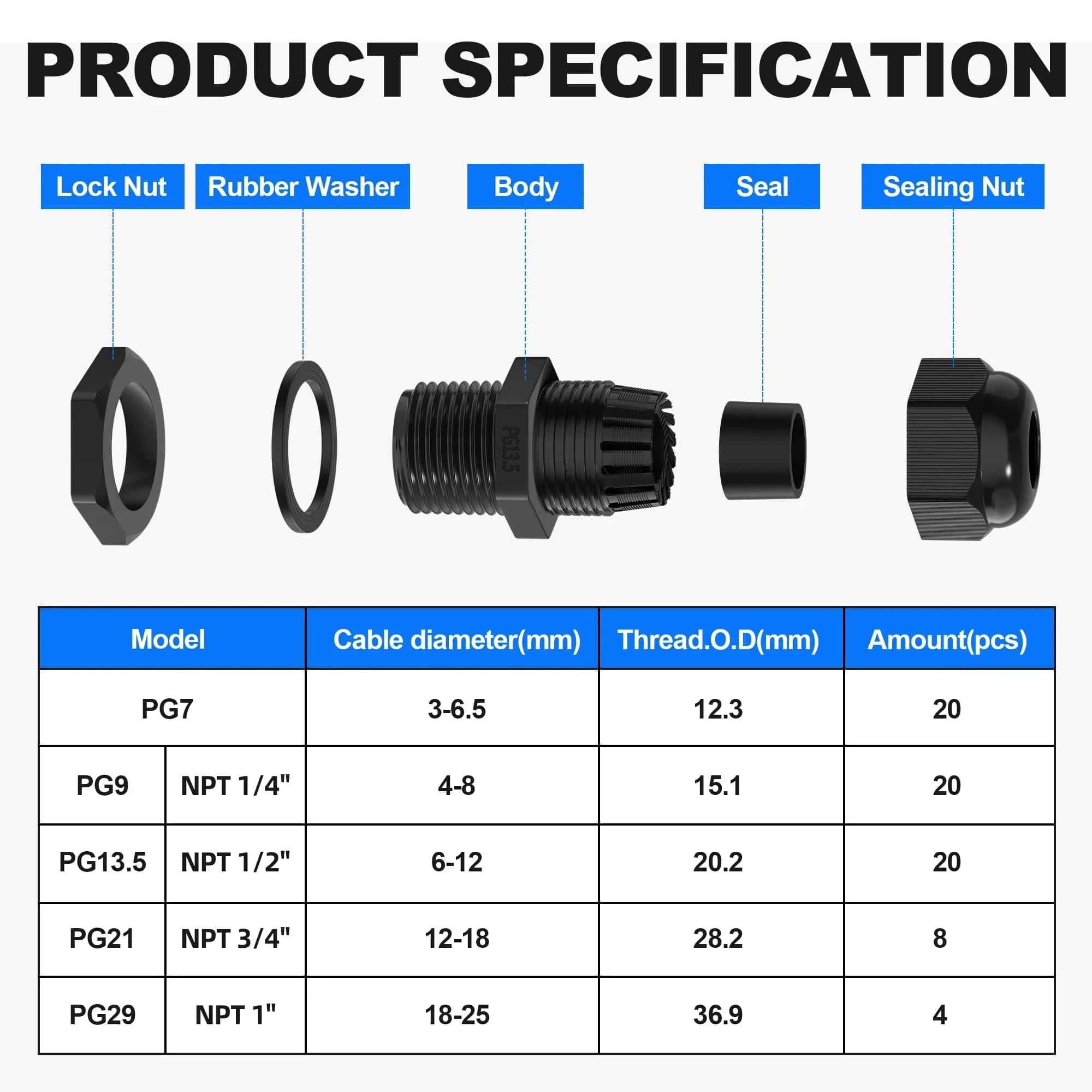

Technical Specifications

Kit Contents	72 pcs assorted cable glands (PG7, PG9, PG11, PG13.5, PG16, PG19, PG21, PG25, PG29; distribution varies by kit)
Cable OD Coverage	≈3 mm – 25 mm (model-dependent within PG7–PG29 range)
Conductor Range	Approx.	PG-72 (72-piece assortment)

Notes: Always size by actual cable outside diameter (OD), not AWG alone. Tighten the cap to specified torque to achieve IP68. For roof entries, seal the panel around the hole per best practices (e.g., compatible sealant) in addition to the gland’s own washer.

Request a Quote | Request Sample

FAQs

What cable diameters does this kit cover?

The assortment spans PG7–PG29, covering approximately 3 mm to 25 mm cable OD. Select the PG size that matches your measured cable OD.

Is the kit truly IP68?

Yes—when installed with the supplied washer on a flat surface and the cap tightened to spec, the gland achieves IP68 dust-tight and immersion protection.

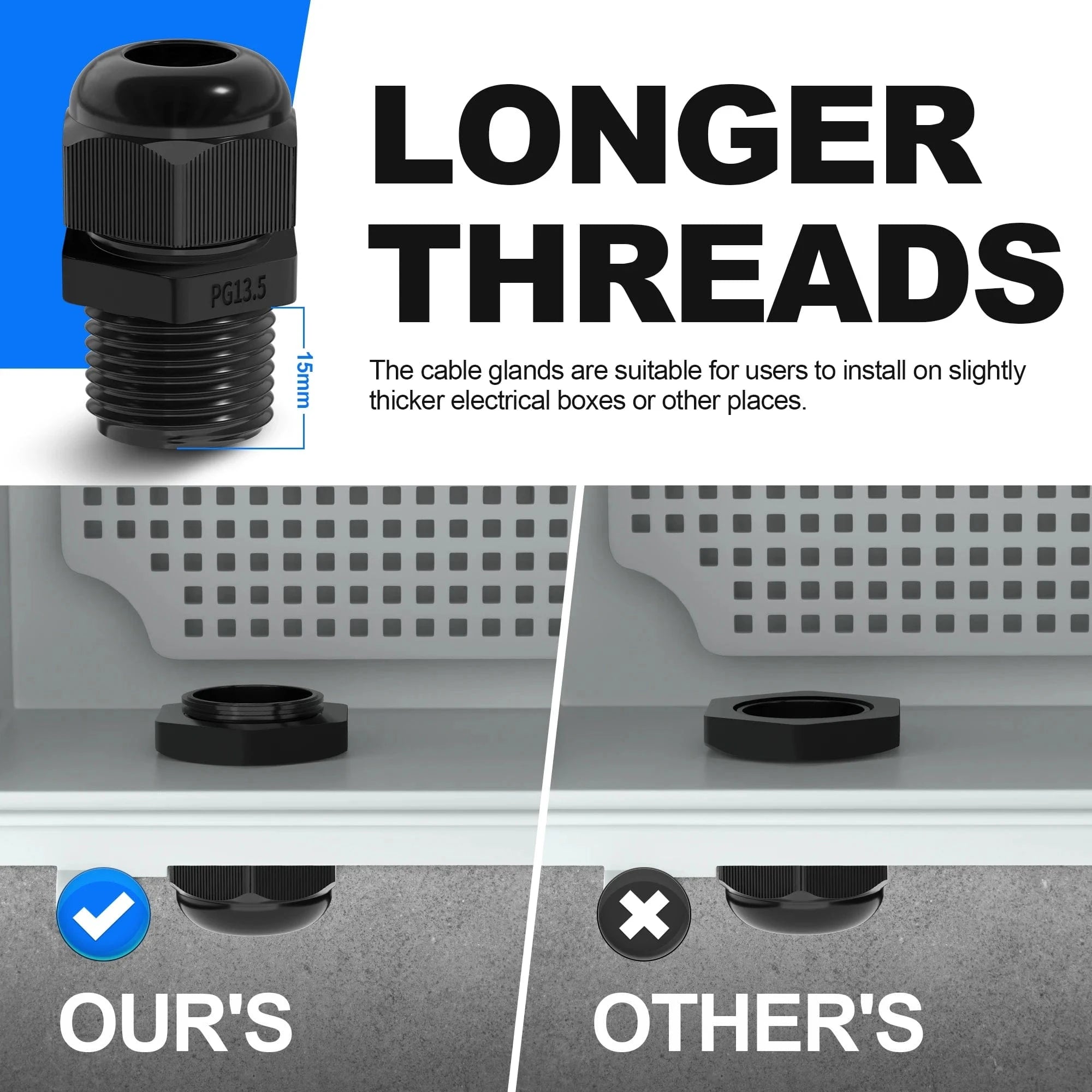

What’s the benefit of the extended 15 mm thread?

It allows mounting on thicker enclosure walls or sandwich panels while maintaining full engagement for the locknut and seal washer.

Are these suitable for outdoor UV exposure?

Yes. The Nylon PA66/ABS/PC construction is UV-resistant and designed for outdoor service life.

Do I size by AWG or by OD?

Always size by cable outside diameter. Different insulations on the same AWG can have different ODs.

Can I use these for RV or van roof solar entries?

Yes—select the proper PG size for your solar cable OD and apply panel sealant appropriate to your roof material.

PG vs NPT—what thread do these use?

This kit uses PG threads. If your enclosure has NPT knockouts, use an adapter or purchase NPT-threaded glands.

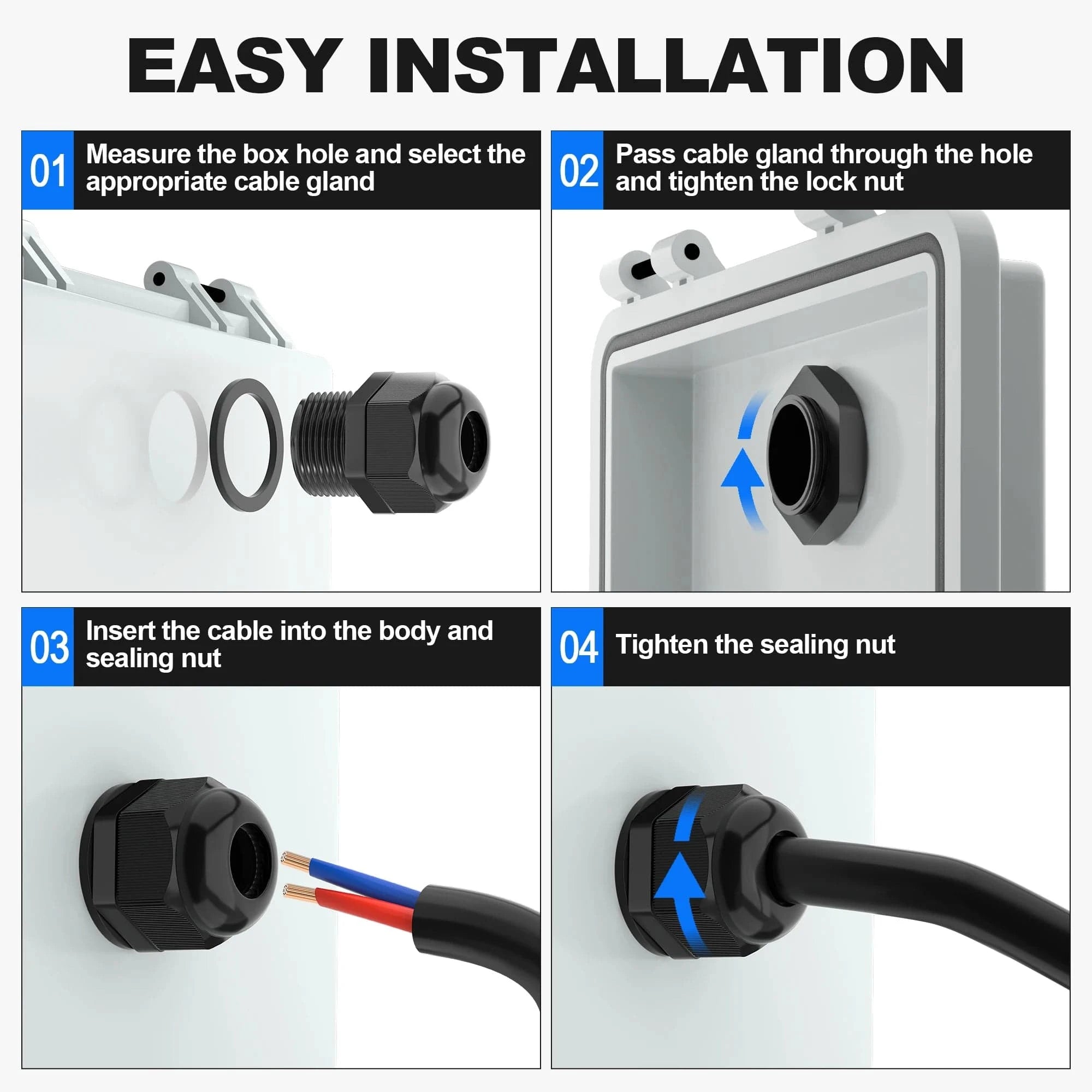

What tools are required for installation?

Typically a step bit or punch for the panel hole, and wrenches to snug the locknut and cap to the recommended torque.

Will IP68 hold if the panel isn’t flat?

Use on flat, rigid surfaces for best sealing. On curved/irregular surfaces, use a compatible gasket or gland base designed for that geometry.

Can I pass multiple cables through one gland?

Use one gland per cable for IP68. For multi-cable pass-throughs, select a multi-hole insert designed for your diameters.

What enclosure thickness can it handle?

The 15 mm extended thread accommodates thicker walls than standard glands; verify against your panel thickness and the locknut engagement length.

Is Nylon PA66 strong enough for marine use?

Yes—Nylon PA66 offers high tensile strength and corrosion resistance. Rinse after salt exposure and inspect seals periodically.

What temperature range is supported?

−40 °C to +85 °C.

Do these glands provide strain relief?

Yes—the compression seal grips the cable jacket, providing strain relief and environmental sealing.

Which sizes are included (PG7–PG29)?

Typical assortments include a range of PG7, PG9, PG11, PG13.5, PG16, PG19, PG21, PG25, and PG29. Exact counts per size may vary; see kit breakdown if provided.

Are locknuts and washers included?

Yes—each gland includes a locknut and sealing washer.

Can I use these with braided or oval-shaped cables?

Use with round jackets for best sealing. For non-round cables, choose glands with shaped inserts or use a potting/gel seal system.

Do I need extra drilling?

If your panel has the correct knockout for the chosen PG size, no extra drilling is required. Otherwise, drill the matching hole size for that PG thread.

Are they compliant with CE/RoHS?

Yes—supplier declarations cover CE and RoHS.

Will these fit LED driver/junction boxes?

Yes—select the PG size that matches your cable OD and the box’s knockout/hole size.

Can I buy specific sizes instead of the full kit?

Yes—contact Conversions Tech for single-size packs or replenishment of the most used PG sizes.
