ALUMINUM FOUR BARREL CONNECTORS

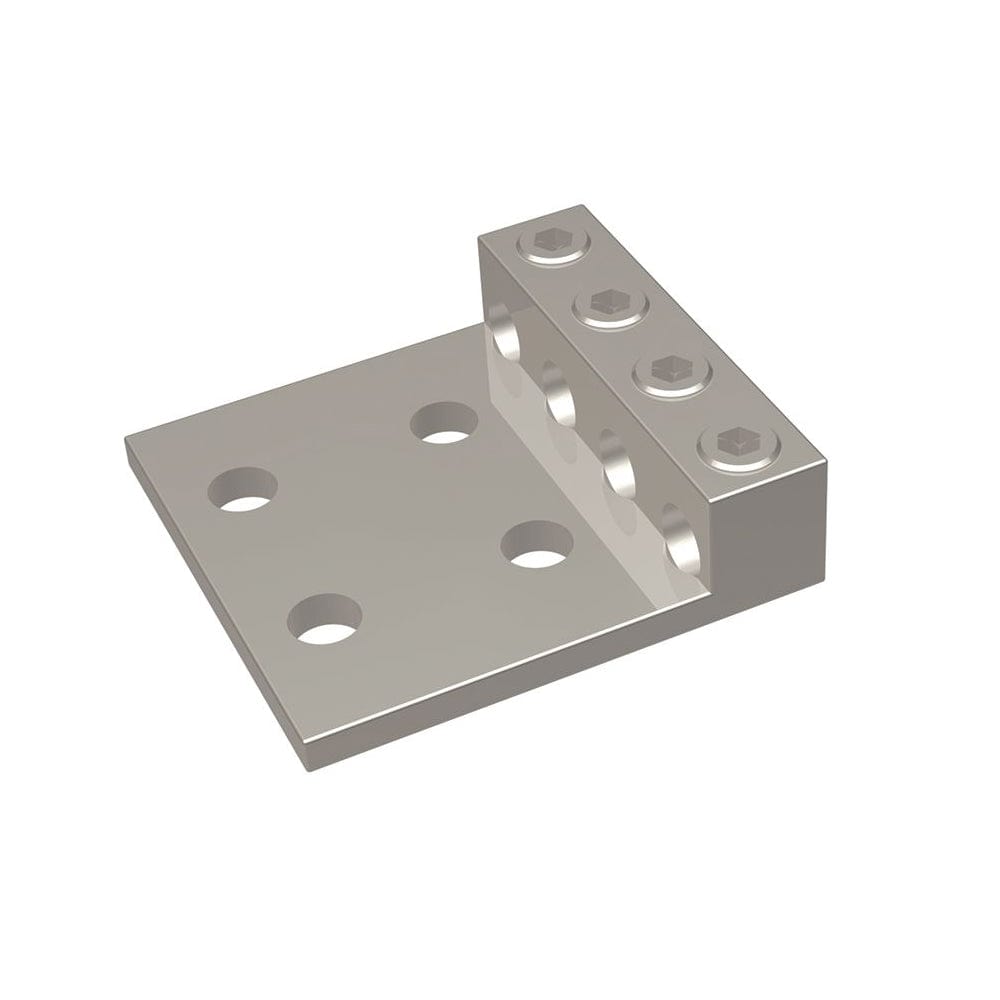

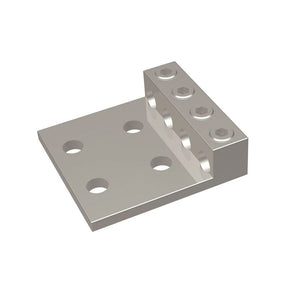

The Conversions Technology 4-Conductor Lug is a high-performance electrical connector crafted for secure and efficient termination of up to four conductors. With its electro-tin plated high-strength 6061-T6 aluminum alloy construction, this lug ensures durability and reliability in diverse electrical applications.
Product Overview
The Conversions Technology 4-Conductor Lug stands out as a robust and versatile electrical connector designed for a multitude of applications. Constructed from electro-tin plated high-strength 6061-T6 aluminum alloy, it offers exceptional durability and corrosion resistance. With the capability to terminate up to four conductors, ranging from 6 AWG to 350 kcmil, this lug provides flexibility for various wiring configurations. Its 1/2-inch stud size, 4-pad holes, and 5/16 inch hex screw type make installations secure and straightforward.

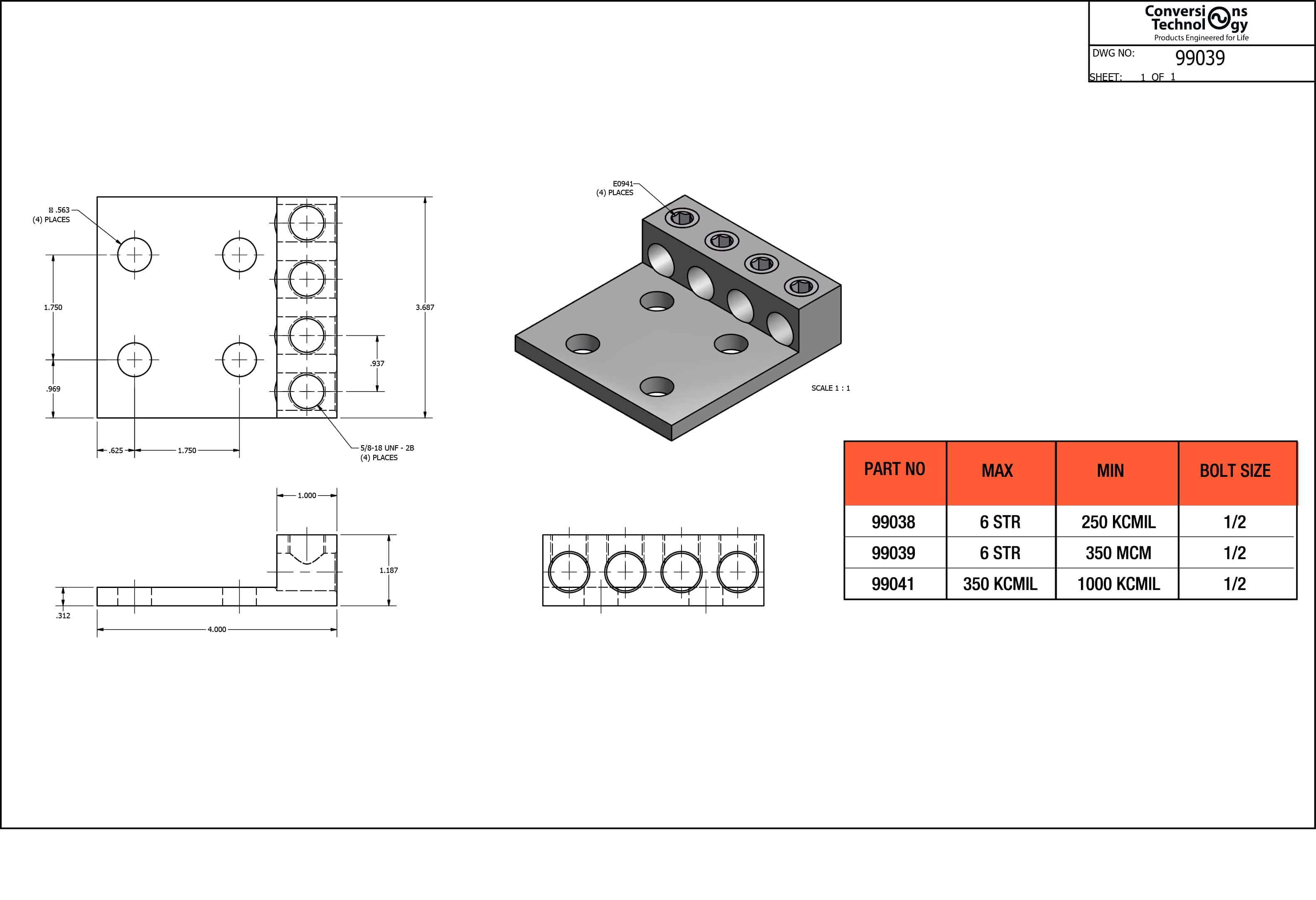

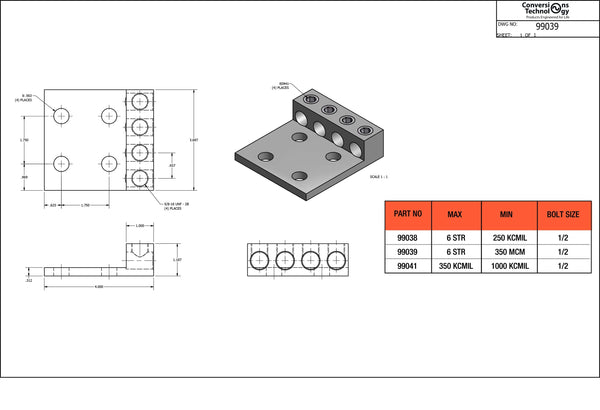

Specifications
- Wire Entry Type: Chamfered
- Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
- Overall Length: 4-5/16 Inches
- Conductor Size: 6 AWG min. to 350 kcmil Max.
- Conductor Material: Aluminum/Copper
- Conductor Count: 4
- Stud Size: 1/2 Inch
- Pad Size: 3 Inches L X 4-1/64 Inches W X 5/16 Inch Thickness
- Pad Holes: 4
- Pad Type: Straight
- Screw Type: 5/16 Inch Hex
- Size: 1-3/8 Inch H
- Temperature Rating: 90 Deg C
Uses and Cases
- Power Distribution Centers: Suitable for connecting multiple conductors securely in power distribution centers, ensuring efficient electricity distribution.
- Industrial Wiring: Ideal for industrial settings where robust electrical connections are crucial, providing a dependable solution for machinery and equipment.
- Renewable Energy Systems: Well-suited for use in solar and wind power installations, ensuring reliable connections in renewable energy applications.
- Commercial Buildings: Applicable for wiring applications within commercial structures, providing a secure and durable connection for various electrical components.
- Construction Projects: A reliable choice for construction sites where temporary or permanent electrical connections are required, offering durability in challenging environments.
- HVAC Systems: Suitable for wiring connections in heating, ventilation, and air conditioning systems, ensuring efficient and stable electrical performance.
- Data Centers: Useful in data center applications where reliable electrical connections are essential for the uninterrupted operation of sensitive equipment.
Item Features
- Material: Constructed from electro-tin plated high-strength 6061-T6 aluminum alloy, offering durability and corrosion resistance.
- Wire Entry Type: Features chamfered wire entry for easy and efficient conductor insertion during installation.
- Conductor Size: Accommodates a range of conductor sizes, from 6 AWG minimum to 350 kcmil maximum, providing versatility for various electrical applications.
- Conductor Type: Suitable for use with both aluminum and copper conductors, allowing for flexibility in wiring configurations.
- Stud Size: Designed with a 1/2-inch stud size, facilitating a secure and reliable connection to electrical panels and equipment.
- Pad Size: Features a straight pad type with dimensions of 3 inches in length by 4-1/64 inches in width by 5/16 inch in thickness, providing ample surface area for conductor termination.
- Pad Holes: Equipped with 4 pad holes, enabling the connection of up to 4 conductors and accommodating diverse wiring needs.
