Aluminum Single Barrel Connectors 14 AWG - 2 AWG - 1/4"
Shipping calculated at checkout
SKU: 210-99002
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

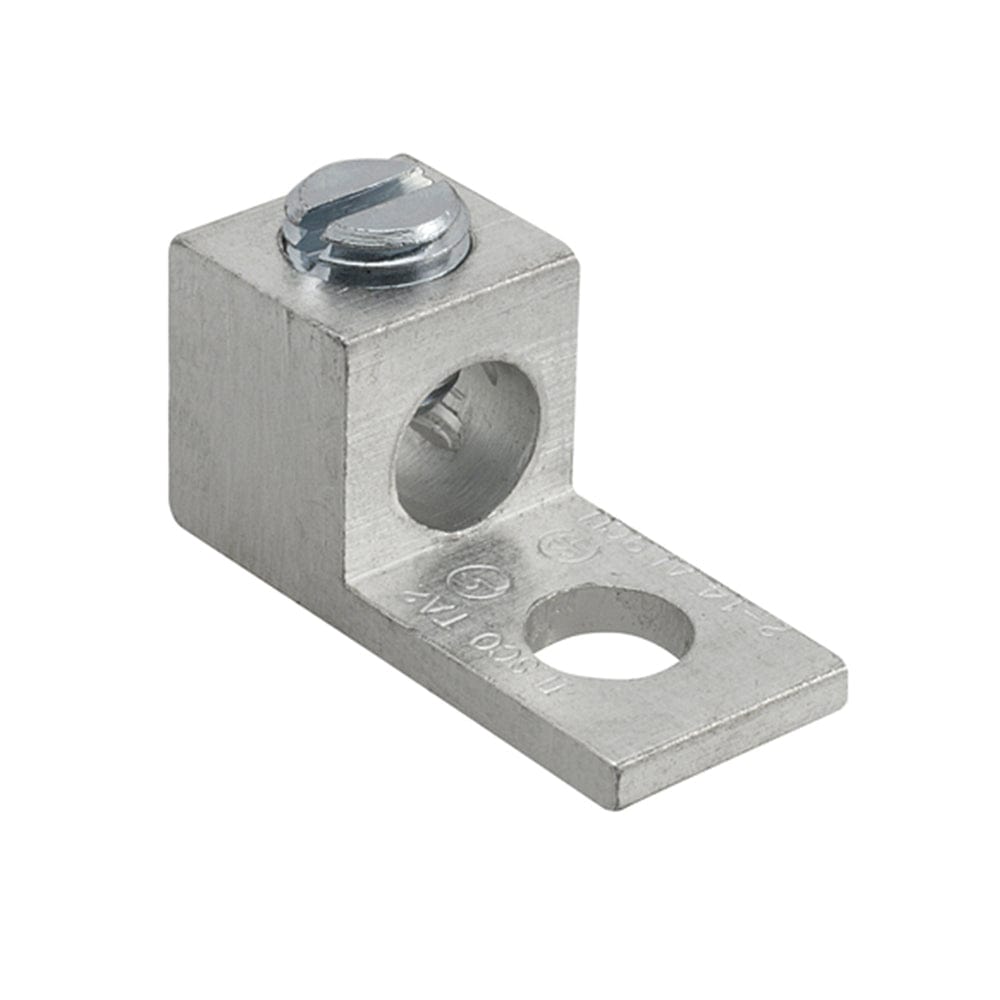

Aluminum Lug | 1-Hole | 1/4" Stud | 14–2 AWG | Tin-Plated | Conversions Tech
The Conversions Tech Aluminum Lug is engineered for reliable and secure electrical connections, specifically designed to accommodate 14–2 AWG conductors. Crafted from Electro Tin-Plated 6061-T6 Aluminum Alloy, this lug delivers exceptional durability, superior conductivity, and corrosion resistance, ensuring long-lasting performance in residential, commercial, and industrial applications. Its simple, single-hole design with a 1/4-inch stud makes it ideal for a wide range of installations requiring efficient and dependable power transfer.
Rated for 90°C and 35 kV, this lug is built for performance and versatility, providing reliable electrical terminations across various power systems.
Item Features
- Conductor Compatibility: Designed for 14–2 AWG conductors, ensuring secure, low-resistance terminations.
- High-Quality Aluminum Build: Made from Electro Tin-Plated 6061-T6 Aluminum Alloy for optimal conductivity and corrosion protection.
- Single Conductor Design: Simplifies installation while maintaining a focused and stable electrical connection.
- Compact Form Factor: Space-efficient design allows easy installation in tight or confined electrical enclosures.
- High Voltage and Temperature Ratings: Rated for 35 kV and 90°C, ensuring compatibility with a wide range of electrical environments.
- Secure Mounting: 1/4-inch stud size ensures a solid connection to terminals, panels, and busbars.
Technical Specifications
| Wire Entry Type | Chamfered |
| Material | Electro Tin-Plated 6061-T6 Aluminum Alloy |
| Overall Length | 1-5/32 Inch |
| Conductor Size | 14 AWG Minimum – 2 AWG Maximum |
| Number of Pad Holes | 1 |
| Voltage Rating | 35 kV |
| Height | 3/4 Inch |
| Temperature Rating | 90°C |
| UPC | 850061894526 |
| Stud Size | 1/4 Inch |
| Pad Dimensions | Length: 11/16 Inch × Width: 1/2 Inch × Thickness: 7/64 Inch |
Uses and Applications
- Residential Wiring: Ideal for connecting 14–2 gauge conductors in home wiring systems for safe power distribution.
- Commercial Installations: Used in offices, retail, and industrial facilities for reliable electrical connections.
- Panel Boards & Circuit Breakers: Provides efficient conductor connections for critical panel and breaker operations.
- Renewable Energy Systems: Suitable for solar, wind, and other renewable energy setups where aluminum conductors are common.
- HVAC Systems: Ensures dependable power transfer for heating and cooling systems.
- Telecommunications: Provides stable connectivity in data transmission and network equipment.
