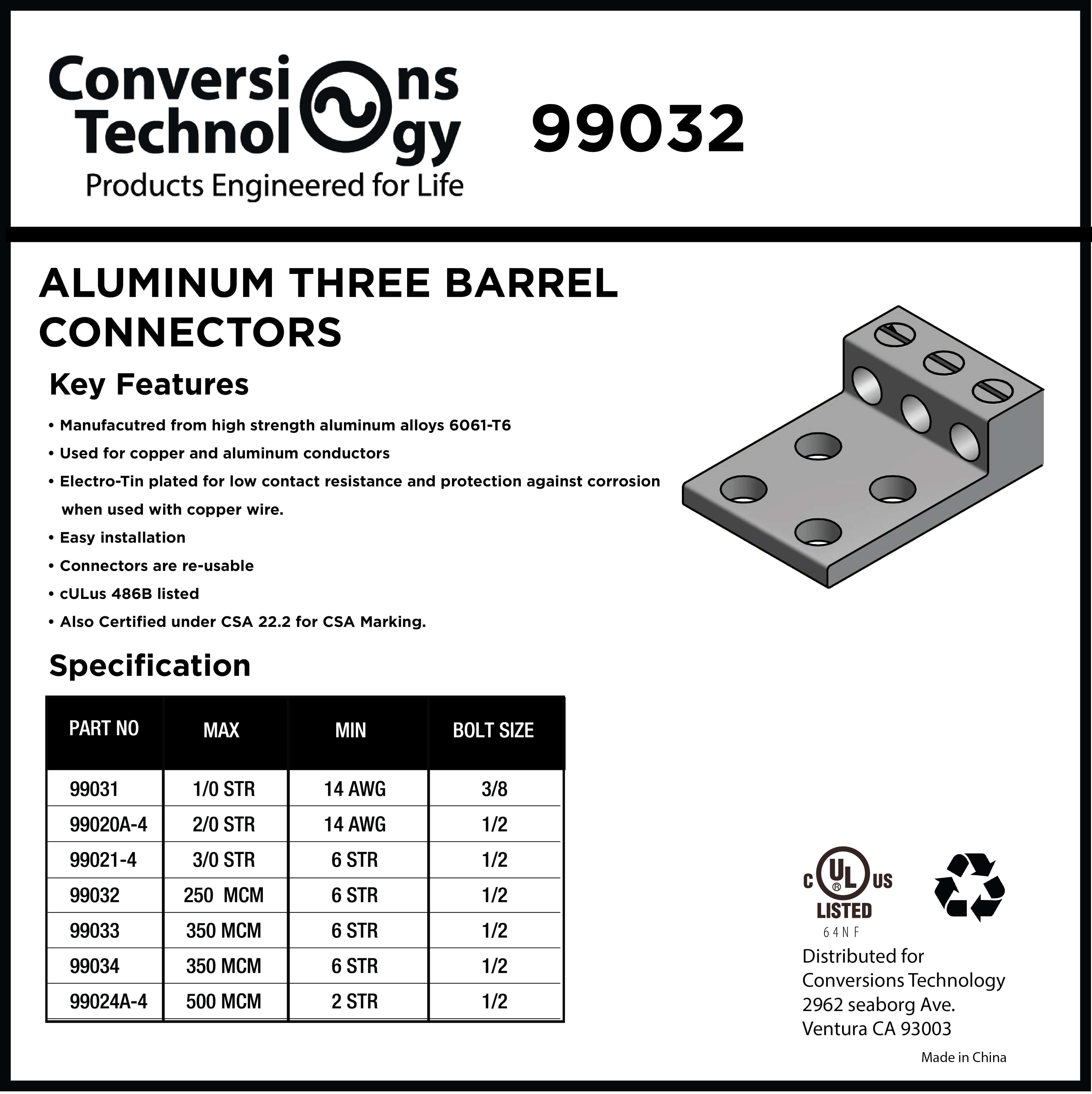

Aluminum Three Barrel Connectors 6 AWG to 240 kcmil 1/2 Inch Stud Size

 ALUMINUM THREE BARREL CONNECTORS

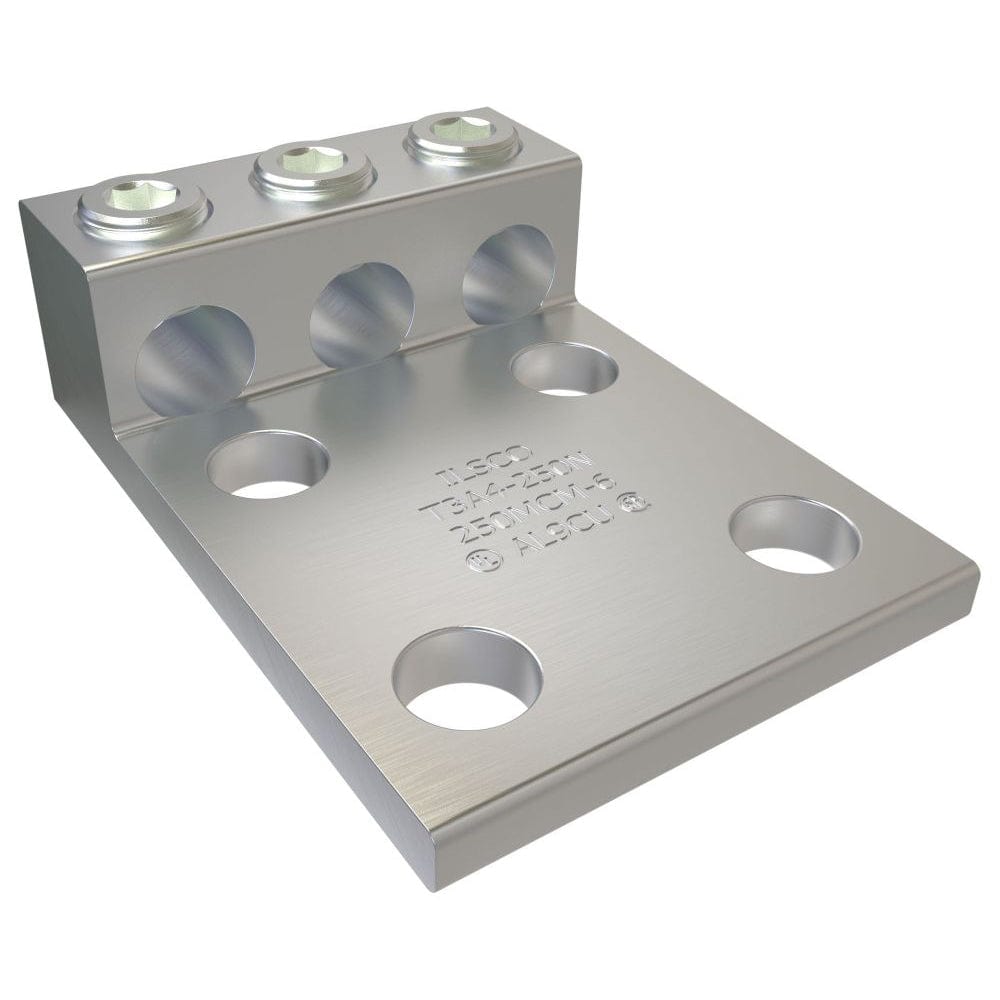

The 99032 3-Conductor Lug is a durable electrical connector designed for secure terminations of three conductors. With chamfered wire entry, high-strength 6061-T6 aluminum alloy construction, and compatibility with a wide range of conductor sizes, it ensures reliable and efficient electrical connections.

Product Overview

The 99032 3-Conductor Lug is a robust electrical connector designed for terminating three conductors securely. Featuring chamfered wire entry and constructed from high-strength 6061-T6 aluminum alloy, it ensures durability and ease of conductor insertion. This lug accommodates a broad range of conductor sizes, from 6 AWG to 250 kcmil, providing versatility for various wiring applications.

Specifications

• Wire Entry Type: Chamfered
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Overall Length: 4 Inches
• Conductor Size Range (Min/Max): 6 AWG minimum to 250 kcmil maximum
• Conductor Material: Aluminum/Copper
• Number of Conductors: 3
• Stud Size: 1/2 Inch

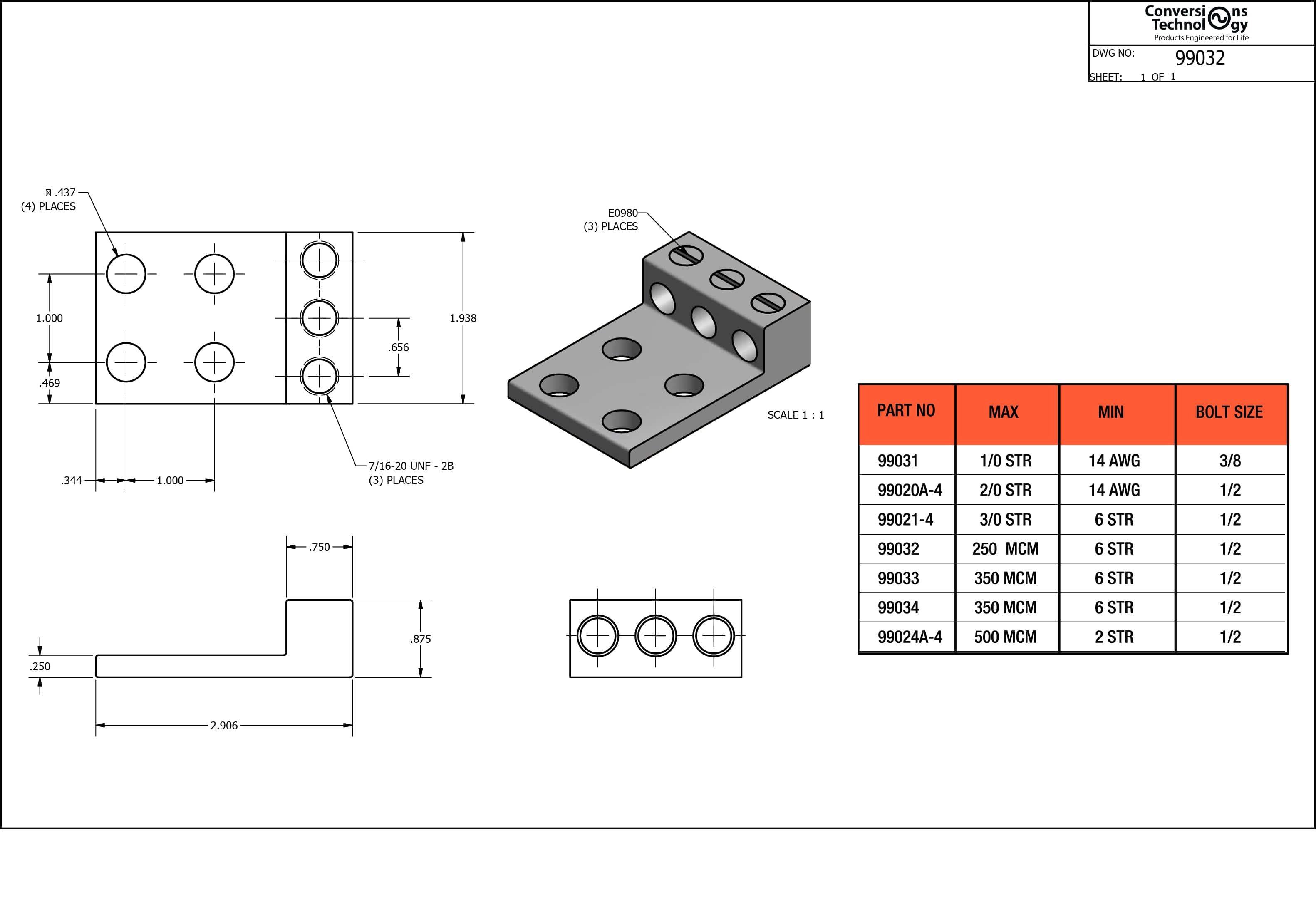

• Pad Size and Holes: 3 Inches Length X 2-13/16 Inches Width X 5/16 Inch Thickness, with 4 pad holes
• Pad Type: Straight
• Screw Type: 5/16 Inch Hex Screw
• Size: 1-3/16 Inch Height
• Temperature Rating: 90 Degrees Celsius

Uses and Cases

• Electrical Panels: Used in electrical panels to connect and terminate multiple conductors securely, ensuring a stable and efficient electrical distribution system.
• Commercial Wiring: Applied in commercial wiring applications where multiple conductors need to be terminated reliably, such as in retail spaces, offices, and other commercial buildings.
• Industrial Machinery: Utilized in the electrical systems of industrial machinery and equipment to provide a secure connection for multiple conductors, contributing to the overall functionality and safety of the machinery.
• Renewable Energy Installations: Suitable for connecting conductors in renewable energy projects, including solar and wind installations, where durable and secure electrical connections are essential.
• Transformer Connections: Used for terminating conductors in transformer applications, ensuring efficient and dependable power transfer.
• Data Centers: Applied in data center installations for connecting and terminating conductors within electrical systems supporting servers and networking equipment.
• Construction Projects: Suitable for use in various construction projects where robust and reliable electrical connections are required, contributing to the overall stability of the electrical system.
• Electrical Substations: Installed in electrical substations for connecting and terminating conductors, ensuring reliability in power distribution.
• Heavy Equipment: Used in the electrical systems of heavy equipment, providing a reliable and secure connection point for multiple conductors.
• Telecommunications: Applied in telecommunications infrastructure for secure conductor terminations, contributing to the stability of the communication network.

Item Features

• Chamfered Wire Entry: Facilitates smooth and easy insertion of conductors during installation.
• Material: Constructed from Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy for durability and corrosion resistance.
• Conductor Size Range: Accommodates a versatile range of conductor sizes, from 6 AWG to 250 kcmil.
• Multiple Conductor Terminations: Designed for the secure termination of three conductors, offering flexibility in wiring configurations.
• Pad Design: Features a straight pad design with dimensions of 3 inches length x 2-13/16 inches width x 5/16 inch thickness.
• Pad Holes: Equipped with 4 pad holes, providing flexibility in conductor termination.
• Stud Size: Designed for a 1/2-inch stud size, ensuring compatibility with standard electrical components.
• Temperature Rating: Capable of operating at temperatures up to 90 degrees Celsius, suitable for various environments.
