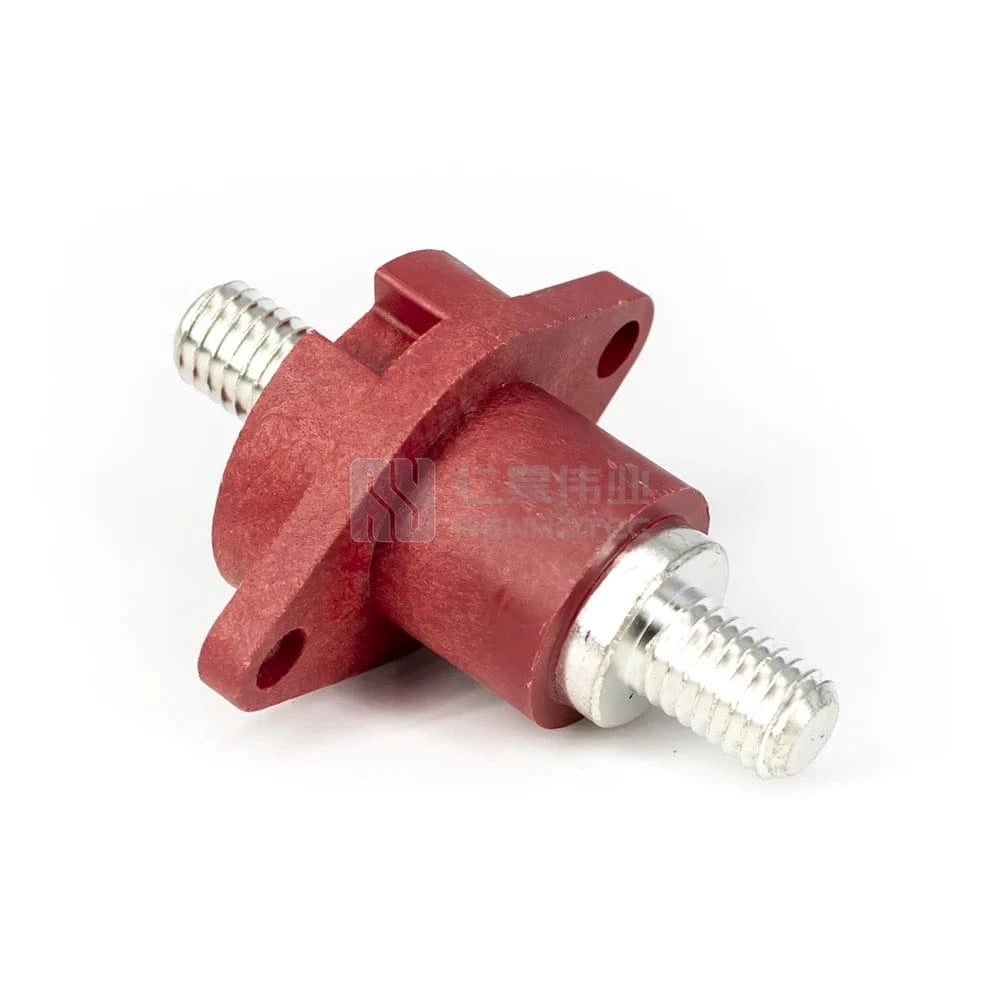

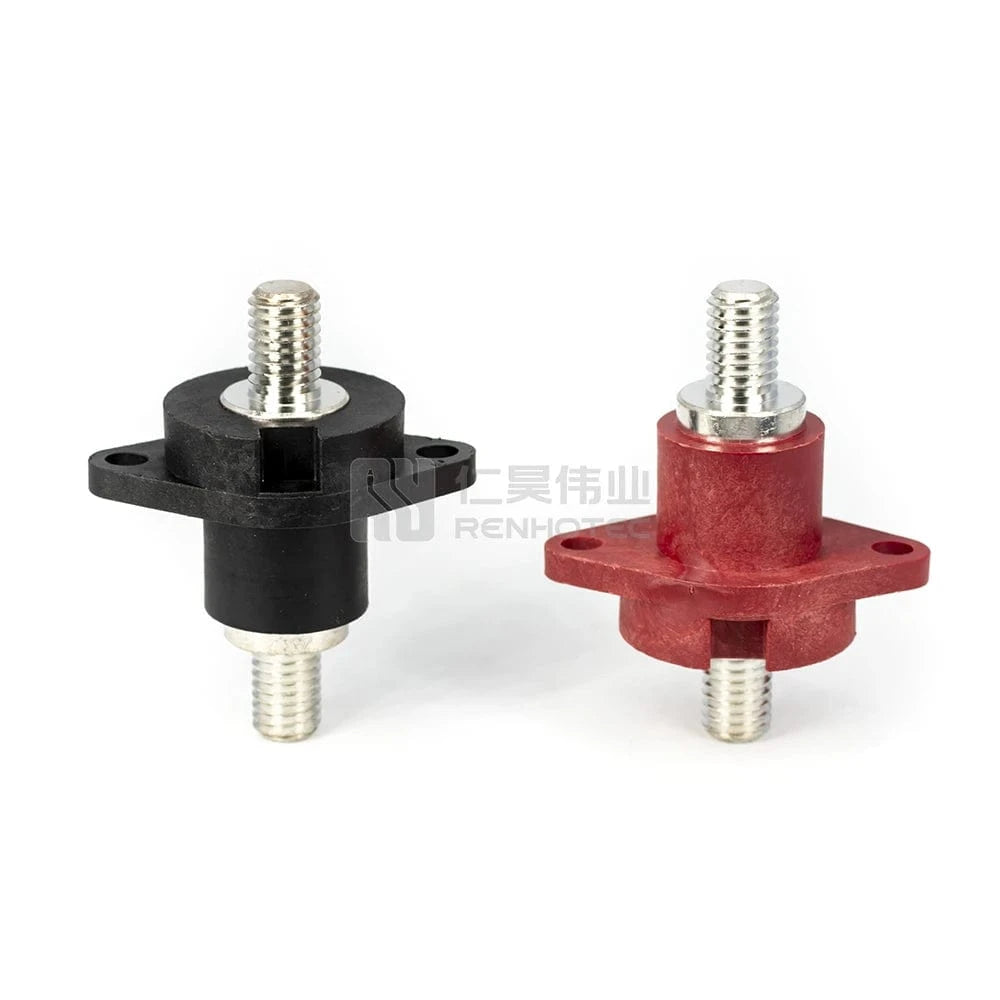

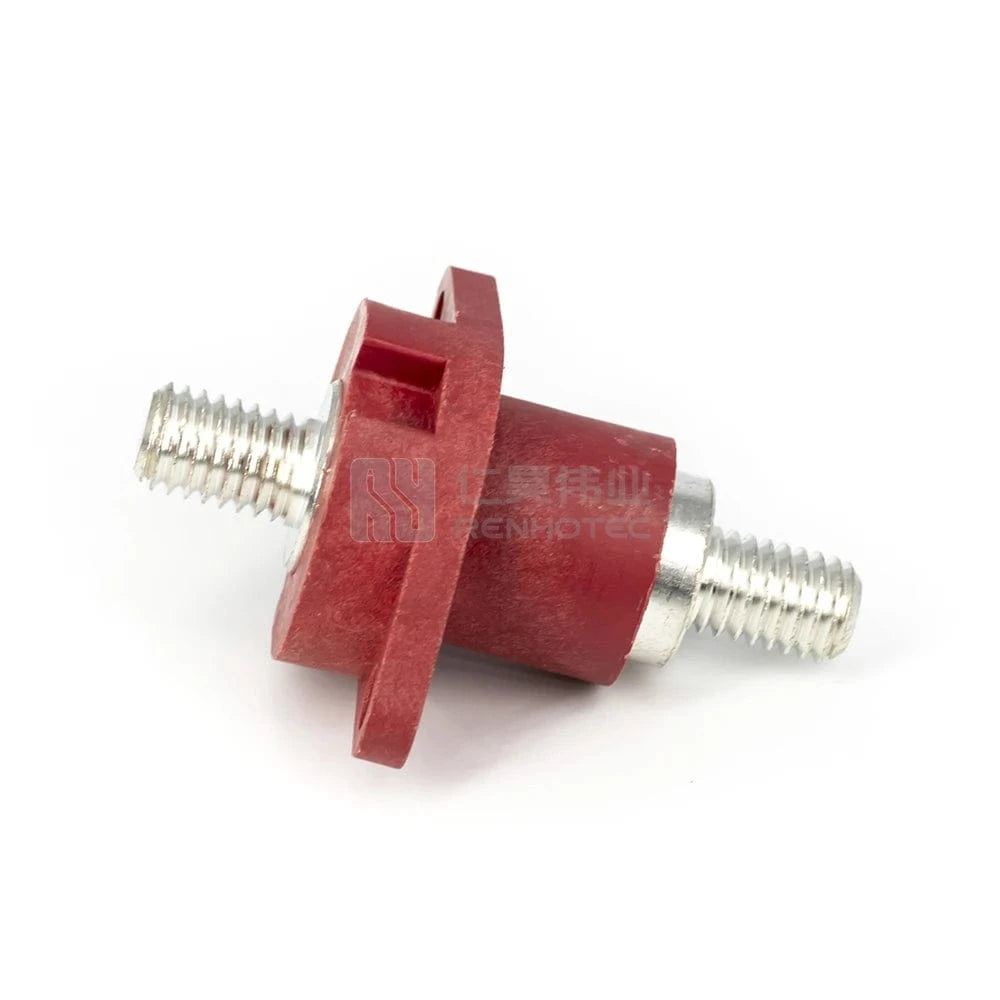

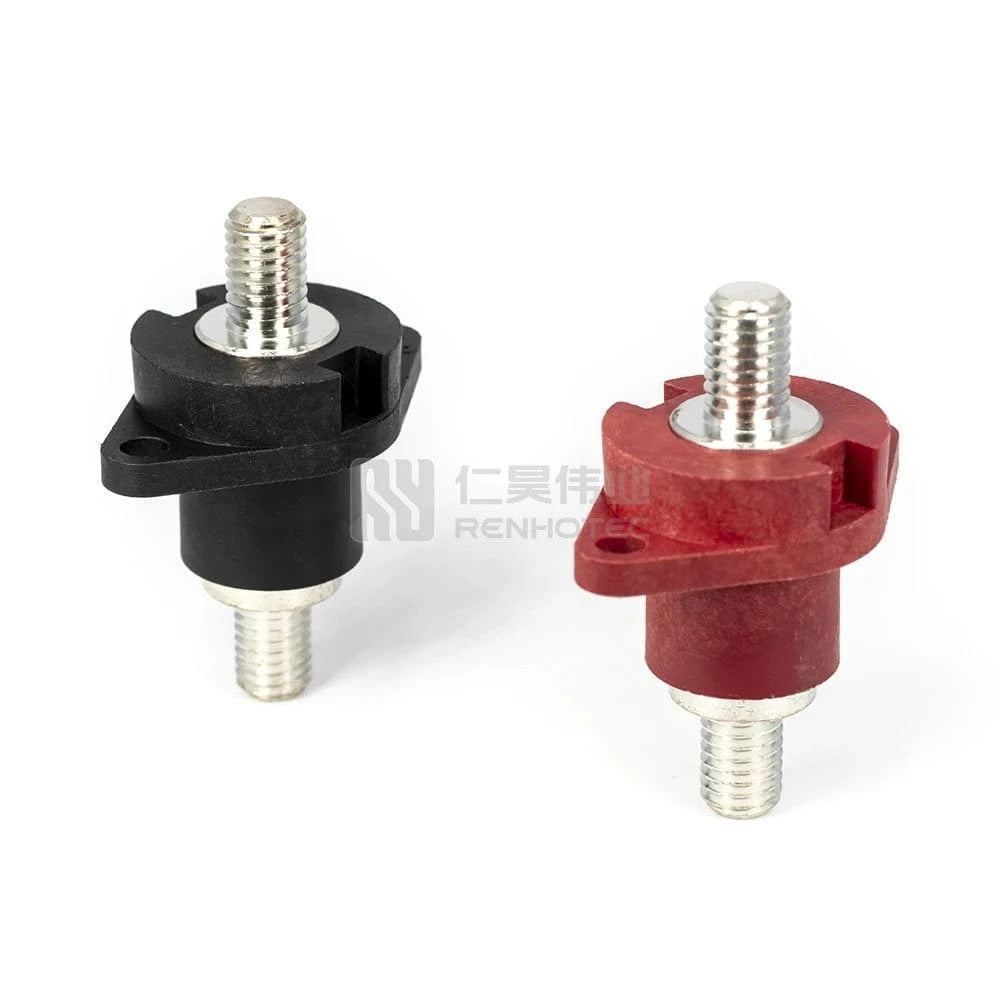

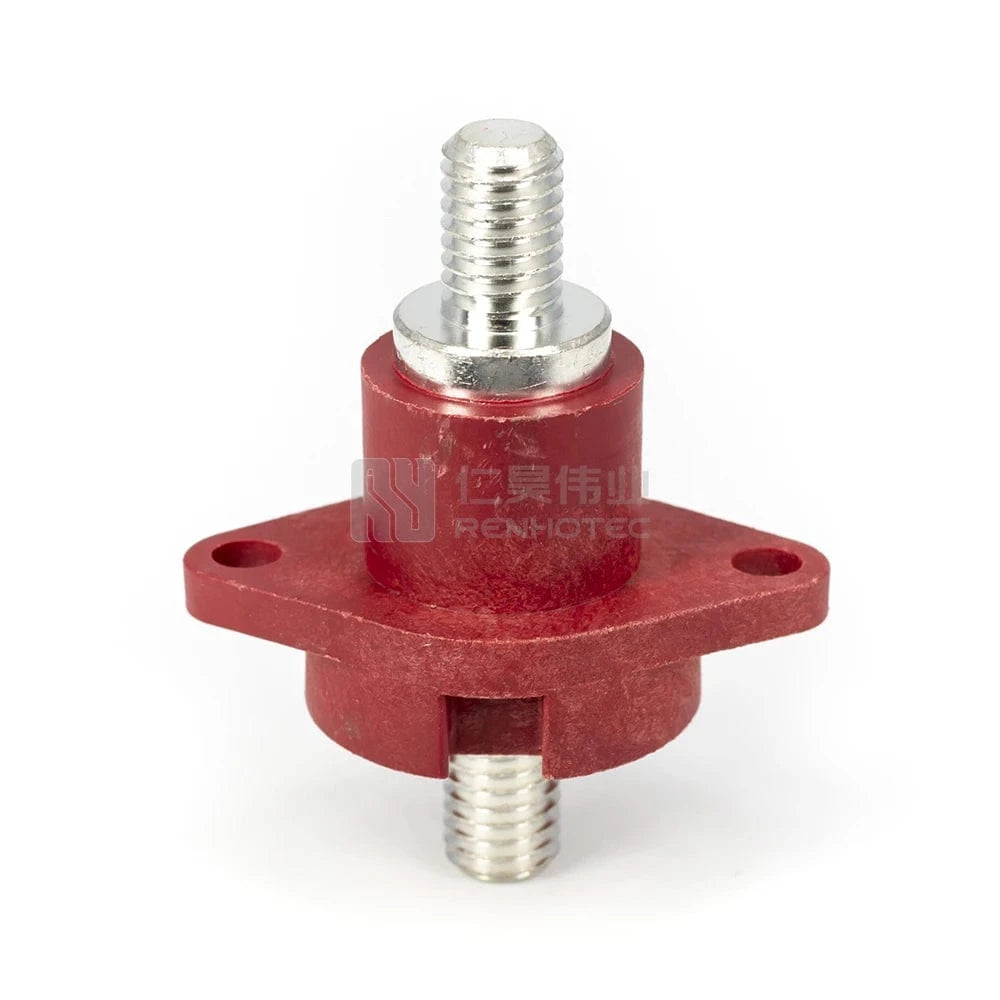

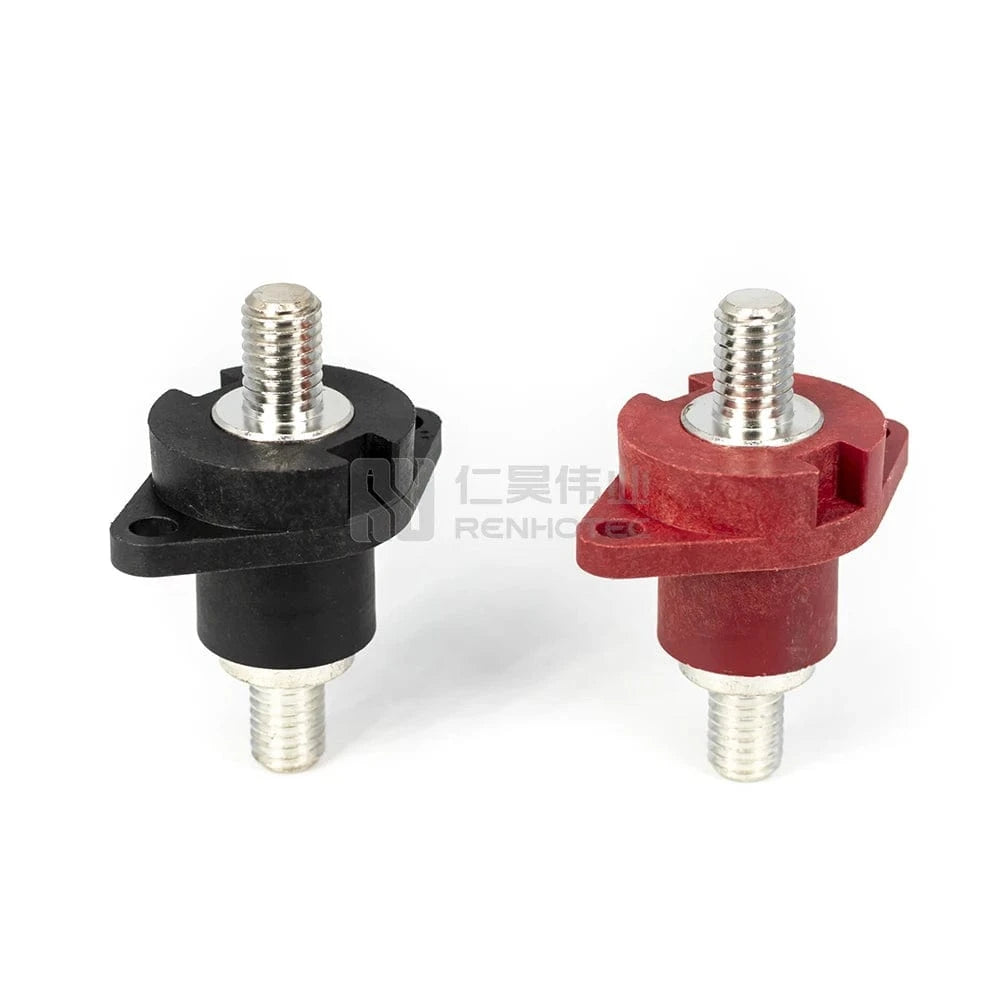

Automotive High Current Terminal Block 200A Battery Connector Outer Screw Basbar Lug for Battery Pack
Shipping calculated at checkout
SKU: 200497261:1959338171#1P;210204035:-8#200A
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
SPECIFICATIONS
Application: Power,BMS / Energy Storage , EV / HEV , Rail Mass Transit
Application 2: Process Control / Automation , Heavy Equipment
Brand Name: Renhotec
Certificate: CE ROHS
Color Option: Red / Black / Orange
Gender: Female
Model Number: Battery Storage Connector,Energy Storage Connector
Place of Origin: Guangdong, China
Plug: C16 / C25 / C35 / C50 / C70 / C80 / C90 / C95 / C120mm
Socket: IS: Inner Screw / OS: Ouret Screw / BL: Busbar Lug
Terminal Diameter: 6mm / 8mm / 12mm/14mm
Termination Style: Crimp type
Type: High Current Connector
Wire Range: 10mm 16mm 25mm 35mm 50mm 70mm 80mm 95mm 150mm2
For the Specific Price of Other Models,
Please Contact Our Customer Service >>
-BMS/Energy Storage -EV/HEV -Rail Mass Transit -Process Control/Automation -Heavy Equipment
If You Still Not Found a Suitable Product, Please Contact Us>>

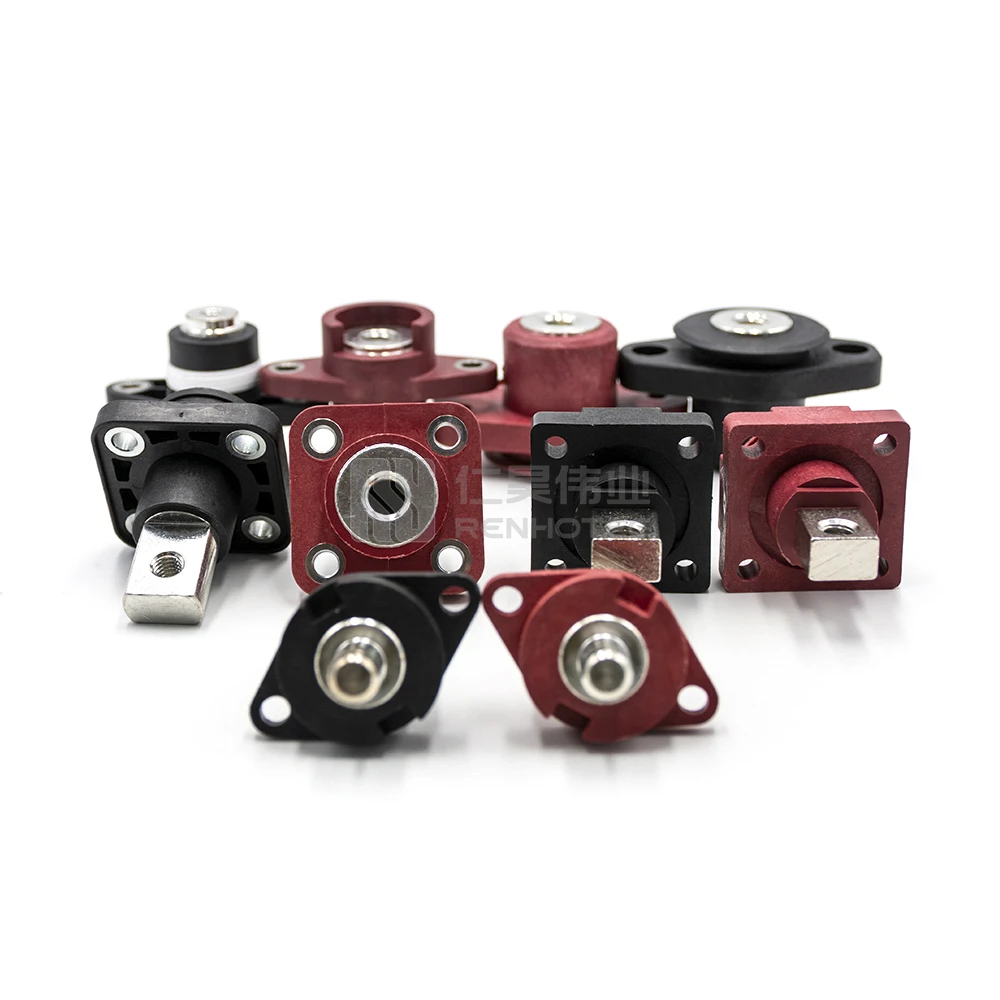

Full Series : Battery Connector
All types of High Voltage Connector from OEM Manufacturer in China
Products Introduction
The Energy Storage Connector Compression Lug is a Field Installable, High Reliable Alternative to Common Compression Lugs. Using Industry Standard Crimp, Screw, and Busbar Termination Options, Thus Eliminating the Need to Purchase Special Torque Tools. This Connector Available in Smaller Sizes, and Features a Quick Lock and Press-to-release Design.
Incorporating the Latest Flexcoil Finger Connecting Technology, Our Energy Storage Connector is a Compact, Quick Mating, and Robust Product Line.
Products Benefits
Touch Proof
360°Rotating Plug
Compactrobust Design
Various Termination Options
Three Color are available
Quick Lock and Press-to- Release Design
Products Feature
| Battery Storage Connector | |
| Connector Type | Plug / Socket |
| Gender | Male / Female |
| Orientation | Straight / Right Angle |
| Number of Positions | 1 Pin |
| Rated Current | 60A-500A |
| Termination Style | Crimp |
| Wire Range | 10-150mm2 |
| IP Rating | IP67 |
| Color Option | Red / Black / Orange |
| Material |
Shell : PA66 Contact : Copper alloy,Silver plating |
||
| Electrical Performance |
Rated Voltage : 1000V/DC Rated Current: From 60A to 500A MAX Withstand Voltage: 2500V ADC Insulation Resistance: ≥1000MΩ |
||
| Mechanical Performance |
Terminal: 6-14mm Cable Range: 10~150mm2 Connection Type :Terminal machine Mating Cycles : >500 Shielding :360° |
||
| Environmental Performance |
IP Degree: IP67 Operating Temperature :-40℃~125℃ Flammability Rating: UL94 V-0 |
||
COMPANY INFORMATION
Renhao Weiye Technology (Wuhan) Co., Ltd.
- Have More Than 16 Years Experience on Electronic Connectors and Has Achieved Good Reputation in the Industry. - We Acquired ISO 9001, ROHS, IP Waterproof Test ,Environment and Management Systems Certification to Ensure High Quality. Please Contact Us Free for More Details if Interested. - in Addition, You Are Always Welcome to Visit Our Office and Factory for Face to Face Conversation!
Our company adheres the business philology of "hardworking, pragmatic, innovation, excellence"
and values "trust, quality, service, Thanksgiving" to make constant effort to prefect our products. The company is ISO9001 certificated,and the products are ROHS, REACH compliant.
Packing Details :
1. Our standard packing: Individual part with transparent PE bag with label;
2. OEM package available
Shipping Methods :
1. Samples and Small quantity order
FedEx/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mass
