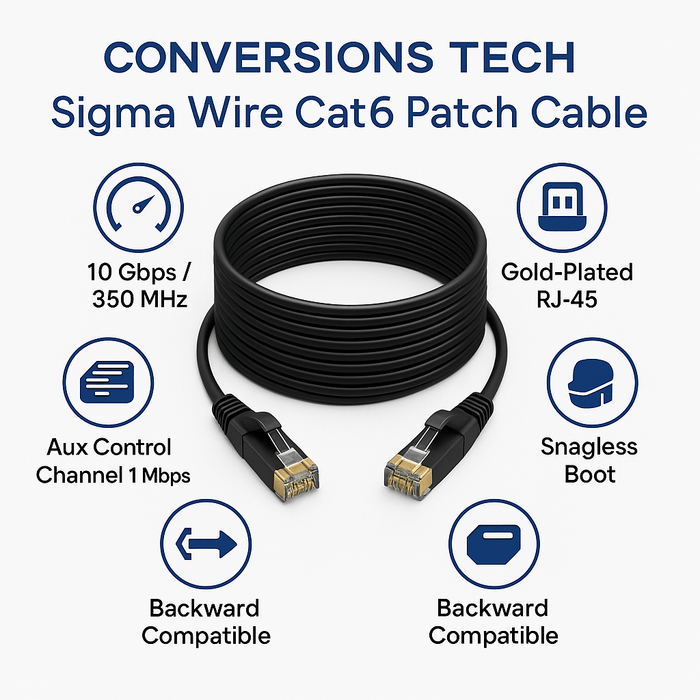

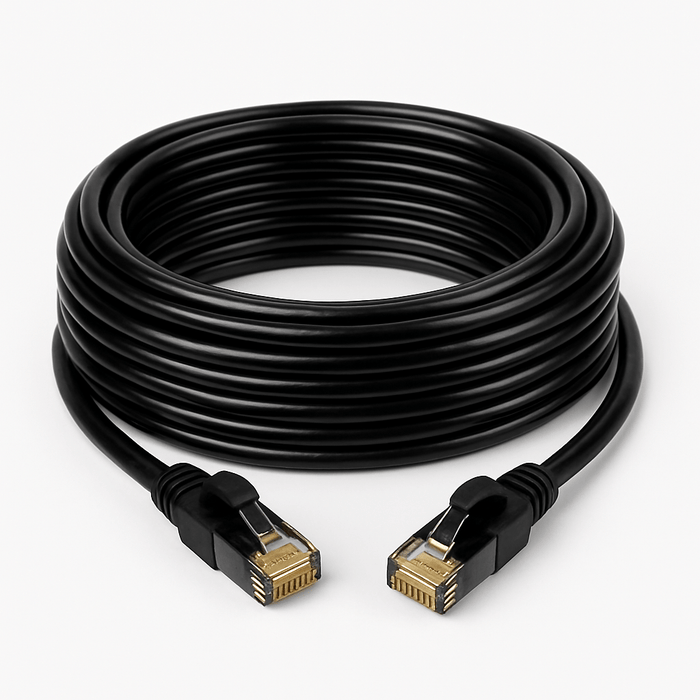

Sigma Wire Cat6 Patch Cable | 24 AWG, 10 Gigabit, RJ-45
Purpose-built for enterprise-grade 10 GbE networking, the Sigma Wire Cat6 Patch Cable from Conversions Tech combines precision-twisted 24 AWG copper pairs with gold-plated RJ-45 contacts—delivering low-latency, error-free data transfer for cloud workloads, VoIP, streaming, and esports.
Technical Specifications
Parameter | Value | Details |
---|---|---|
Conductor Size | 24 AWG stranded bare copper | 7 × 0.20 mm strands |
Bandwidth | 250 MHz | Tested to 350 MHz head-room |
Data Rate | 10 Gigabit Ethernet | ANSI/TIA-568.2-D Cat 6 compliant |
Propagation Delay | < 5.7 ns/m | Typical @ 68 °F (20 °C) |
Aux Channel | 1 Mbps bidirectional | For device control & telemetry |

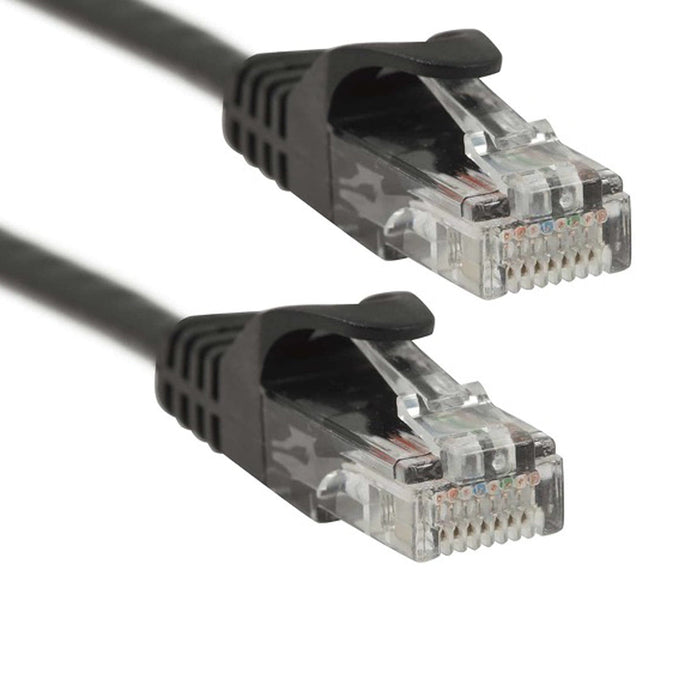

Connectors | 8P8C (RJ-45) | 50 µin gold plating, snagless boot |
Jacket | CM-rated PVC | Ø 6.0 mm | RoHS III |
Lengths | 0.5 m – 20 m | Color-coded options |
Performance Highlights
- 10 GbE Ready — Maintains < NEXT and PS-ANEXT under 250 MHz for flawless 10 G links.
- Extended Head-Room — Factory-certified to 350 MHz to future-proof emerging PoE ++ and NBASE-T standards.
- Auxiliary Control Channel — 1 Mbps bidirectional path simplifies switch or AV equipment telemetry.
- Universal Compatibility — Backward-works with 1000BASE-T/100BASE-TX and legacy Cat 5e gear.
- Stress-Relief Boot — Molded snagless tab protects latch during pulls through dense racks.
Application Domains
- Data-center switch-to-server interconnects
- Campus & enterprise access-point uplinks
- High-definition AV over IP (HDBaseT, NDI®)
- Pro-gaming & livestream studios
- Smart-home and SOHO gigabit backbones
