Black Outdoor Waterproof Seal Housing Box Electric Extension Cords Safety Cover Extension Cord Cover Connection Box Outdoor
Shipping calculated at checkout
SKU: 240914461:-1#210mm*70mm
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Daiertek Waterproof Extension Cord Cover — IP65 “Hot-Dog” Connection Box | Model WB20X7-1 (ABS, Black)

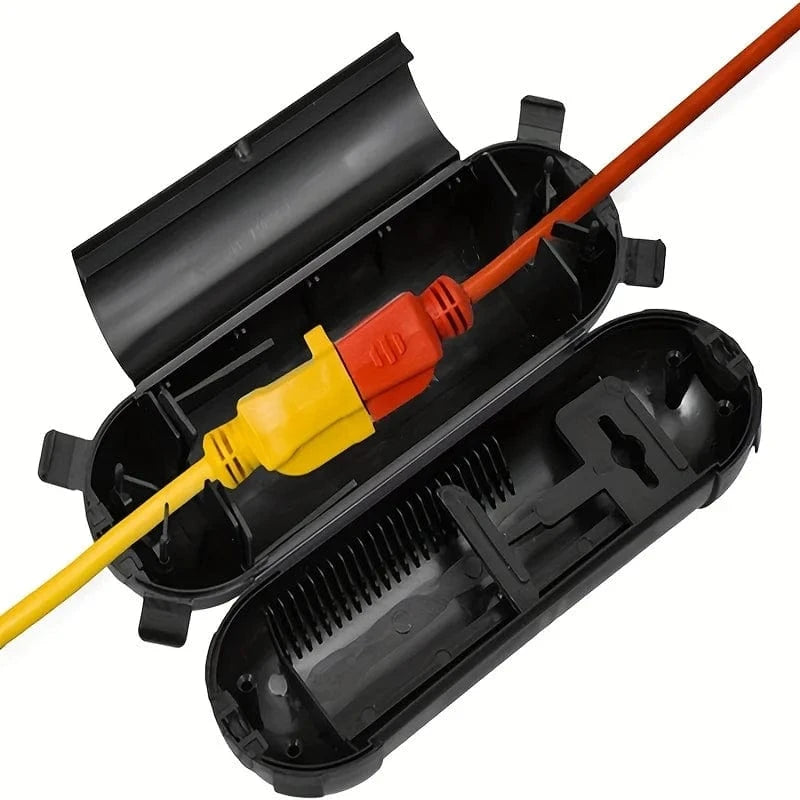

Protect outdoor plug connections from rain, snow, dust, and debris with the Daiertek WB20X7-1 Waterproof Extension Cord Cover. This compact, pill-shaped (hot-dog) IP65 housing encloses the mating point between cords, keeping seasonal lighting, garden tools, pool pumps, and temporary power connections safer and drier. Four lockable latches, dual end clamps with anti-slip serrations, and an adjustable inner limiter maintain a tight, strain-relieved seal to reduce accidental disconnects.

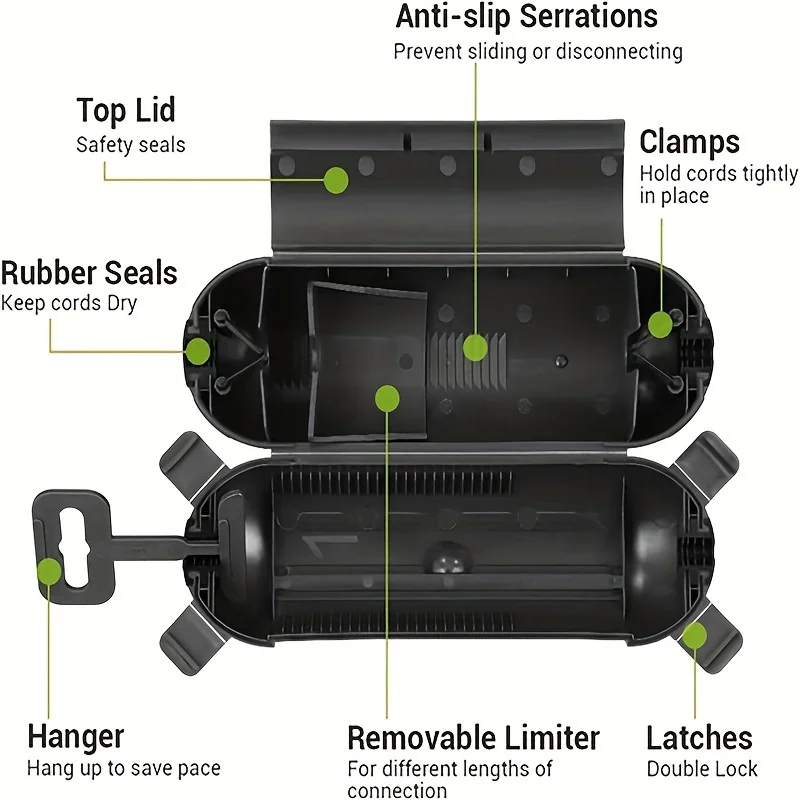

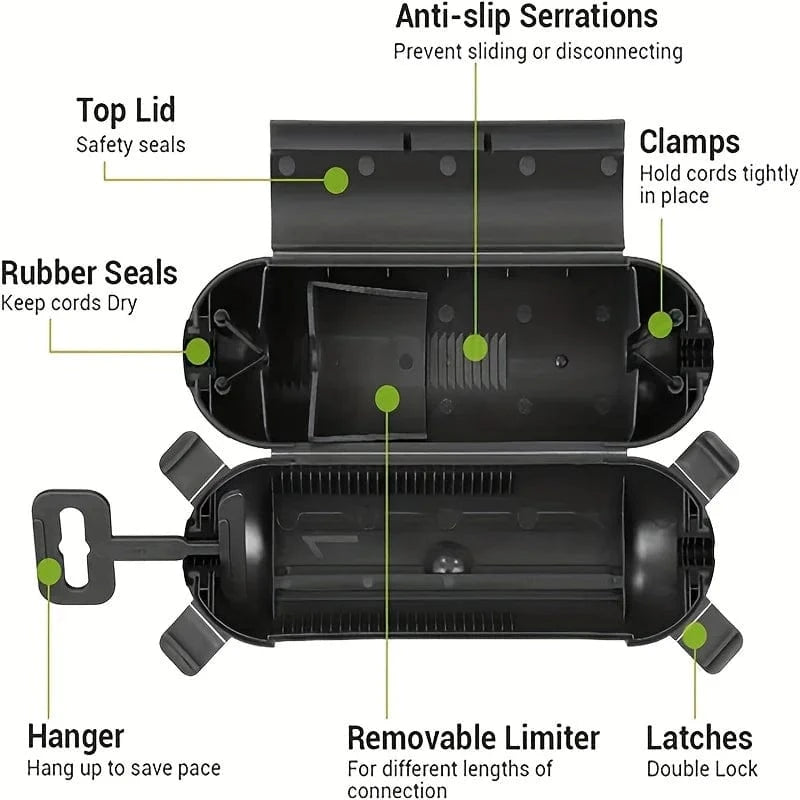

Key Features & Benefits
- IP65 Weather Protection: Sealed enclosure shields cord connections from rain, splashes, dust, and dirt (not for submersion).
- Four Lockable Latches: Top lid plus 4 perimeter latches apply even compression for a reliable seal and robust retention.

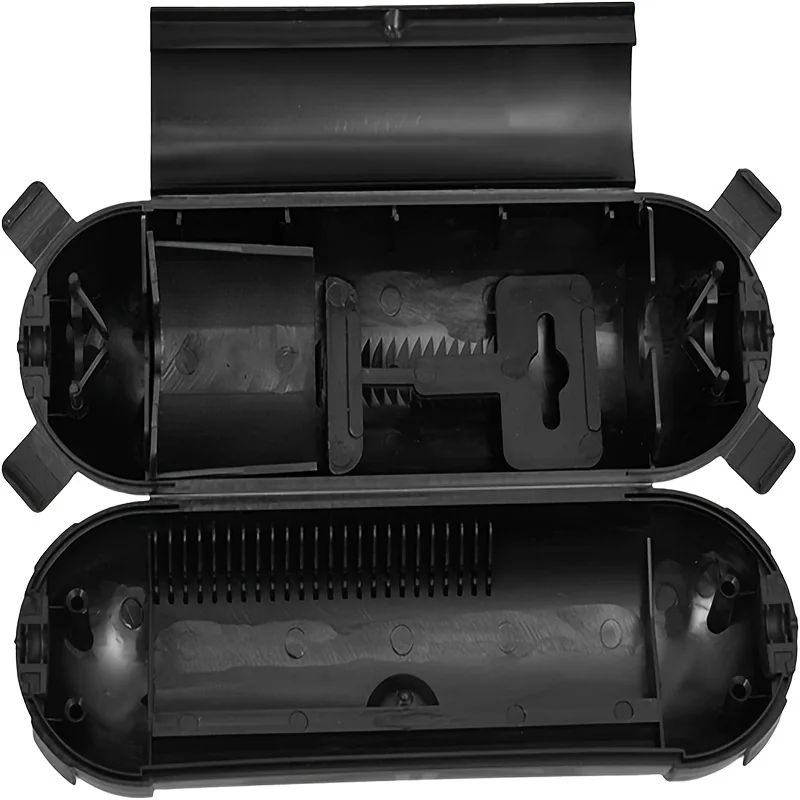

- Adjustable Limiter & Dual End Clamps: Slide-to-fit limiter centers the connection; end clamps with anti-slip serrations grip jackets to resist pull-out.
- Impact-Resistant ABS: Rigid ABS shell (black) balances toughness and light weight for yard, patio, event, and job-site use.
- Tool-Free Setup: Open, place the connection, set limiter, latch closed—no screws or tools required; integrated hanging point for tidy storage.
- Broad Use Cases: Holiday/string lights, fountain and pool accessories, garden tools, pumps, outdoor décor, temporary power leads, and more.
Technical Specifications
| Brand | Conversions Tech |
| Model | WB20X7-1 |
| Product Type | Waterproof Extension Cord Cover / Connection Box |
| Body Material | ABS (impact-resistant) |
| Ingress Protection | IP65 (dust-tight; protected against water jets) |
| Color | Black |

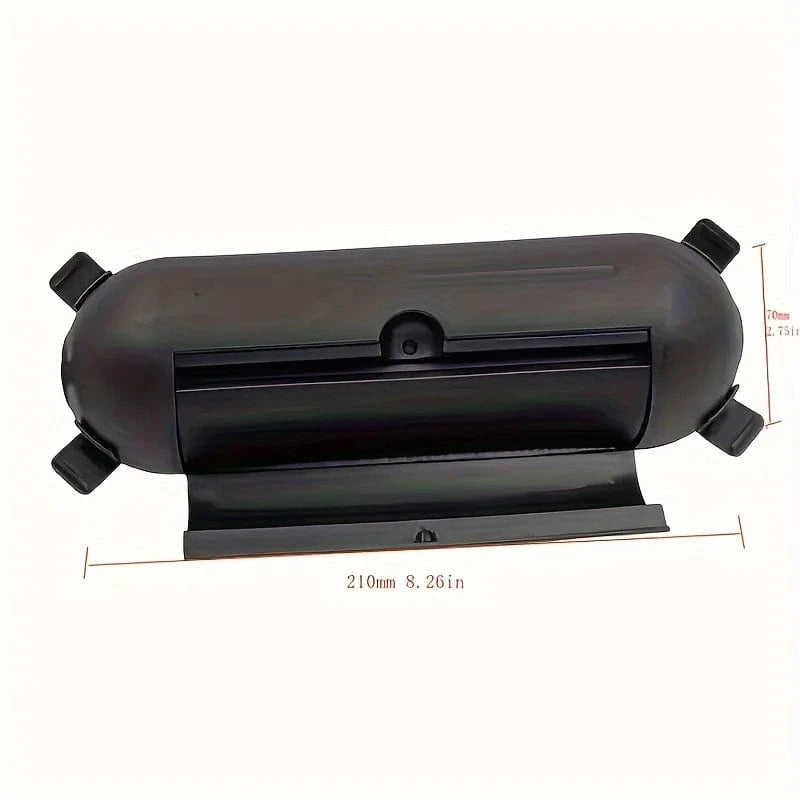

| External Size | 210 mm × 70 mm (approx.) |
| Weight | ≈112 g |
| Shape | Pill / “Hot-Dog” |
| Special Features | Water-resistant seal, 4 lockable latches, adjustable limiter, dual end clamps, anti-slip serrations |
| Usage | Waterproof cable/plug connection protection for outdoor/indoor temporary power |
| Certification | CE |
| MOQ (Wholesale) | 20 pcs |
| Origin | Zhejiang, China |
Installation & Use
- Make a proper plug-to-receptacle connection, then place it inside the housing.
- Slide the adjustable limiter to support the joint; seat both cord jackets into the end clamps.
- Close the lid and engage all 4 latches evenly until they click.
- Orient with a drip loop and the seam facing downward to shed water; hang if desired.
Note: IP65 = water-jet resistant, not submersible. Keep connections off the ground and away from standing water. Always use GFCI-protected outlets outdoors. Confirm the enclosed connector fits within the internal volume (compare to external size listed).
Applications

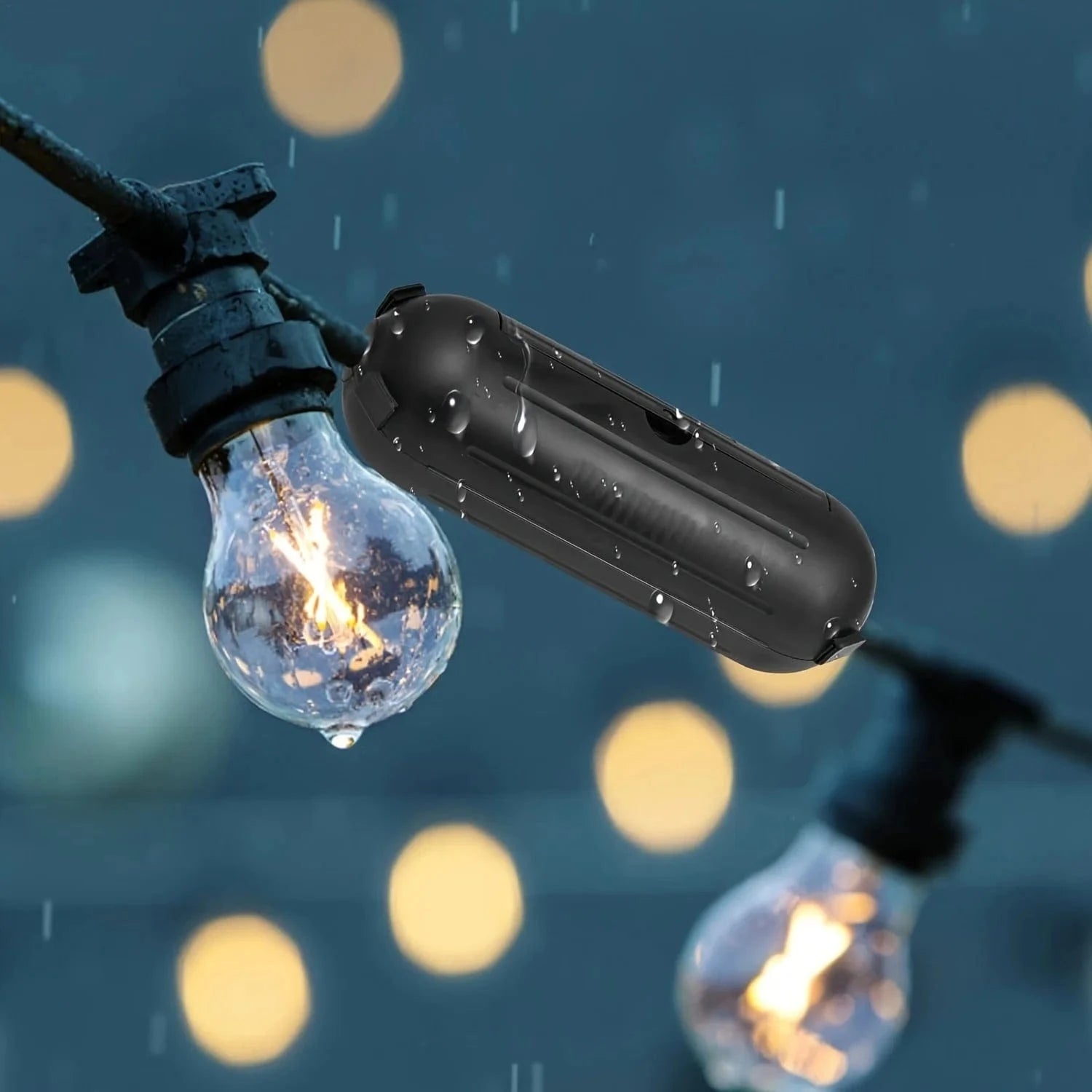

- Holiday & string lighting connections
- Garden tools and yard equipment (trimmers, pumps)
- Pool/fountain accessories (non-submersed connections)
- Outdoor décor, patio heaters/fans (per ratings)
- Event power drops and temporary installs
What’s in the Box
- WB20X7-1 Waterproof Extension Cord Cover (ABS, black)
- Integrated adjustable limiter & dual end clamps
- Four lockable latches (pre-installed)
Frequently Asked Questions (FAQs)
1) What does IP65 mean for this cover?
IP65 is dust-tight and resists low-pressure water jets from any direction. It’s weather-resistant, but not submersible.
2) Will this fit my outdoor plug?
It fits most standard extension-cord plug pairs. Compare your connector size to the listed external dimensions; bulky inline adapters may not fit.
3) Can I bury this in soil or use it underwater?
No. It is for above-ground temporary connections only. Do not bury, and do not submerge.
4) How do the end clamps help?
They grip cord jackets and, with the adjustable limiter, provide strain relief to help prevent plugs from separating under tension.
5) Do I need tools to install it?
No tools required. Place, adjust, and latch. The lid and 4 latches create a quick, even seal.
6) Is it safe for pool equipment?
Yes for above-ground, dry-area connections (e.g., pump leads). Keep the cover and connections away from splashing and standing water; use GFCI.
7) Can I lock it?
The latches snap closed firmly. For tamper deterrence, you may add small zip ties through latch holes if provided (padlock compatibility not guaranteed).
8) What cable sizes work best?
Most common outdoor cords (e.g., 16–12 AWG jackets) fit the clamps. Very large molded connectors may exceed the interior volume—measure to confirm.
9) Can I run it vertically?
Yes. Orient with a drip loop and seam downward so water sheds off the housing rather than into it.
10) Is this a splice box for bare wires?
No. It encloses plug-and-socket connections only. Never enclose exposed conductors or make open splices inside.
