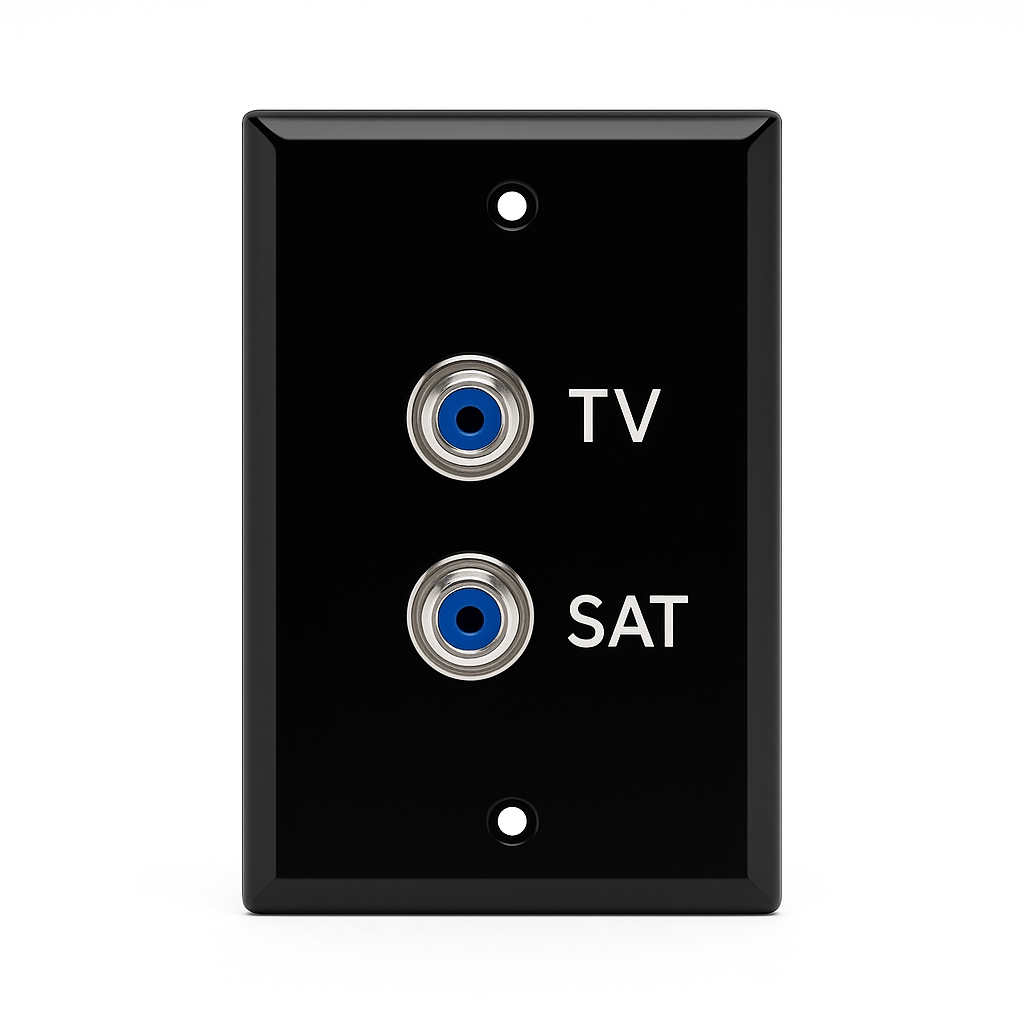

Black TV / SAT Wall Plate with Integrated Diplexer 4K-Ready
Conversions Tech™ packs a precision wide-band diplexer, dual F-type connectors, and a matte-black Decora faceplate into one installer-friendly module. Route satellite and terrestrial signals down a single RG-6, then split them cleanly at the outlet—zero messy pigtails, zero signal headaches.
Key Benefits
- Wide-Band Split: 5 – 862 MHz (TV/OTA) ↔ 950 – 2150 MHz (SAT)
- Ultra-Low Insertion Loss: ≤ 0.5 dB TV, ≤ 1 dB SAT—perfect for 4 K UHD & ATSC 3.0
- High Port Isolation: > 25 dB prevents LO leakage and cross-band interference
- Machined F-Connectors: nickel-plated brass shells, gold-plated center pins
- Matte-Black ABS: UV-stabilized, fingerprint-resistant, blends with modern AV décor
- Raised Legends: “TV” and “SAT” are hot-stamped for lifetime visibility
- NEC-Compliant Ground Strap: direct bond to wall-box ground screw
Technical Specifications
| Parameter | TV Port | SAT Port |
|---|---|---|
| Frequency Range | 5 – 862 MHz | 950 – 2150 MHz |
| Insertion Loss (typ.) | ≤ 0.5 dB | ≤ 1 dB |
| Return Loss | ≥ 18 dB | ≥ 14 dB |
| Port-to-Port Isolation | > 25 dB | |
| Power Passing | Blocked | 500 mA @ 24 V DC |
| Impedance | 75 Ω nominal | |
| Environmental & Mechanical | |
|---|---|
| Operating Temperature | −40 °C … +60 °C |
| Faceplate Material | UL-94 V-0 ABS, matte black |
| Dimensions (H × W × D) | 4.5 × 2.75 × 1.2 in (114 × 70 × 31 mm) |
| Shipping Weight | 3.1 oz (88 g) |
Ideal Installations
- Single-cable satellite + OTA drops in homes, condos, MDUs, hotels
- Retrofit upgrades where conduit space is tight
- DirecTV®, DISH®, free-to-air & ATSC 3.0 antenna distribution
Compliance & Certifications
- SCTE / ISO/IEC 11801 Class E performance
- ROHS 3 & REACH compliant
- NEC Article 820 bonding & grounding compatible
