Figure 8 Compression Ground Rod Connector 5/8" | 2 AWG, UL 467, 600V/90°C
Shipping calculated at checkout
SKU: 610-23132
1000 in stock
Open here

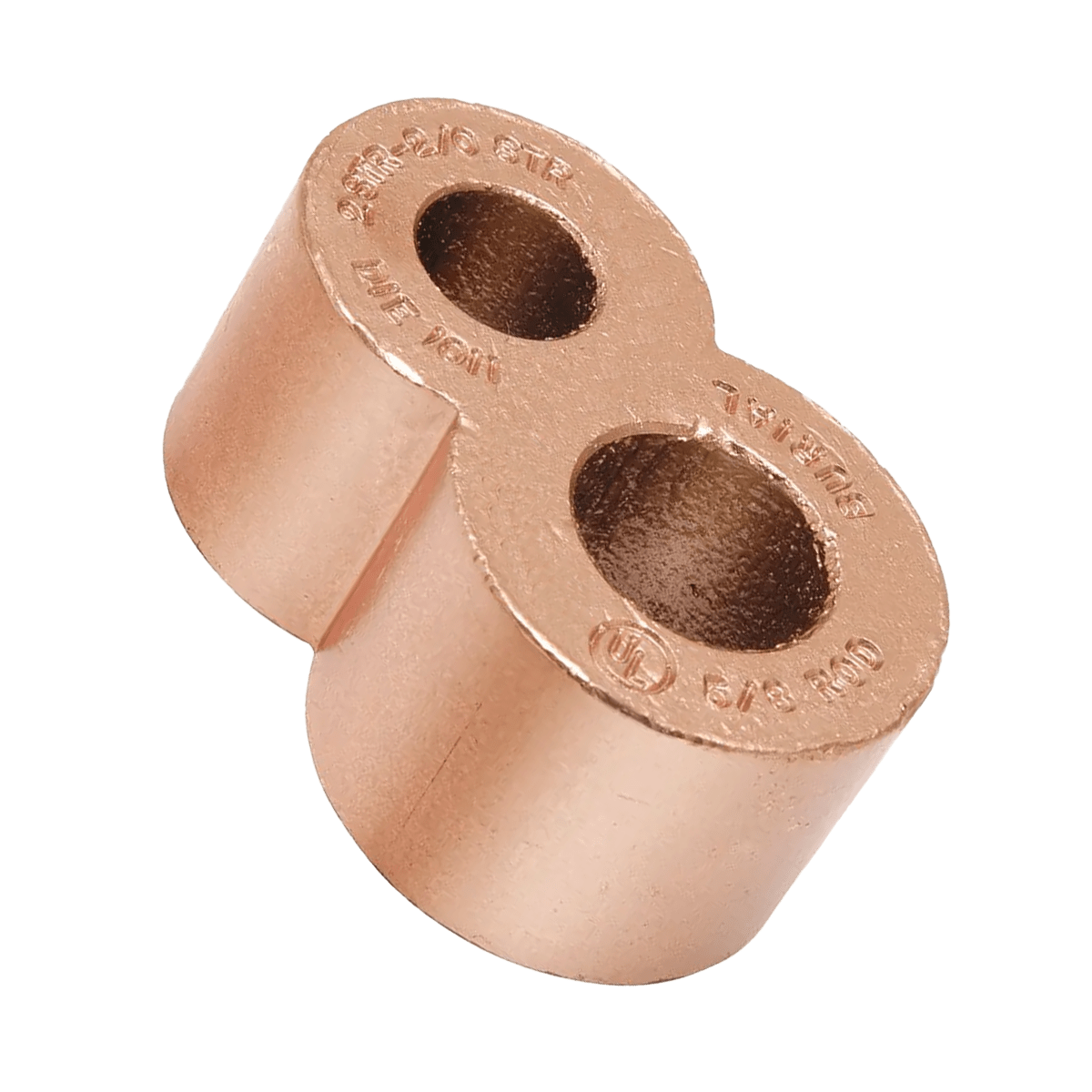

The Figure 8 Compression Ground Rod Connector is a dual-conductor grounding termination designed for 5/8" ground rods and 2 AWG cable range. Engineered for electrical contractors and industrial installations, this connector provides parallel conductor termination in a compact form factor suited for space-constrained environments. The copper alloy construction delivers reliable conductivity for grounding and bonding applications where code-compliant connections are required.
Specifications
- Ground rod size: 5/8"
- Cable range: 2 AWG
- Material: high-strength copper alloy
- Configuration: supports two continuous parallel conductors
- Pre-filled with anti-oxidant compound
- Electrical rating: 600 Volts / 90°C
- UL 467 listed for grounding and bonding
- UL96 listed for lightning protection
Cross-Reference
This Figure 8 compression connector is equivalent in form and function to grounding connectors offered by major electrical manufacturers. Provides comparable termination performance for 5/8" ground rod and dual 2 AWG conductor applications at lower cost.
FAQ
What cable sizes does this connector accommodate?
This connector is rated for 2 AWG cable range. The Figure 8 design supports two continuous parallel conductors of this size.
Is this connector rated for direct burial?
The copper alloy construction and anti-oxidant pre-fill support underground installations. Verify local code requirements and installation conditions for your specific application.
What compression tool is required for installation?
Use an appropriate compression tool sized for 5/8" ground rod connectors. Follow manufacturer torque and die specifications to ensure proper conductor grip and electrical continuity.
Cross-Reference: 610-23132
| Brand | Part Number | Notes |
|---|---|---|
| Burndy | YGHR26C58 | HYTAIL Fig-8 rod tap: 2-2/0 str cable, 5/8" rod — direct cross* |
| Conversions Tech | 610-23132 | distributor-direct |
*Cross by rod diameter, cable range, and UL 467 direct-burial listing - verify die index for your tooling. Trademarks belong to their owners.
See also ground rods and irreversible compression grounding. Contractor & distributor pricing →
