FATO SC Cable Lug Copper Bolt Tinned Compression Round Ring Tubular Cable Electrical Wire Crimp Cable Lug Connectors Terminals
Shipping calculated at checkout
SKU: 100026406:-1#SC 1.5-5
10000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

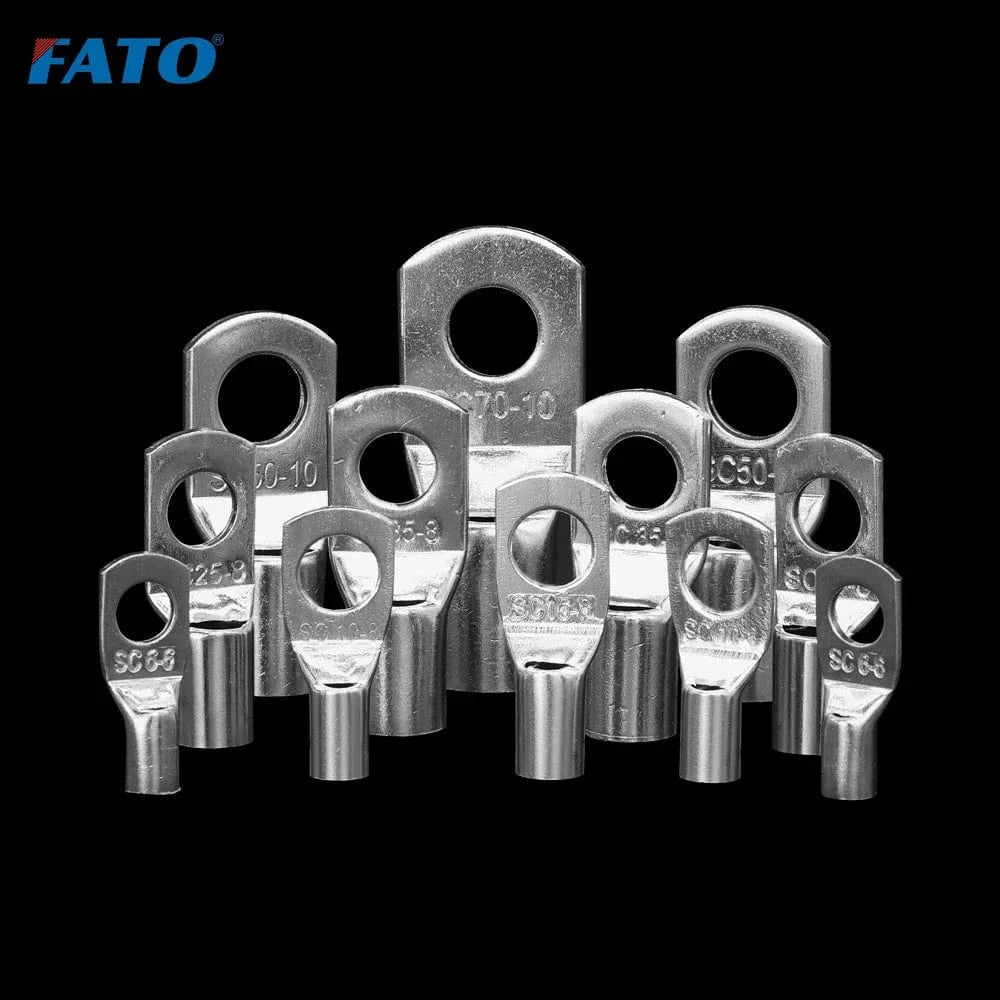

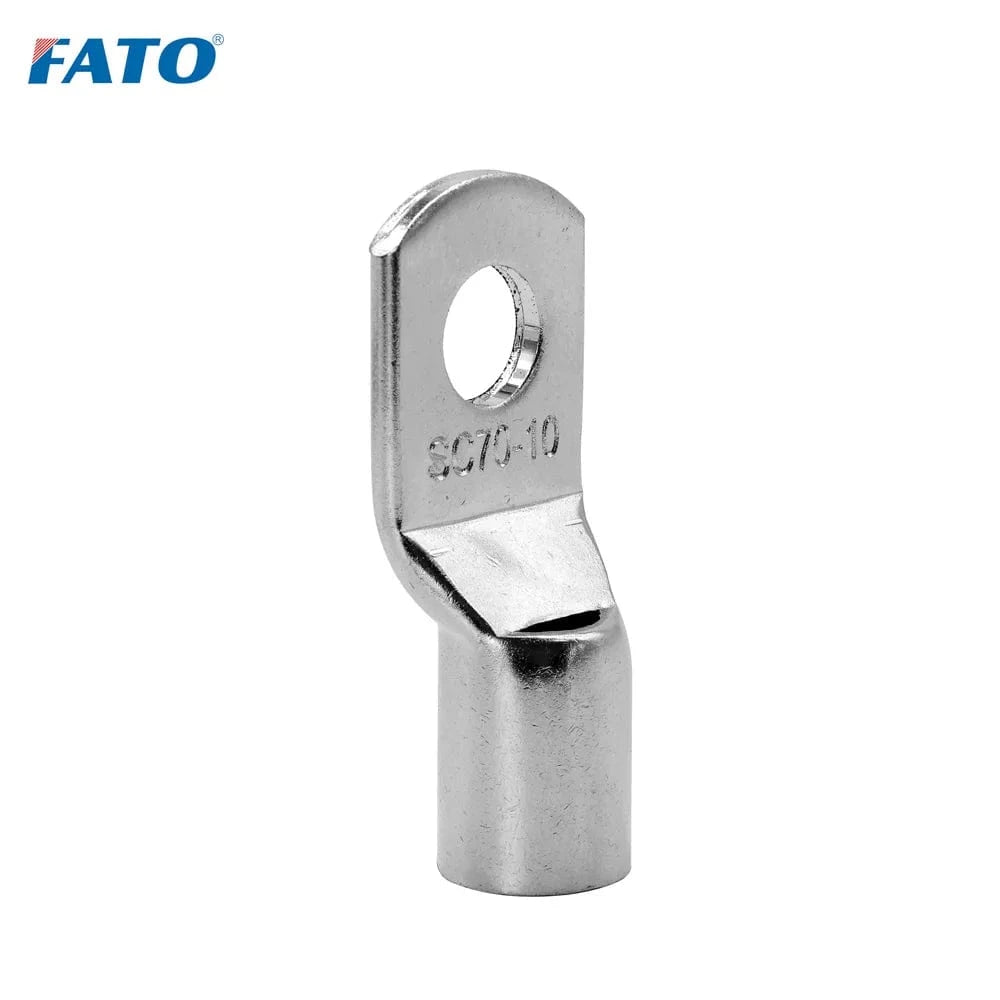

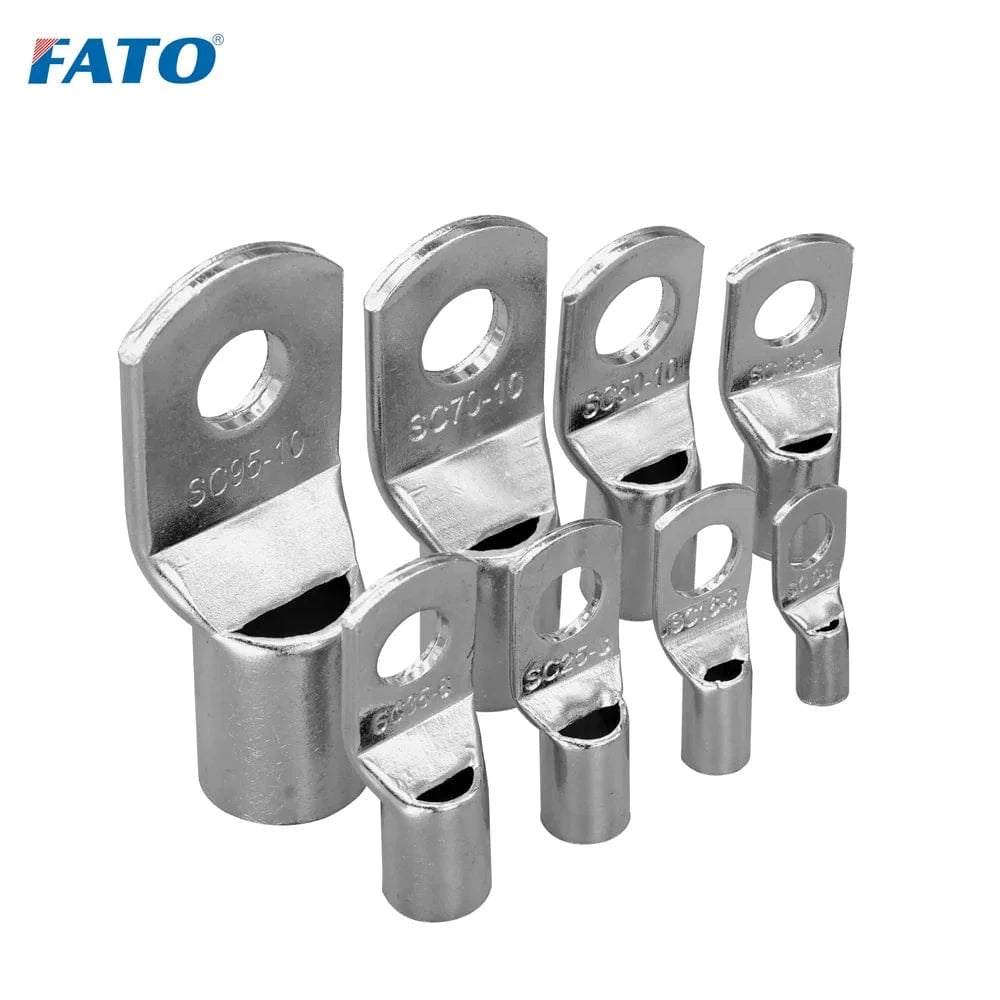

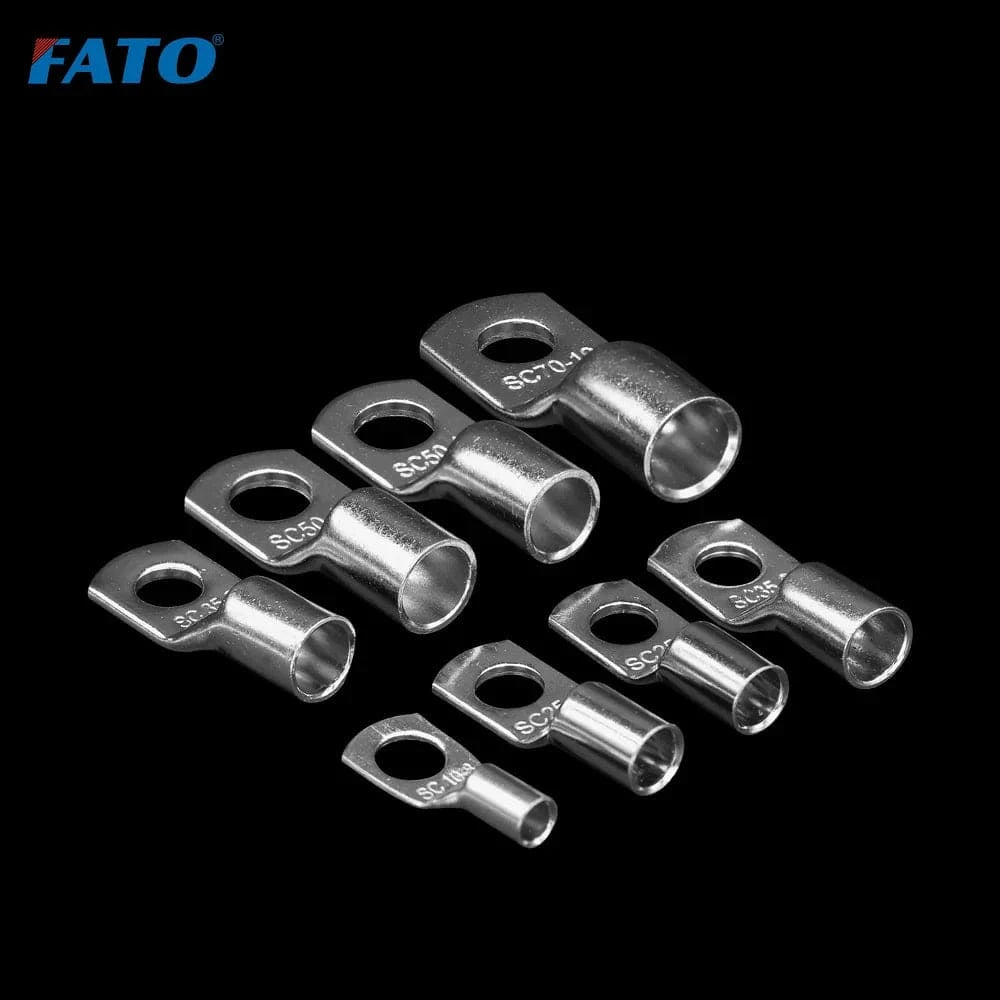

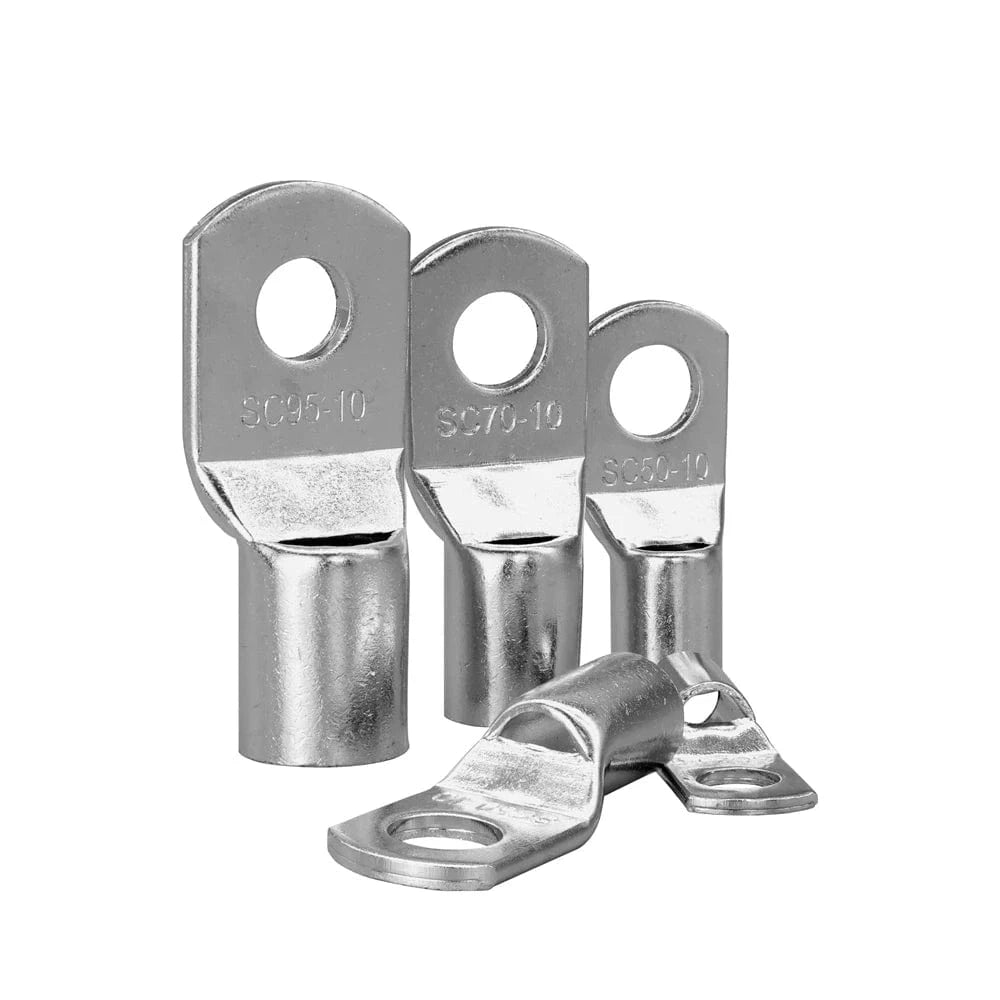

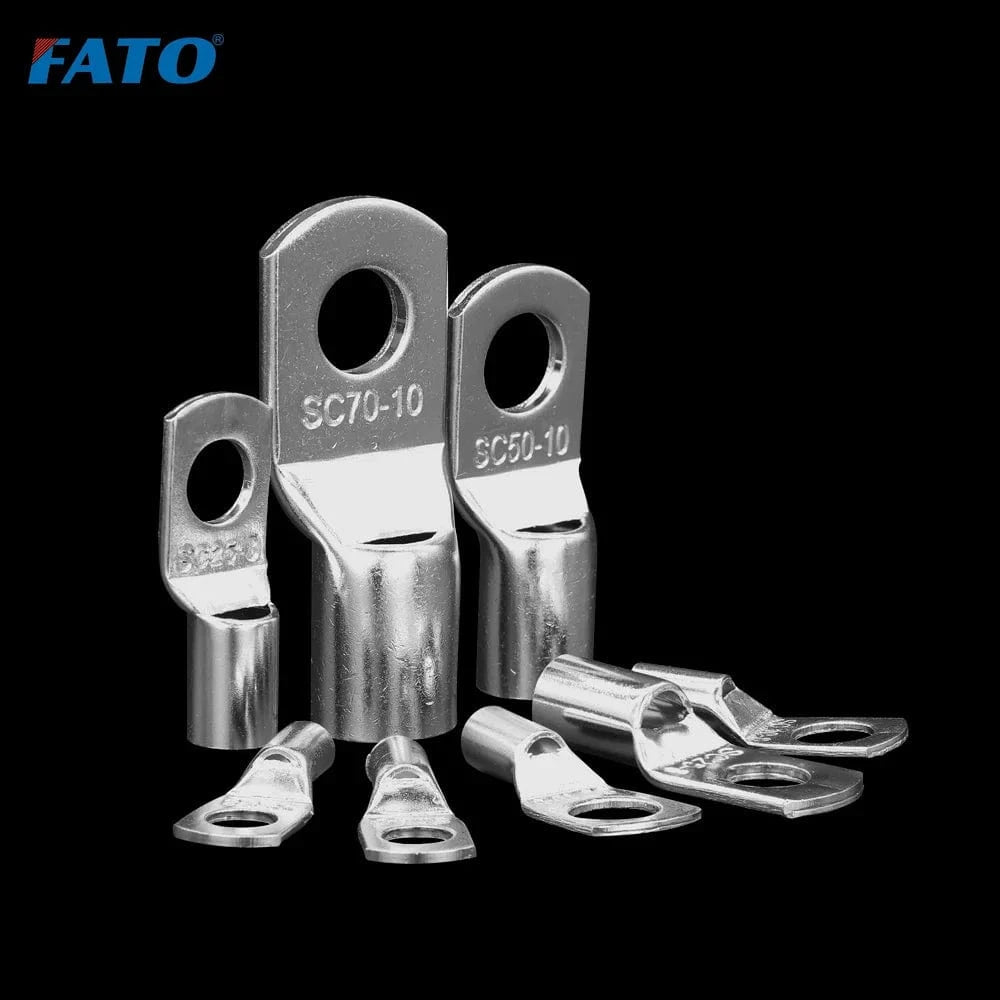

SC Series Tin-Plated Copper Cable Lugs | 1.5mm²–500mm² | CE Certified | Conversions Tech
The Conversions Tech SC Series Cable Lugs are designed for professional-grade electrical terminations, providing strong, low-resistance connections for copper and aluminum conductors. Constructed from high-conductivity copper with a tin-plated finish, these lugs ensure optimal performance, corrosion resistance, and long service life.
Tested to CE and RoHS standards, the SC series supports a broad range of wire sizes from 1.5mm² to 500mm², making them suitable for industrial, automotive, renewable energy, and electrical distribution applications. Each piece is manufactured with precision dimensions for secure crimping and excellent conductivity.
Key Features
- High Conductivity: Made from 99.9% pure copper to deliver efficient electrical transfer and low resistance.
- Tin-Plated Finish: Provides strong protection against oxidation and corrosion, ideal for high-humidity environments.
- Wide Size Range: Available in sizes from 1.5mm² to 500mm² for various electrical and mechanical uses.
- Universal Application: Suitable for both copper and aluminum wires, compatible with standard crimping tools.
- Global Certification: Meets CE and RoHS compliance requirements.
- Professional Packaging: Supplied in sealed bags, boxes, or cartons to ensure quality and convenience.
Technical Specifications
| Product Name | SC Cable Lugs | |||||
| Material | High-Conductivity Copper / Aluminum (Tin-Plated) | |||||
| Type | Crimp-Type Cable Lug | |||||
| Cable Size Range | 1. | d₂ | D | L₁ | L | Cable Size |
| SC 1.5-5 | 5.3 | 1.9 | 6.5 | 18 | 1.5mm² | |
| SC 10-8 | 8.4 | 4.5 | 9 | 25 | 10mm² | |
| SC 35-10 | 10.5 | 8.5 | 14.5 | 38 | 35mm² | |
| SC 70-12 | 13.0 | 11.5 | 19.5 | 50 | 70mm² | |
| SC 150-16 | 17.0 | 16.7 | 29.0 | 71 | 150mm² | |
| SC 300-20 | 21.0 | 24.0 | 44.0 | 102 | 300mm² | |
| SC 500-16 | 17.0 | 30.0 | 50.0 | 123 | 500mm² |
Applications
- Power Distribution Panels: For connecting cables in switchboards and transformers.
- Industrial Systems: Used in motors, drives, and control panels.
- Renewable Energy: Ideal for solar, wind, and battery storage applications.
- Automotive & Marine: For grounding, battery, and DC power connections.
Frequently Asked Questions (FAQs)
1. Can I request free samples?
Yes, free samples are available depending on the product type and order volume.
2. Is logo customization supported?
Yes, OEM and ODM customization, including logo printing, is available.
3. What’s the warranty period?
All SC lugs include an 18-month warranty and 100% pre-shipment inspection.
4. What’s the lead time?
Typically 5–10 days for stocked products and 7–20 days for custom orders.
5. Are the products certified?
Yes, all SC series cable lugs are CE and RoHS certified.
4 Reasons Pros Buy Direct from Conversions Tech
, we design, test, and ship every product from inside the United States— “” quality without the big-box markup.
Our , mold, and QA station behind our weatherproof boxes, conduit bodies, and power inverters. , UL-listed safety, and up to 30 % lower cost than .
Need a torque spec or an OEM quote at dawn? You’ll speak directly with the Conversions Tech engineering desk—not a script reader—for instant answers, custom kitting, and private-label options.
Bottom line: For rugged, code-compliant electrical solutions shipped fast from a trusted U.S. source, choose Conversions Tech and build it right the first time.
