Female MC4 Evo2 LR5 Solar Connector — 1500V DC / 30A PV Interconnect (IP67, UL94-V0, 6–8 AWG Rated)
Shipping calculated at checkout
SKU: 4908-1500-F
Out of stock
Open here
Female MC4 Evo2 LR5 Solar Connector — 1500V DC / 30A PV Interconnect (IP67, UL94-V0, 6–8 AWG Rated)

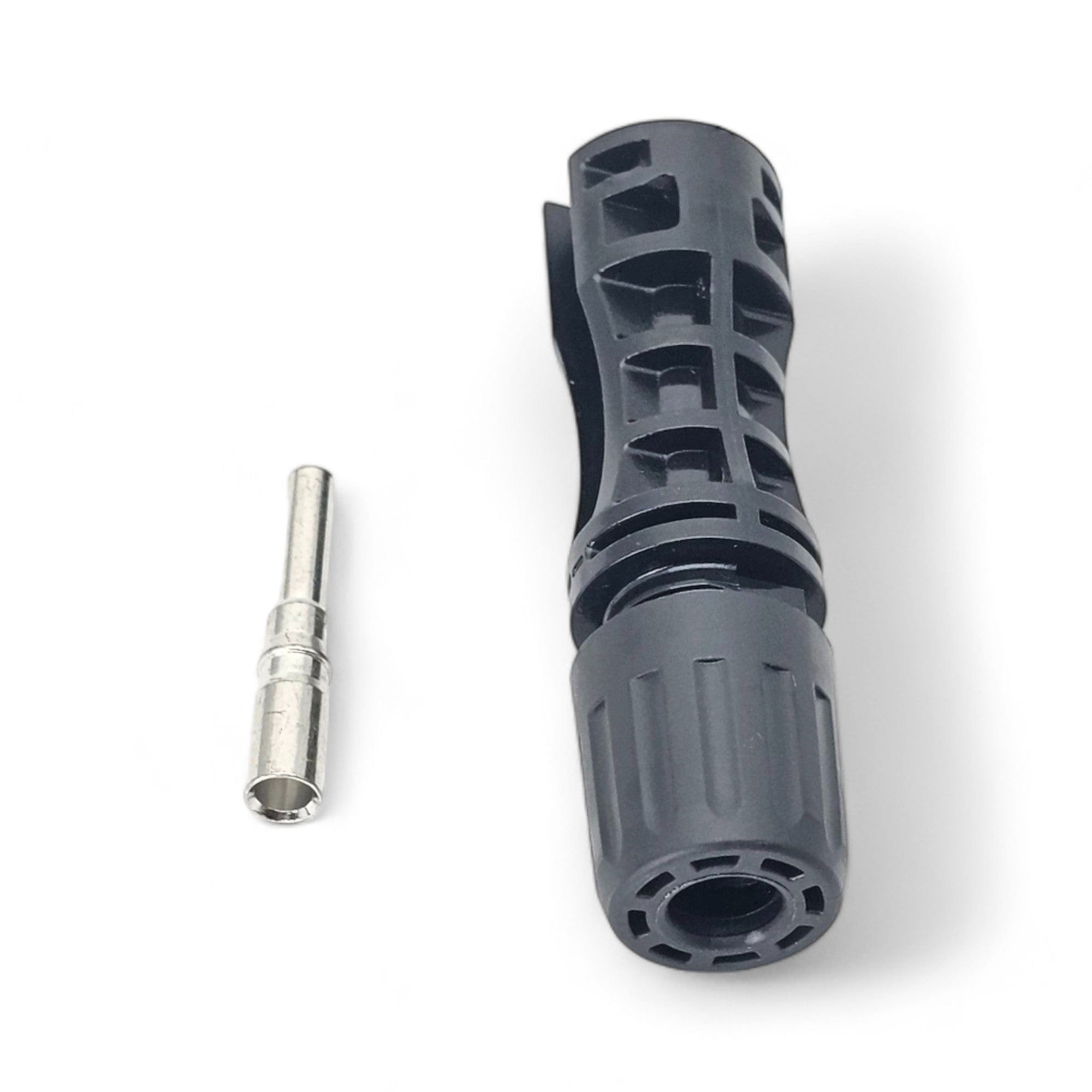

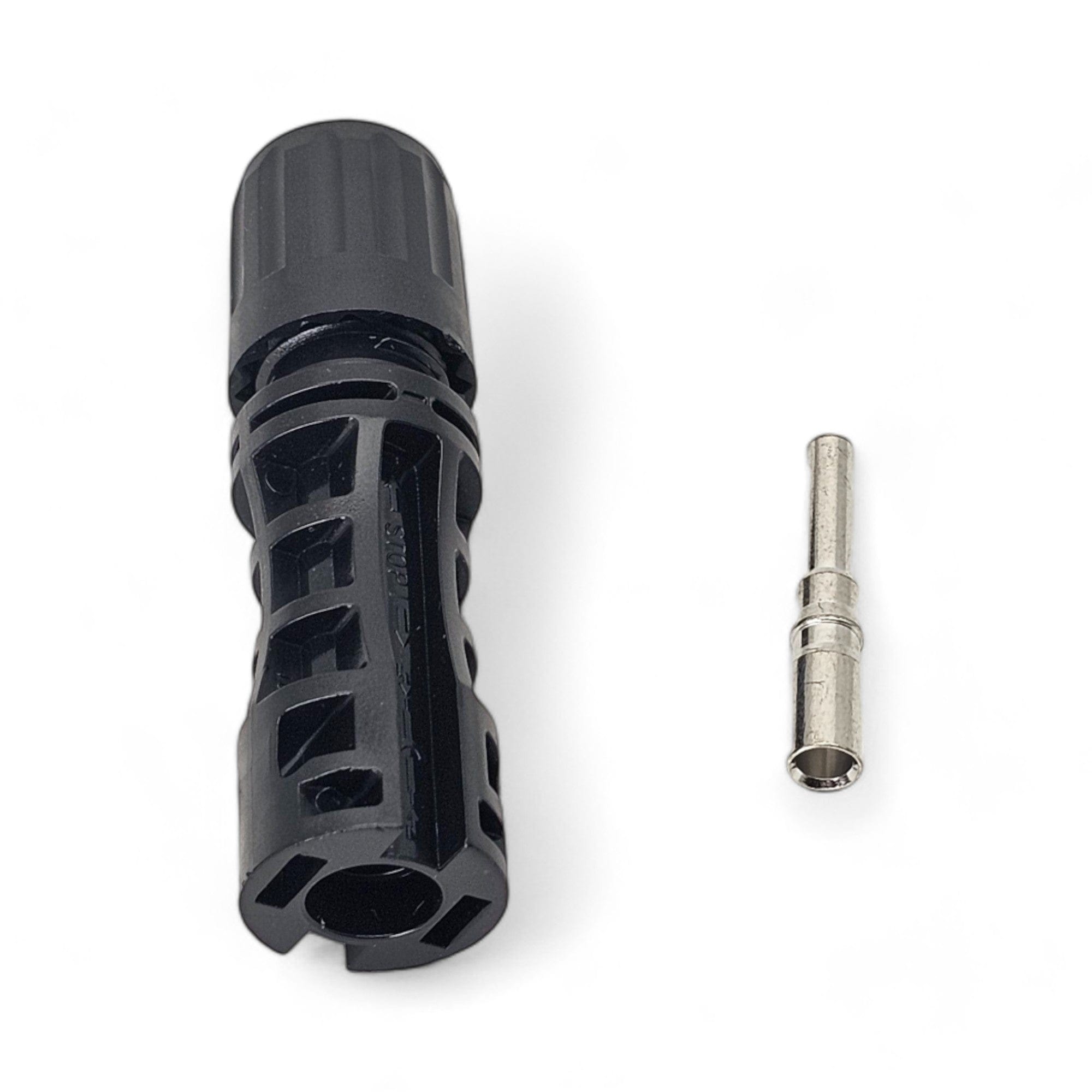

The Conversions Tech Female MC4 Evo2 LR5 Connector is engineered for high-current photovoltaic string wiring where 6–8 AWG conductor capacity, environmental sealing, and long-term electrical stability are critical. Designed for modern PV systems up to 1500V DC, it delivers secure mating, low loss, and dependable outdoor performance.
Product Description
Built for demanding PV installations, the Female MC4 Evo2 LR5 supports 6–8 AWG photovoltaic conductors to help reduce voltage drop on higher-current string runs and simplify balance-of-system (BOS) design. The connector interface is precision-engineered to maintain ≤ 0.5 mΩ contact resistance, helping limit resistive losses and heat buildup over the system lifecycle.
The housing system provides IP67 ingress protection when installed and mated correctly, supporting outdoor deployments exposed to rain, dust, humidity, and temperature extremes. Constructed from PPO + PA engineering polymers with a UL94-V0 flammability rating, the connector is designed for reliable operation across −40°C to +90°C. A snap-on locking mechanism ensures secure engagement while remaining installer-friendly in the field.
Specifications
Key Features
Installation Instructions
- Cable preparation: Strip the PV conductor to the specified length with a clean cut.
- Insertion: Insert the stripped conductor fully into the crimp terminal.
- Crimping: Use a professional MC4 crimping tool with the correct die for 6 AWG or 8 AWG.
- Assembly: Insert the crimped terminal into the female housing until locked.
- Inspection: Verify retention and seal integrity.
- Coupling: Mate with the MC4 male connector until fully engaged.
FAQs
Is this connector rated for both 6 AWG and 8 AWG PV cable?
Yes. This connector is designed specifically for 6–8 AWG photovoltaic conductors used in higher-current PV string wiring.
What voltage class does this connector support?
It is rated for 1500V DC, suitable for commercial and utility-scale PV systems.
Is it compatible with standard MC4 male connectors?
Yes. It mates with standard MC4 male cable plugs and sockets.
Is this suitable for outdoor installations?
Yes. With an IP67 rating, it is designed for harsh outdoor environments when properly installed.
What tools are required for termination?
A professional MC4 crimping tool with dies matched for 6 AWG or 8 AWG conductors is required.
