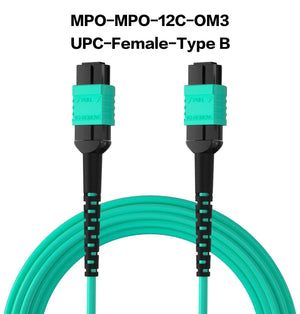

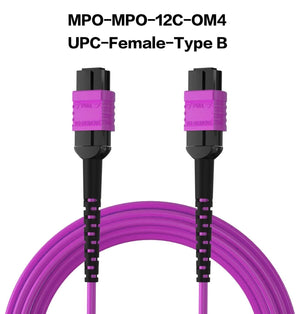

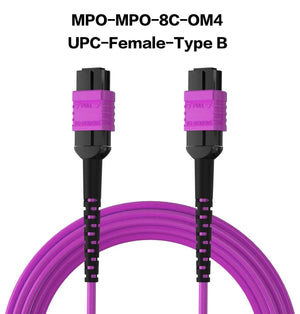

Conversions Tech — MPO/MTP Multimode Fiber Optic Trunk & Breakout Cable
The Conversions Tech MPO/MTP multimode fiber optic trunk is a high-density backbone interconnect engineered for data centers, SAN fabrics, enterprise LANs, and carrier networks requiring parallel optics. Constructed with Corning ClearCurve® 50/125 µm multimode glass, DuPont™ Kevlar® aramid yarn for tensile reinforcement, and a low-smoke zero-halogen (LSZH) jacket, the assembly is designed for low loss, mechanical robustness, and CPR fire safety compliance. Precision MPO/UPC female connectors deliver ≤0.35 dB insertion loss and ≥30 dB return loss, validated to Telcordia GR-326-CORE and TIA-605-4 (FOCIS 5). The default build ships in Type B polarity, optimized for 40GBASE-SR4, 100GBASE-SR4, and SWDM transmission across OM3 Aqua, OM4 Magenta, and OM5 Lime Green variants.
Optical Fiber
Corning ClearCurve® 50/125 µm multimode

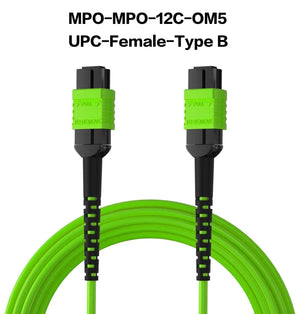

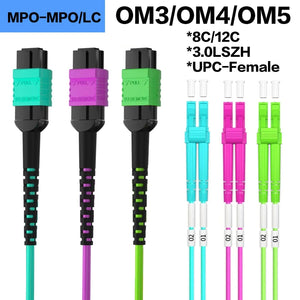

OM3 (Aqua) • OM4 (Magenta) • OM5 (Lime Green)
Optimized λ: 850 / 1300 nm
Connector Interface

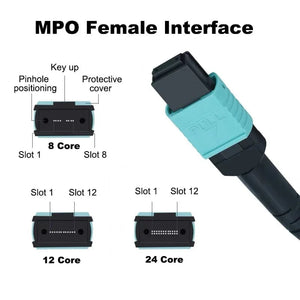

MPO/UPC Female (pinless)
Insertion Loss: ≤0.35 dB
Return Loss: ≥30 dB

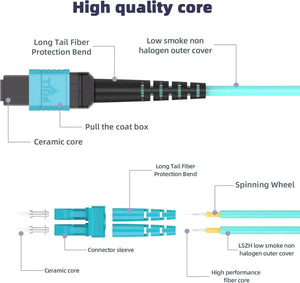

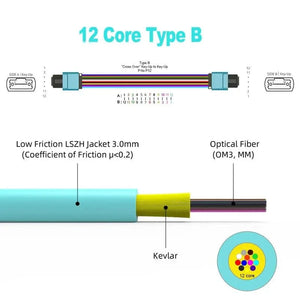

Cable Construction
3.0 mm OD LSZH outer jacket
Aramid yarn (Kevlar®) tensile core
Bend radius: ≥7.5–10 mm
Mechanical Ratings
Tensile strength: 80 N
Operating temp: −10 to +70 °C
Storage temp: −40 to +85 °C
Compliance
RoHS • CE CPR EN 50575 • ISO9001
WEEE • TIA/EIA • Telcordia GR-326
TIA-605-4 (FOCIS 5)
Polarity & Options

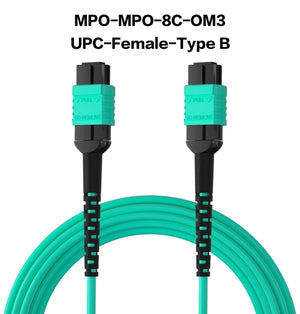

Default: Type B polarity
Custom: Type A/C, APC polish
8–48 cores • Breakouts LC/SC/FC/ST
Technical FAQ — MPO/MTP Multimode Fiber Assemblies
MPO vs MTP — what’s the difference?Connectors
MPO is the IEC standardized multi-fiber push-on interface (IEC 61754-7 / TIA-604-5). MTP® is a proprietary high-tolerance MPO-compatible design offering lower insertion loss, floating ferrules, and better pin precision. Our default cables use MPO/UPC female connectors, intermateable with compliant MPO and MTP systems.
Which polarity does the cable ship with?Polarity
Default build: Type B, female, UPC. Suitable for parallel optics (SR4, SR10). Type A and C builds are available on request.
Insertion Loss & Return Loss values?Optical Loss
- Insertion Loss: ≤0.35 dB max per interface (≤0.30 dB typical)
- Return Loss: ≥30 dB (UPC multimode)

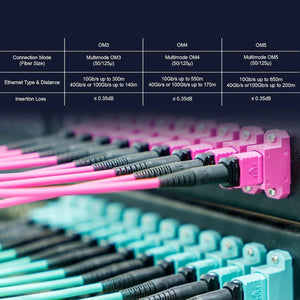

OM3 vs OM4 vs OM5 performance?Fiber Classes
| Class | Bandwidth (EMBc) | Reach @ 40/100G SR4 | Color |
|---|---|---|---|
| OM3 | ≥2000 MHz·km | ~100 m | Aqua |
| OM4 | ≥4700 MHz·km | ~150 m | Magenta |
| OM5 | ≥4700 MHz·km (850 nm) | SWDM 150–180 m | Lime Green |
What’s the minimum bend radius?Bend Radius
Core bend: ≥10 mm • Cable OD (3.0 mm): ≥7.5 mm. Corning ClearCurve® allows tighter bends with reduced macrobend loss, but avoid exceeding recommended limits.
Environmental ratings?Environment
Operating: −10 → +70 °C • Storage: −40 → +85 °C • Tensile strength: 80 N • Jacket: LSZH, CPR EN 50575 compliant.

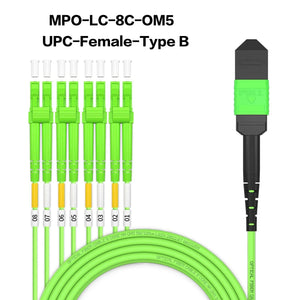

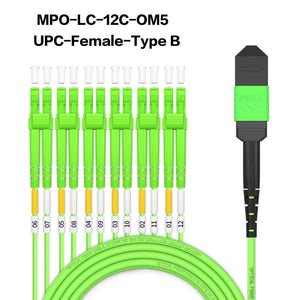

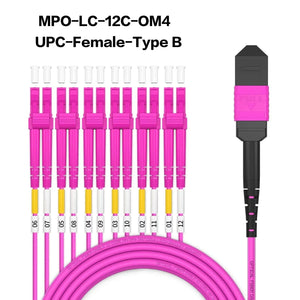

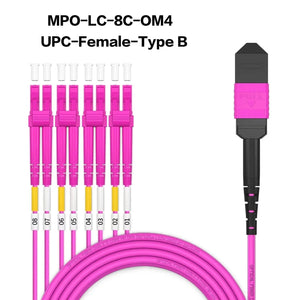

Breakout / fan-out options?Breakout

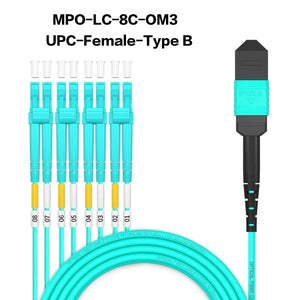

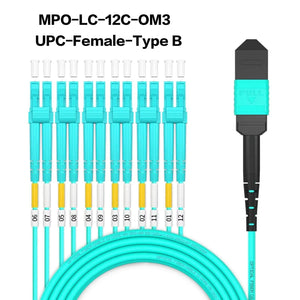

Available as MPO-to-MPO trunks or MPO-to-LC/SC/FC/ST breakouts. Default LC branch length: 0.6–1.0 m. Sub-units reinforced with aramid yarn for rack strain relief.

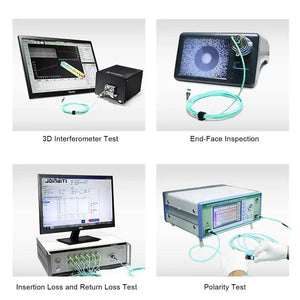

What testing is performed?QA
- Endface geometry checked via interferometer per IEC 61300-3-35
- IL/RL tested at 850/1300 nm
- Visual 200–400× inspection
- Serial test report traceability available
Customization available?Custom
Supports 8–48 cores, Type A/B/C polarity, male/female, UPC/APC polish, custom lengths, jackets (LSZH, plenum, armored), and labeling. Contact us for engineered builds.
