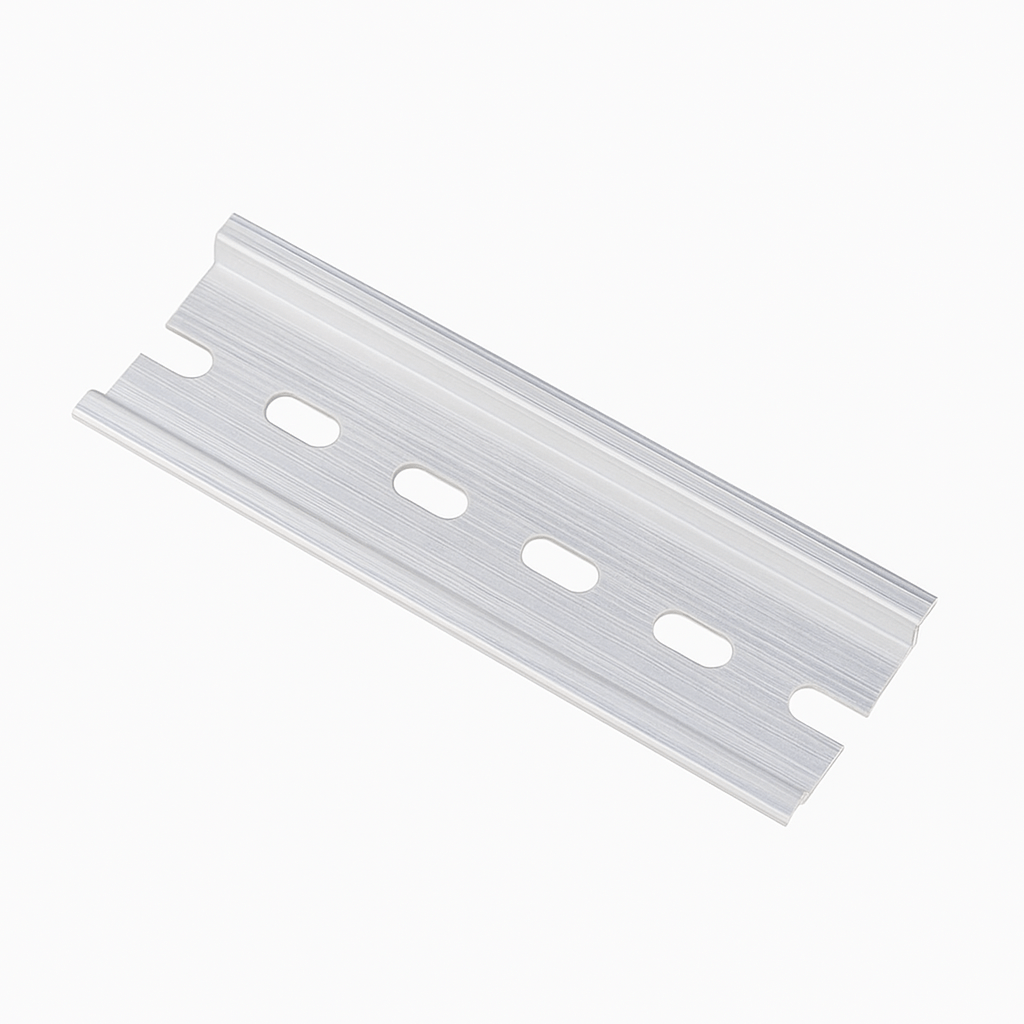

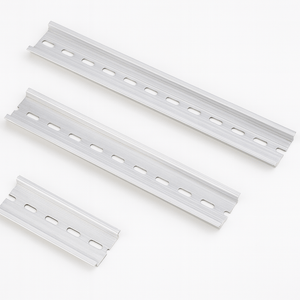

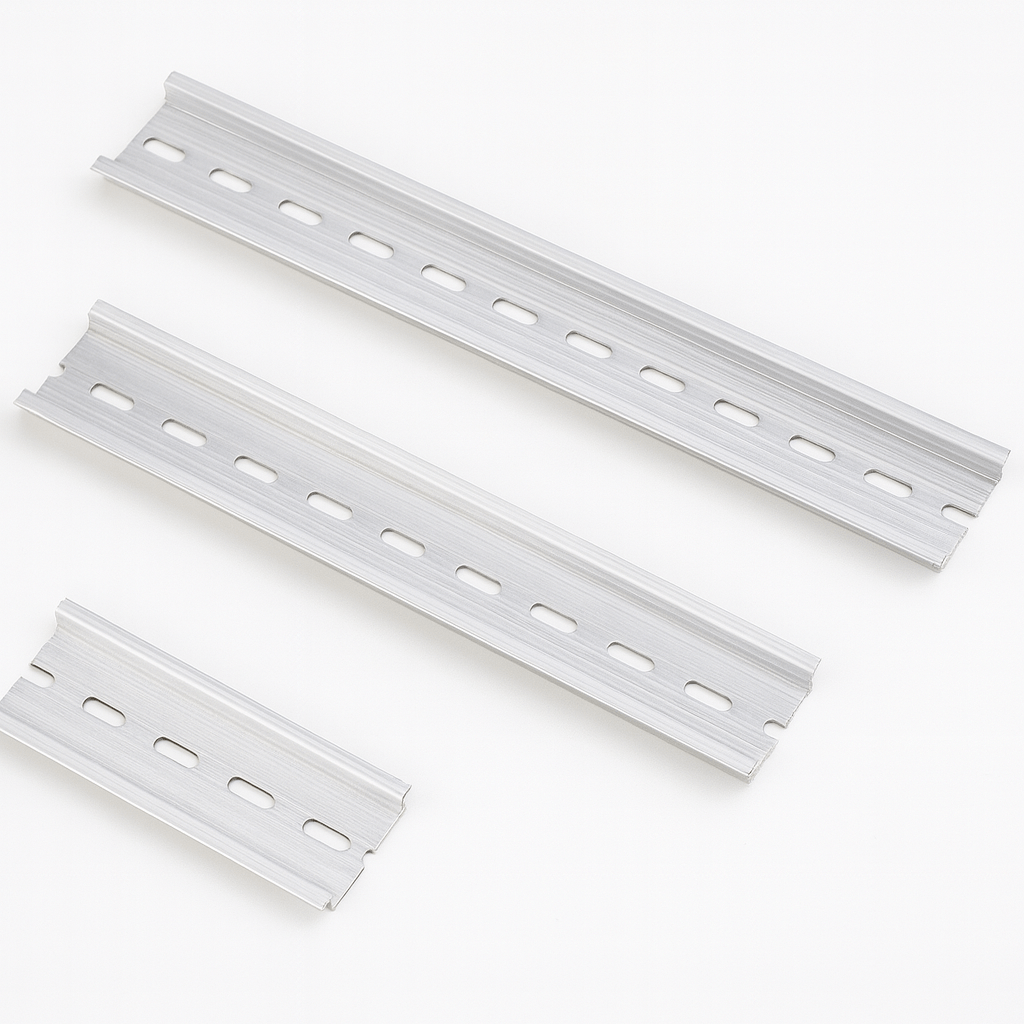

Aluminum Universal Type 35mm Slotted DIN Rail Long 10cm 20cm 30cm Thickness 1mm
Shipping calculated at checkout
SKU: DUP-14:350853#20cm
Only 14 in stock
Open here
Precision DIN mounting rail for control panels and junction boxes. The 35 mm “top-hat” profile per EN 60715 supports terminal blocks, relays, power supplies, breakers, timers, and I/O modules. Offered in convenient 10 cm, 20 cm, and 30 cm lengths for panel retrofits, prototypes, and field service. Variants available (see options). Materials contain no high-concern chemicals. CE/RoHS as specified.
Key Features
- Profile: 35 mm “top-hat” DIN rail per IEC/EN 60715 (industry standard for modular devices).
- Lengths: 100 mm, 200 mm, 300 mm (± tolerances) — ideal for compact assemblies or add-ons.
- Compatibility: Terminal blocks, contactors, SSRs, MCBs, PLC I/O, timers, sensors, and power supplies rated for 35 mm rail.
- Mounting: Panel/plate mounting with self-tapping screws or rivets (holes may be field-drilled).
- Choice: Yes — select length (and, where offered, profile height 7.5 mm or 15 mm; slotted/solid style).
- Compliance: CE / RoHS (as listed for the rail material and finish).
Technical Specifications
- Model Number
- GEYA DIN RAIL TERMINAL (rail component)
- Type
- DIN mounting rail, 35 mm top-hat (TS-35)
- Dimensional Standard
- IEC/EN 60715
- Available Lengths
- 10 cm, 20 cm, 30 cm
- Profile Height
- TS-35/7.5 or TS-35/15 (variant-specific if offered)
- Material / Finish
- Per variant (e.g., steel zinc-plated or aluminum)
- Certification
- CE, RoHS
- Chemical Disclosure
- No high-concern chemicals
- Notes
- This listing is for DIN rail only. Devices and terminal blocks shown in application photos are not included.
Selection Matrix — Length & Profile
| Variant | Length | Profile | Style | Typical Use |
|---|---|---|---|---|
| DIN-RAIL-10 | 10 cm (100 mm) | TS-35/7.5 or TS-35/15* | Solid or Slotted* | Small junctions, sensor nodes, field retrofits |
| DIN-RAIL-20 | 20 cm (200 mm) | TS-35/7.5 or TS-35/15* | Solid or Slotted* | 2–6 terminal blocks, compact relay banks |
| DIN-RAIL-30 | 30 cm (300 mm) | TS-35/7.5 or TS-35/15* | Solid or Slotted* | Small control sections, power supply + breakers |
*Select the exact profile height and slotted/solid style if offered on this product page.
Installation & Handling
- Lay out device spacing and mark mounting points before drilling the panel.
- Deburr any drilled holes and ensure rail sits flat; avoid twisting during install.
- Use appropriate screws/rivets and torque for the panel material (steel/aluminum).
- Observe device manufacturer clearances and earthing/bonding requirements.
Packaging
- Includes: 1 × DIN rail per selected length.
- Accessories (end-stops, markers, terminal blocks) sold separately.
