Junction Box PC Plastic Outdoor Electrical IP65 Waterproof Dustproof Distribution Switch Box
Shipping calculated at checkout
SKU: DUP-14:200004890#HT-8WAY;5:417782995
50 in stock
Open here
Key Features
- Waterproof function: enclosure and cover interface designed for environmental sealing (use rated cable glands and proper torque).
- ABS housing: rigid, non-conductive, corrosion-resistant plastic; easy to machine for glands, switches, and pass-throughs.

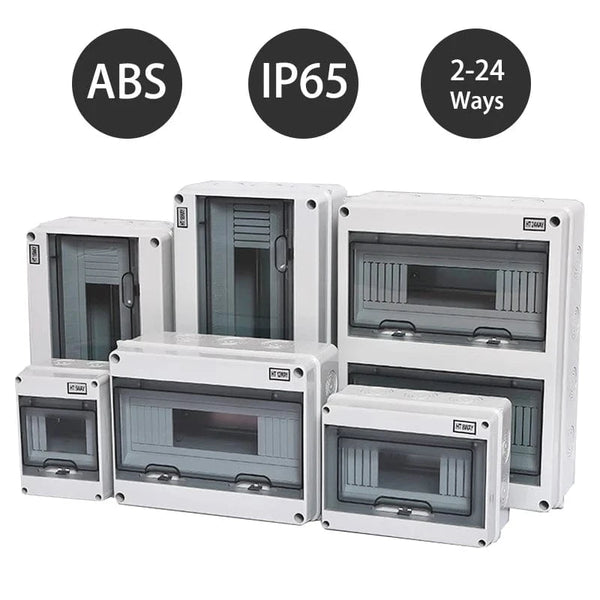

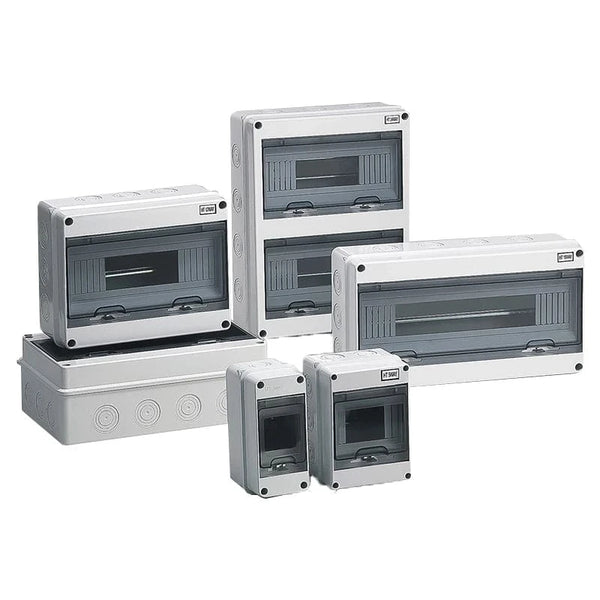

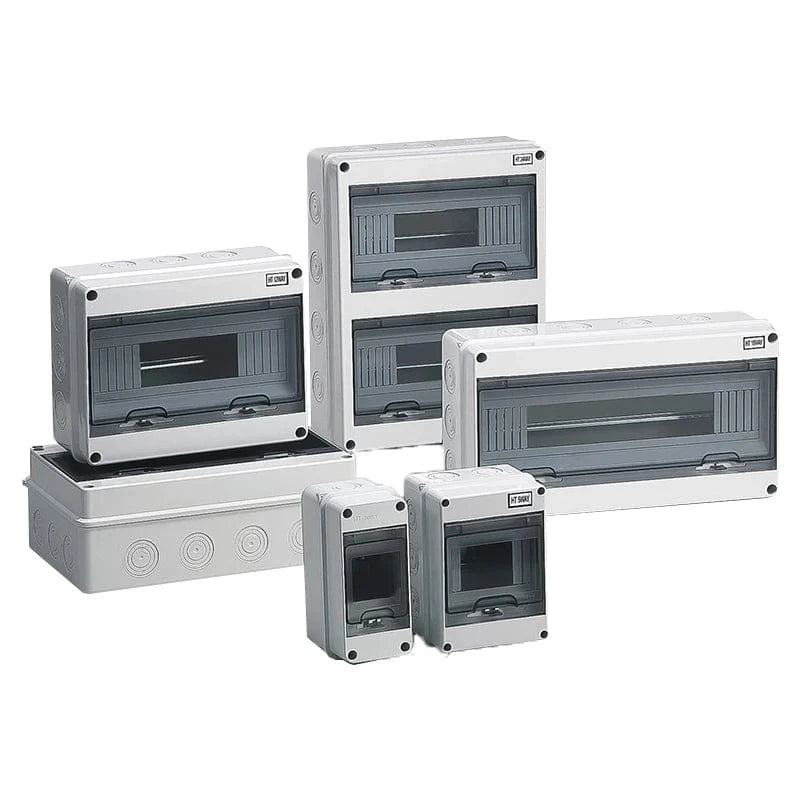

- Series coverage: HT-2 / HT-3 / HT-5 / HT-8 / HT-12 / HT-15 / HT-18 / HT-24 to match 2-way up to 24-way builds or internal circuit capacity.

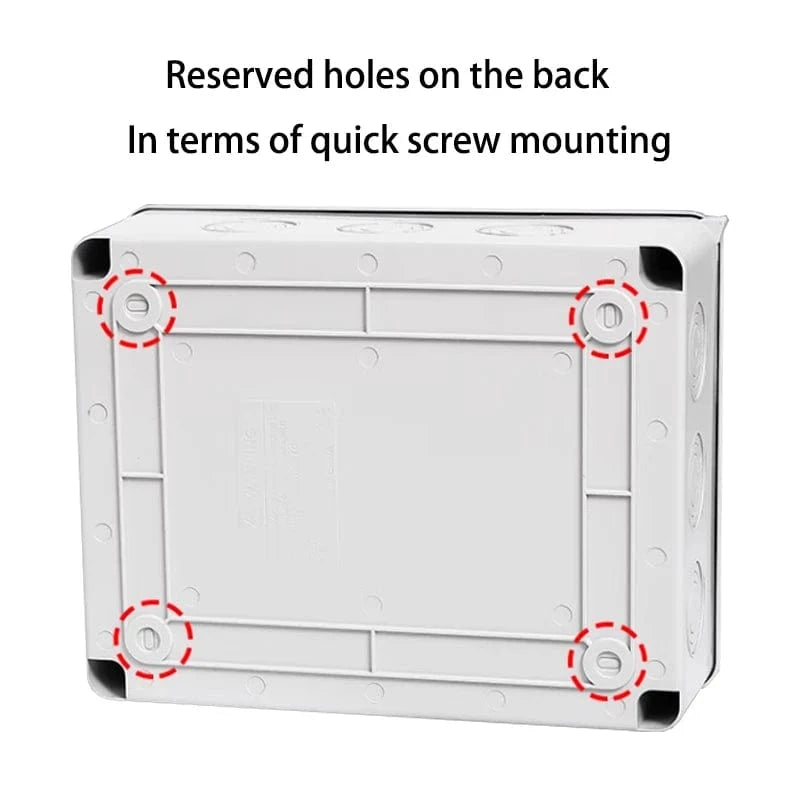

- Mounting ready: wall/flat-surface mounting points; lid screws for quick service (exact hardware per model).
- Applications: PV/DC branch junctions, LED signage, CCTV/IoT nodes, sensor hubs, access control, small control/relay boxes.
- Choice: Yes — multiple models/ways available; custom logo/labeling on request.
Technical Specifications
- Model Numbers
- HT-2, HT-3, HT-5, HT-8, HT-12, HT-15, HT-18, HT-24
- Function
- Waterproof enclosure (environmental protection depends on correct assembly and glands)
- Material
- ABS (Acrylonitrile Butadiene Styrene)
- Chemical Disclosure
- No high-concern chemicals
- Type
- Waterproof enclosure / junction box
- Structure
- Cover + base; accepts cable glands/strain reliefs (sold separately unless bundled)
- NRTL Test Standard (enclosure category)
- Typical for enclosures: UL 50 / UL 50E (if listed; see product label/spec sheet)
Selection Matrix — Model, Capacity & Typical Use
| Model | Typical “Ways” / Circuits | Internal Space (L×W×H, mm) | Cover / Gasket | Mounting | Notes |
|---|---|---|---|---|---|

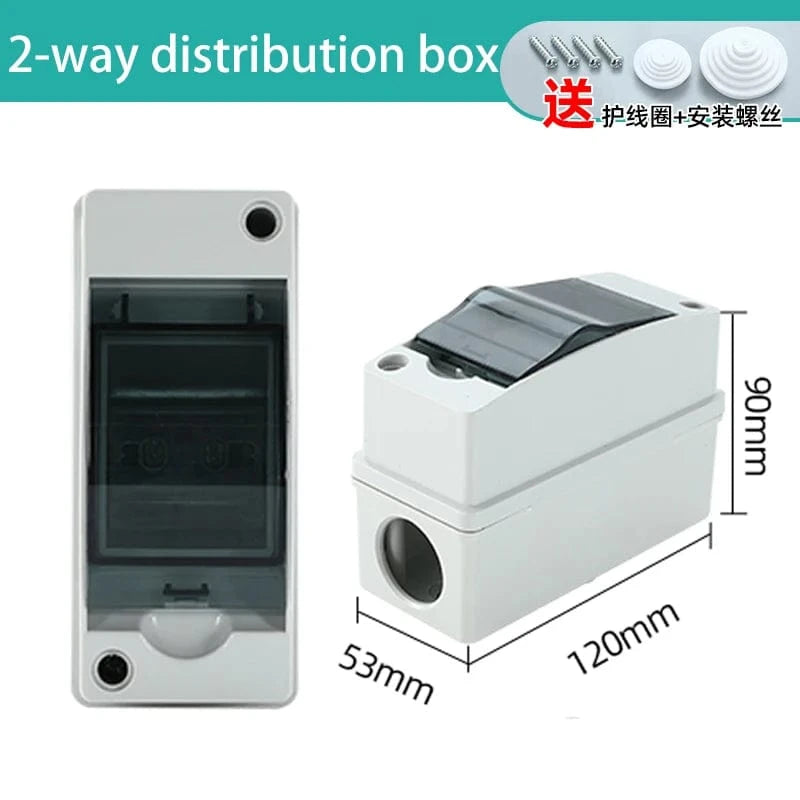

| HT-2 | 2 | — | Gasketed cover | Wall screws | Small PV/LED junctions |
| HT-3 | 3 | — | Gasketed cover | Wall screws | Sensor/IoT node |

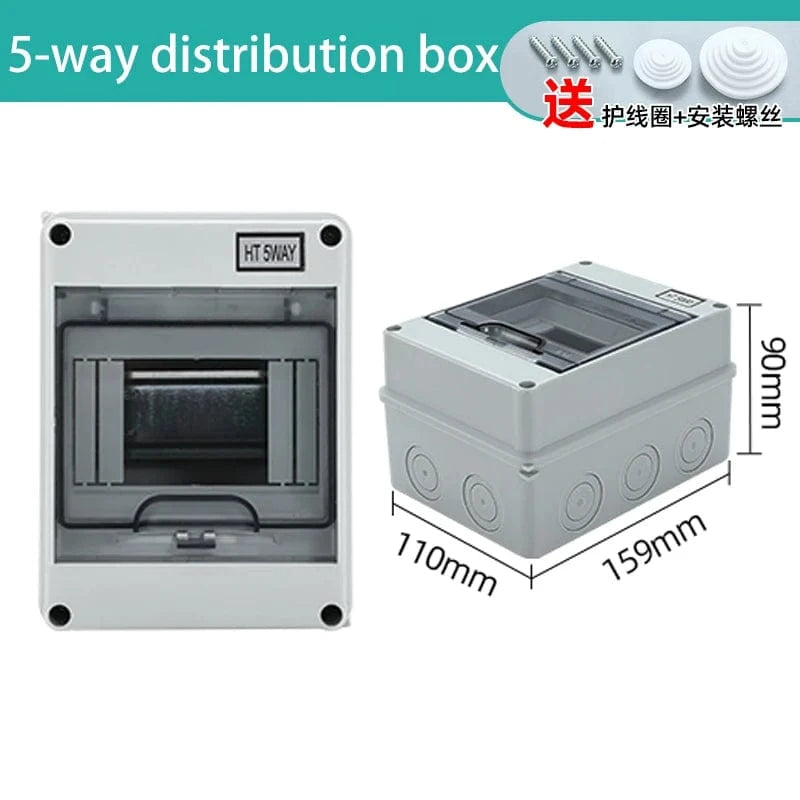

| HT-5 | 5 | — | Gasketed cover | Wall screws | Low-voltage splitters |

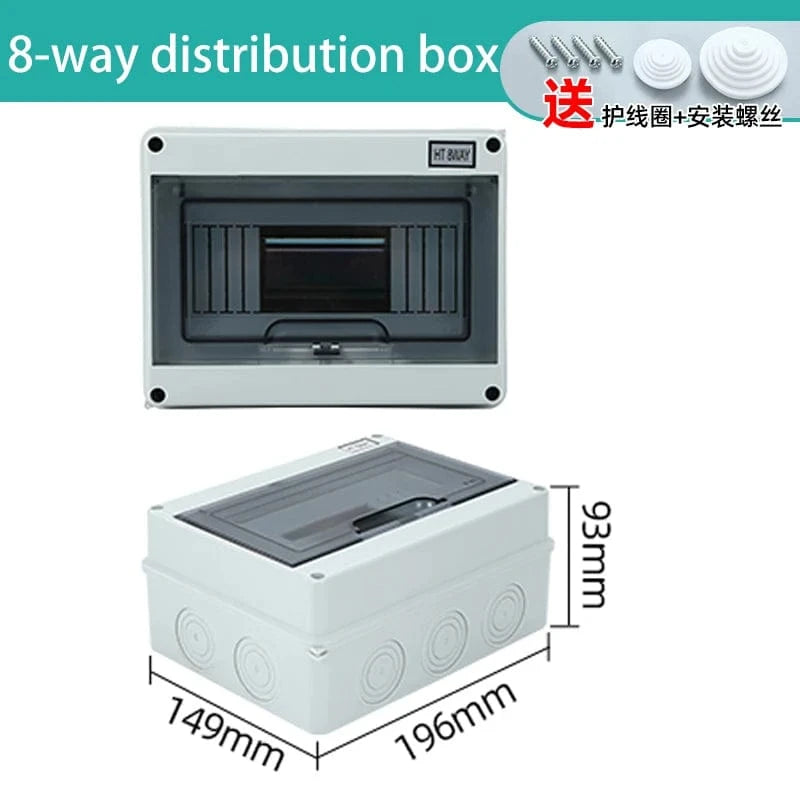

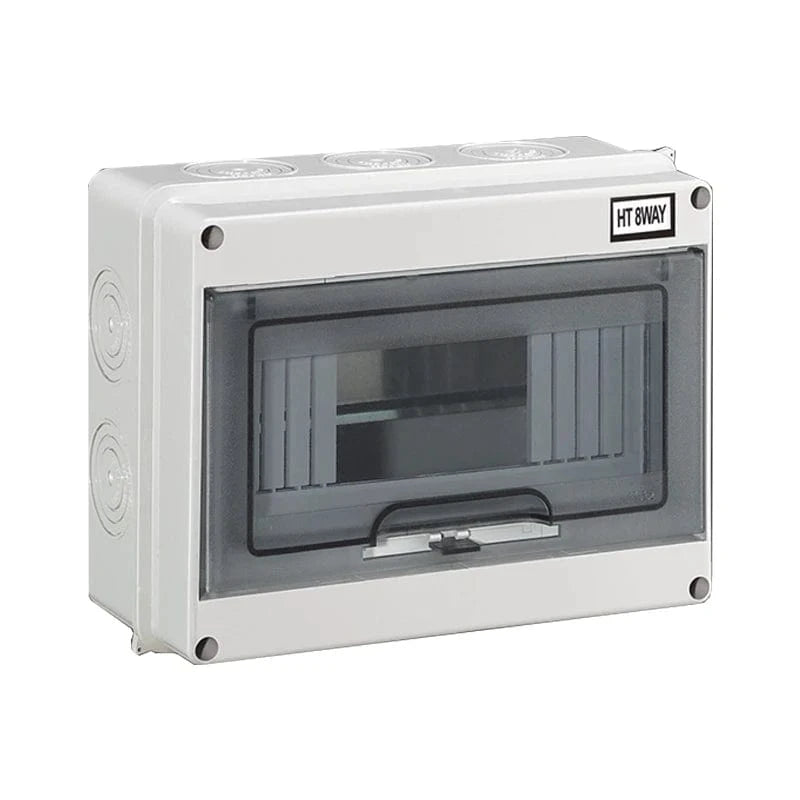

| HT-8 | 8 | — | Gasketed cover | Wall screws | Branch distribution |

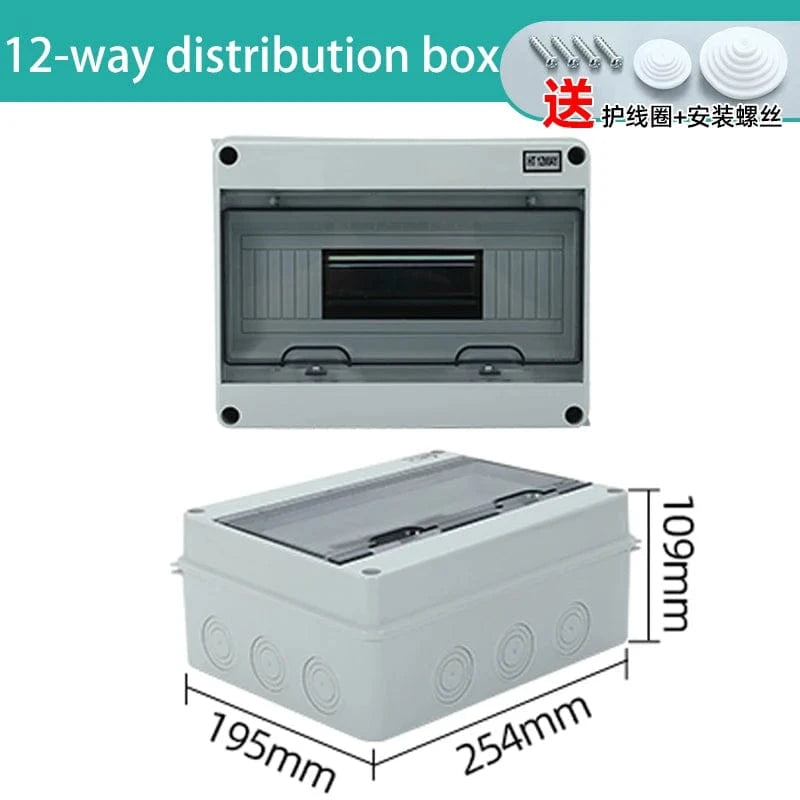

| HT-12 | 12 | — | Gasketed cover | Wall screws | Combiner / control |

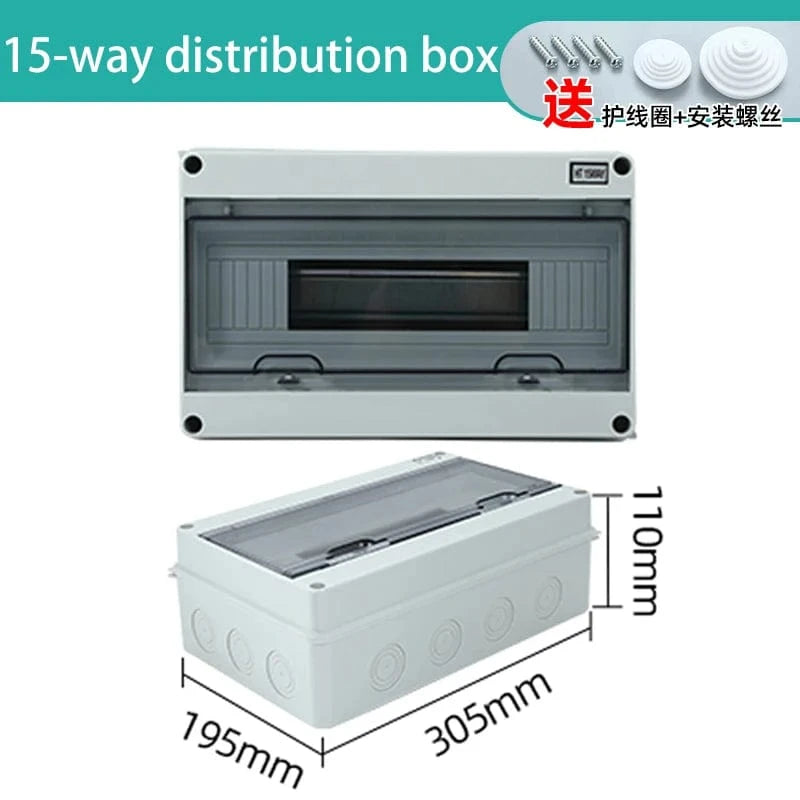

| HT-15 | 15 | — | Gasketed cover | Wall screws | Multi-circuit panels |

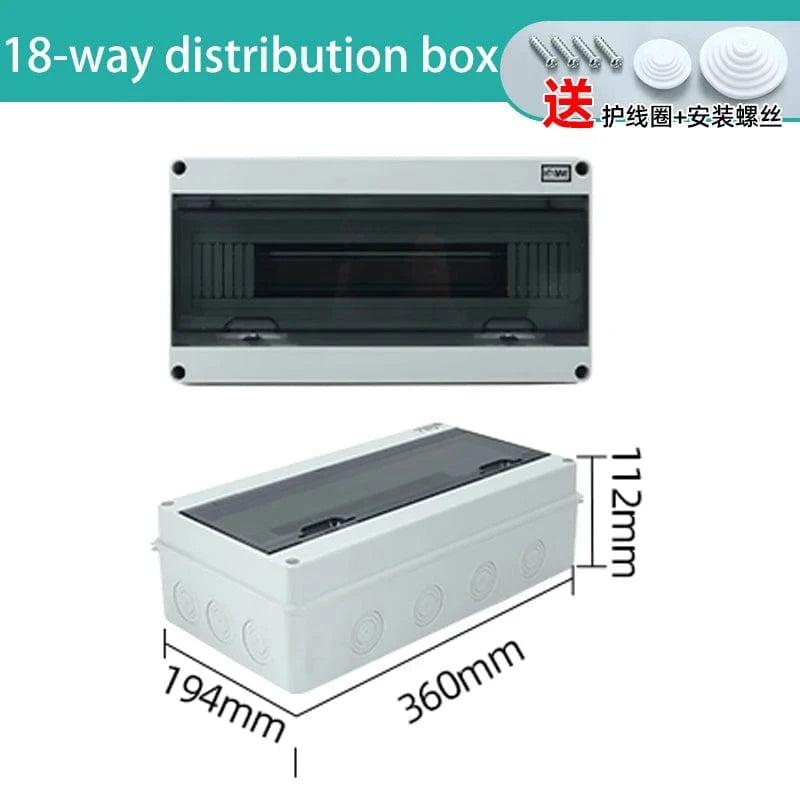

| HT-18 | 18 | — | Gasketed cover | Wall screws | Large junction node |

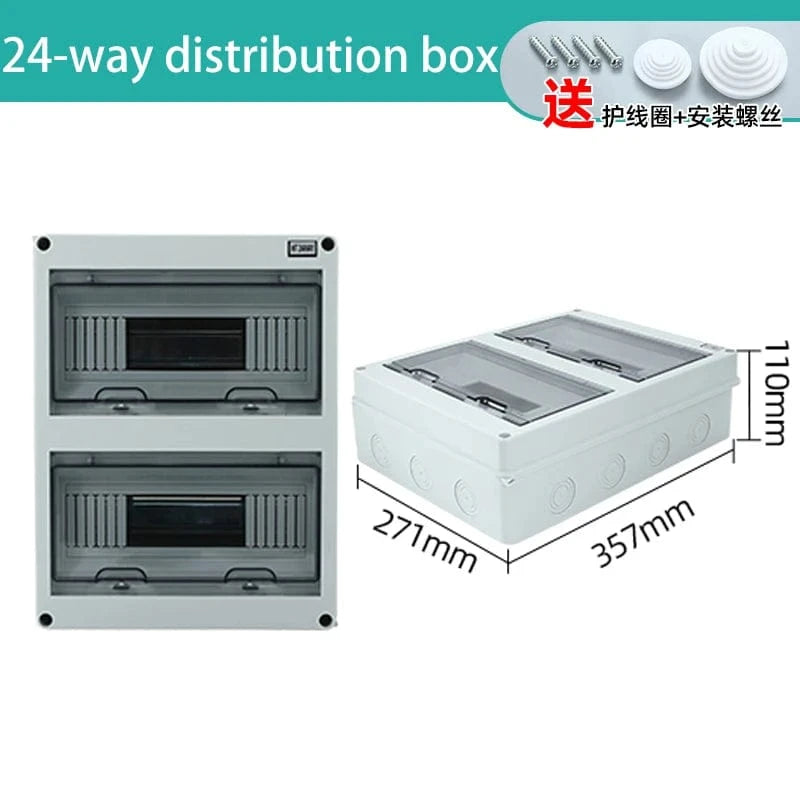

| HT-24 | 24 | — | Gasketed cover | Wall screws | High-density terminations |
Tip: Publish exact internal dimensions, lid screw count/size, and recommended gland sizes (PG/Metric) for each model to capture long-tail searches like “HT-12 waterproof ABS enclosure 200×150×100 mm”.
Installation & Handling
- Use appropriately rated cable glands/strain reliefs; tighten to achieve the intended seal.
- Avoid over-torque on plastic threads; use flat, level mounting surfaces.
- Drill with sharp step bits; deburr openings; keep chips out of the enclosure.
- Orient drain path downwards where applicable; do not submerge unless model is specifically rated.
- Verify clearances, bend radius, and conductor fill per code and application.
Packaging & Options
- Base package: Enclosure (cover + base). Hardware/glands may be included on select kits—see variant.
- Customization: Cutouts, printed labels, and pre-wired assemblies available (MOQ may apply).
Warranty & Support
5-Year Limited Warranty against defects in materials and workmanship when installed and used as rated. Questions? Email support@conversionstech.com
