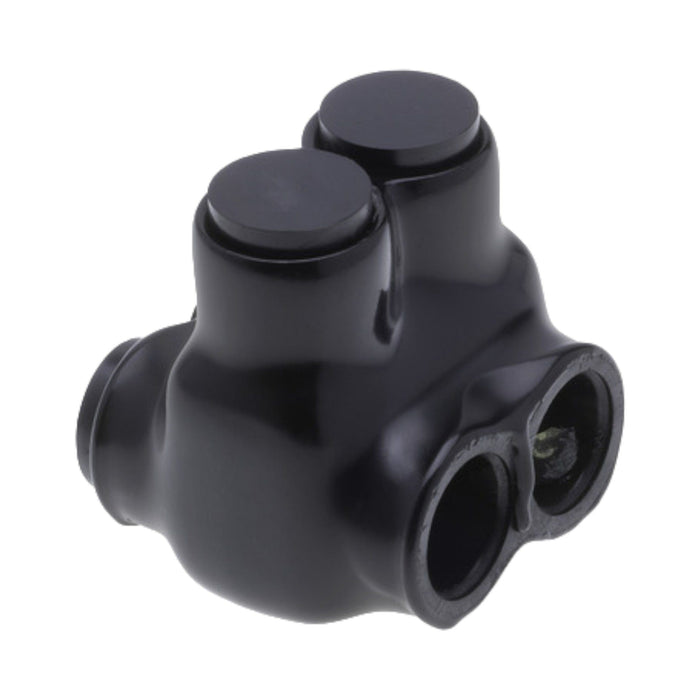

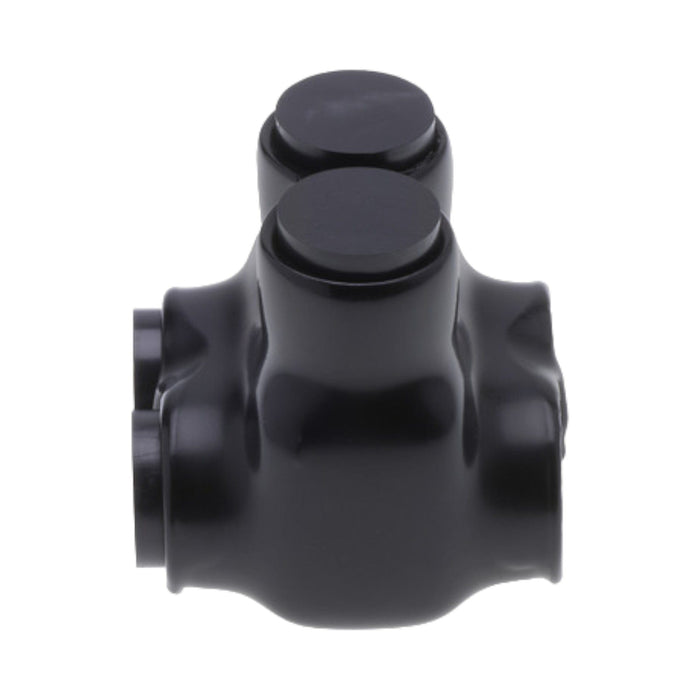

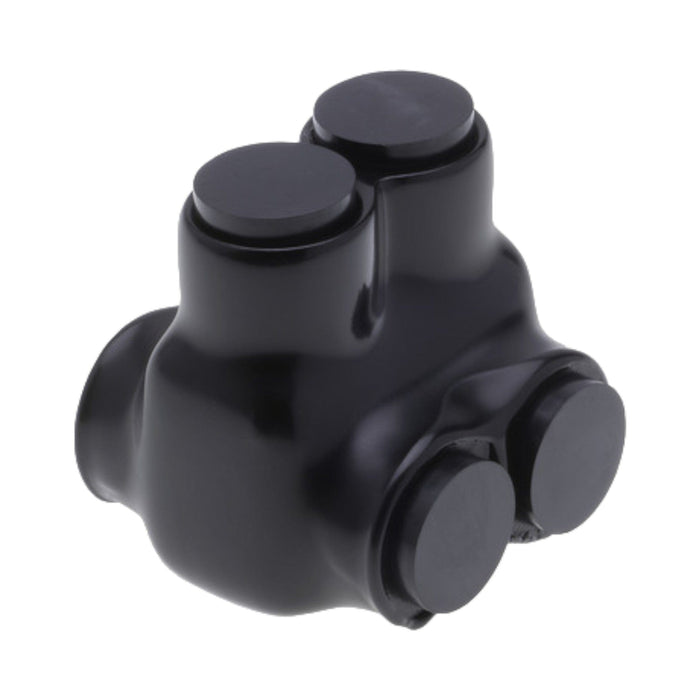

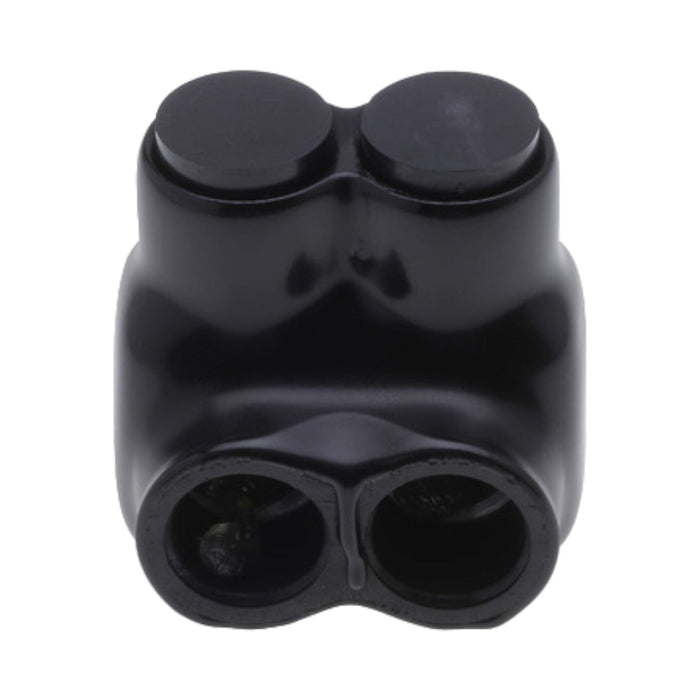

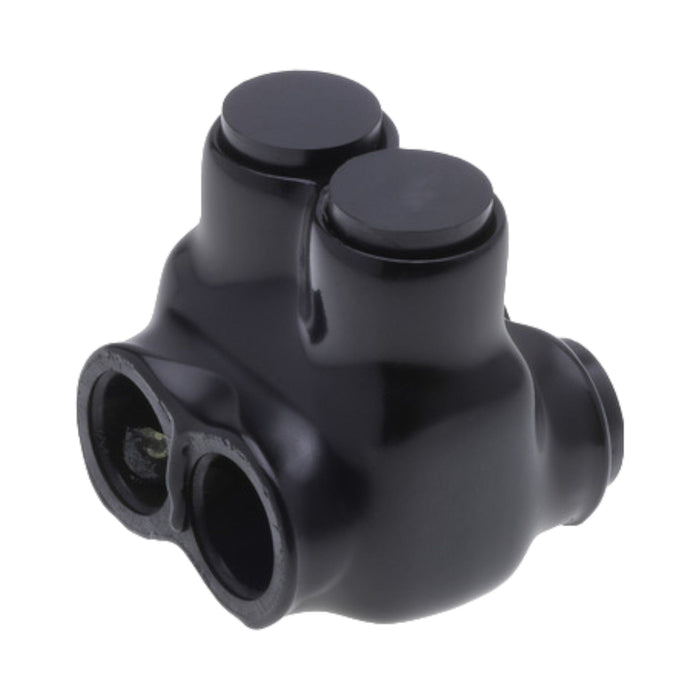

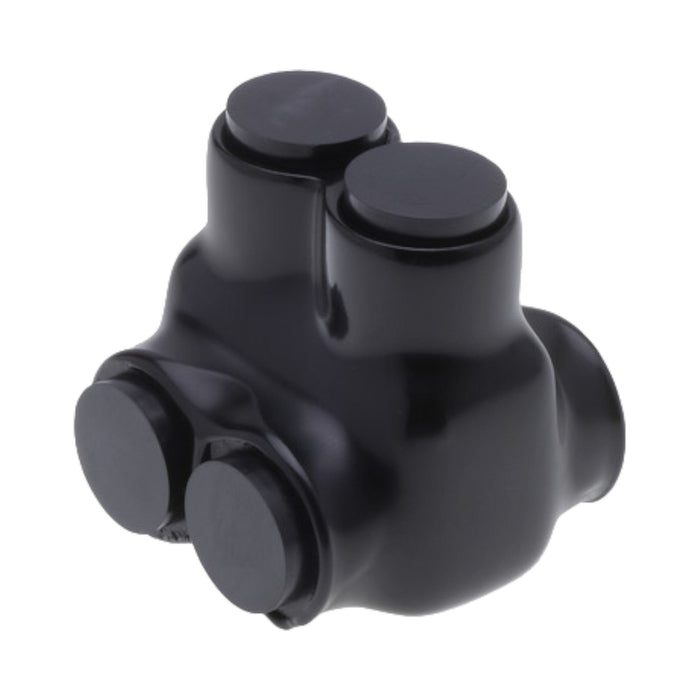

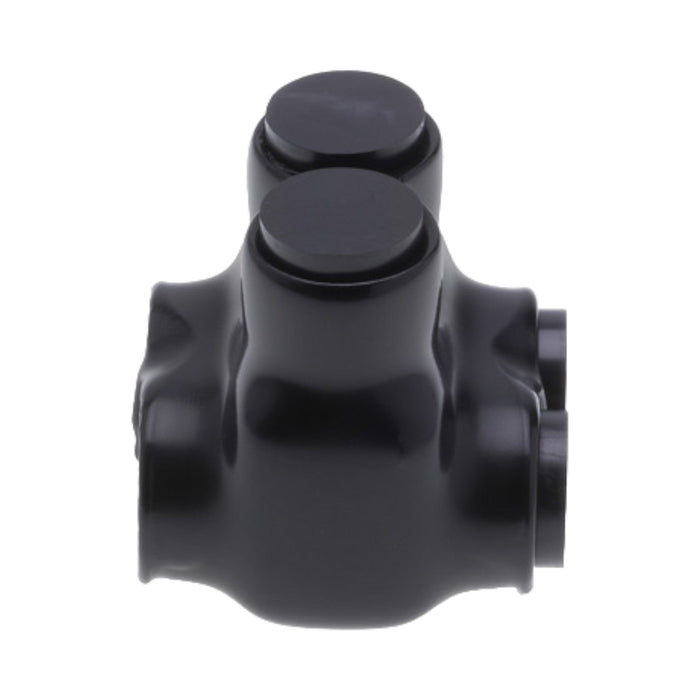

Insulated Tap Connectors 1 port dual-side Entry 14 AWG - 2 AWG
Shipping calculated at checkout
SKU: 610-40214
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Conversions Tech Dual-Sided Insulated Tap Connectors — 2 AWG to 14 AWG (UL 486A/B, NEC 230.46 Compliant)
The Conversions Tech Dual-Sided Insulated Tap Connectors provide a robust, code-compliant solution for forming secure electrical connections between multiple conductors. Featuring dual-entry ports on opposing sides and a UV-resistant plastisol insulation coating, these connectors are designed for maximum flexibility, reliability, and long-term performance across residential, commercial, and industrial installations.
Key Features and Advantages
- Secure Set-Screw Connection: Precision-engineered aluminum body with adjustable set screws ensures uniform pressure, creating a low-resistance, vibration-proof connection.
- Dual-Sided Wire Entry: Opposing entry ports accommodate conductors from 2 AWG to 14 AWG, enabling flexible splicing and parallel configurations.
- NEC 230.46 Compliant: Fully approved for line-side service equipment applications under National Electrical Code (NEC) Article 230.46.
- Ergonomic Design: Rounded body with smooth plastisol insulation provides comfortable handling and minimizes strain during installation.
- Removable Protection Plugs: Each port and set screw includes a removable plug to block contaminants, moisture, and debris during setup.
- Pre-Filled Oxide Inhibitor: Entry ports are pre-filled with corrosion-resistant oxide inhibitor gel to maintain low contact resistance over time.
- Heavy-Duty Plastisol Insulation: UV- and chemical-resistant coating ensures long service life, even in outdoor or industrial environments.
- Professional Performance: Tested and certified under UL 486A/B standards for safe use with both copper and aluminum conductors (AL9CU rated).
Technical Specifications
| Connector Type: | Insulated Tap Connector, Dual-Sided Entry |
| Wire Gauge Range: | 2 AWG – 14 AWG |
| Connection Type: | Set Screw |
| Insulation Material: | UV-Resistant Plastisol |
| Features: | Dual-Sided Entry, Removable Plugs, Pre-Filled Oxide Inhibitor |
| Voltage Rating: | 600 V |
| Body Material: | High-Strength Aluminum (AL9CU) |
| Finish: | Black Plastisol Coating (UV Resistant) |
| Certifications: | cULus Listed | NEC 230.46 | UL 486A/B |
| UL File Number: | E186991 |
| Wire Cable Class: | Class B & Class C |
| Temperature Rating: | 90°C Continuous | −45°C Cold Rated |
| Conductor Material: | Copper and Aluminum |
| Conductor Max Amps: | Aluminum: 100 A | Copper: 130 A |
| Conductor Count: | 2 |
| Binding Screw Size: | 3/8″ |
| Binding Screw Torque: | 10–14 AWG = 35 in-lb | 8 AWG = 40 in-lb | 4–6 AWG = 45 in-lb | 2/0–3 AWG = 50 in-lb |
| Dimensions (Connector): | H: 1.627″ | W: 1.825″ | L: 1.623″ |
| Box Dimensions: | H: 2″ | W: 6.188″ | Weight: 1.863 lb |
| Connector Weight: | 0.126 lb |
| UPC: | 810166615792 |
| Country of Origin: | United States |
Recommended Applications
- Residential electrical installations and service connections
- Commercial and industrial building wiring systems
- Power distribution networks and control panels
- HVAC system connections and maintenance
- Utility and infrastructure power grids
- Automotive, marine, and off-grid electrical systems
- Machinery and manufacturing equipment wiring
Frequently Asked Questions (FAQs)
1. What is a dual-sided insulated tap connector?
It is a connector with wire entry ports on both sides, allowing conductors to be connected in parallel or tapped configurations while maintaining full insulation and code compliance.
2. What conductor sizes does this connector support?
This model supports wire sizes ranging from 2 AWG to 14 AWG for both copper and aluminum conductors.
3. Is this connector NEC 230.46 compliant?
Yes. It meets all the requirements under NEC Article 230.46 for use on the line side of service equipment and distribution assemblies.
4. Can I use this connector outdoors?
Yes. The UV-resistant plastisol insulation and sealed design make it ideal for both indoor and outdoor environments.
5. What is the purpose of the oxide inhibitor gel?
The oxide inhibitor prevents corrosion and oxidation at the conductor interface, maintaining low electrical resistance for long-term stability.
6. What torque should I apply to the binding screws?
Torque values vary by conductor size: 35 in-lb for 10–14 AWG, 40 in-lb for 8 AWG, 45 in-lb for 4–6 AWG, and 50 in-lb for 2/0–3 AWG conductors.
7. What material is the connector made from?
The body is made of high-strength aluminum, designed to provide excellent conductivity and corrosion resistance for both Cu and Al conductors.
8. How many conductors can it hold?
This connector accommodates two conductors (one per side), allowing versatile connection options in compact enclosures.
9. What environments can it be used in?
It performs reliably from −45°C to +90°C, suitable for residential, commercial, industrial, or outdoor power systems.
10. Is the Conversions Tech connector UL listed?
Yes. It is UL Listed under File No. E186991 and certified under UL 486A/B for mechanical integrity, electrical performance, and safety compliance.
