Insulated Tap Connectors 1 port dual-side Entry 4 AWG - 500 MCM XXX DUP
Shipping calculated at checkout
SKU: 610-4500
Out of stock
Open here

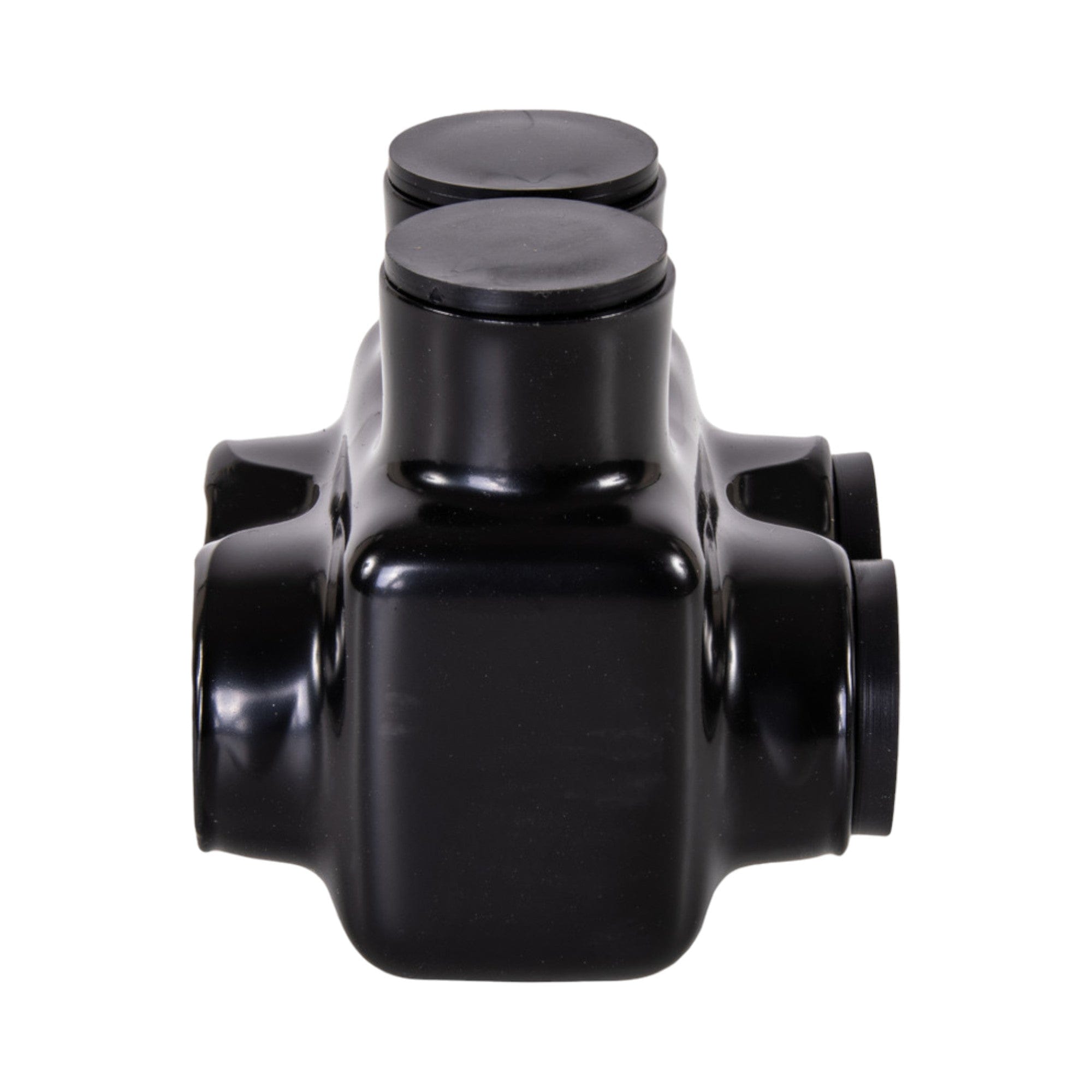

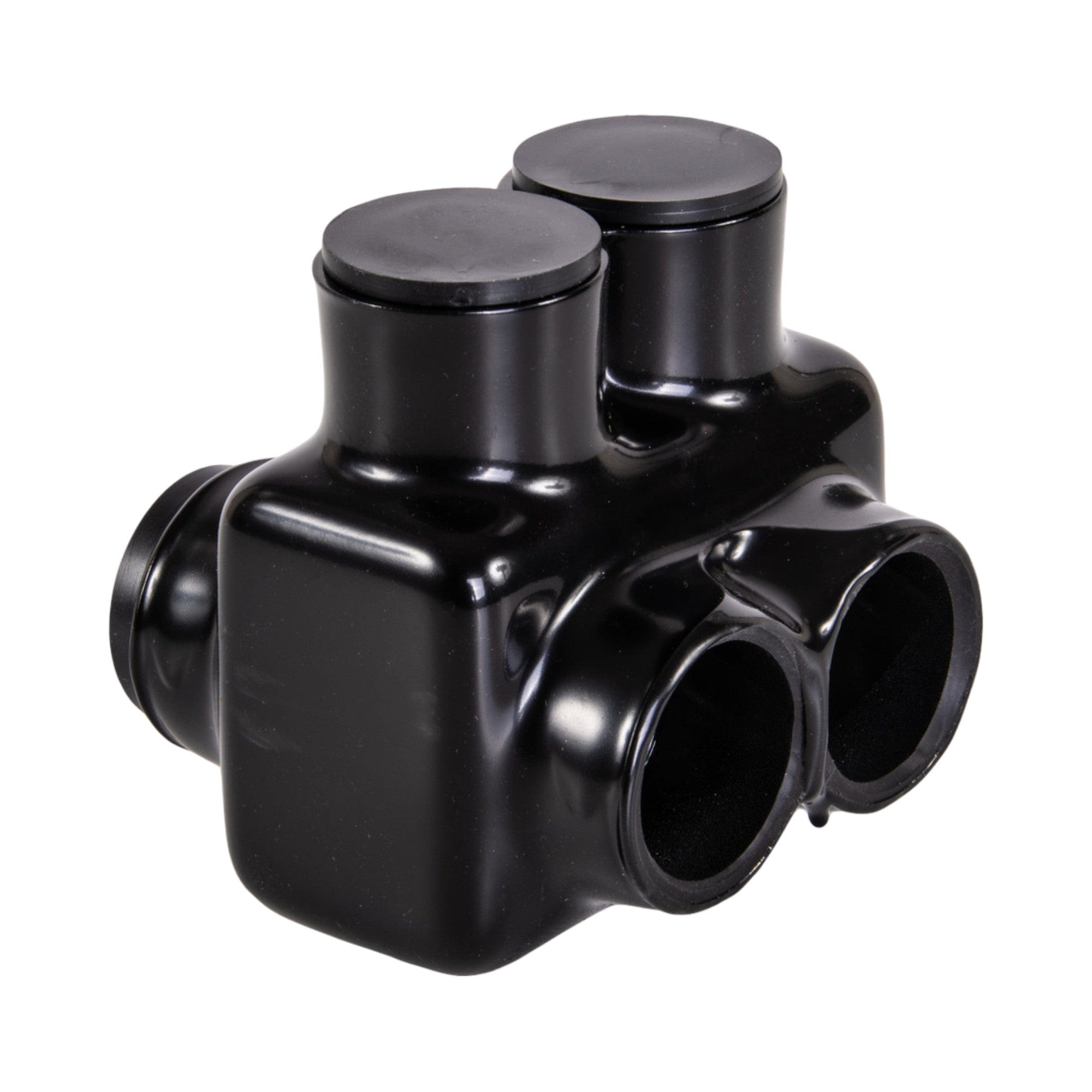

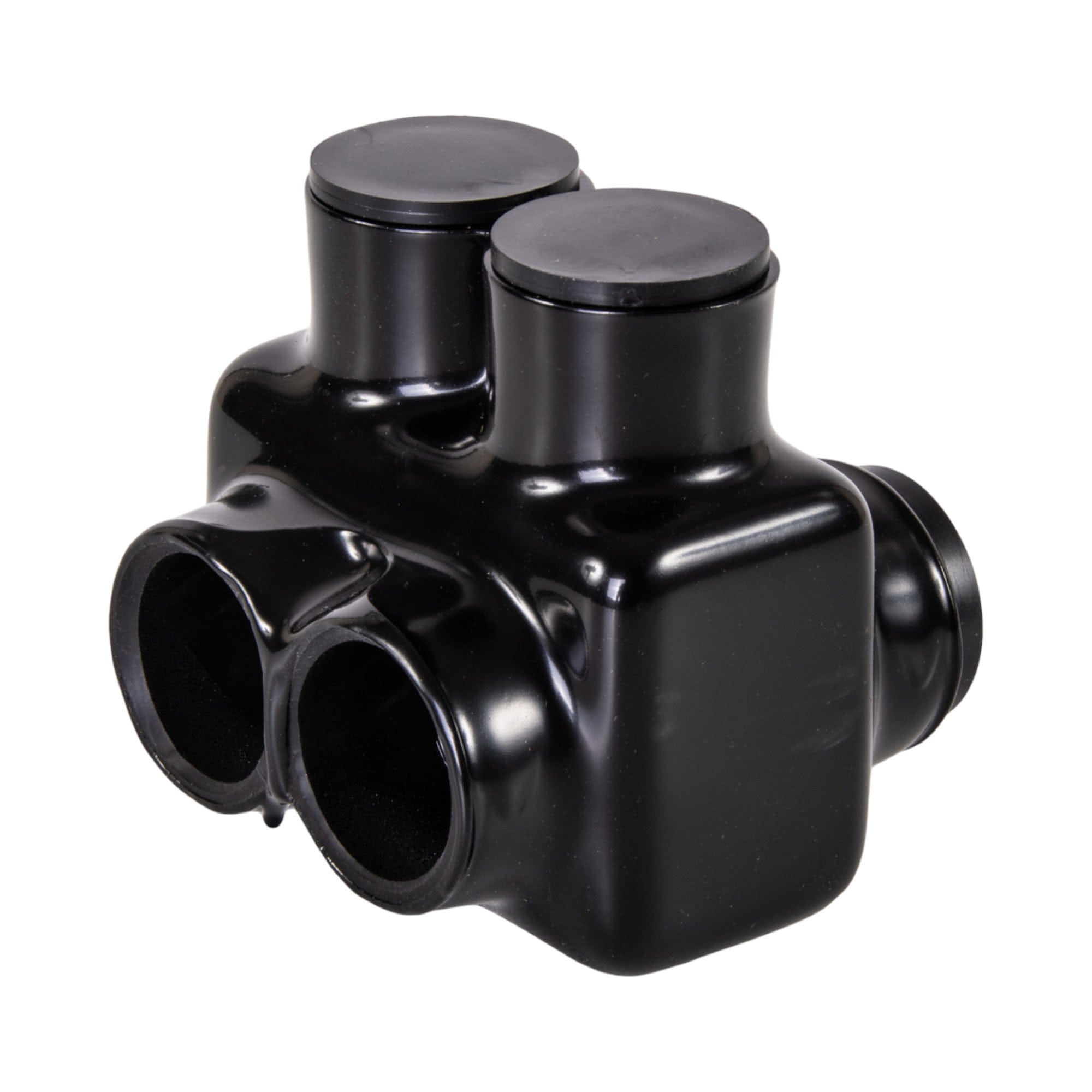

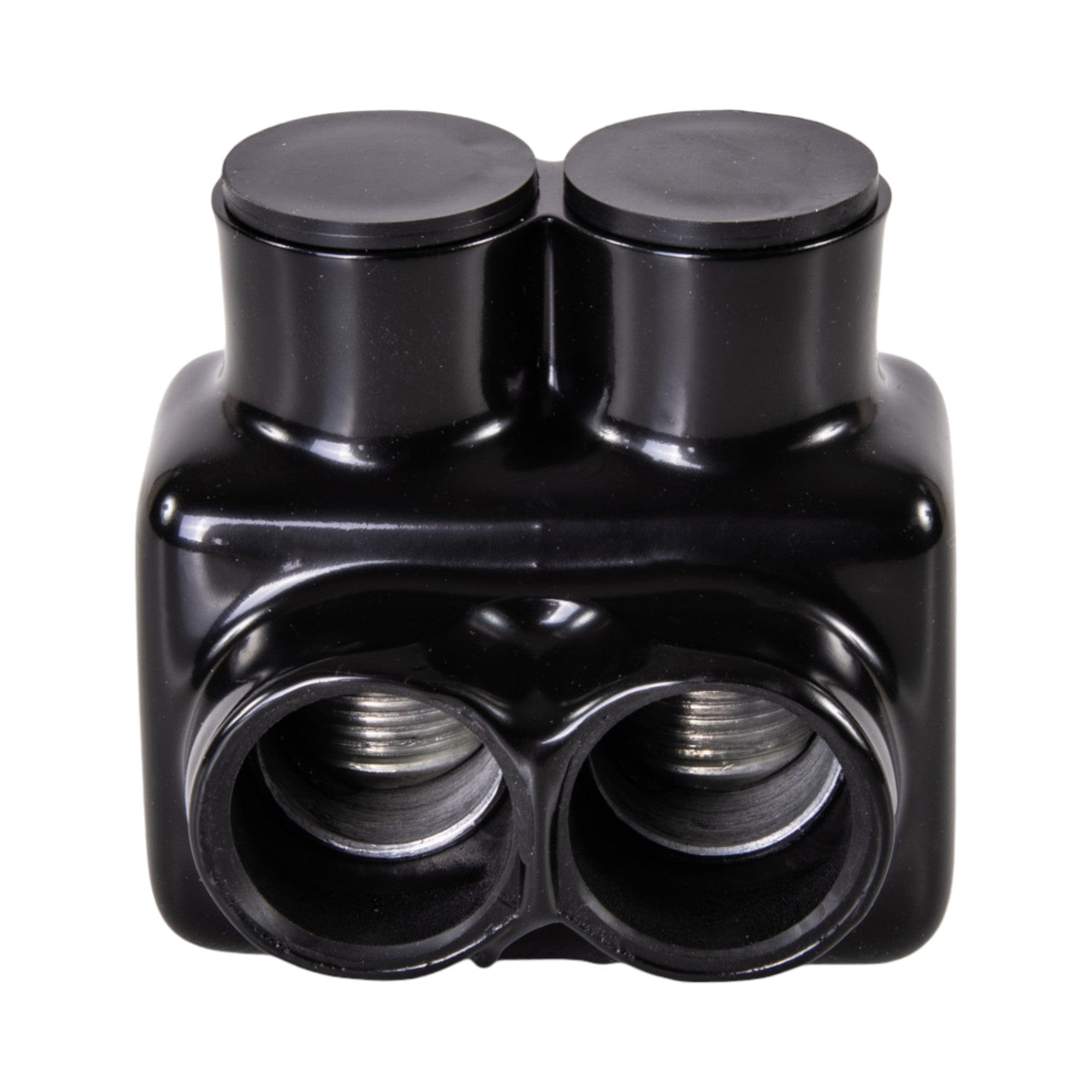

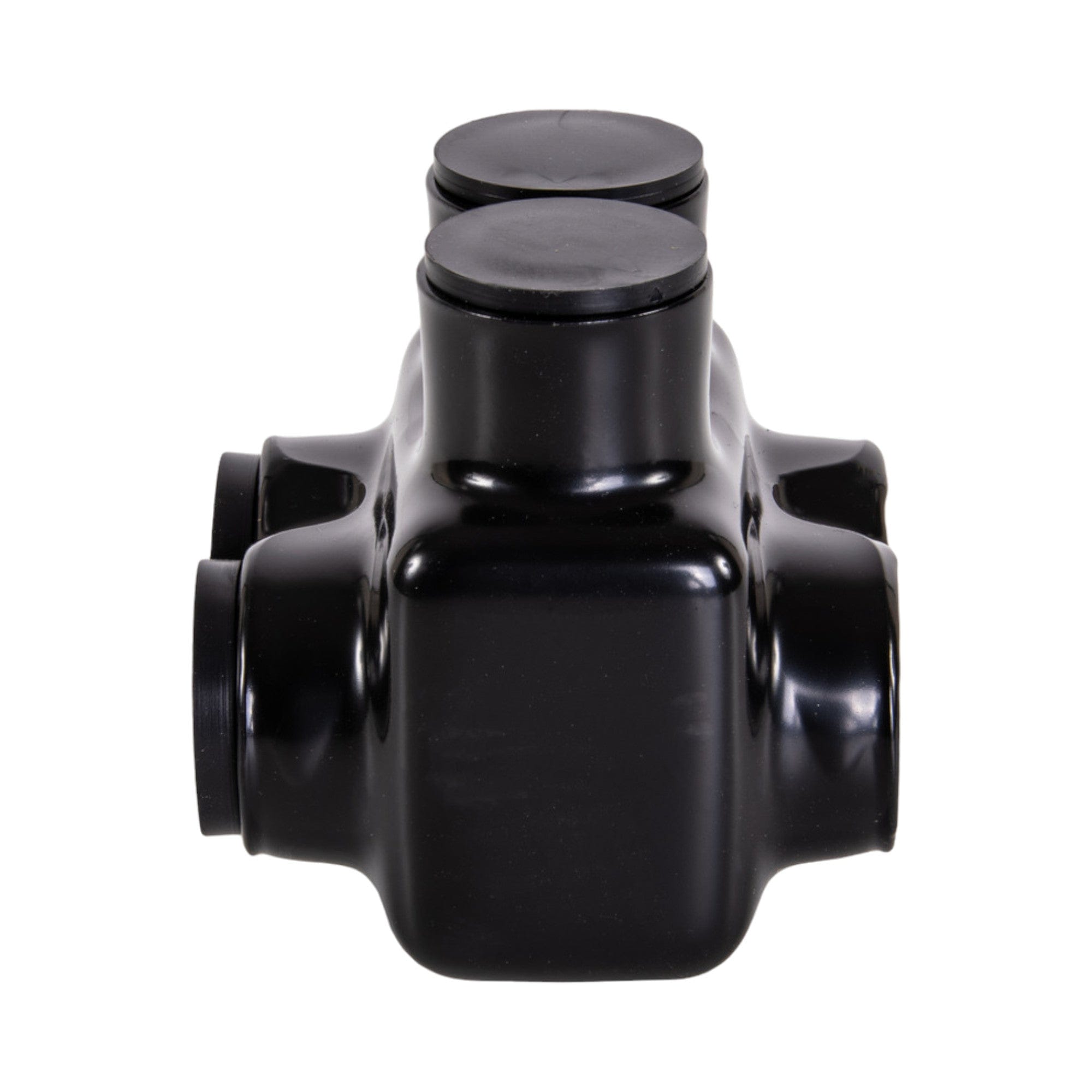

Black Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.
Key Features
- Secure Connections: The connectors utilize a combination of adjustable set screws and a rounded body design to create a high-pressure connection between conductors. This design ensures a reliable and long-lasting connection with minimal electrical resistance.
- Dual-Side Wire Entry: Form secure connections between 2 conductors quickly using the double-sided entry ports sized for wires between 500 MCM and 4 AWG.
- NEC 230.46 Compliance: Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
- Ergonomic Design: The connectors boast a rounded body and a smooth plastisol insulation finish, promoting comfortable gripping during installation.

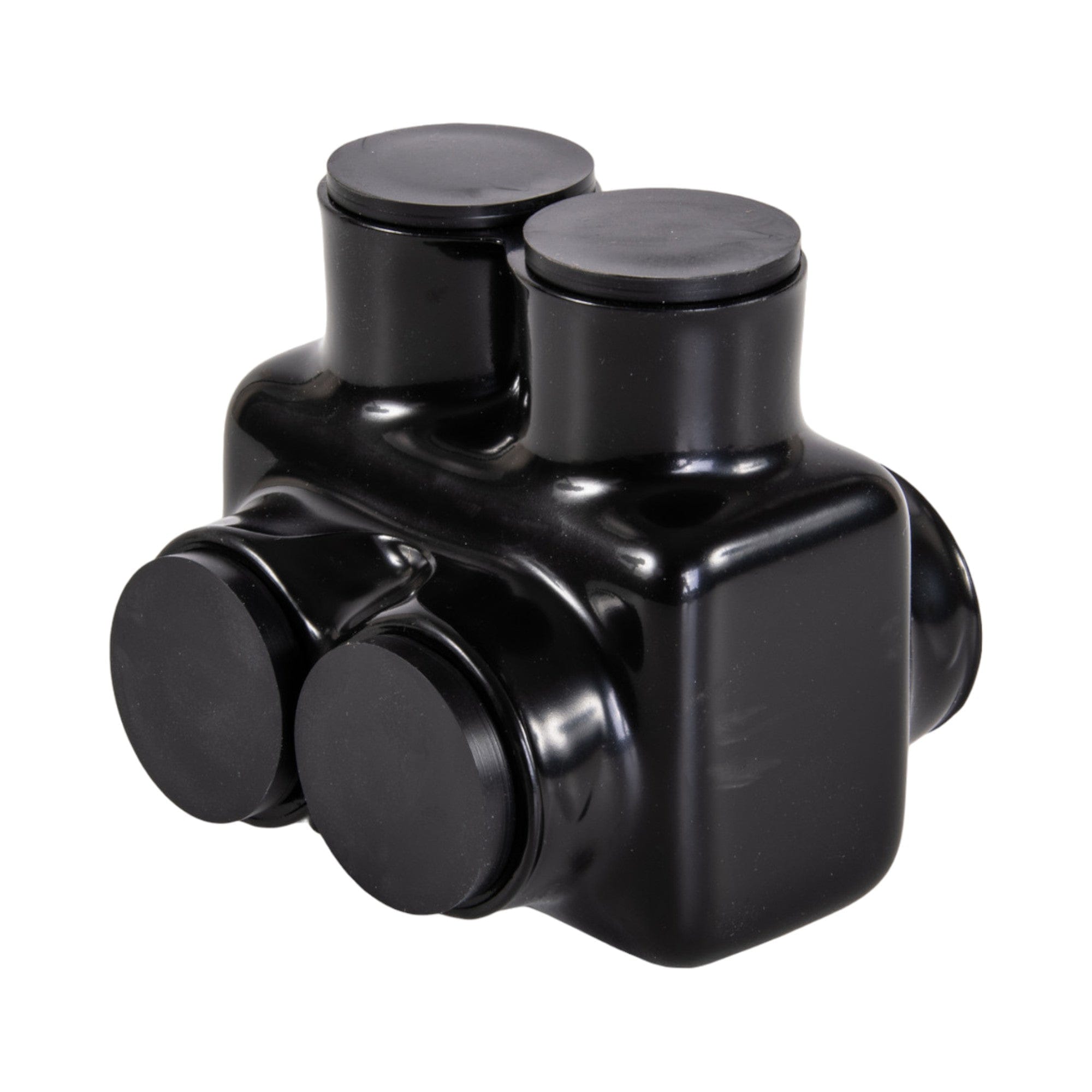

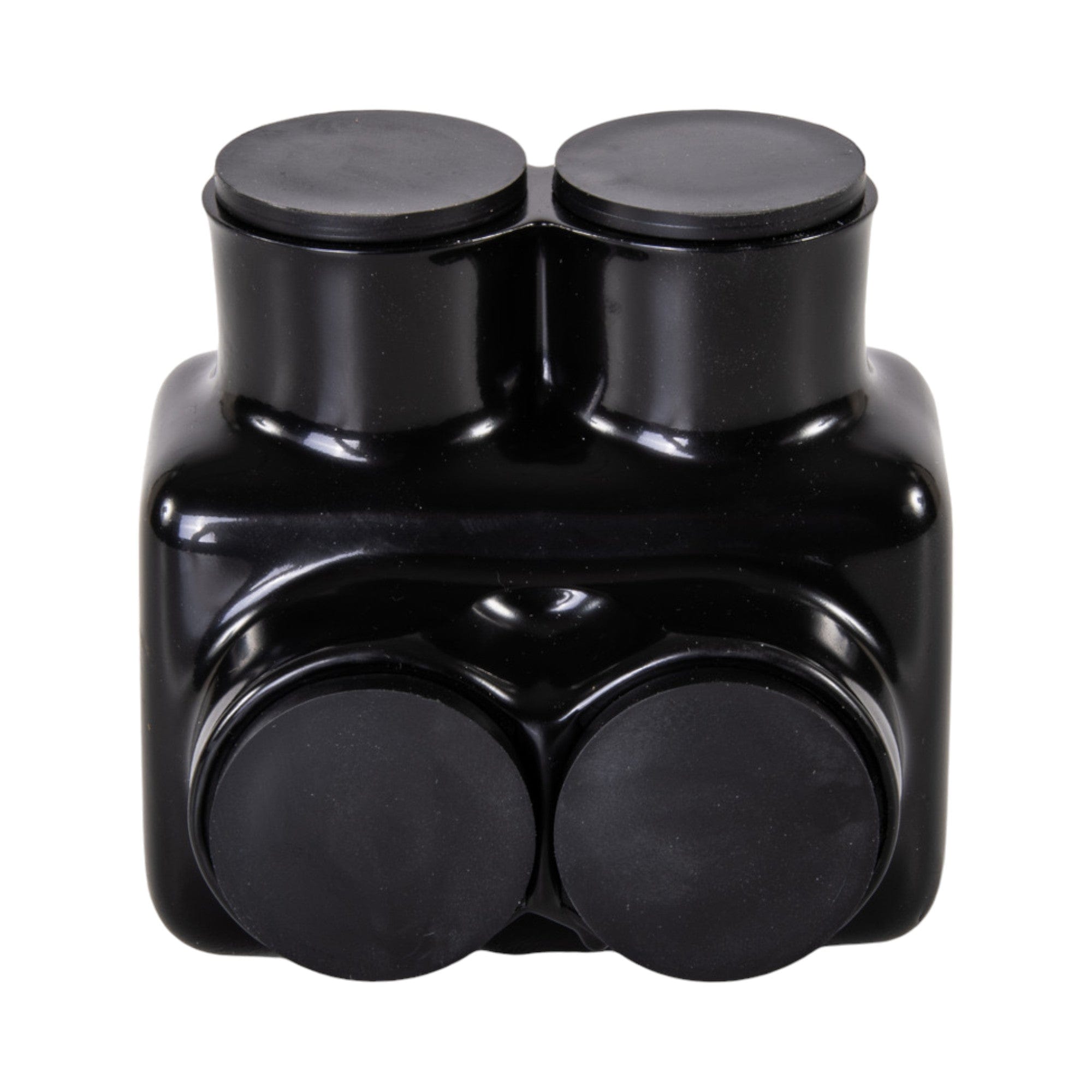

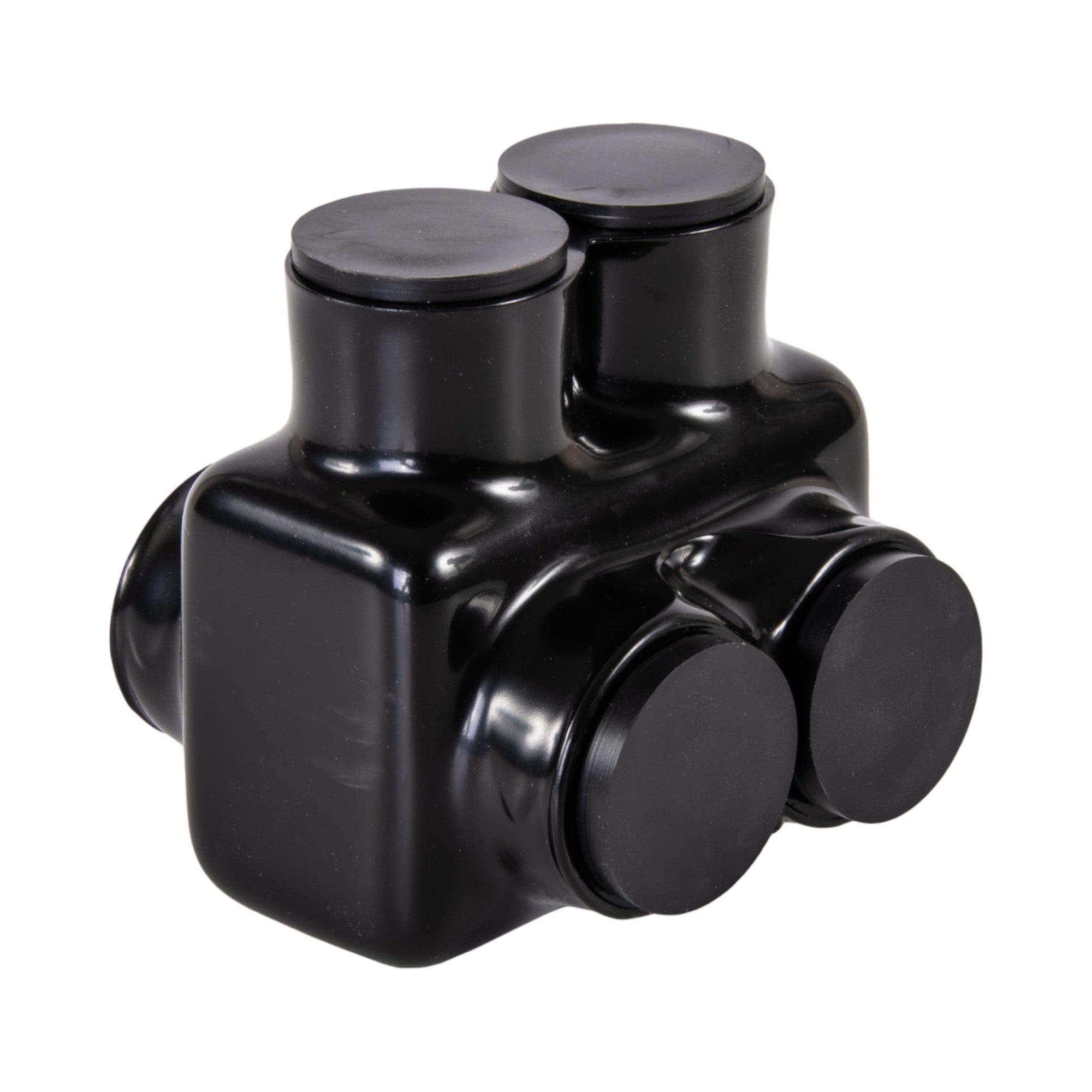

- Removable Plugs: Each port and set screw comes equipped with a removable plug, preventing debris, moisture, and contaminants from entering the connector body before and during wire insertion.
- Pre-Filled Oxide Inhibitor: Both entry ports are pre-filled with an oxide inhibitor gel. This gel helps to prevent corrosion at the conductor-to-connector interface, ensuring a low and stable electrical resistance over time.
- Professional Performance: The durable plastisol insulation coating on each connector offers superior resistance to UV radiation, abrasion, and chemicals. This ensures reliable performance and extended service life in various environmental conditions.
Key Technical Specifications
Wire Gauge Range: 4 AWG to 500 MCM
Connection Type: Set Screw
Insulation Material: UV-resistant Plastisol
Features: Dual-Sided Entry, Removable Plugs, Pre-Filled Oxide Inhibitor
Voltage Rating: 600 V
Material: Aluminum
Finish: Plastisol Insulated (UV resistant)
Color: Black
UPC: 810166615518
Origin Country: US
Certifications: cULus, Meets NEC 230.46 Suitable for Line Side of Service
UL Standard: UL 486A/B
UL File No: E186991
Wire Cable Class: Class B, Class C
Conductor Max Amps: Aluminum: 100 A, Copper: 130 A
Conductor Size Range: Aluminum: 4 AWG to 500 MCM
Conductor Type: Copper, Aluminum
Temperature Rating: 90°C, AL9CU
Conductor Count: 2
Environmental Temperature: Cold Temperature rated to -45°C
Bolt and Screw Sizes:
- Number of Wire Binding Screws per Port: 1
- Wire Binding Screw Size: 13/16
- Wire Binding Torque: 375
Dimensions:
- Height (IN): 3.034
