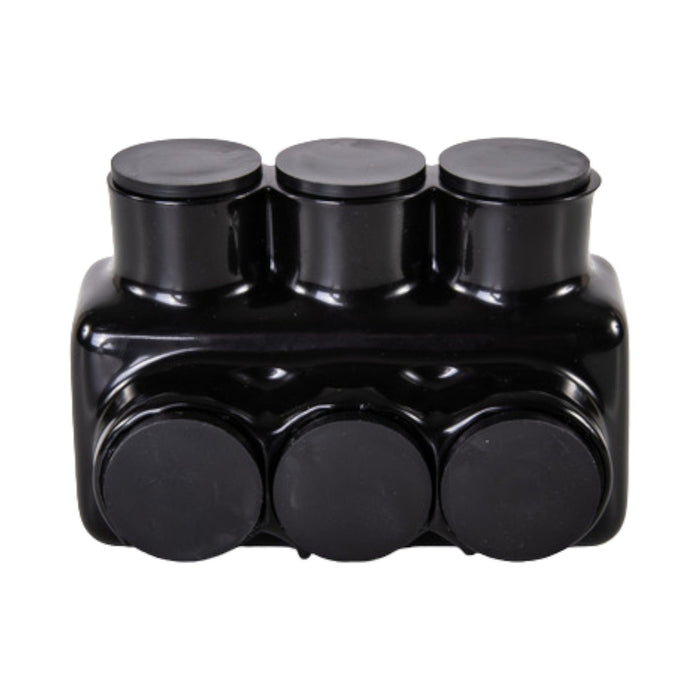

Insulated Tap Connectors 3 port dual-side Entry 4 AWG - 600 MCM
Shipping calculated at checkout
SKU: 610-1003600
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap Connector 2 — Dual-Sided Entry | 4 AWG – 600 MCM | 600V | cULus Listed | Conversions Tech
The Conversions Tech Insulated Tap Connector 2 line offers pre-insulated electrical connectors designed for forming reliable, long-lasting connections between multiple conductors. Engineered for superior performance and safety, these connectors combine ergonomic design, corrosion-resistant materials, and NEC 230.46 compliance — ideal for residential, commercial, and industrial electrical systems.
Each connector is equipped with dual entry ports for flexible conductor placement and a pre-filled oxide inhibitor gel to prevent corrosion, ensuring consistent conductivity and extended service life. Their UV-resistant plastisol insulation and precision-machined aluminum body make them dependable in even the toughest environmental conditions.
Key Technical Specifications
| Wire Gauge Range | 4 AWG – 600 MCM |
| Connection Type | Set Screw |
| Insulation Material | UV-resistant Plastisol |
| Voltage Rating | 600 V |
| Material | High-Strength Aluminum Alloy |
| Finish | Plastisol Insulated (UV Resistant, Black) |
| Certifications | cULus Listed • Meets NEC 230.46 • UL 486A/B File No. E186991 • BABA Certified |
| Conductor Type | Copper or Aluminum (Class B, Class C) |
| Max Current Rating | 130 A (Cu), 100 A (Al) |
| Temperature Rating | 90°C (AL9CU) |
| Environmental Rating | Cold Temperature Rated to -45°C |
| Origin | USA *Stock product may be sourced elsewhere. |
Key Features
- Secure Connections: Adjustable set screws and a rounded body create a strong, low-resistance bond between conductors.
- Dual-Sided Entry: Accommodates 4 AWG – 600 MCM wires with opposing entry ports for flexible configurations.
- NEC 230.46 Compliant: Approved for line-side connections on service equipment.
- Ergonomic Design: Smooth plastisol body provides easy handling and installation comfort.
- Removable Plugs: Prevents debris, moisture, and contaminants during and after installation.
- Pre-Filled Oxide Inhibitor: Factory-filled with corrosion-preventing oxide inhibitor gel.
- UV & Chemical Resistance: Insulation withstands UV exposure, abrasion, and environmental stress.
Applications
- Residential and commercial electrical installations
- Industrial machinery and power systems
- Power distribution networks and switchgear
- HVAC systems and automation panels
- Infrastructure and utility grounding systems
- Marine and automotive wiring applications
Frequently Asked Questions (FAQs)
1. What wire sizes do Insulated Tap Connectors 2 support?
They support wire sizes ranging from 4 AWG to 600 MCM, suitable for copper and aluminum conductors.
2. Are these connectors NEC 230.46 compliant?
Yes, they meet NEC 230.46 standards for line-side connections on service equipment.
3. What type of insulation is used on these connectors?
They feature UV-resistant plastisol insulation that resists abrasion, UV exposure, and harsh chemicals.
4. Do the connectors come pre-filled with oxide inhibitor?
Yes, both ports are pre-filled with oxide inhibitor gel to prevent corrosion and ensure long-term conductivity.
5. Can these connectors be used outdoors?
Absolutely. The UV-resistant plastisol insulation makes them suitable for indoor and outdoor installations.
6. Are they UL or cULus certified?
Yes. These connectors are UL and cULus listed under UL 486A/B, File No. E186991.
