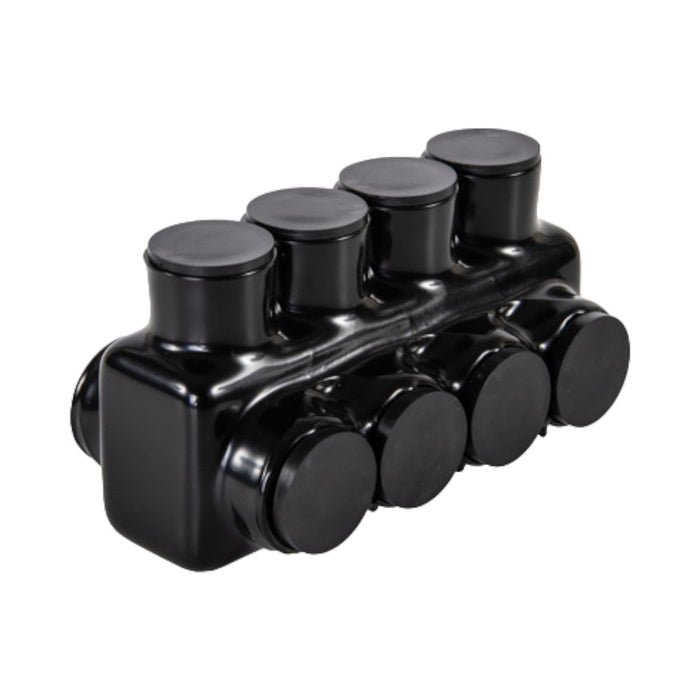

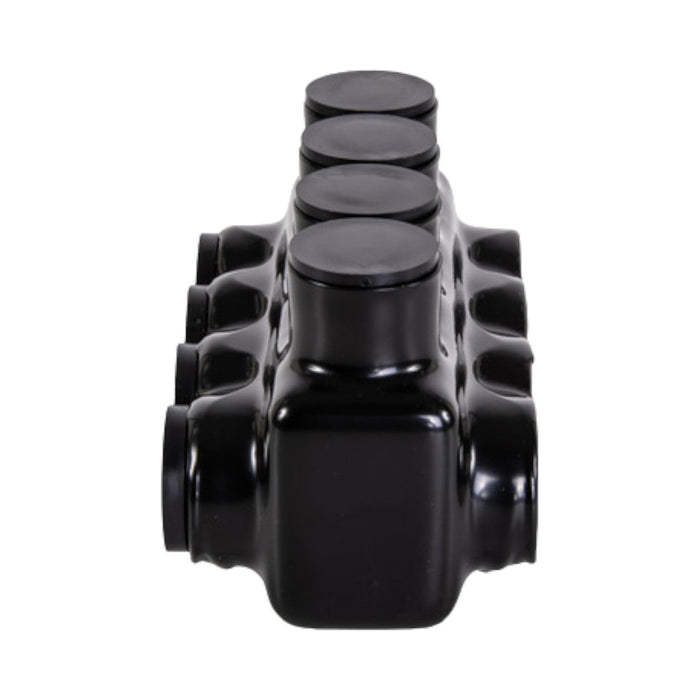

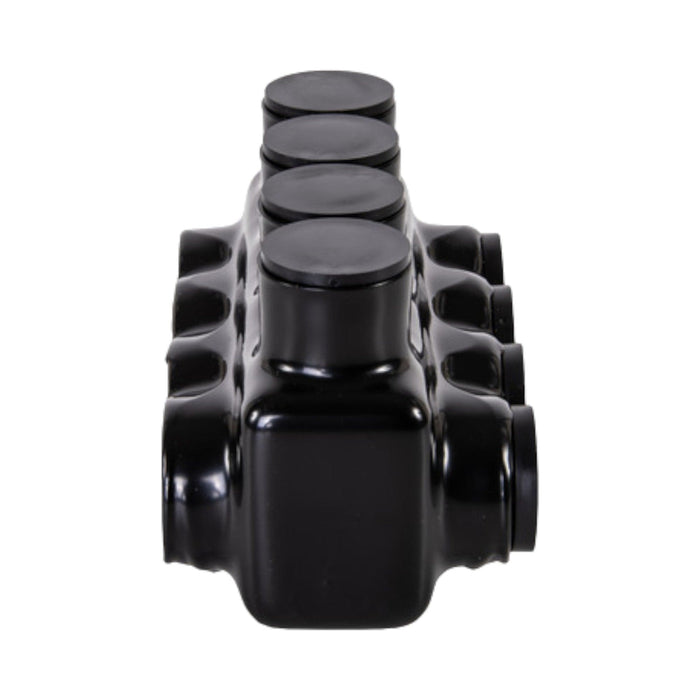

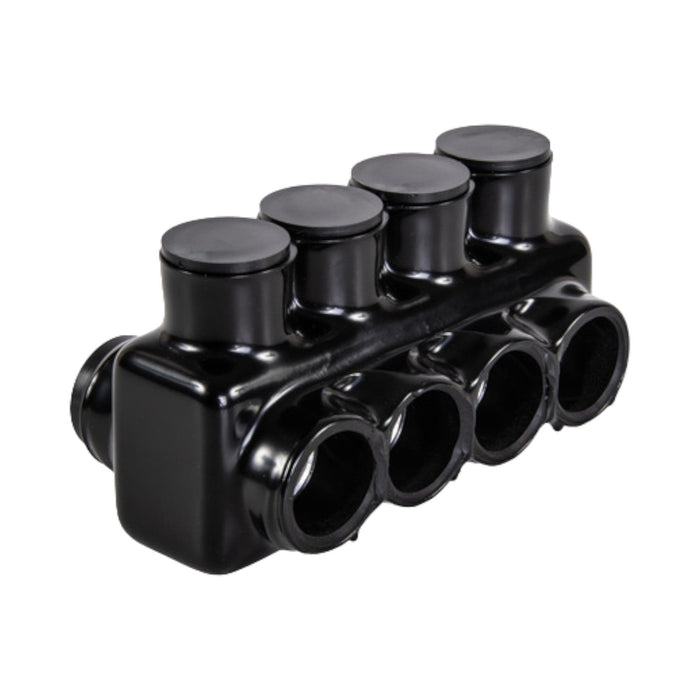

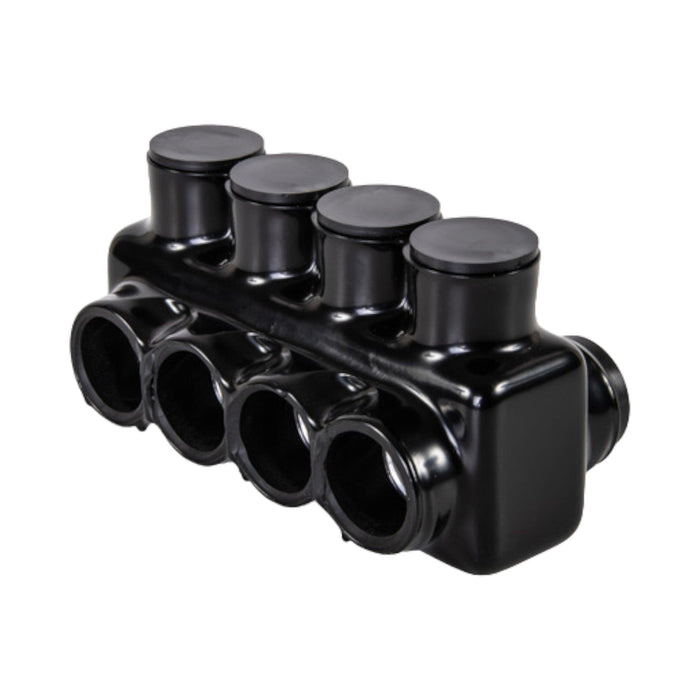

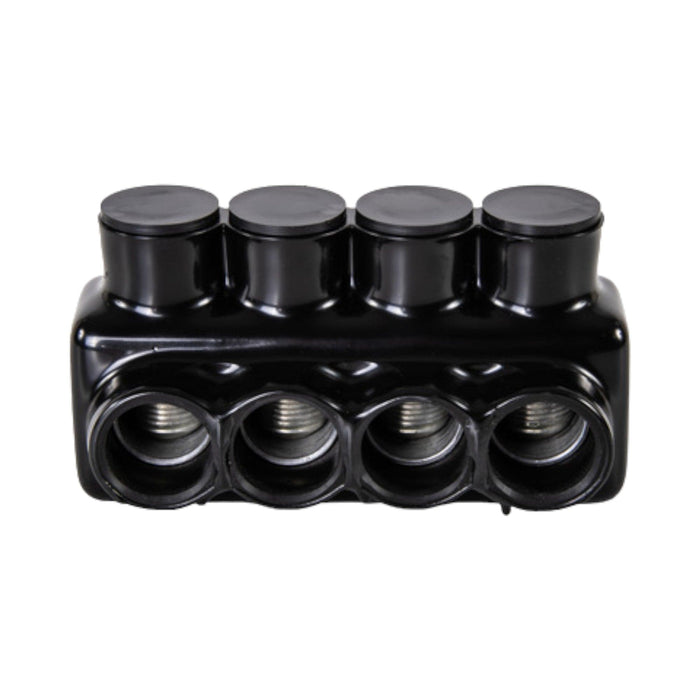

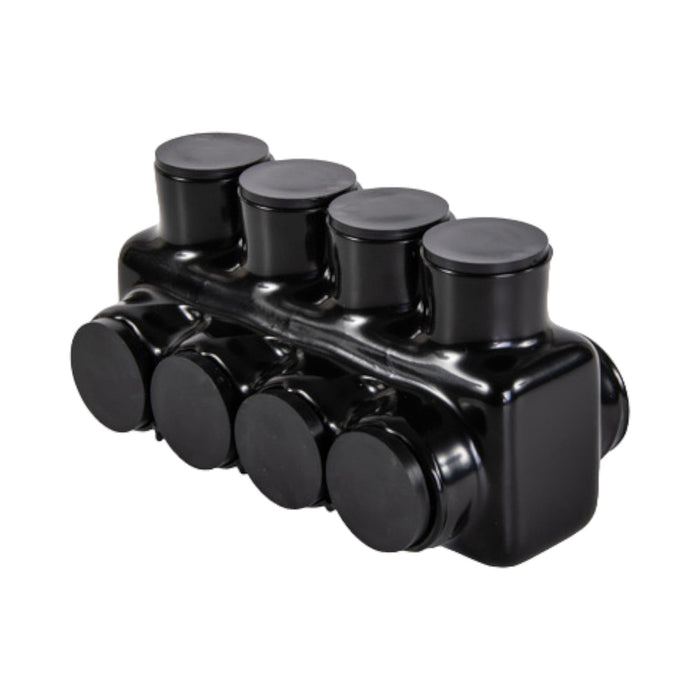

Insulated Tap Connectors 4 port dual-side Entry 4 AWG - 500 MCM
Shipping calculated at checkout
SKU: 610-1004500
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap Connector 2 — Dual-Sided Entry | 4 AWG–500 MCM | 600V | cULus Listed | Conversions Tech
Conversions Tech Insulated Tap Connector 2 provides secure, low-resistance connections between multiple conductors in electrical systems. Each pre-insulated connector features dual-sided wire entry ports, corrosion-resistant oxide inhibitor, and UV-protected plastisol insulation for long-lasting durability. Compliant with NEC Article 230.46, these connectors are perfect for line-side connections on service equipment, offering fast and dependable installation in residential, commercial, and industrial environments.
Key Technical Specifications
| Wire Gauge Range | 4 AWG – 500 MCM |
| Connection Type | Set Screw (Dual-Sided Entry) |
| Insulation Material | UV-resistant Plastisol |
| Voltage Rating | 600 V |
| Material | High-Strength Aluminum Alloy |
| Finish | Plastisol Insulated (Black, UV Resistant) |
| Certifications | cULus Listed • NEC 230.46 Compliant • UL 486A/B (File No. E186991) |
| Conductor Type | Copper or Aluminum (Class B, Class C) |
| Conductor Count | 4 |
| Max Amperage | 130 A (Cu), 100 A (Al) |
| Temperature Rating | 90°C (AL9CU) |
| Environmental Rating | Cold Temperature Rated to -45°C |
| Torque | 375 in-lb |
| Dimensions | L 5.343″ × W 3.031″ × H 3.034″ | Weight: 1.53 lb |
| Origin | USA *Stock product may be sourced elsewhere. |
Key Features
- Secure Connections: Adjustable set screws and rounded body provide a durable, low-resistance bond between conductors.
- Dual-Sided Wire Entry: Allows flexible conductor placement for 4 AWG–500 MCM wiring.
- NEC 230.46 Compliant: Certified for line-side connections on service equipment.
- Removable Plugs: Protect entry ports from debris, moisture, and contaminants.
- Pre-Filled Oxide Inhibitor: Gel-filled ports prevent oxidation and ensure long-term stability.
- UV & Chemical Resistant: Durable plastisol coating resists UV exposure, abrasion, and harsh chemicals.
- Ergonomic Design: Smooth plastisol insulation for easy gripping during installation.
Applications
- Residential and commercial electrical installations
- Industrial machinery and equipment wiring
- Power distribution systems
- HVAC and infrastructure projects
- Automotive and marine electrical systems
- Utility and renewable energy systems
Frequently Asked Questions (FAQs)
1. What wire sizes does the Insulated Tap Connector 2 support?
It supports 4 AWG to 500 MCM wires for both copper and aluminum conductors.
2. Is this connector NEC 230.46 compliant?
Yes. It meets NEC Article 230.46 requirements for line-side service connections.
3. What insulation material is used?
The connector features UV-resistant plastisol insulation that resists sunlight, chemicals, and abrasion.
4. Are the ports pre-filled with oxide inhibitor?
Yes. Each port is pre-filled with oxide inhibitor gel to ensure long-term conductivity and corrosion resistance.
5. Can this connector be used outdoors?
Absolutely. Its UV-resistant plastisol coating makes it suitable for outdoor installations and harsh environments.
6. What certifications does it have?
It is cULus Listed, UL 486A/B certified (File No. E186991), and meets NEC 230.46 compliance standards.
