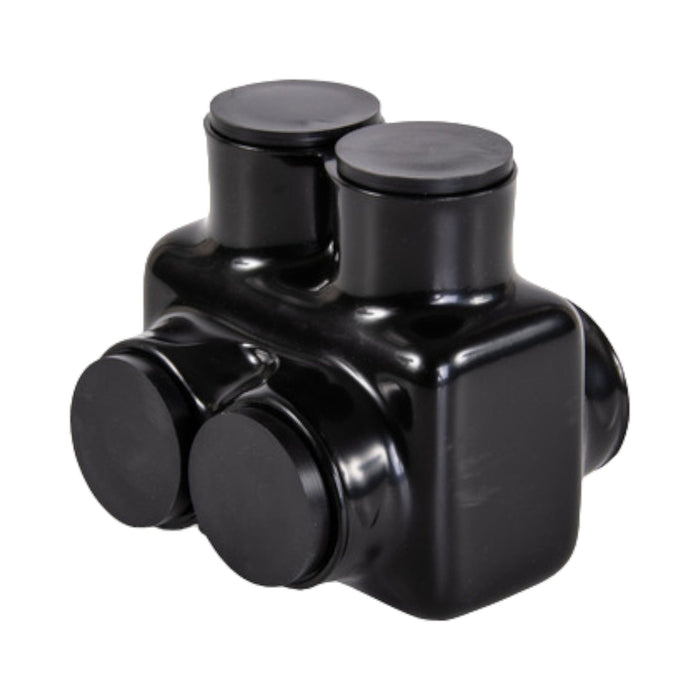

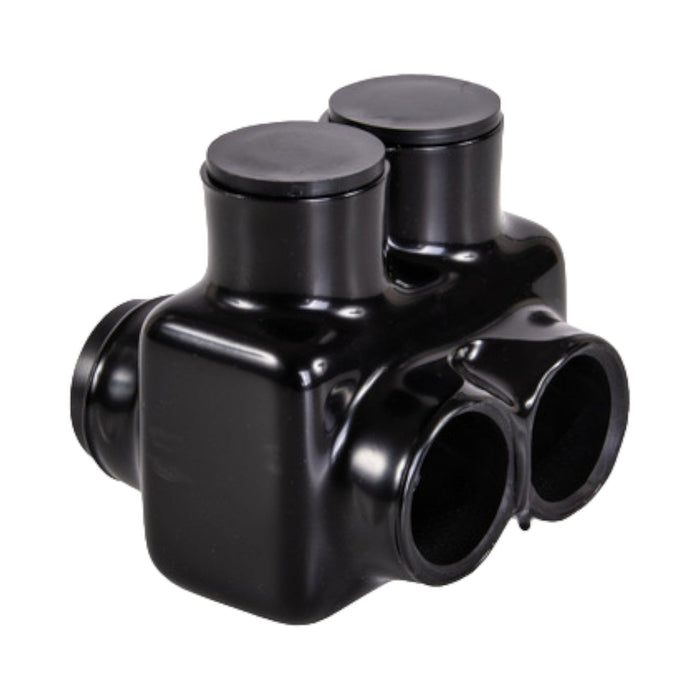

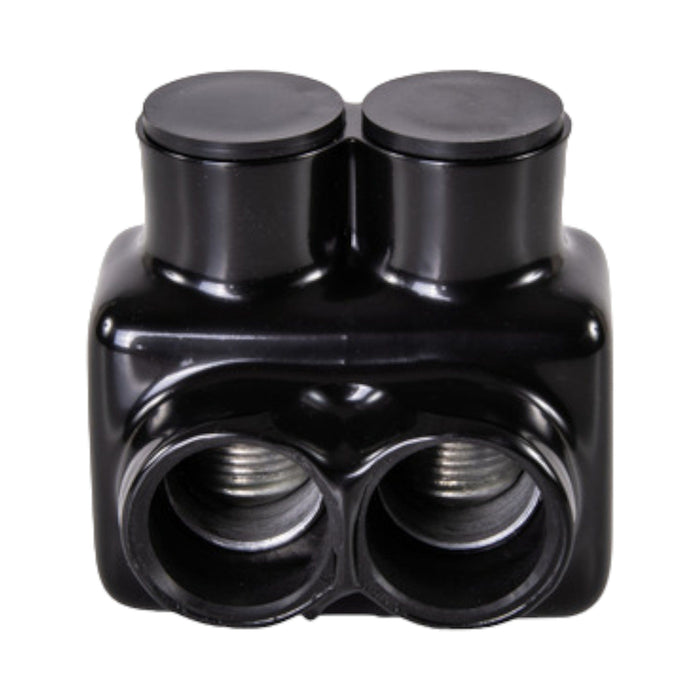

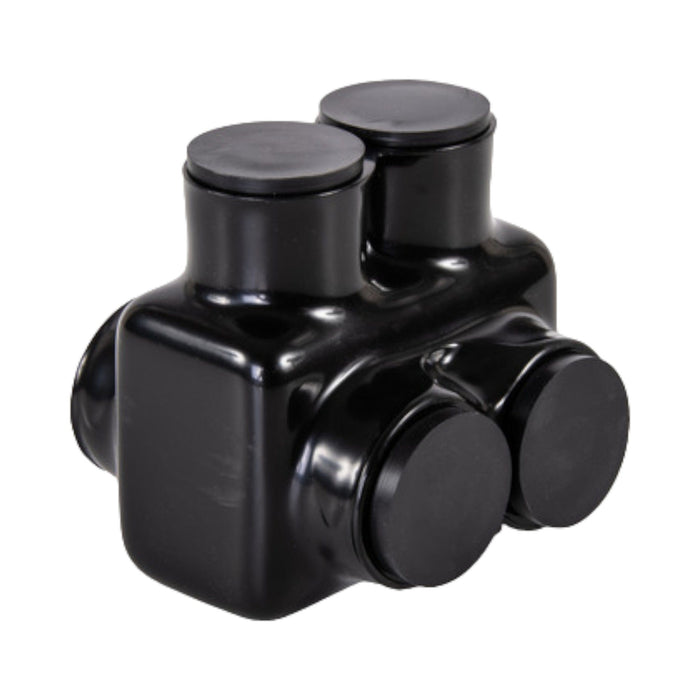

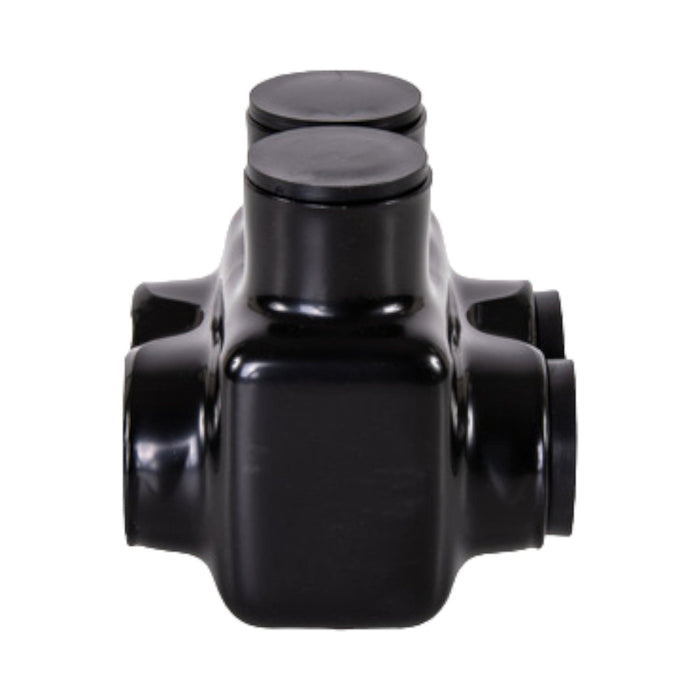

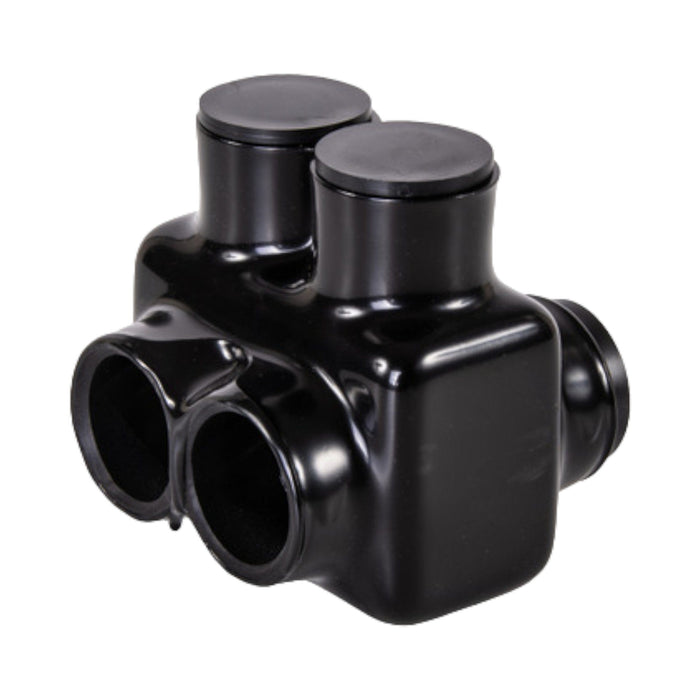

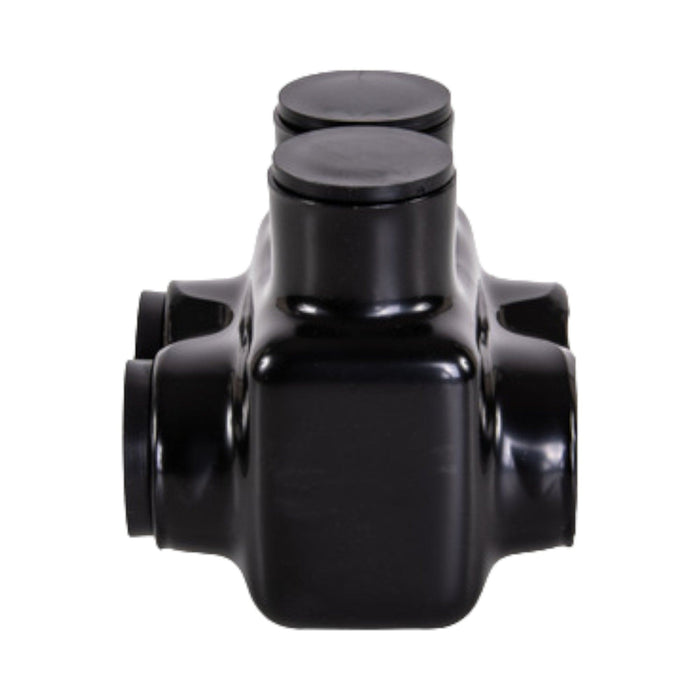

Insulated Tap Connectors 2 port dual-side Entry 4 AWG - 600 MCM
Shipping calculated at checkout
SKU: 610-1002600
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap Connector 2 — Dual-Sided Entry | 4 AWG–600 MCM | 600V | cULus Listed | NEC 230.46 Compliant
The Conversions Tech Insulated Tap Connector 2 provides a professional-grade solution for forming secure, low-resistance connections between multiple conductors. Each connector features dual entry ports on opposing sides for flexible conductor placement and is filled with oxide inhibitor gel to ensure corrosion resistance and consistent electrical performance over time. Fully compliant with NEC Article 230.46, this connector is approved for line-side service equipment use in residential, commercial, and industrial applications.
Built from high-strength aluminum and finished with a durable UV-resistant plastisol coating, these connectors deliver excellent resistance to sunlight, chemicals, and abrasion. Their ergonomic rounded design ensures comfortable handling and quick installation with a standard hex key and torque wrench.
Key Technical Specifications
| Wire Gauge Range | 4 AWG – 600 MCM |
| Connection Type | Set Screw (Dual-Sided Entry) |
| Insulation Material | UV-resistant Plastisol |
| Voltage Rating | 600 V |
| Material | High-Strength Aluminum Alloy |
| Finish | Plastisol Insulated (Black, UV Resistant) |
| Certifications | cULus Listed • NEC 230.46 Compliant • UL 486A/B (File No. E186991) |
| Conductor Type | Copper or Aluminum (Class B, Class C) |
| Conductor Count | 2 |
| Max Amperage | 130 A (Cu), 100 A (Al) |
| Temperature Rating | 90°C (AL9CU) |
| Environmental Rating | Cold Temperature Rated to -45°C |
| Torque | 375 in-lb (13/16″ Screw Size) |
| Dimensions | L 5.343″ × W 3.031″ × H 3.034″ | Weight: 1.53 lb |
| Origin | USA *Stock product may be sourced elsewhere. |
Key Features
- Secure Connections: Adjustable set screws and rounded body ensure reliable, low-resistance bonding between conductors.
- Dual-Sided Wire Entry: Accommodates 4 AWG–600 MCM wires for flexible installation configurations.
- NEC 230.46 Compliance: Fully compliant for line-side service equipment connections.
- Pre-Filled Oxide Inhibitor: Gel-filled ports prevent corrosion, ensuring long-term conductivity.
- Removable Plugs: Protect entry ports from debris, dust, and moisture before and during installation.
- UV & Chemical Resistance: Plastisol insulation resists UV radiation, abrasion, and chemicals.
- Ergonomic Design: Rounded, smooth plastisol insulation enhances comfort and grip.
Applications
- Residential and commercial electrical installations
- Industrial power and machinery systems
- Power distribution and utility networks
- HVAC and automation panels
- Infrastructure and renewable energy projects
- Marine and automotive electrical systems
Frequently Asked Questions (FAQs)
1. What wire sizes does the Insulated Tap Connector 2 support?
It supports 4 AWG to 600 MCM wire sizes for both copper and aluminum conductors.
2. Is this connector NEC 230.46 compliant?
Yes. It meets NEC Article 230.46 standards, approved for line-side service connections on electrical equipment.
3. Does it include oxide inhibitor?
Yes. Each port is pre-filled with oxide inhibitor gel to prevent corrosion and maintain stable conductivity.
4. Can this connector be used outdoors?
Absolutely. The UV-resistant plastisol insulation ensures durability in outdoor and harsh environments.
5. What certifications does this connector have?
It is cULus Listed, UL 486A/B certified (File No. E186991), and compliant with NEC 230.46.
6. How is it installed?
Installation requires only a hex key and torque wrench for fast, secure setup without the need for taping or covers.
