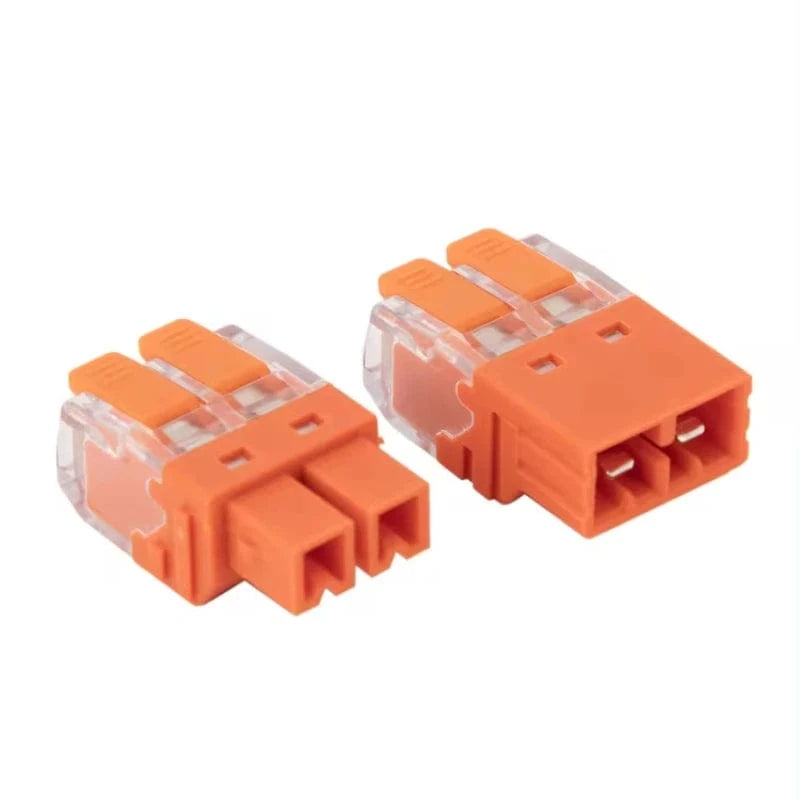

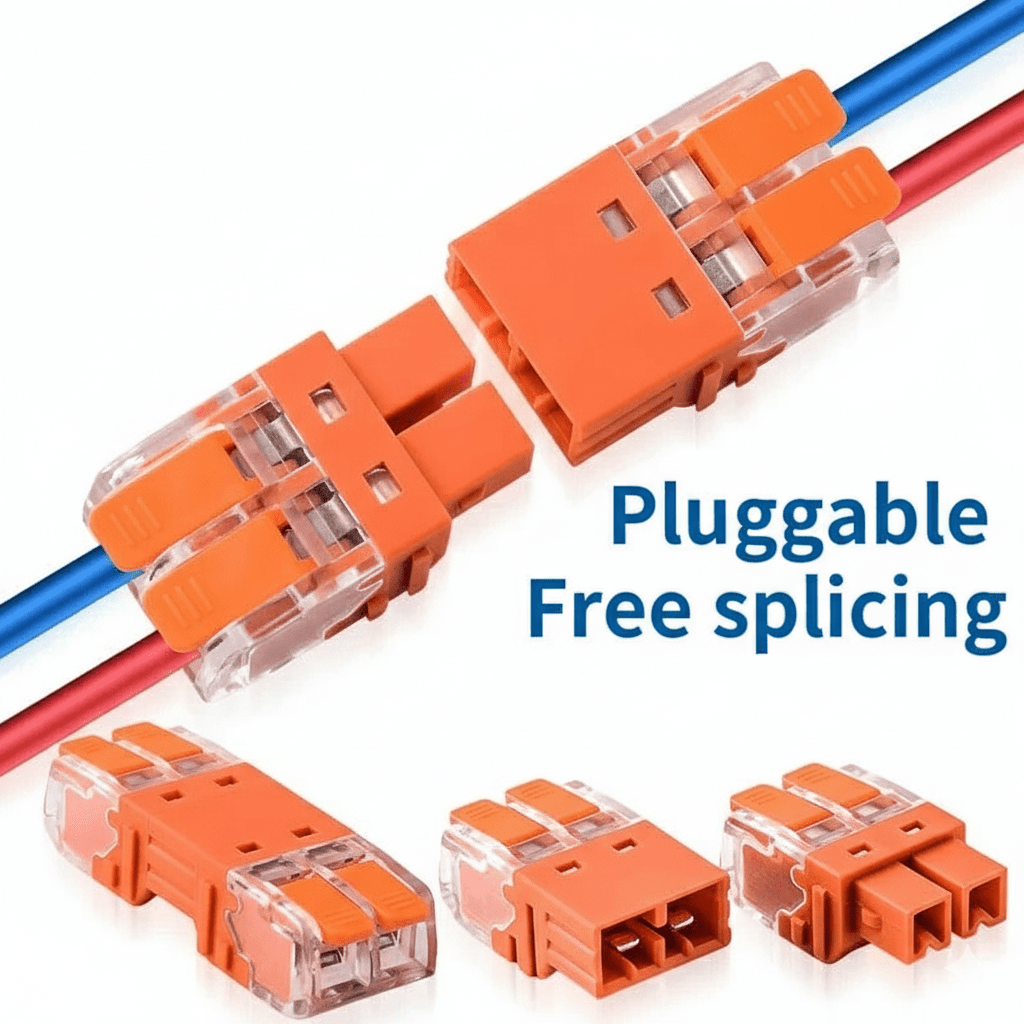

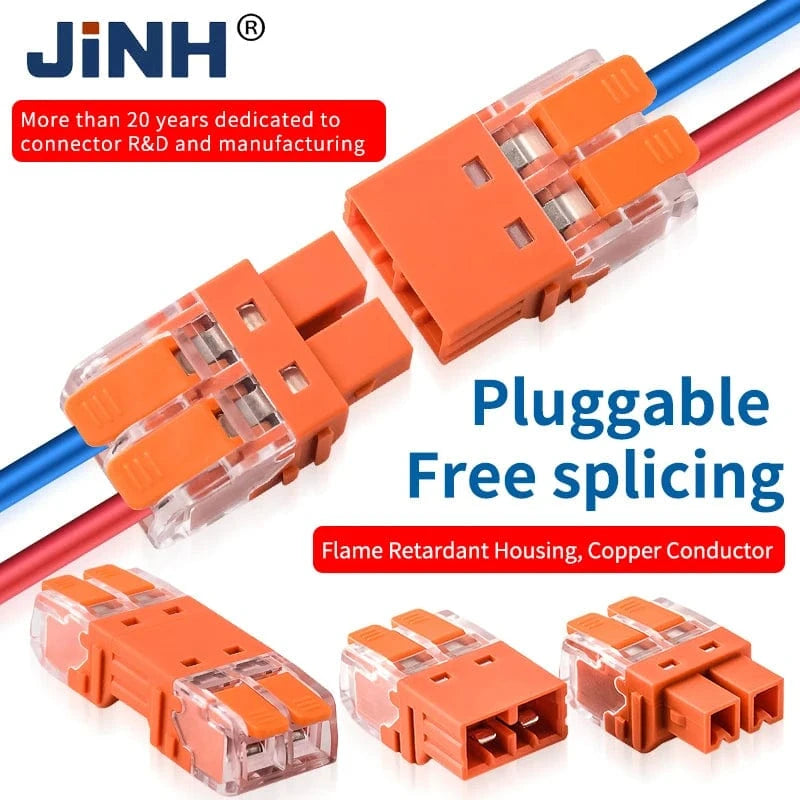

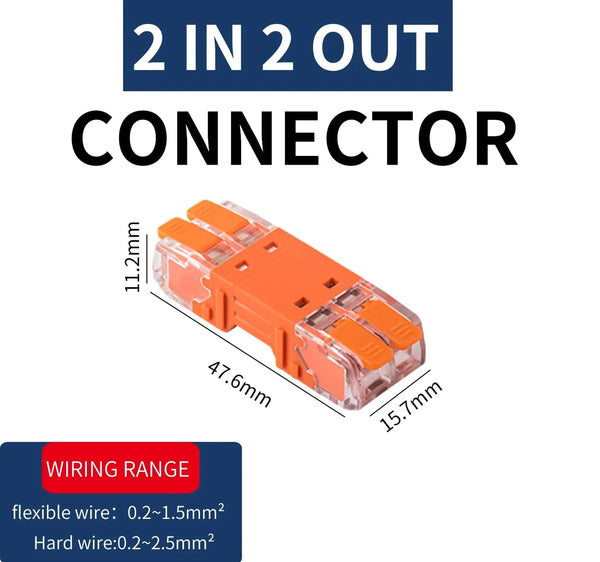

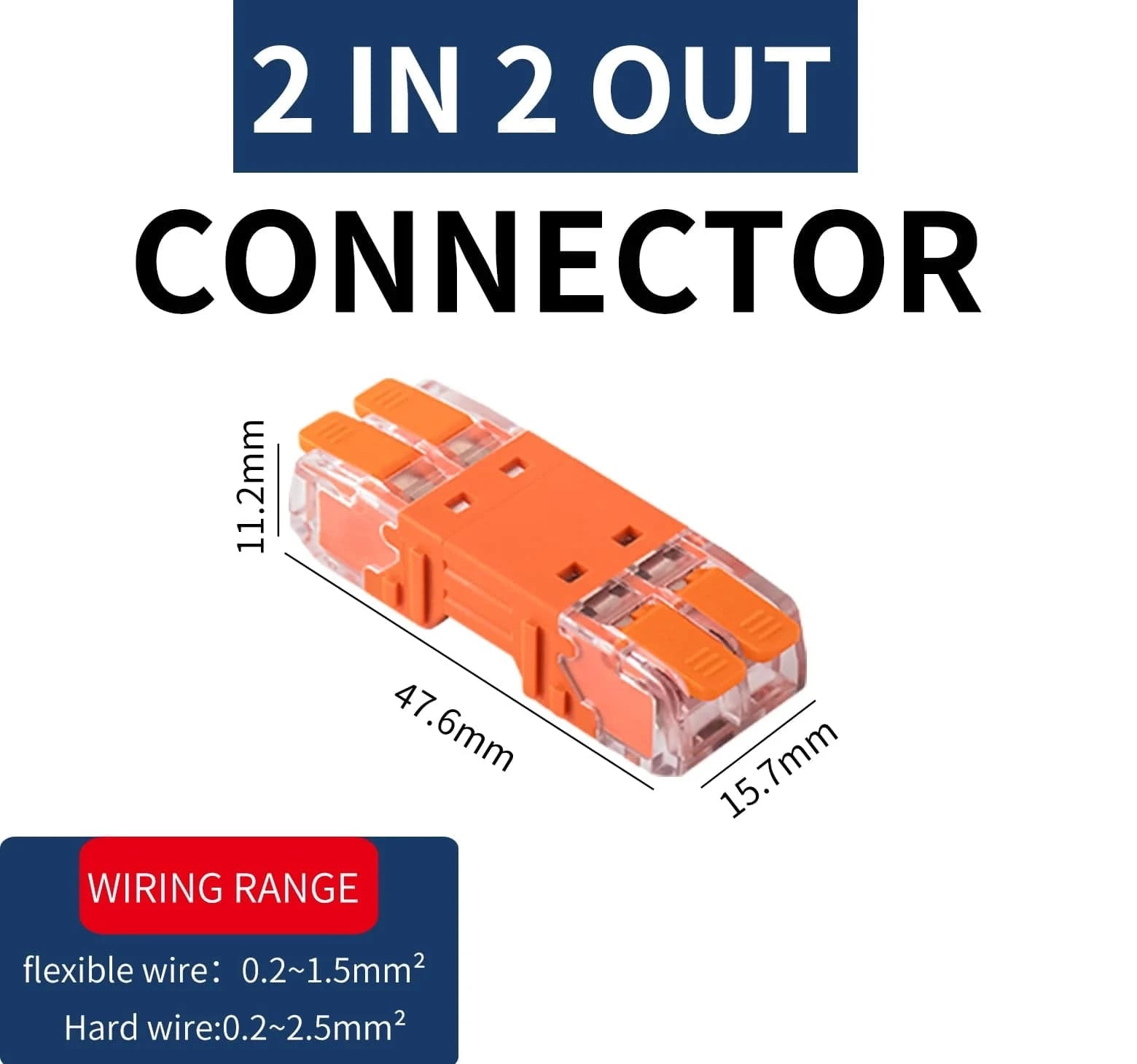

JINH 10Pcs CMK 64 Quick Lever Wire Connectors 2/3 In and 2/3 Out for Compact Plug Male Female Terminals Universal Blocks
Shipping calculated at checkout
SKU: 14:175#CMK-642(2 in 2 out);200497261:203372044#10Pcs;200505263:203194825#Male Female Insert;462:203053809
Only 6 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

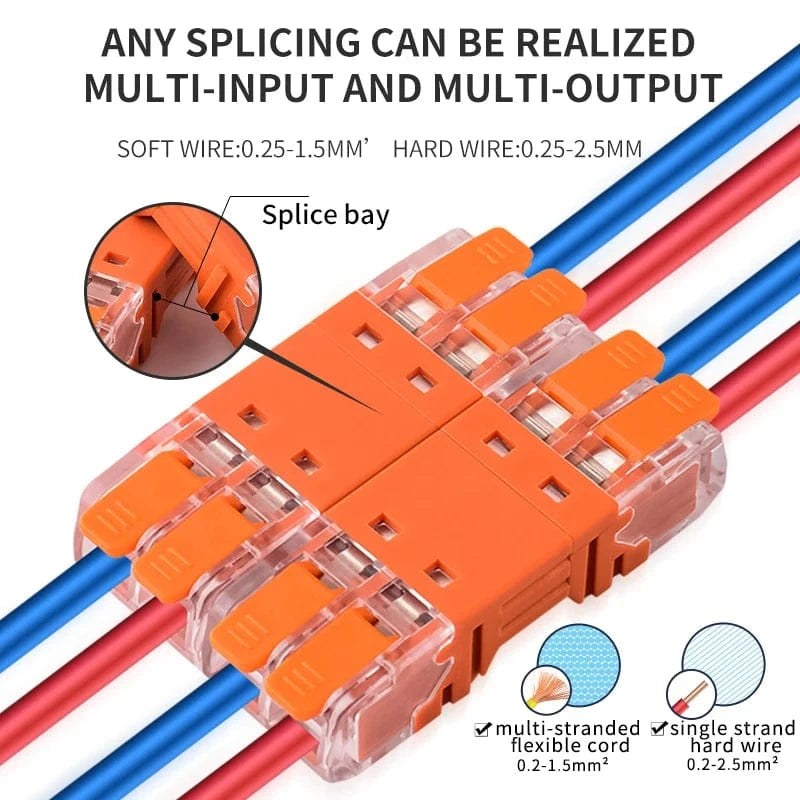

Functional Characteristics
- Connection method: Push-in clamping with lever-assisted actuation for tool-less insertion/removal.
- Equipotential bus: Internal commoning bar provides an equipotential node across poles (model dependent).
- Constant-force contact: AISI 301 stainless steel springs maintain contact pressure under vibration and thermal cycling.
- Conductive path: Tin-plated copper contact parts for low milliohm interface and corrosion resistance.
- Housing system: Polycarbonate (PC) connector shell with PA66 levers for mechanical durability.
- Strip length guide: 11 mm (0.43 in) conductor preparation depth.

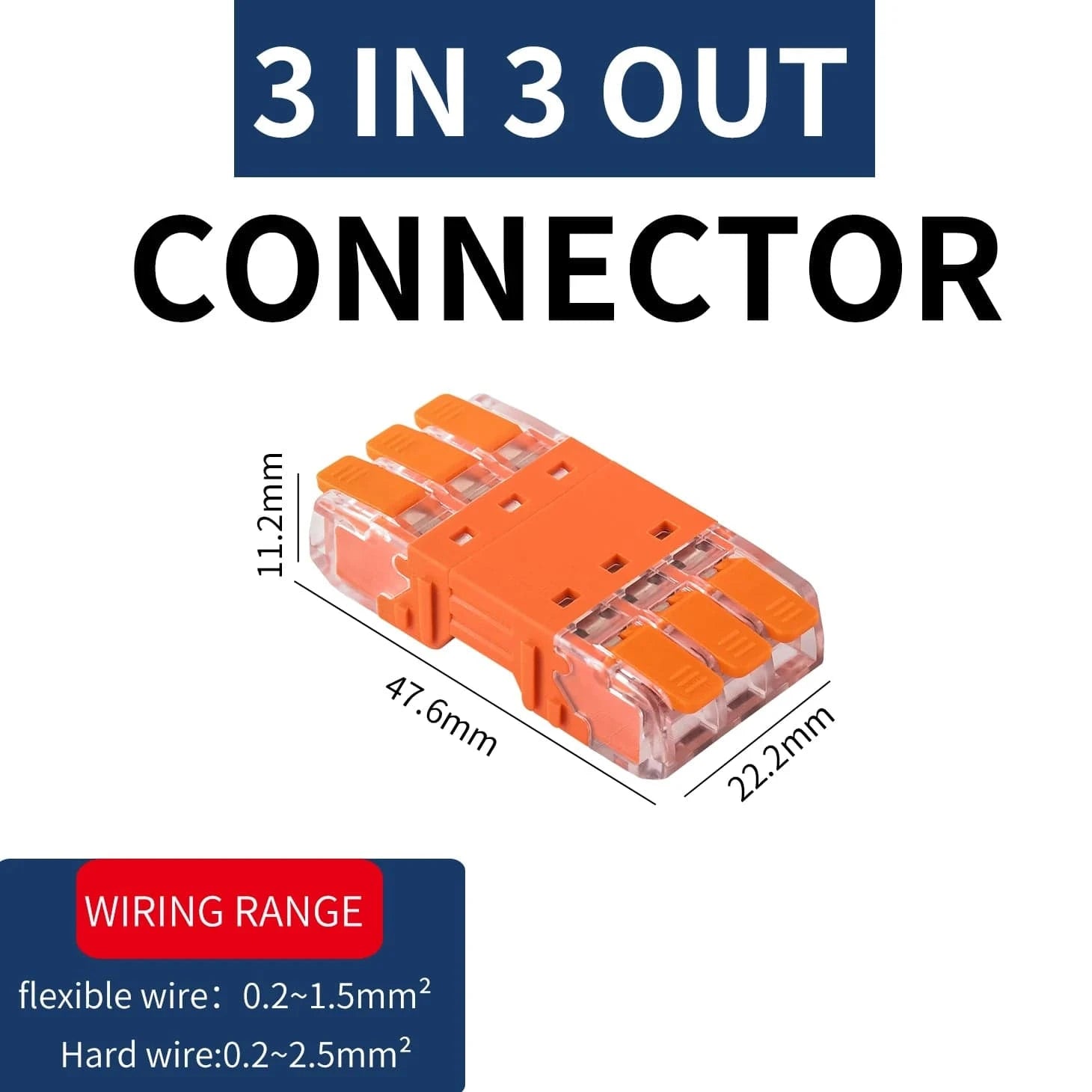

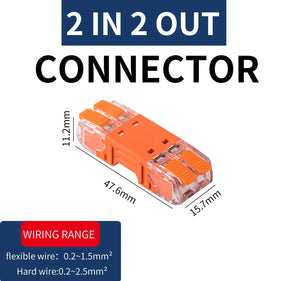

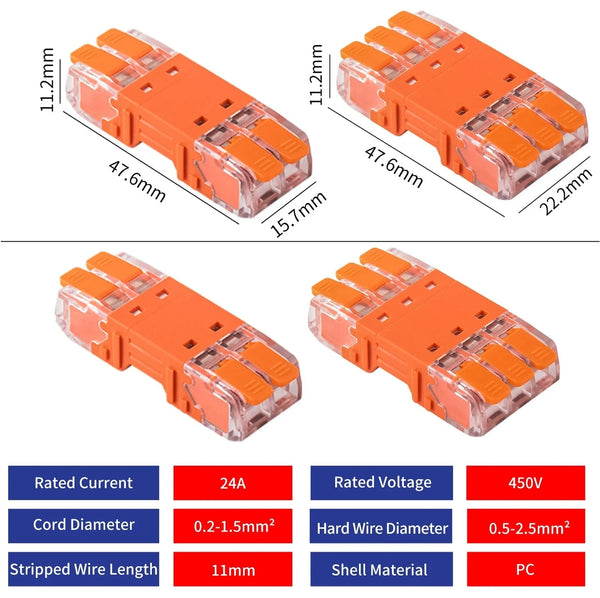

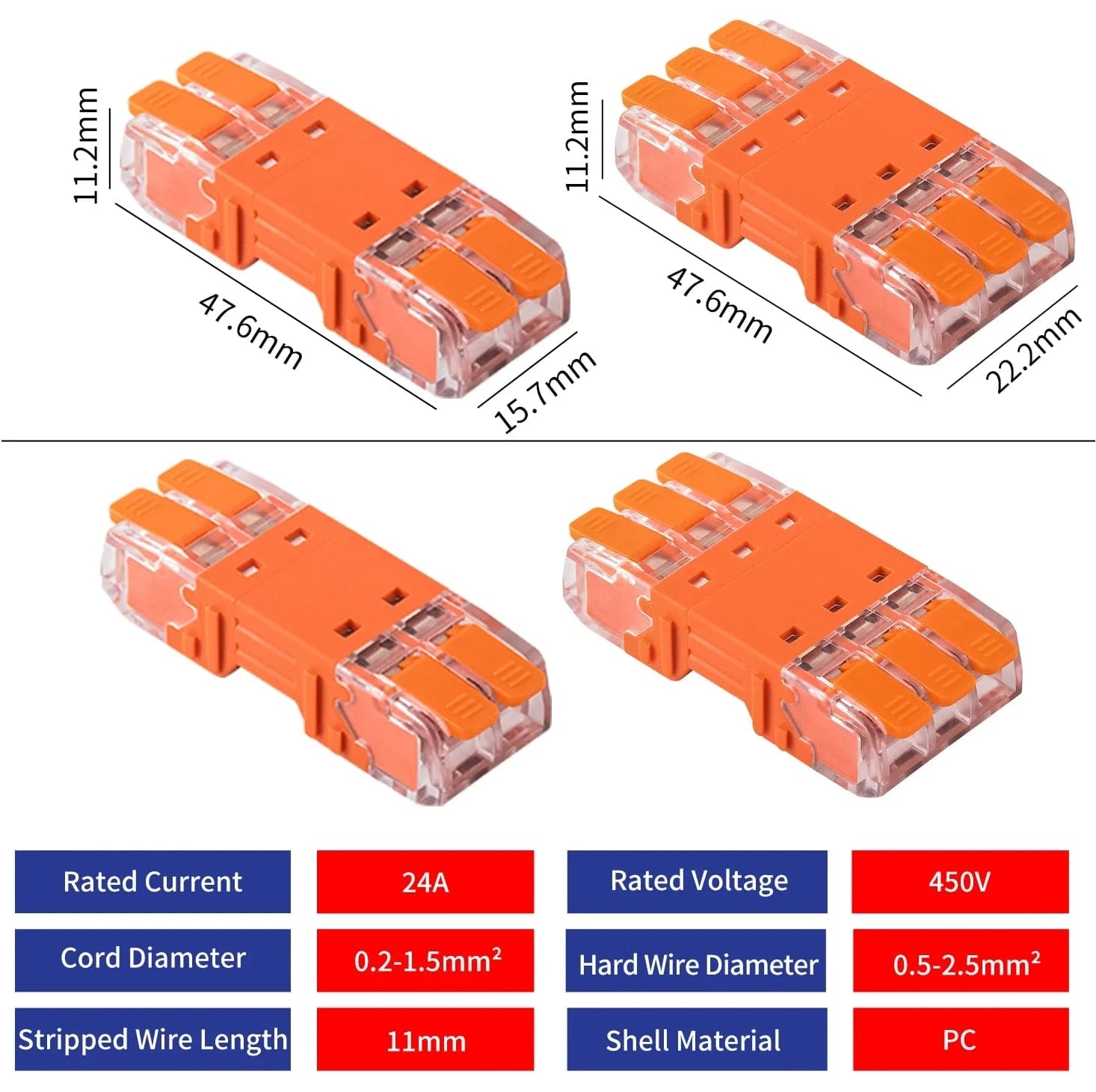

Technical Specifications
- Model
- CMK64
- Type
- Push-in lever connector, equipotential (commoned poles)
- Rated current
- 24 A
- Rated voltage
- 415 V / 450 V (per listing)
- Working temperature
- −40 °C … +105 °C
- Conductor strip length
- 11 mm (0.43 in)
- Contact springs
- AISI 301 stainless steel
- Conductive parts
- Tin-plated copper
- Actuating levers
- Polyamide PA66
- Connector shell
- Polycarbonate (PC)
- Compliance
- CE, RoHS
- Chemical disclosure
- No high-concern chemicals
- Choice / Variants
- Yes (positions, color, pack size; semi-Choice: yes)
Selection Matrix — Positions & Options
Select the number of equipotential positions and packaging to match your application. Populate exact SKUs for each variant.
| SKU / Variant | Positions (commoned) | Conductor Range | Color | Pack Size | Notes |
|---|---|---|---|---|---|
| CMK64-2P | 2 | — | — | — | Compact splice / jumper |
| CMK64-3P | 3 | — | — | — | Branching from common node |
| CMK64-5P | 5 | — | — | — | Distribution block replacement |
Tip: Publishing the per-pole current, conductor size range (AWG/mm²), and dielectric test values for each variant strengthens engineering search relevance (e.g., “CMK64 5-pole equipotential 24 A 450 V”).

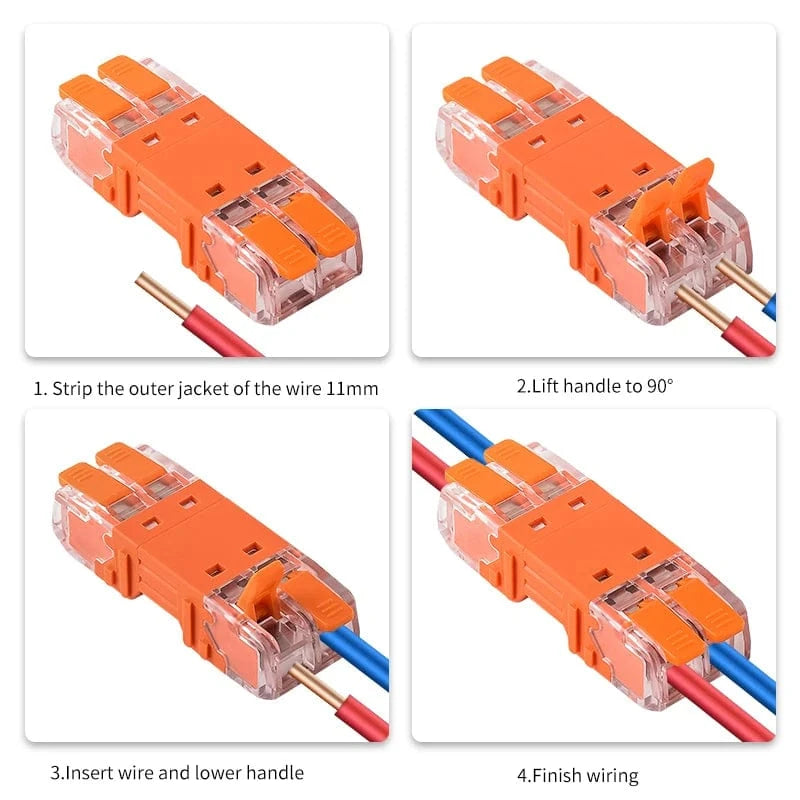

Installation & Handling
- Strip conductor to 11 mm; verify jacket removal without nicking strands.
- Lift lever, fully insert conductor to stop, then close lever to engage the AISI 301 spring clamp.
- For solid conductors, push-in without lever actuation may be possible; use lever for removal/inspection.
- Observe voltage/current ratings and local codes; ensure equipotential commoning matches the circuit design.
- Re-terminate only within specified re-use limits (if defined on datasheet); inspect contact surfaces for contamination.
Applications
- Lighting branches and luminaire junctions (equipotential splits)
- Control cabinets and field junction boxes
- Appliance and HVAC service connections
- Temporary power distribution and test benches
Compliance & Documentation
- CE / RoHS: Declared compliant.
- Material safety: No high-concern chemicals reported.
- Test standard references available on request (dielectric, pull-out, temperature rise).
Technical FAQ
What does “equipotential” mean for CMK64?
All positions are internally commoned to the same potential, enabling branching from a single feed (verify per variant).
What strip length is required?
11 mm (0.43 in) conductor strip length.
What materials are used?
Contact springs: AISI 301 stainless steel; conductive parts: tin-plated copper; levers: PA66; shell: PC.
