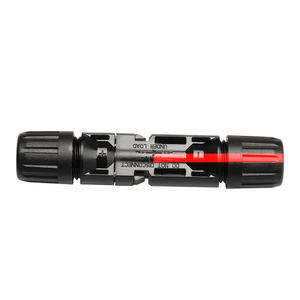

MC4 Connector 1000V
Shipping calculated at checkout
SKU: 4904-1000
500 in stock
Open here

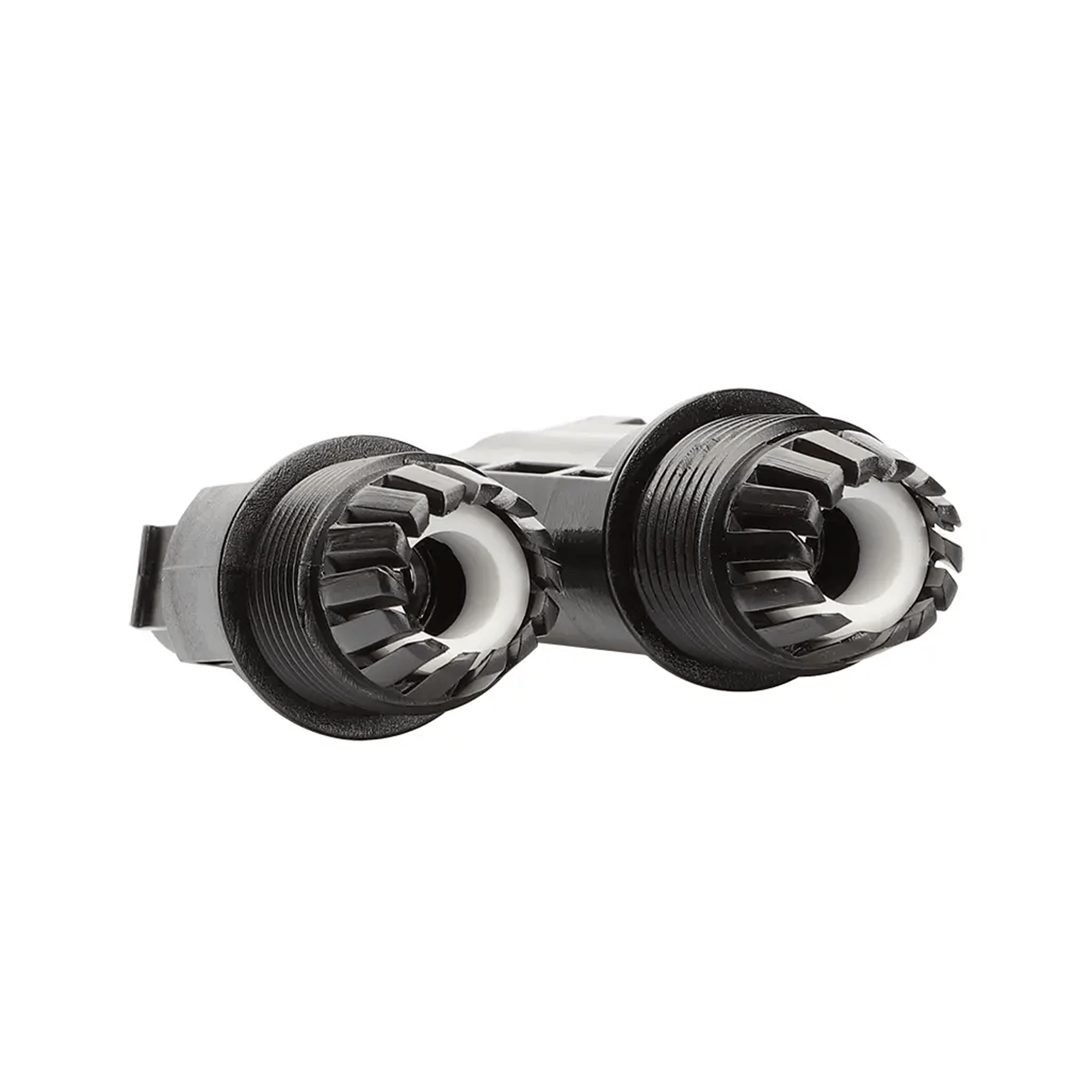

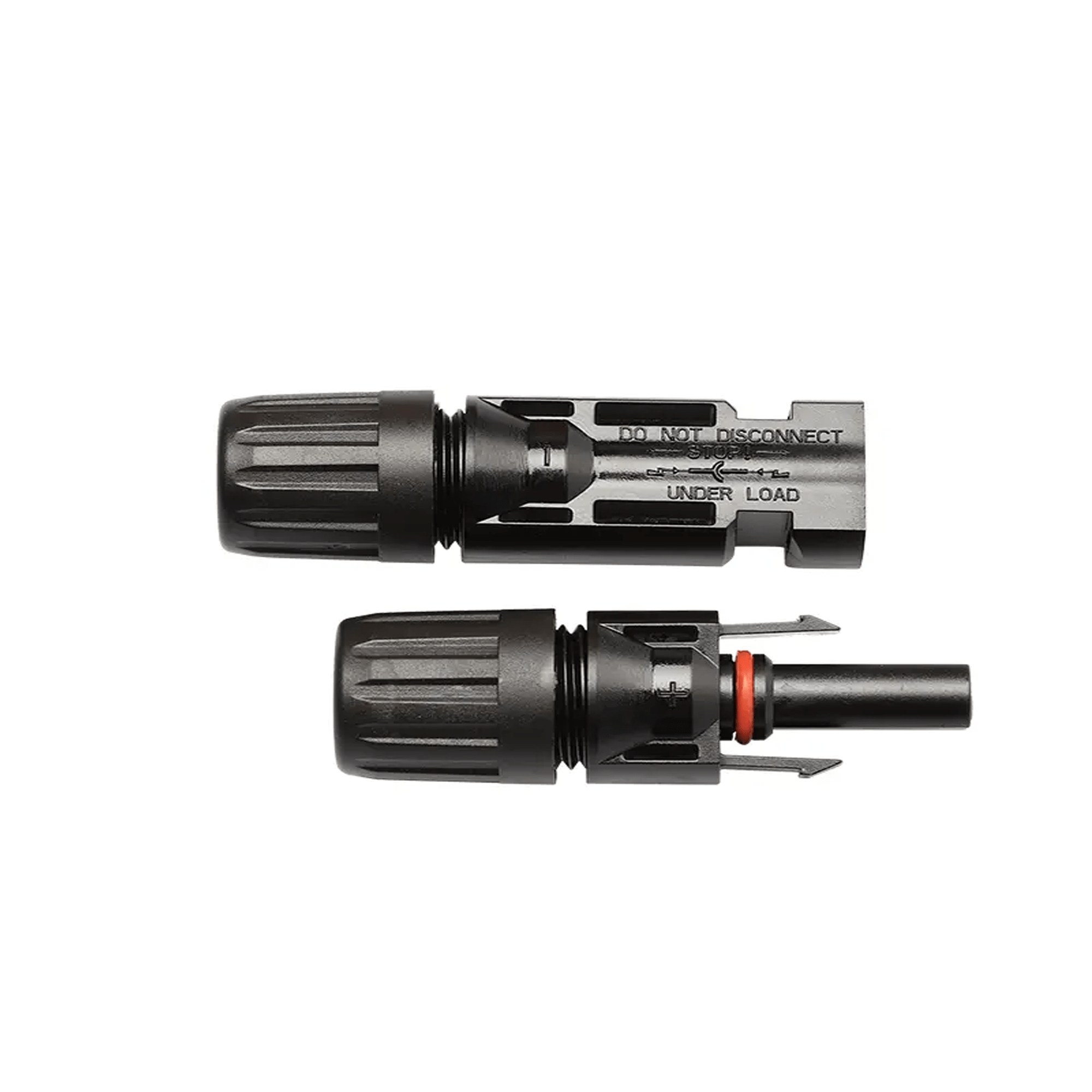

The Solar MC4 Connector is a type of plug and socket cable connector that is commonly used in photovoltaic solar systems. It is a high-quality connector that provides a secure and reliable connection between solar panels, solar inverters, and other solar equipment. The connector features a compact and durable design that ensures maximum efficiency and performance in all types of weather conditions.
Specifications:
- Rated voltage: 1000V DC
- Rated current: 30A
- Contact resistance: ≤0.5mΩ
- Insulation material: PPO + PA
- Degree of protection: IP67
- Operating temperature range: -40℃ to +90℃
- Flame class: UL94-V0
- Cable range: 2.5mm², 4mm², and 6mm²

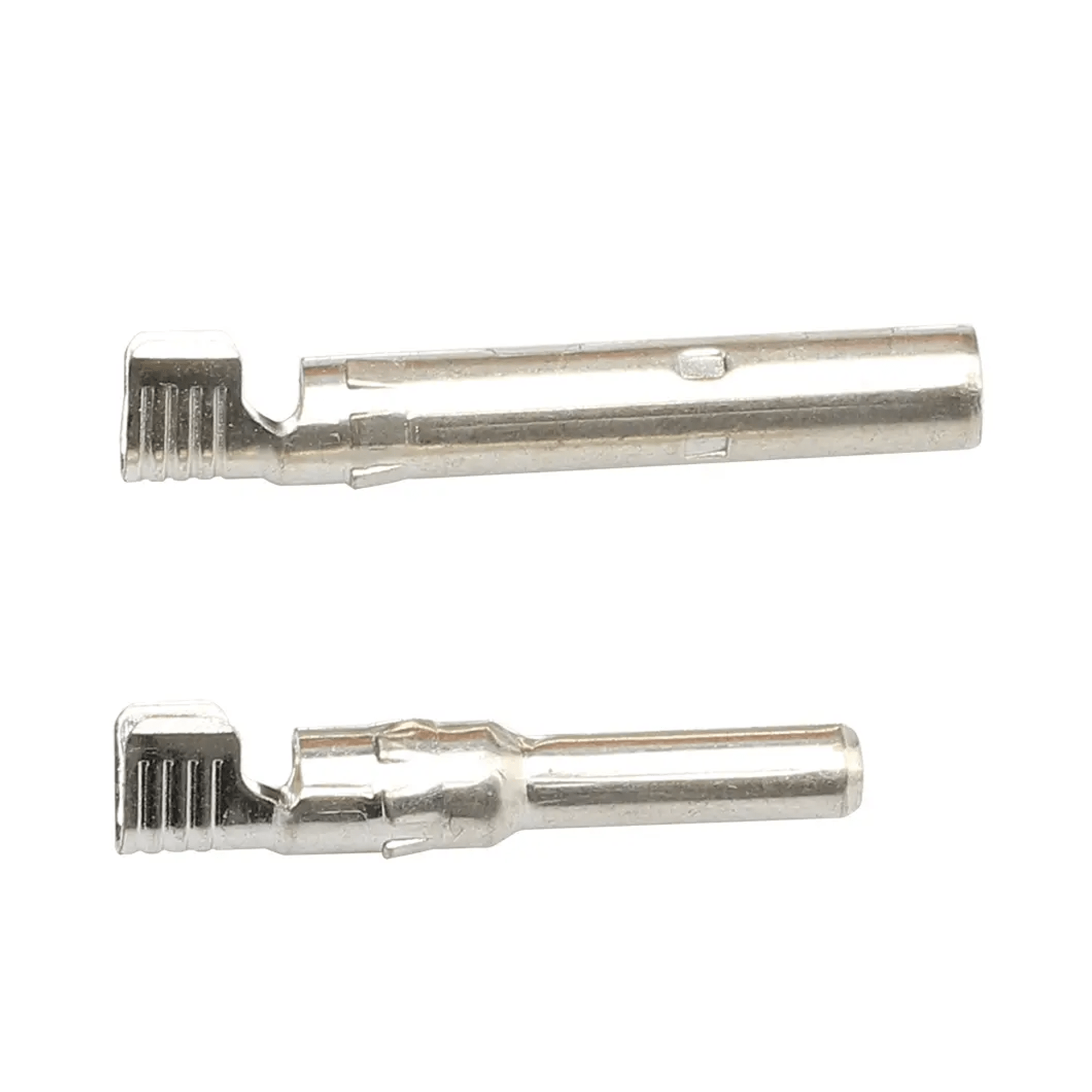

- Contact material: Copper, tin plated
- Locking system: Snap-on
- Compatible with: MC4 cable plugs and sockets
- Certifications: UL listed, TUV
Features:
- High-quality connector for solar panel applications
- Secure and reliable connection
- Compact and durable design
- Maximum efficiency and performance in all weather conditions
- Easy to install and use
- Compatible with MC4 cable plugs and sockets
- Rated for high voltage and current
Applications:
The Solar MC4 Connector is ideal for use in a wide range of photovoltaic solar systems, including residential, commercial, and industrial applications. It is suitable for connecting solar panels, solar inverters, and other solar equipment. The connector is easy to install and use and provides a secure and reliable connection for maximum efficiency and performance.
Spec Sheet
Click here to download the spec sheet
