MPO to MPO/LC Fiber Optic Cable OM3/OM4/OM5 8/12Core Multi-Mode Patch Trunk Jumper Cord | DUP-14:200001951#MPO-MPO-OM4-8Core;200007763:201336100;380:200007635#10M
Shipping calculated at checkout
SKU: DUP-14:200001951#MPO-MPO-OM4-8Core;200007763:201336100;380:200007635#10M
Out of stock
Open here

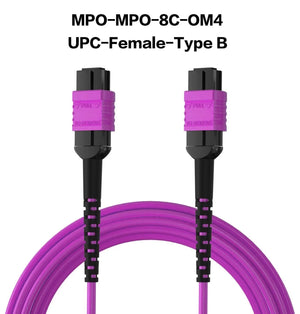

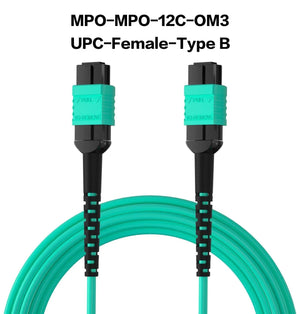

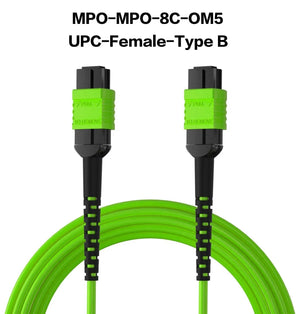

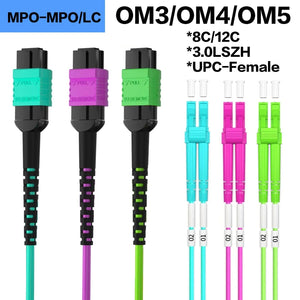

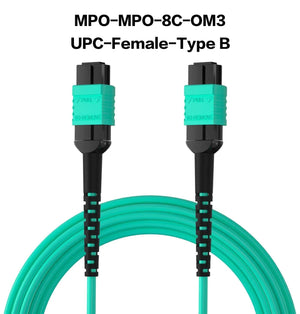

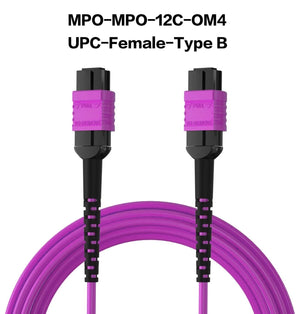

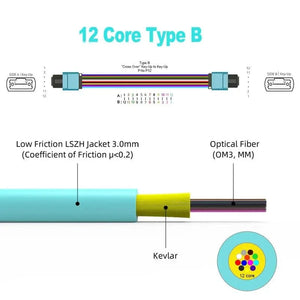

High-density multimode assemblies built on Corning® ClearCurve® 50/125 μm bend-insensitive fiber with DuPont™ Kevlar® aramid strength members. Low-insertion-loss MPO/UPC female (pinless) connectors, LSZH 3.0 mm jacket, default Type-B polarity, and color coding for OM3 (Aqua), OM4 (Magenta), and OM5 (Lime Green). Available as straight MPO trunks or MPO-to-LC/SC/FC/ST breakouts.
- Optical: IL ≤0.35 dB max (≤0.30 dB typ); RL ≥30 dB (MMF) @ 850/1300 nm
- Bend radius: ≥10 mm (fiber core), ≥7.5 mm (jacket)
- Tensile: 80 N short-term pull with Kevlar® reinforcement
- Compliance: RoHS, CE (EN 50575 CPR), ISO 9001, WEEE, EIA/TIA, Telcordia GR-326-CORE, TIA-605-4 (FOCIS-5)
- Thermal: −10 to +70 °C operating; −40 to +85 °C storage
Technical Specifications

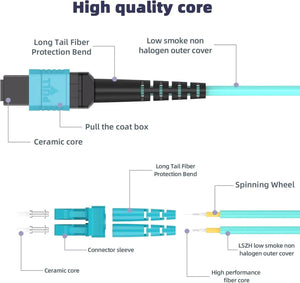

| Connector | MPO/UPC female (pinless), low-insertion-loss ferrule |
|---|---|

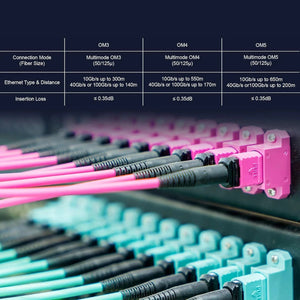

| Fiber Type | 50/125 μm multimode (OM3 / OM4 / OM5) — Corning® ClearCurve® |
| Polarity (Default) | Type B (straight-through) |
| Wavelengths | 850 nm / 1300 nm |
| Insertion Loss | ≤0.35 dB (≤0.30 dB typical) |
| Return Loss | ≥30 dB (MMF) |
| Jacket | LSZH, OD 3.0 mm |
| Strength Member | DuPont™ Kevlar® aramid yarn |
| Bend Radius | Core ≥10 mm · Jacket ≥7.5 mm |
| Tensile Strength | 80 N (short-term) |
| Operating Temp | −10 to +70 °C (14–158 °F) |
| Storage Temp | −40 to +85 °C (−40–185 °F) |
| Core Counts | 8 / 12 / 16 / 24 / 32 / 48 |

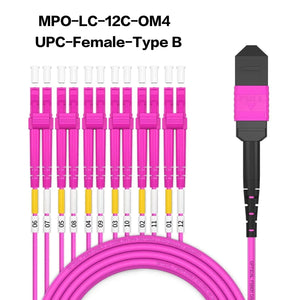

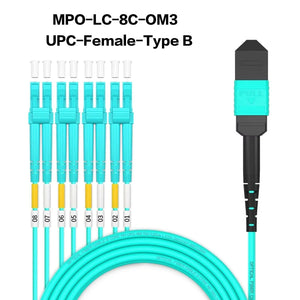

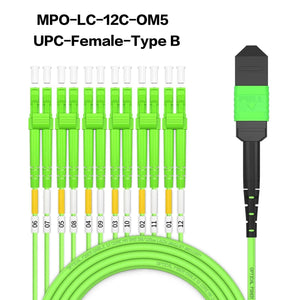

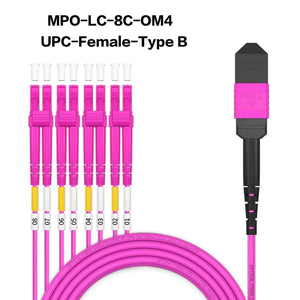

| Breakout (Fan-out) | MPO to LC/SC/FC/ST; default LC branch 0.6–1.0 m |
| Length (Std. If you’re unsure, confirm polarity and gender with your network tech before ordering—incorrect mapping will impair link performance.

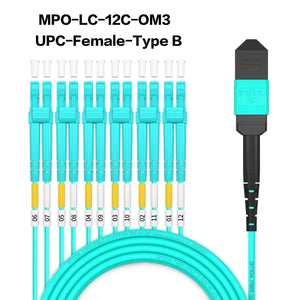

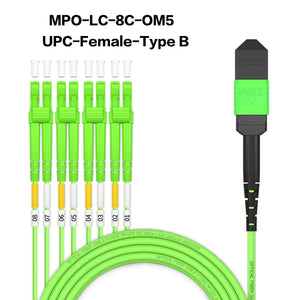

Configure & Quote | Request Sample FAQsWhat’s included with a breakout assembly?MPO trunk with factory fan-out to LC/SC/FC/ST; default LC branch length is 0.6–1.0 m (custom on request).

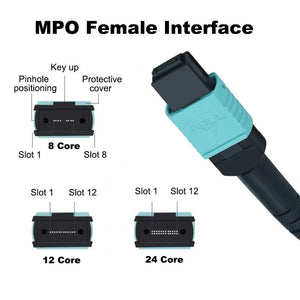

Female vs male MPO—what’s the difference?Female is pinless with alignment holes; male has alignment pins. Match gender to your transceivers/cassettes.
Why is Type-B polarity the default?Type B preserves straight-through lane mapping common to cassette/transceiver systems; Types A/C are available.
Expected loss in the field?Spec ≤0.35 dB per mated pair (≤0.30 dB typical). Total link loss depends on length and number of mated pairs.
Is the fiber bend-insensitive?Yes—Corning® ClearCurve® MMF improves margin in dense routing and tight trays.
SR4/SR8 transceiver support?Yes—match core count/lane mapping (8-fiber for SR4, 16-fiber for SR8) and confirm polarity/keying.
Keying (Key-Up/Key-Down) requirements?Type-B trunks typically use Key-Up to Key-Up. If your hardware differs, specify keying in the PO.
Can I mix OM classes?Possible but not recommended; performance follows the lowest OM class on the path.

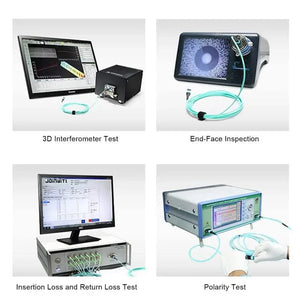

Are test reports provided?Serialized IL/RL results and end-face inspection images available on request.
Minimum bend radius?≥10 mm at the fiber core and ≥7.5 mm at the jacket to minimize micro-bend loss.
Pulling/tensile guidance?80 N short-term. Use proper pulling grips and avoid exceeding limits; never pull on connectors.
Is the jacket halogen-free?Yes—LSZH (Low Smoke Zero Halogen) for improved life-safety in occupied spaces.
Operating/storage temperature?Operating −10 to +70 °C; storage −40 to +85 °C.
Armored options?Available on request for higher crush resistance and pathway sharing.
Cleaning & inspection?Always inspect → clean → inspect. Use MPO-compatible click-cleaners and scopes; never mate dirty end-faces.
Optical budget tips?Sum fiber attenuation and all mated-pair losses; keep below transceiver budget with margin for aging/contamination.
Labeling/color boots?We can supply color boots, laser-etched IDs, heat-shrink, and QR codes matched to your rack map.
Standards compliance?RoHS, CE EN 50575 (CPR), ISO 9001, WEEE, EIA/TIA, Telcordia GR-326-CORE, TIA-605-4 (FOCIS-5).
Custom fan-out lengths/stagger?Yes—provide panel model and desired branch lengths; we’ll build to spec.
Lead times?Common OM4/Type-B 12/24-fiber builds are typically quick-ship; customizations may add production days.
|
