RG6 Dual-Shield Coaxial Cable (White, 1000 ft Reel) | Sigma Wire & Cable – Conversions Tech
Shipping calculated at checkout
SKU: 990-115
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

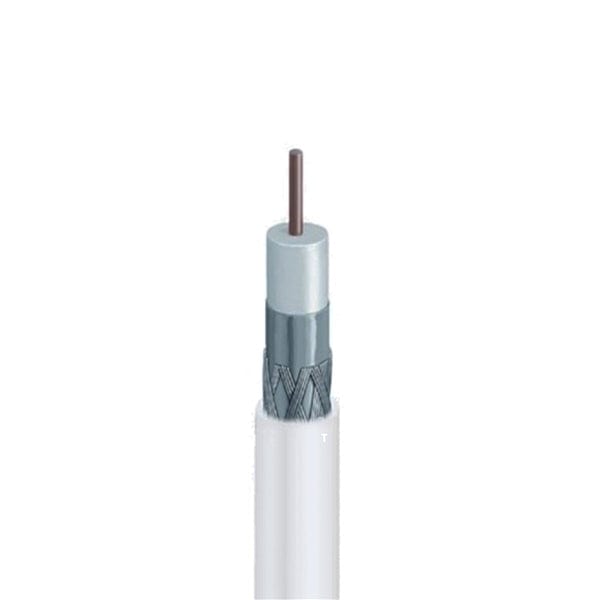

RG6 Dual Shield Coaxial Cable — 1000 ft Wooden Reel (White)
Sigma Wire & Cable | 75-Ohm | 18 AWG CCS | Foam-PE Dielectric | White PVC Jacket
What it is: Bulk RG6 dual-shield 75-Ohm coaxial cable on a 1000-ft wooden reel. Perfect for TV, broadband, and satellite distribution.
Why it’s better: Foam-PE dielectric ensures low attenuation, dual shielding (foil + braid) blocks interference, and the white jacket blends seamlessly with baseboards, ceilings, and structured wiring systems.
Use it for: In-wall or exposed A/V runs, CATV, HDTV, satellite, and modem connections where clean aesthetics and signal reliability are critical.
Key Features
- Dual-Shield Design: Aluminum foil and 36-AWG aluminum braid for strong EMI/RFI protection.
- True 75-Ohm Performance: Stable impedance and low return loss across broadband and HDTV frequencies.
- Foam-PE Dielectric: Ensures high velocity of propagation and reduced signal loss over distance.
- Discrete White PVC Jacket: Ideal for indoor trim, ceilings, or wall-matching installations.
- Installer-Ready Wooden Reel: 1000-ft put-up with smooth payout and minimal tangling.

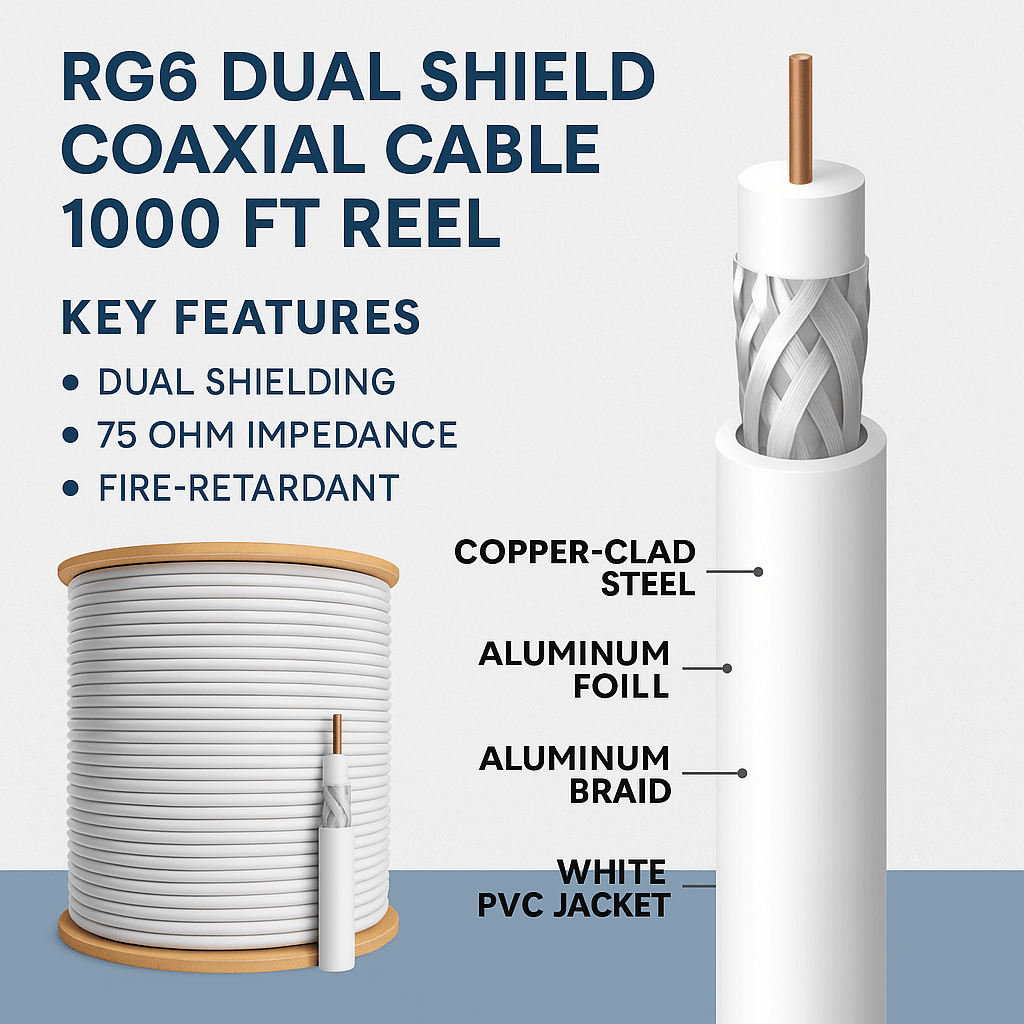

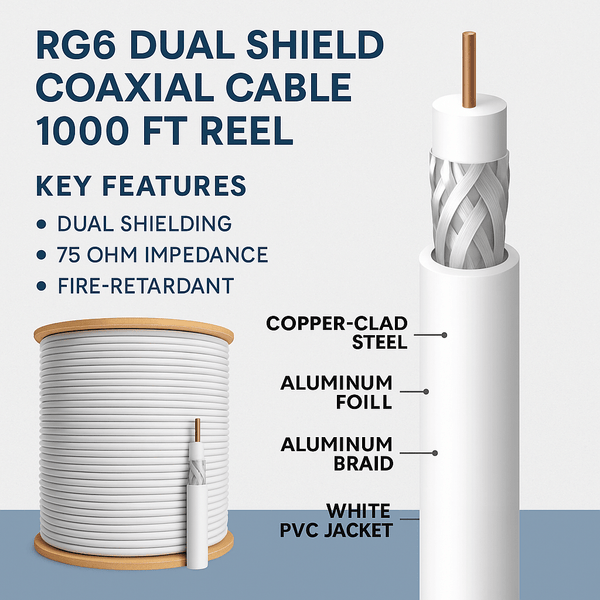

Technical Specifications
| Construction | |
|---|---|
| Center Conductor | 18 AWG Copper-Clad Steel (≈1.02 mm) |
| Dielectric | Foam Polyethylene |
| Shielding | Aluminum Foil + 36-AWG Aluminum Braid (Dual Shield) |
| Outer Jacket | White PVC; nominal O.D. ≈ 6.9 mm |
| Put-Up | 1000 ft on wooden reel |
| Electrical | |
|---|---|
| Impedance | 75 Ω nominal |
| Velocity of Propagation | ≈ 82% (typ.) |
| Return Loss | Low RL across CATV/HDTV bands |
| DC Resistance | Inner ≈ 100 Ω/km; Shield ≈ 18 Ω/km |
| Environmental / Mechanical | |
|---|---|
| Temperature Range | -20 °C to 75 °C |
| Minimum Bend Radius | ≈ 1.5 cm |
| Jacket Finish | White, low-gloss PVC |
Applications
- Residential and commercial in-wall A/V wiring
- CATV, HDTV, and broadband modem connections
- Satellite and set-top box installations
What’s Included
- 1 × RG6 Dual-Shield Coaxial Cable — 1000-ft wooden reel (White)
