Screw Lugs Assembly 2pin 3pin 4pin Power Cable Divided Waterproof Electrical Connector IP68 From AOHUA Factory
Sale price
$3.84
Shipping calculated at checkout
🛡 Trade Pricing Program
Contractors, wholesalers & distributors save 15–30%
Apply — 60 seconds
Sign In
SKU: 200497261:3681680#2P;210204035:-2#N
1544 in stock
5/0.75/1.0/1.5mm
Product Description

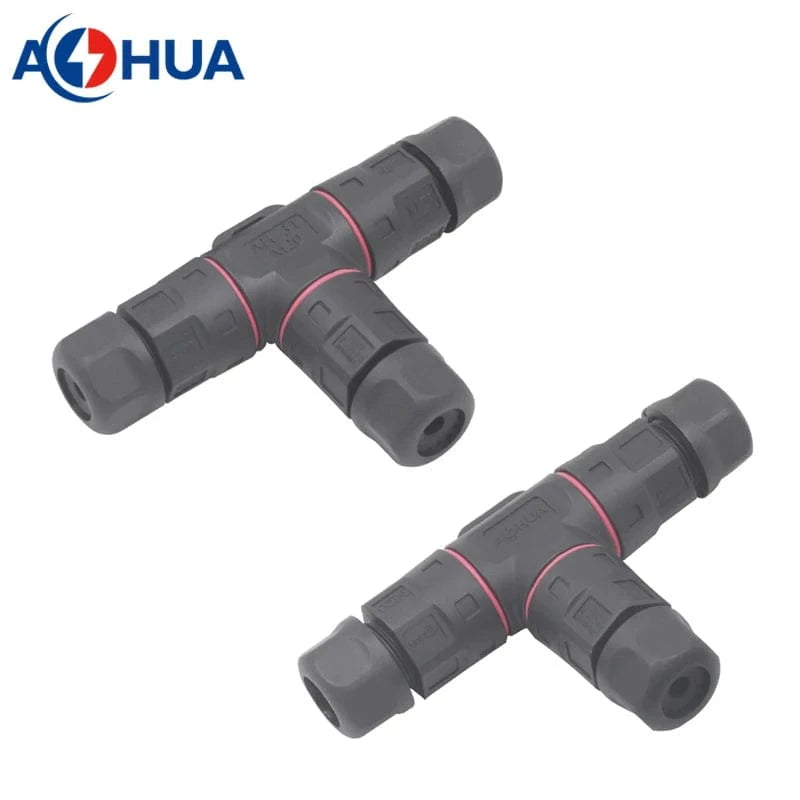

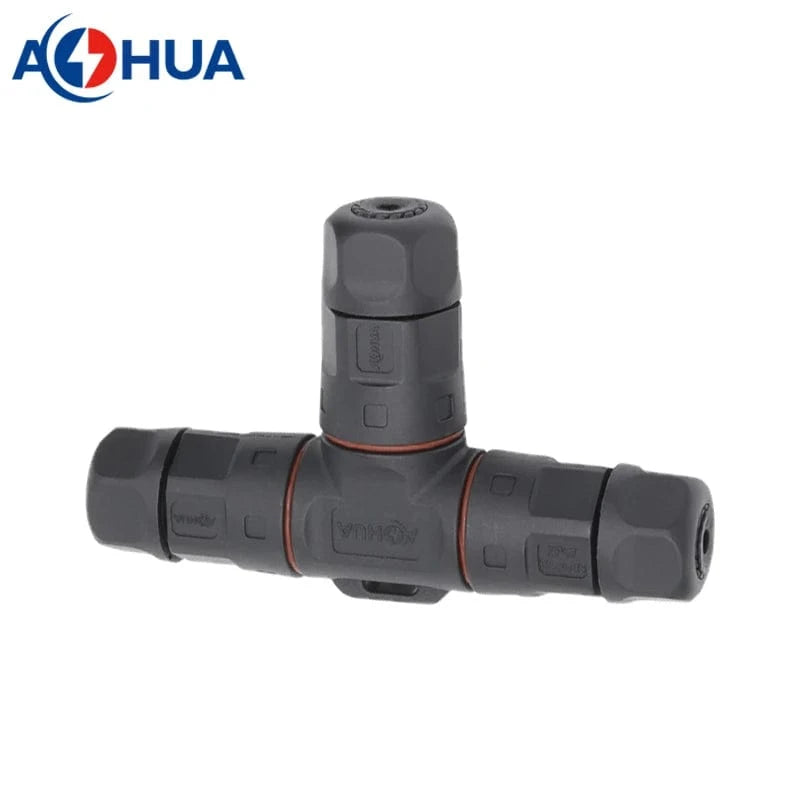

Screw Lugs Assembly 2pin 3pin 4pin Power Cable Divided Waterproof Electrical Connector IP68 From AOHUA Factory

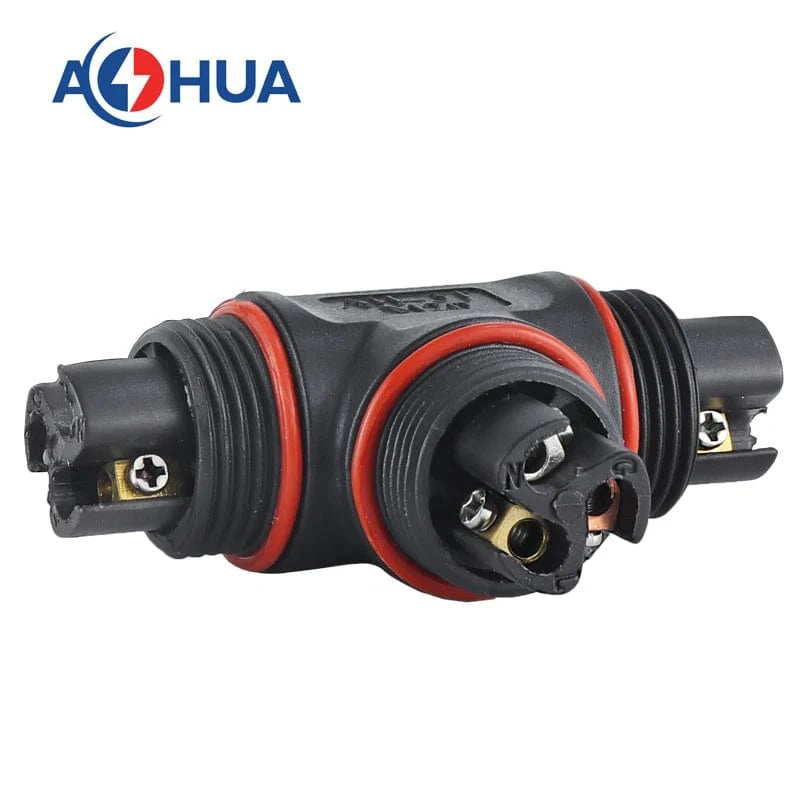

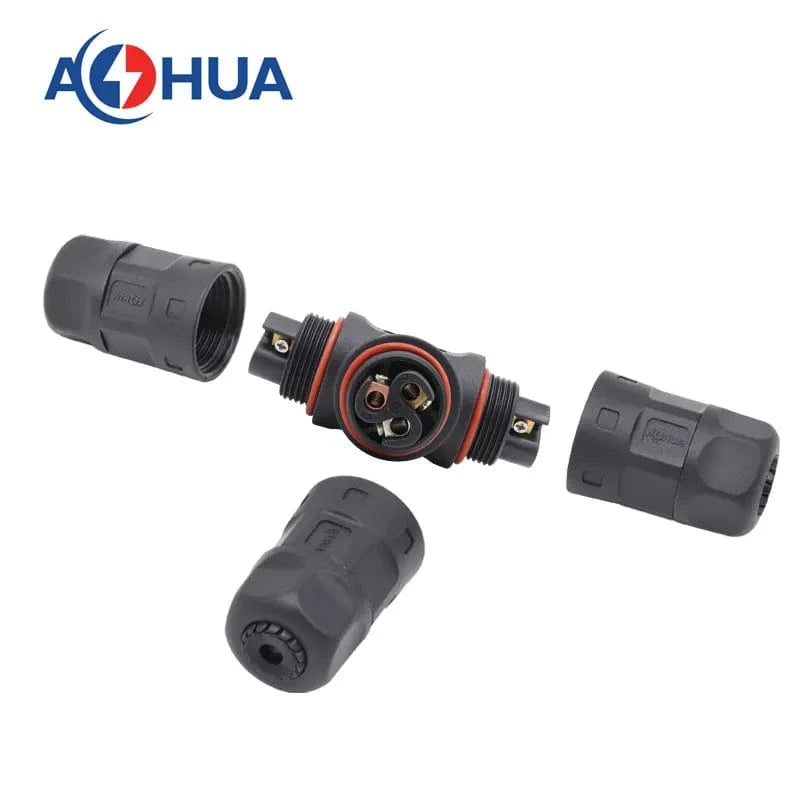

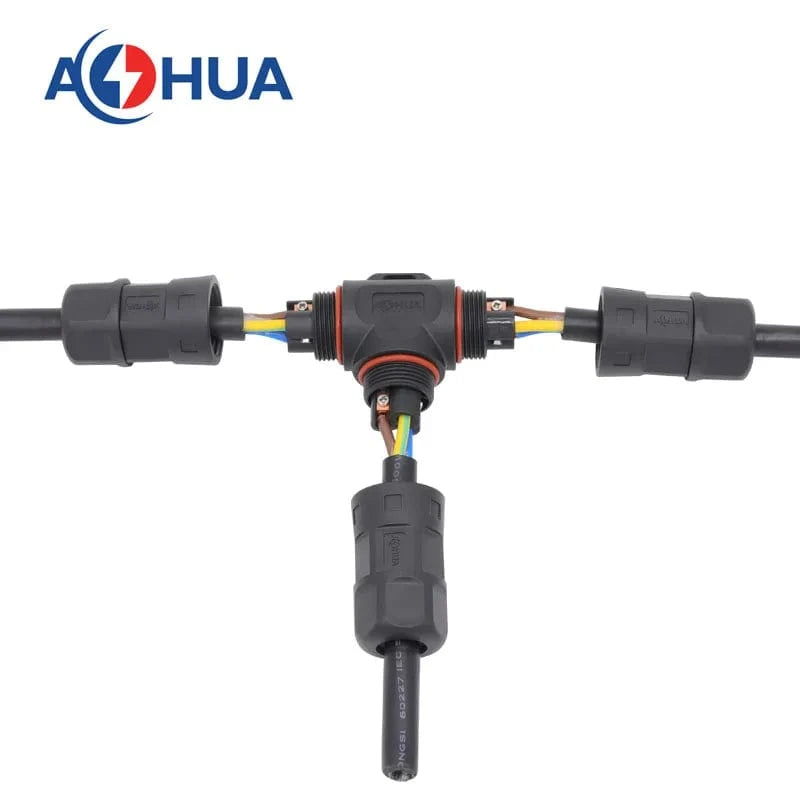

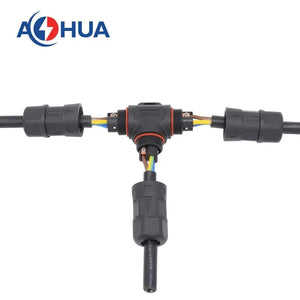

Here introduce the screw fixing type waterproof connector in Type. This is unpluggable type waterproof connector, can not plug and unplug. But the key point is its splitter. It can divide the wire into multiple wires. It means that it is one input and 2 outputs.
M15
PIN: 2pin
Voltage Rated: 300V
Current Rated: 10A
Wire Size: ≤0.5mm²
Cable OD: 3-7.5mm
M20
PIN: 2pin /3pin / 4pin
Voltage Rated: 300V
Current Rated: 20A/10A
Wire Size: ≤1.5mm²
Cable OD: 5-10mm
Current Rated: 20A/10A
Wire Size: ≤1.5mm²
Cable OD: 5-10mm
M23
PIN: 2pin /3pin / 4pin
Voltage Rated: 300V
Current Rated: 35A/120A
Wire Size: ≤4.0mm²
Cable OD: 7-15mm
Current Rated: 35A/120A
Wire Size: ≤4.0mm²
Cable OD: 7-15mm
Plastic |
PA66 |
Conductor |
brass |
Operating Temperature |
-40℃~+105℃ |
Waterproof Grade |
IP67/Ip68 |
