1-Hole Copper Compression Lug 3 AWG 1/4" Bolt | 90°C 35kV 170A
Shipping calculated at checkout
SKU: 210-98010B
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

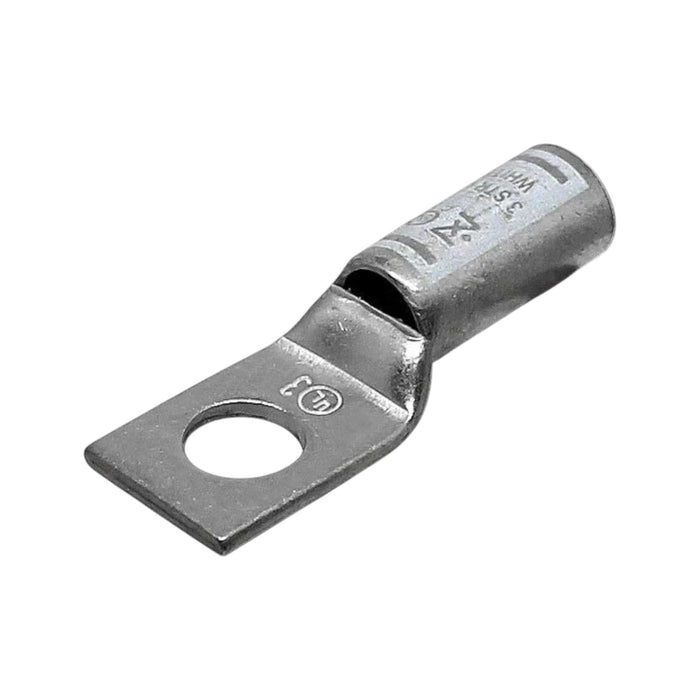

The Conversions Tech 1-hole copper compression lug is engineered for secure termination of 3 AWG conductors on 1/4-inch studs. The short barrel design accommodates standard crimping tools while the integrated sight window enables visual confirmation of full wire insertion prior to compression. Tin-plated copper construction provides corrosion resistance for extended service life in commercial and industrial electrical installations.
Specifications
- Wire Size: 3 AWG
- Stud Size: 1/4"
- Material: Tin-plated copper
- Color Code: White
- Overall Length (L): 42.4mm (1.67")
- Length 1 (L1): 18.4mm (0.72")
- Diameter (D): 14.5mm (0.57")
- Diameter 1 (D1): 9.9mm (0.40")
- Diameter 2 (D2): 7.9mm (0.30")
- Width (B): 20.3mm (0.33")
- Width 1 (E): 7.1mm (0.28")
- Thickness (F): 2mm (0.08")
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Maximum Amp Rating: 170A
- UL Approved: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent to Panduit and Burndy one-hole compression lug configurations for 3 AWG applications. Conversions Tech lugs deliver comparable electrical performance and dimensional specifications at reduced procurement cost.
FAQ
What crimping tool is required for this lug?
Use a standard compression crimping tool with dies sized for 3 AWG short barrel lugs. Verify proper die selection against the manufacturer's chart; the sight window confirms full conductor insertion before crimping.
Is this lug suitable for outdoor or wet location use?
The tin-plated copper construction provides corrosion resistance. For wet or damp locations, apply appropriate anti-oxidant compound and ensure the installation meets NEC requirements for environmental protection.
Why does this lug have a white color code?
The white color code corresponds to 3 AWG conductor size per industry standard color-coding systems, enabling quick identification during installation and reducing wiring errors in multi-size termination applications.
