Copper Long Barrel Two Hole Compression Lugs 2/0 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98097C
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

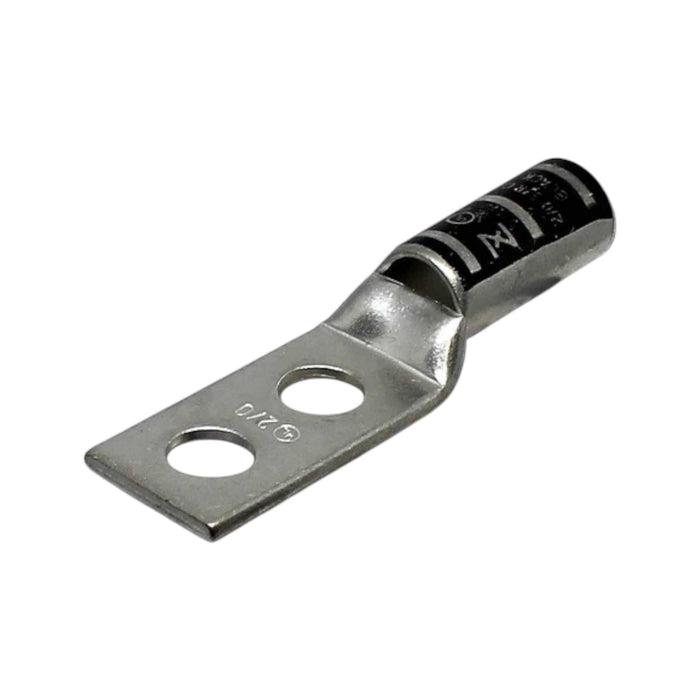

2/0 AWG Copper Compression Lug | Long Barrel | 2-Hole | 1/4" Stud | Black | Conversions Tech
The Conversions Tech Copper Compression Lug is a durable, high-performance connector engineered for 2/0 AWG conductors. Built for reliability, it features a long barrel design with a dual-hole configuration and a 1/4-inch stud size, ensuring stable, low-resistance electrical connections. Manufactured from seamless electro-tin plated copper, this lug offers superior corrosion resistance and mechanical strength. The black color code provides quick circuit identification in industrial and utility environments.
Rated for up to 35 kV and 90°C, this compression lug meets UL, CE, and RoHS compliance standards—making it ideal for power distribution, grounding, and control panel terminations.
Key Features
- Seamless Electro-Tin Plated Copper: Provides excellent conductivity and long-term resistance to corrosion.
- Long Barrel Design: Ensures deep crimp engagement for maximum pull-out strength and minimal resistance.
- 2-Hole Configuration: Offers secure and stable termination for 2/0 AWG copper conductors.
- 1/4-Inch Bolt Size: Accommodates standard stud dimensions for versatile installation.
- 35 kV Voltage Rating: Suitable for high-voltage applications demanding superior performance.
- Black Color Code: Enables quick identification and circuit organization.
- No Sight Window: Clean, closed-barrel design for professional-grade finishes and protection from contamination.
Technical Specifications
| Wire Size | 2/0 AWG |
| Stud Size | 1/4" Stud |
| Color | Black |
| Overall Length (L) | 71.1 mm (2.80") |
| Length 1 (L1) | 34.3 mm (1.35") |
| Length 2 (L2) | 15.9 mm (0.63") |
| Diameter (D) | 20.8 mm (0.82") |
| Diameter 1 (D1) | 14.2 mm (0.56") |
| Diameter 2 (D2) | 11.7 mm (0.46") |
| Width (B) | 30.5 mm (1.20") |
| Width (E) | 7.1 mm (0.28") |
| Thickness (F) | 2.5 mm (0.10") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Maximum Amp Rating | 265 A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Applications
- Power Distribution Systems: Ensures low-resistance, high-current terminations in panels and switchgear.
- Industrial Control Panels: Reliable performance in automation, MCCs, and feeder circuits.
- Renewable Energy: Supports solar, ESS, and high-voltage DC applications.
- Construction & Maintenance: Trusted for field terminations, upgrades, and heavy-duty installations.
Frequently Asked Questions (FAQs)
1. Is this lug compatible with standard crimping tools?
Yes, it works with Ferrules Direct and other industry-standard crimping tools.
2. What is the amp rating for this 2/0 AWG lug?
This lug supports up to 265 amps for high-current terminations.
3. Is this product UL certified?
Yes, it is UL Recognized and meets CE and RoHS compliance standards.
4. What is the material composition?
It’s manufactured from seamless tin-plated copper for durability and conductivity.
5. What color is this lug?
It features a black color code for easy circuit identification.
