Long Barrel 2-Hole Compression Lug | 3 AWG, 1/4" Bolt, 170A, 90°C | UL
Shipping calculated at checkout
SKU: 210-09960
1000 in stock
Open here

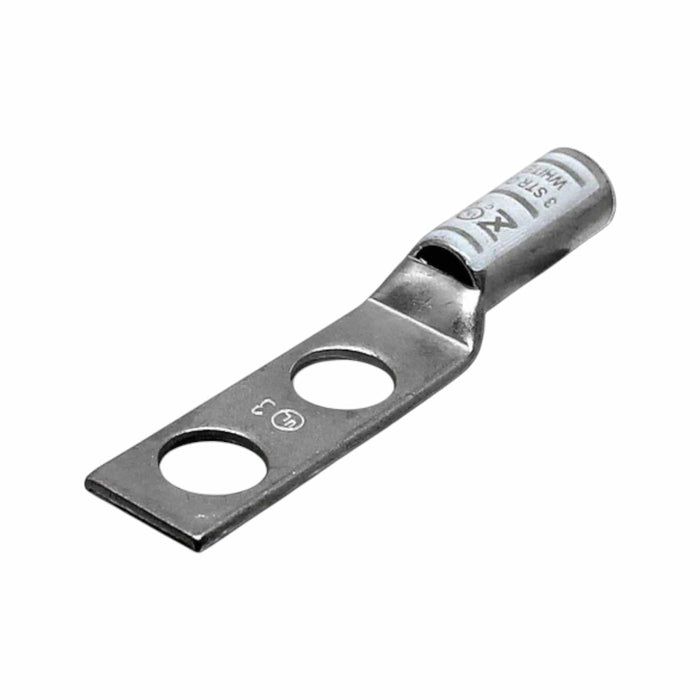

The Conversions Tech long barrel two-hole compression lug terminates 3 AWG conductors to busbars or equipment terminals. The extended barrel length provides additional crimp surface area for mechanical stability in high-vibration environments. Dual 1/4-inch mounting holes on 0.28" centers allow secure two-bolt attachment to prevent rotation under fault current conditions. Tin-plated copper construction resists oxidation while maintaining conductivity. White color coding per industry standards enables quick wire-size identification during installation and inspection. Typical applications include switchgear terminations, motor control centers, power distribution blocks, and transformer connections.
Specifications
- Wire Size: 3 AWG
- Stud Size: 1/4"
- Mounting: Two-hole configuration
- Hole Spacing (E): 7.1mm (0.28")
- Overall Length (L): 61mm (2.40")
- Neck Length (L1): 34.3mm (1.35")
- Conductor Length (L2): 15.9mm (0.63")
- Outer Diameter (D): 14.5mm (0.57")
- Inner Diameter (D1): 9.9mm (0.39")
- Hole Diameter (D2): 7.9mm (0.31")
- Width (B): 22.9mm (0.90")
- Thickness (F): 2mm (0.08")
- Terminal Material: Tin-Plated Copper
- Temperature Rating: 90°C
- Voltage Rating: 35kV
- Max Amp Rating: 170A
- Color Code: White
- UL Recognized: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent to long-barrel two-hole compression lug form factors from major manufacturers. Specifications match industry-standard dimensional requirements for 3 AWG termination hardware at competitive distributor pricing.
FAQ
What crimp die should be used for this lug?
Use a crimp tool and die set specified for 3 AWG copper compression lugs. The long barrel requires full-length crimping along the conductor insertion area—consult your crimp tool manufacturer's die chart for the correct color code or die index that accommodates 14.5mm barrel diameter.
Is this lug rated for 90°C wire?
Yes. The 90°C temperature rating permits use with 90°C insulated conductors per NEC ampacity tables. When installed in equipment with lower temperature limitations, the lowest rating applies.
Why use a two-hole lug instead of single-hole?
Two-hole mounting prevents lug rotation under short-circuit forces or thermal cycling, maintaining bolt torque and electrical contact integrity. Required by some specifications for busbar connections in switchgear and substation applications.
Why Pros Buy Direct from Conversions Tech
Engineered in the USA. Our U.S.-based engineering team designs and specifies our core product lines, and every product we carry — designed in-house or built to our exact specifications by certified partner factories — is quality-verified before it ships. UL/CSA listed where required, NEC compliant.
Cross-reference savings. Direct equivalents to Burndy, Hubbell, and other OEM part numbers at up to 30% less — same specs, same certifications, without the big-brand markup.
Real technical support. Need a torque spec, die reference, or an OEM quote? You’ll speak directly with the Conversions Tech engineering desk — not a script reader — for instant answers, custom kitting, and private-label options.
Fast US fulfillment. Orders in by 2PM ET ship same day from our US warehouse, nationwide ground and expedited.
