Long Barrel Two-Hole Compression Lug 3 AWG 3/8" | 115A Tin-Plated
Shipping calculated at checkout
SKU: 210-09962
1000 in stock
Open here

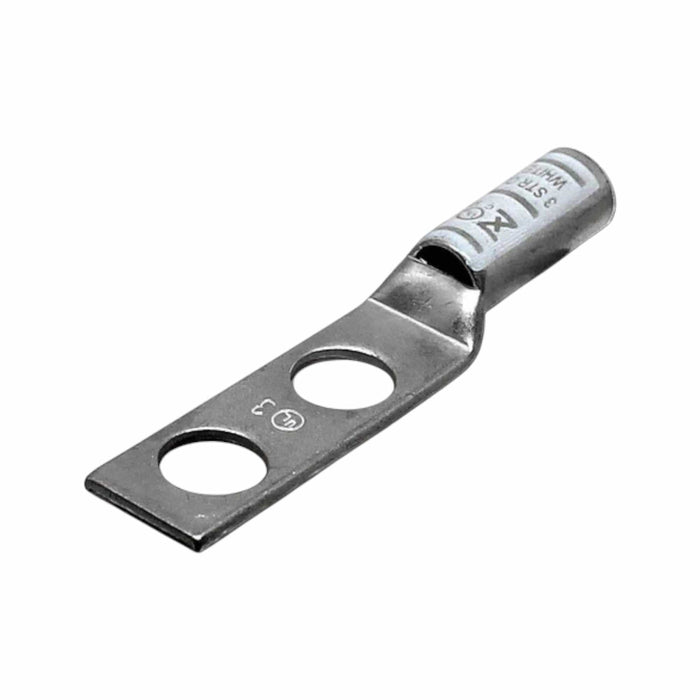

Long barrel two-hole compression lug for 3 AWG copper conductors. Tin-plated copper construction with 3/8-inch bolt size for power distribution, industrial panels, and utility applications requiring reliable high-current terminations. White color code for conductor size identification.
Specifications
- Wire Size: 3 AWG
- Stud/Bolt Size: 3/8"
- Terminal Material: Tin-Plated Copper
- Barrel Type: Long Barrel
- Pad Holes: 2
- Pad Hole Spacing: 10.4mm (0.41") / 5/8"
- Pad Dimensions: 1.437" L x 0.885" W x 0.125" Thk
- Overall Length: 66.8mm (2.63") / 3.376"
- Neck Length: 40.1mm (1.58")
- Conductor Length: 19.05mm (0.75")
- Barrel Length: 1.5"
- Outer Diameter: 14.5mm (0.57") / 0.609"
- Inner Diameter: 9.9mm (0.39") / 0.484"
- Hole Diameter: 7.9mm (0.31")
- Width: 22.9mm (0.90")
- Thickness: 2mm (0.08")
- Cable Entry: Chamfered Type
- Voltage Rating: 35kV
- Max Amp Rating: 115A
- Temperature Rating: 90°C
- Die Index: I-50
- Color Code: White
- UL Recognized: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent to standard two-hole long barrel compression lug forms from major manufacturers. Compatible with tooling and installation practices used for comparable industrial-grade lugs.
FAQ
What crimping tool is required for this lug?
The I-50 die index indicates compatibility with crimping tools accepting this die specification. Verify your tool manufacturer's die chart for I-50 compatibility before installation.
Is this lug suitable for outdoor or wet locations?
The tin-plated copper construction and 35kV voltage rating provide corrosion resistance. Specific environmental suitability depends on enclosure type and local code requirements for the installation.
Why does the source list conflicting color codes?
The source contains both "white" and "orange" color references. 3 AWG copper compression lugs typically use white color coding per industry standards. Verify color code against your installation requirements.
