Audio Video Extender | DVI over Cat5e, 300ft
Shipping calculated at checkout
SKU: CT50S-DVI
497 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
DVI Extender over Cat5e/Cat6 — Up to 300 ft (CT50S-DVI)

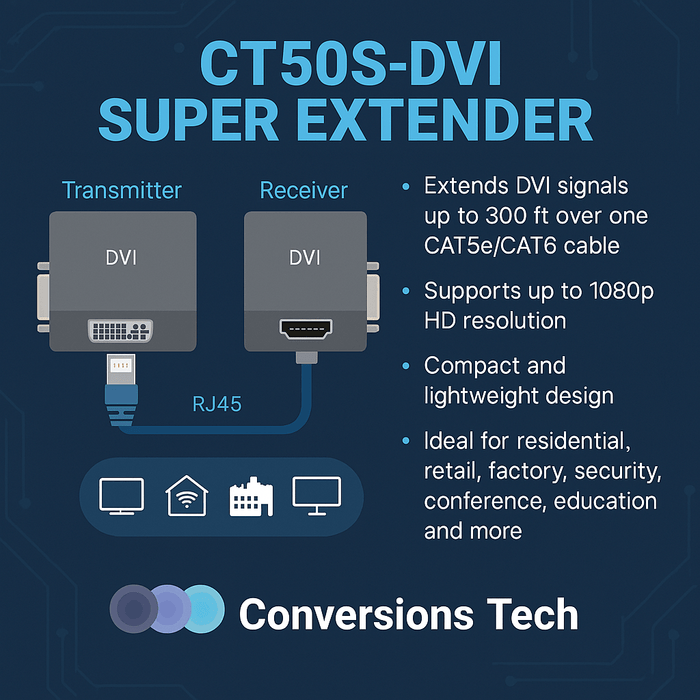

The Conversions Tech CT50S-DVI Super Extender sends single-link DVI video up to 300 ft over a single Cat5e/Cat6 cable. Ideal for projectors, conference rooms, showrooms, and security displays, the compact TX/RX pair delivers crisp 1080p without the distance limits of traditional DVI cables.
- 300 ft reach over one Cat5e/Cat6 (typical installs)
- Full HD 1080p single-link DVI video
- Compact, plug-and-play TX/RX set
- Clean cable runs using inexpensive CAT cable
Key Features
- Single-Cable Simplicity: One Cat5e/Cat6 handles the entire DVI link—no dual-cable headache.
- Long-Run Performance: Optimized for 1080p at distances up to 300 ft with quality 24-AWG solid Cat6.
- Installer-Friendly: Small enclosures and strain-relief connectors help in tight spaces.
- Reliable Digital Video: Maintains a stable single-link DVI-D signal to the display.
Technical Specifications
| Model | CT50S-DVI |
|---|---|
| Video | DVI-D (single-link) up to 1920×1080 @ 60 Hz |
| Max Distance | Up to 300 ft over single Cat5e/Cat6 (cable quality impacts range) |
| Link Type | Point-to-point over CAT cable (not IP) |

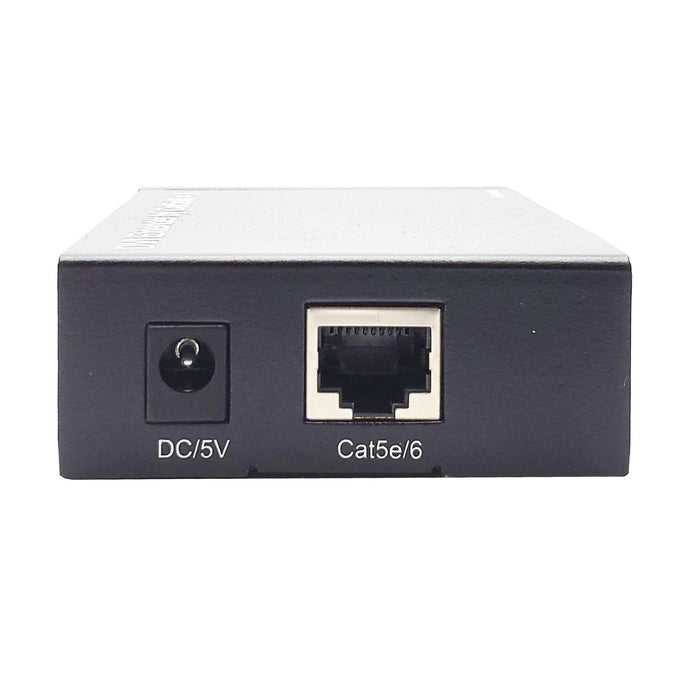

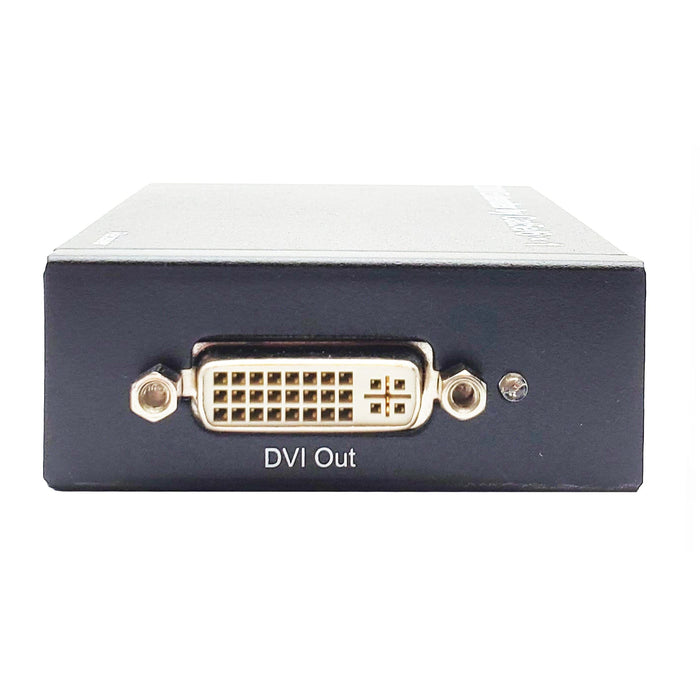

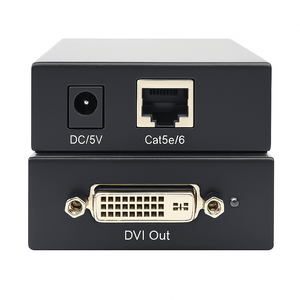

| Connectors | DVI-D (TX in, RX out); RJ45 link |
| Power | External power (TX/RX) – plug-and-play |
| Compatibility | DVI-equipped sources & displays (HDMI sources supported with passive DVI adapter; video only) |
| Audio | Not carried on DVI (use separate audio if needed) |
| SKU | CT50S-DVI |

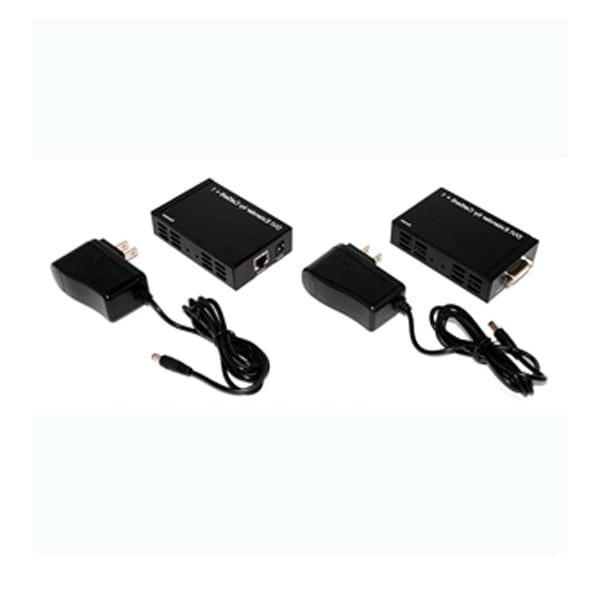

What’s in the Box
- CT50S-DVI Transmitter (TX)
- CT50S-DVI Receiver (RX)
- Power adapters (TX/RX)
- Quick Start Guide
Applications
- Conference & training rooms • Lecture halls • Houses of worship
- Retail signage & showrooms • Security monitoring • Control rooms
- Projector installs where long DVI cable runs are impractical
Installation Tips
- Use solid-copper, 24-AWG Cat6 for best long-run performance.
- Avoid patch panels and keystones when possible; go home-run where you can.
- Keep CAT cable away from high-voltage lines and EMI sources.
Complete Your Setup
- Shop All AV Extenders
- DVI & VGA Accessories
- Bulk Cat6 Cable • Cat6 Patch Cables
- HDMI↔DVI Adapters (for HDMI sources)
FAQs
Is this over IP or just over CAT cable?
Point-to-point over Cat5e/Cat6. It does not use your network or require a switch.
Does it carry audio?
DVI is video-only. If you need audio, run a separate audio cable or use an HDMI solution.
Will it work with HDMI sources?
Yes—with a passive HDMI-to-DVI adapter at the source. Output remains DVI video only.
How do I get the full 300 ft?
Use high-quality 24-AWG solid Cat6, minimize splices/patch points, and avoid EMI. Cable quality affects reach.
