Cat5e CMP 1000ft Box | Gray | Bare Copper | Plenum | Ethernet Cable
Shipping calculated at checkout
SKU: 960-209
100 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

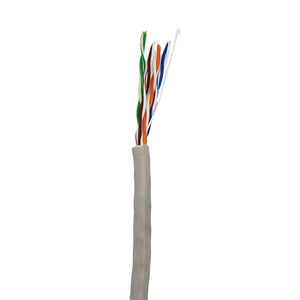

1000-ft Cat5e Plenum (CMP) Ethernet Cable – Solid 24 AWG Copper | Gray | Conversions Tech™
Conversions Tech™ Cat5e Plenum Cable powers enterprise Wi-Fi, VoIP, CCTV, and IoT in the strictest air-handling environments. Each precision-twisted solid 24 AWG bare-copper conductor drives 1000BASE-T, IP video, and PoE++ loads up to 90 W with 350 MHz certified headroom. The CMP PVC jacket meets UL 910 plenum flame-spread and smoke standards, while color-coded Red (example), White, or Gray options simplify cable-tray ID. Choose the white easy-pull box or gray pro reel for snag-free runs up to 1000 ft (305 m).
Key Performance Benefits
- Pure Bare-Copper Core – 99.99 % conductivity outperforms CCA for lower DC resistance, cooler PoE, and longer life.
- 350 MHz Certified Bandwidth – Exceeds ANSI/TIA-568.2-D for flawless Gigabit data, HD IP video, and low-latency VoIP.
- CMP Plenum Safety – UL 910, NFPA 262 compliant jacket resists flame & smoke in return-air ducts and plenum spaces.
- Precision UTP Geometry – Tight-lay twists and advanced dielectric slash NEXT & ELFEXT without bulky shielding.
- PoE+/PoE++ (IEEE 802.3af/at/bt) – Delivers up to 90 W to APs, cameras, sensors, and LED fixtures.
- Installer-Friendly Packaging – White variant: rugged pull-box with footage markers; Gray variant: smooth-feed reel for rack mounts.
- FOREVER WARRANTY – Lifetime replacement coverage & U.S. tech support from Conversions Tech.
Technical Specifications
| Category | Cat5e (ANSI/TIA-568.2-D) |
|---|---|
| Conductors | 4 × UTP, solid bare copper |
| Gauge | 24 AWG (0.51 mm) |
| Bandwidth | 350 MHz |
| Jacket Rating | CMP Plenum PVC – UL 910 |
| Colors | White (pull-box) · Gray (reel) |
| Length | 1000 ft / 305 m continuous |
| Temp Range | -20 °C → +75 °C |
| Compliance | UL 910, UL Code 444, NEC TIA-568-C.2, RoHS 3, cETLus |
| Part Numbers | CT-C5E-24SOLID-1000-WHT-CMP · CT-C5E-24SOLID-1000-GRY-CMP |
Why Pros Buy Direct from Conversions Tech
Engineered in the USA. Our U.S.-based engineering team designs and specifies our core product lines, and every product we carry — designed in-house or built to our exact specifications by certified partner factories — is quality-verified before it ships. UL/CSA listed where required, NEC compliant.
Cross-reference savings. Direct equivalents to Burndy, Hubbell, and other OEM part numbers at up to 30% less — same specs, same certifications, without the big-brand markup.
Real technical support. Need a torque spec, die reference, or an OEM quote? You’ll speak directly with the Conversions Tech engineering desk — not a script reader — for instant answers, custom kitting, and private-label options.
Fast US fulfillment. Orders in by 2PM ET ship same day from our US warehouse, nationwide ground and expedited.
