6-Position Bolt-Down Fuse Block for ANM / MEGA Fuses | 32V DC, 40–500A, 100A Fuses Included
Shipping calculated at checkout
SKU: 208844449:7321556#32 V;209018456:-2#40-500A
9000 in stock
Open here
6-position bolt-down fuse block for ANM / MEGA bolt-on fuses, 32 V DC, 40–500 A per position, 100 A fuses included. Common input bus to six independently fused M5 stud outputs, with a clear protective cover. Sized for alternator, charger, inverter, and thruster feeds on 12 V and 24 V lead-acid or AGM systems. Class cross for the Blue Sea Systems MEGA/AMG fuse block family and Bussmann HMEG holders.

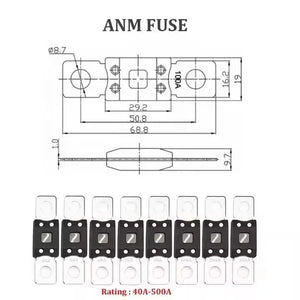

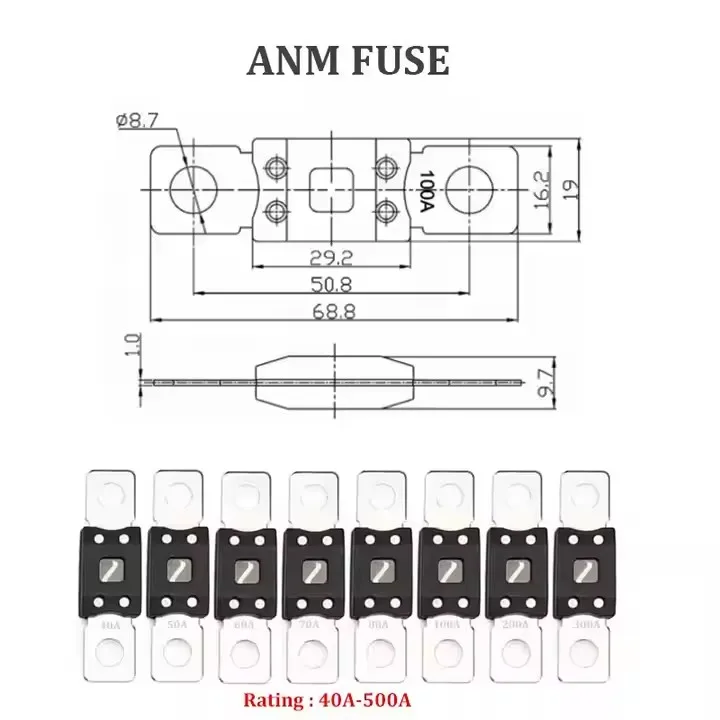

| Fuse type | ANM / MEGA / AMG bolt-on, 40–500 A (100 A installed) |
|---|---|
| Positions | 6 |
| Voltage | 32 V DC (fuse element rating) |
| Terminals | M5 studs per position; main input stud |

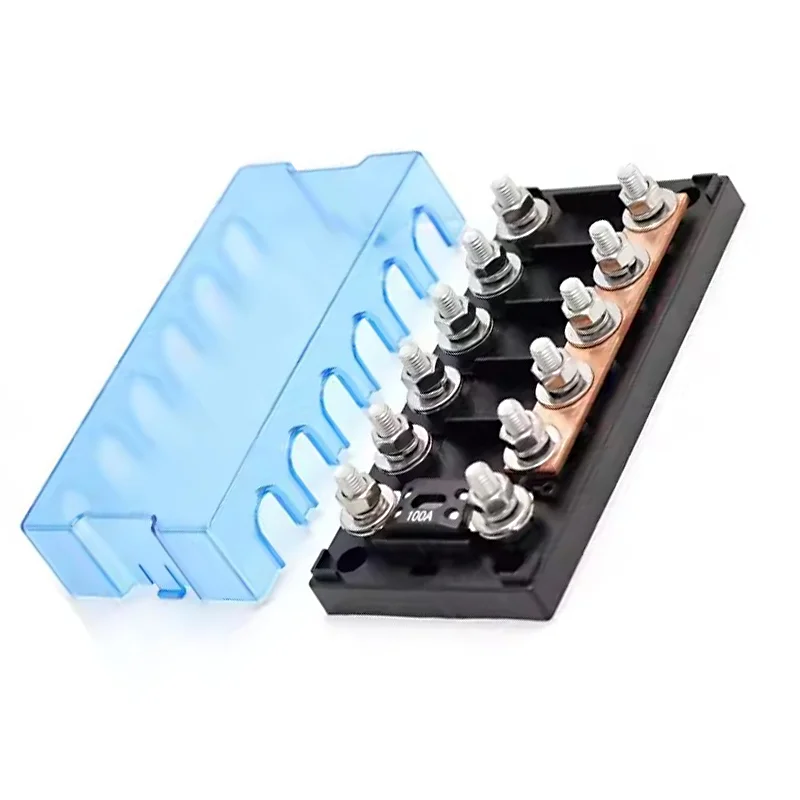

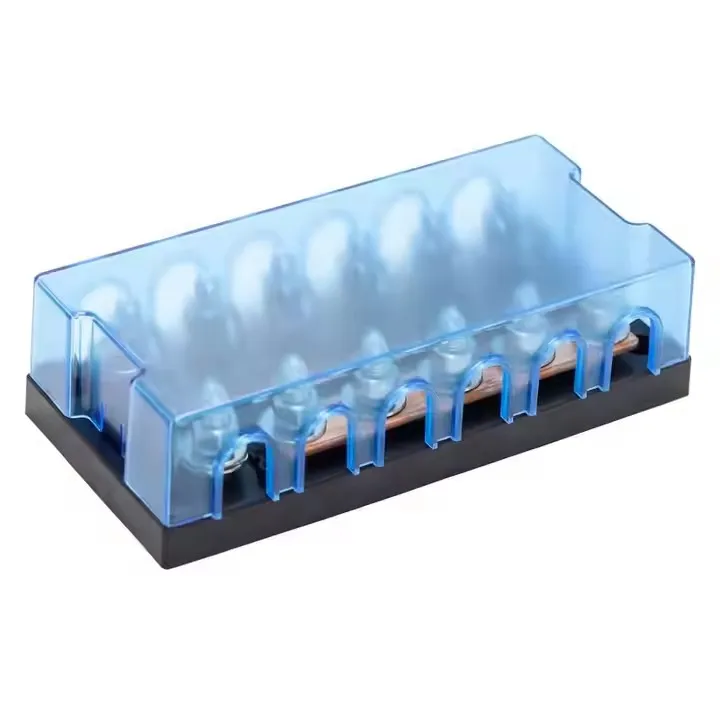

| Body | Flame-retardant thermoplastic base, clear cover |
Cross-reference
| Manufacturer | Family | Notes |
|---|---|---|
| Blue Sea Systems | MEGA/AMG fuse block (5001 class) | Single-position; this unit consolidates six |
| Eaton Bussmann | HMEG holders / AMG fuses | Bolt-on MEGA family |
Family-level crosses by fuse type; MEGA/ANM elements are 32 V — not for 48 V banks.
Where it's used
- Main-feed distribution on 12/24 V boats, RVs, and trucks
- Alternator and charger output protection
- Multi-inverter or multi-charger installs on lead-acid/AGM banks
How to install
Mount flat, feed the input stud from a battery-side fuse within 7 in (ABYC E-11), land load lugs under each fuse, torque M5 studs to 40 in-lb, fit the cover. Guide: DC Power Distribution for 12/24/48 V Systems.
Ships from Oxnard, CA. Volume and trade pricing through the trade desk.
