Copper Short Barrel One Hole Compression Lugs 1/0 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98019
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

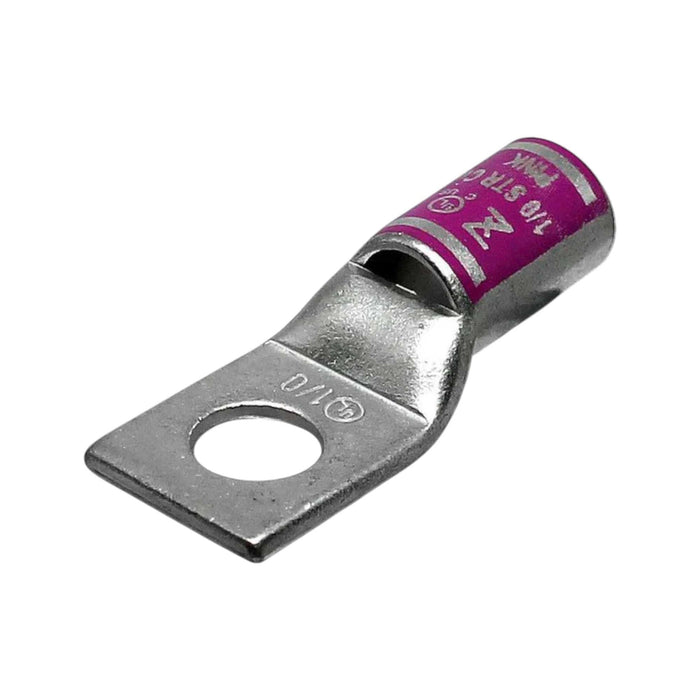

The Conversions Tech Copper Compression Lug is a high-quality connector designed for 1/0 AWG conductors, featuring a 1-hole configuration and a 3/8-inch bolt size. It includes a standard barrel, sight window, and a pink color code for easy identification. The tin-plated construction ensures corrosion resistance, providing a secure and efficient electrical connection in various applications. This lug is built to deliver reliable performance and durability in demanding environments.
Key Features
- High-Quality Copper Construction: Made from durable copper for optimal electrical conductivity and long-term reliability.
- 1/0 AWG Conductor Size: Specifically designed for 1/0 AWG cables, making it ideal for various power and electrical systems.
- 1-Hole Configuration: The single hole ensures a stable and secure connection to terminals, enhancing the reliability of electrical connections.
- 3/8-Inch Bolt Size: The 3/8-inch bolt size ensures compatibility with standard terminal sizes for easy installation.
- Standard Barrel Design: The standard barrel provides a strong and secure crimp connection, contributing to a reliable and durable electrical connection.
- Sight Window: Equipped with a sight window for visual inspection, ensuring proper wire insertion and correct crimping during installation.
-
Tin-Plated & Pink Color Code: The tin-plated finish enhances corrosion resistance, while the pink color code simplifies identification for efficient and quick installations.

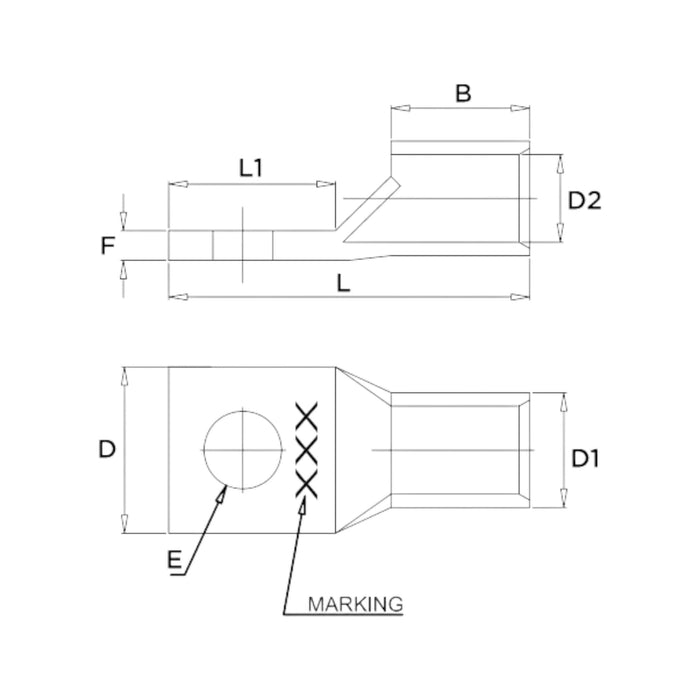

Technical Specifications
| Wire Size | 1/0 AWG |
|---|---|
| Stud Size | 3/8" Stud |
| Color | Pink |
| Overall Length (L) | 47.8mm (1.90") |
| Length 1 (L1) | 21.1mm (0.80") |
| Diameter (D) | 18.4mm (0.70") |
| Diameter 1 (D1) | 13.0mm (0.50") |
| Diameter 2 (D2) | 10.2mm (0.40") |
| Width (B) | 20.3mm (0.80") |
| Width 1 (E) | 10.4mm (0.40") |
| Thickness (F) | 2.7mm (0.10") |
| Material | Tin Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Maximum Amp Rating | 230A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
