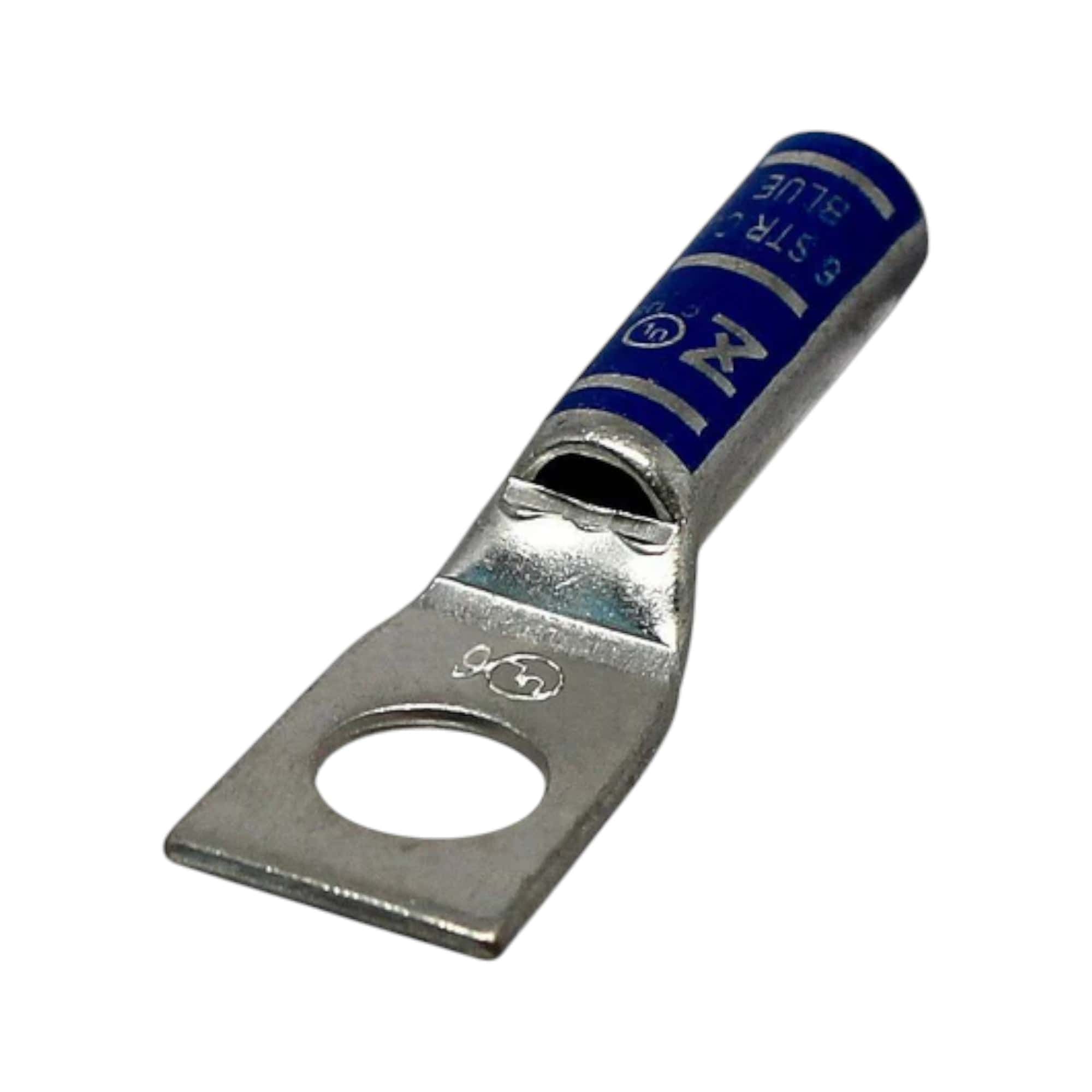

Copper Long Barrel One Hole Compression Lug 6 AWG 10-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98065
948 in stock
Open here
The Conversions Tech Copper Long Barrel One-Hole Compression Lug is designed for secure, high-performance electrical connections. With a 6 AWG conductor size and 10-inch bolt size, this tin-plated copper lug ensures durability and reliability. Its long barrel design provides a stable, robust crimp, enhancing connection strength and resistance to vibration. The blue color code allows for quick identification, streamlining installations. Built to withstand demanding conditions, this lug offers long-lasting, reliable performance across a wide range of applications.
Key Features
- High-Quality Copper Construction: Provides excellent conductivity and ensures reliable, long-lasting electrical connections for 6 AWG conductors.
- 10-Inch Bolt Size: Features a 10-inch bolt size, allowing for secure and stable attachment to terminals or busbars.
- Long Barrel Design: The extended barrel enhances crimping, ensuring a stable and durable connection that resists vibration and loosening over time.
- Tin-Plated Finish: Offers superior corrosion resistance, ensuring long-term durability and consistent performance.
- Blue Color Code: Simplifies identification, making it easier to organize and streamline electrical installations for faster and more efficient work.
- Reliable Performance: Built to withstand demanding conditions, making it ideal for a wide range of electrical applications where durability and secure connections are essential.
- Versatile Use: Perfect for industrial, commercial, and residential installations requiring high-performance electrical connections.
Technical Specifications
| Wire Size | 6 AWG |
| Stud Size | #10 |
| Color | Blue |
| Overall Length (L) | 41.2mm (1.62") |
| Barrel Length (L1) | 15.2mm (0.60") |
| Barrel Diameter (D) | 11.4mm (0.45") |
| Barrel Inner Diameter (D1) | 7.9mm (0.31") |
| Barrel Outer Diameter (D2) | 5.8mm (0.23") |
| Flange Length (B) | 22.8mm (0.90") |
| Flange Width (E) | 5.5mm (0.22") |
| Thickness (F) | 1.9mm (0.07") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Maximum Amp Rating | 65A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
