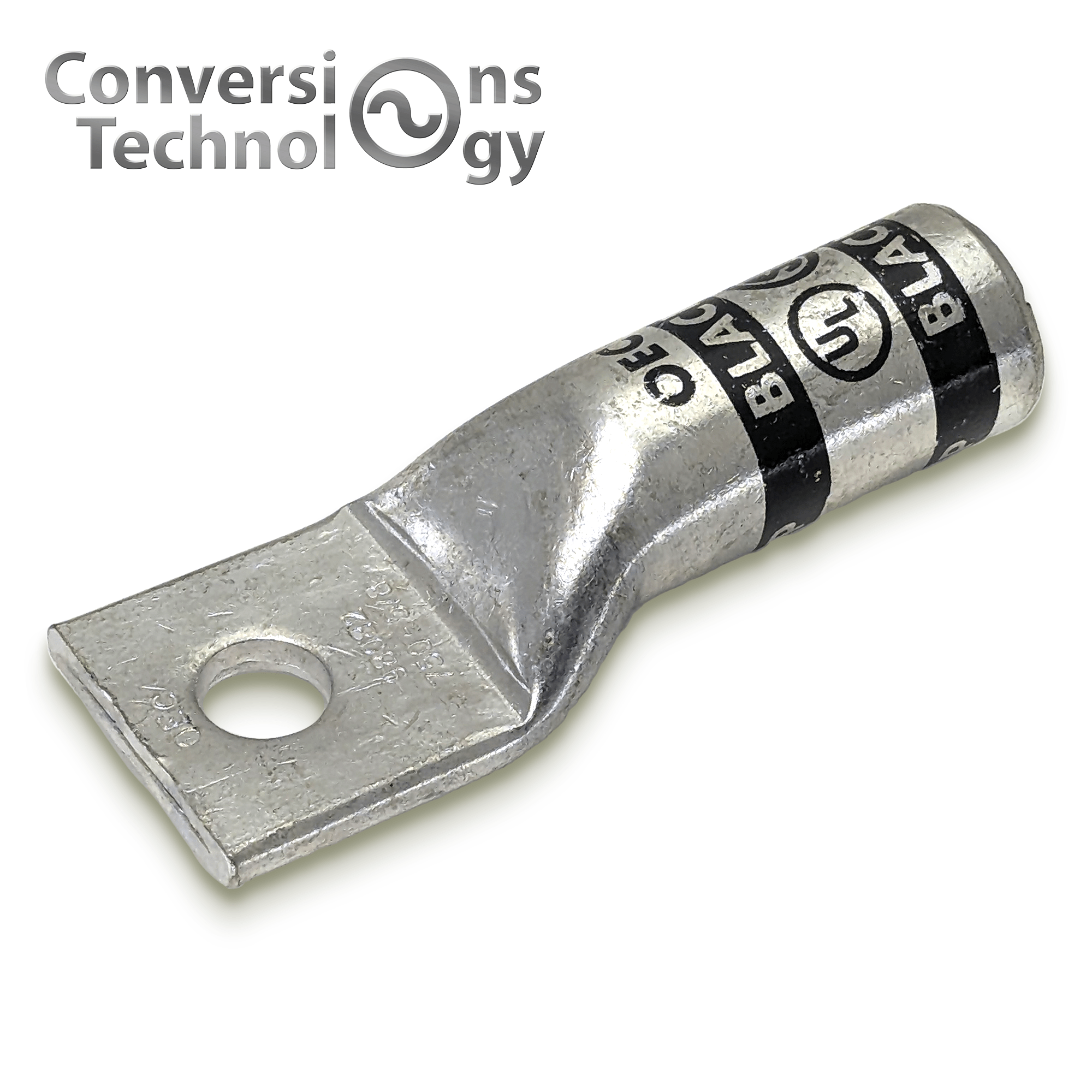

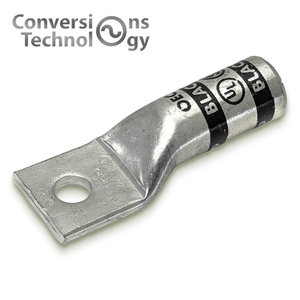

Copper Long Barrel One Hole Compression Lug 750 MCM 5/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98082
Out of stock
Open here
The Conversions Tech Copper Long Barrel One Hole Compression Lug is engineered for secure and reliable electrical connections, offering durability and excellent conductivity. Crafted from high-quality copper, it ensures superior performance and corrosion resistance. Accommodating a 750 MCM cable size, this lug is perfect for heavy-duty applications and features a 5/8-inch bolt size for easy and efficient installation. Its long barrel design provides a strong, stable connection, making it ideal for use in industrial, commercial, and power distribution systems. With precision engineering, this lug guarantees a safe and effective electrical connection that ensures long-lasting reliability.
Key Features
- Copper Construction – Made from high-quality copper, ensuring superior electrical conductivity and durability.
- 750 MCM Cable Size – Accommodates 750 MCM conductors, ideal for heavy-duty electrical applications.
- 5/8-inch Bolt Size – Features a 5/8-inch bolt size for secure and stable connections.
- Long Barrel Design – The long barrel design ensures a strong, stable connection for enhanced performance and reliability.
- Corrosion Resistance – Copper construction resists corrosion, ensuring long-lasting durability even in harsh environments.
- Industrial and Commercial Use – Suitable for use in a wide range of industrial, commercial, and power distribution systems.
-
Precision Engineering – Provides a safe, effective, and reliable electrical connection that will stand the test of time.

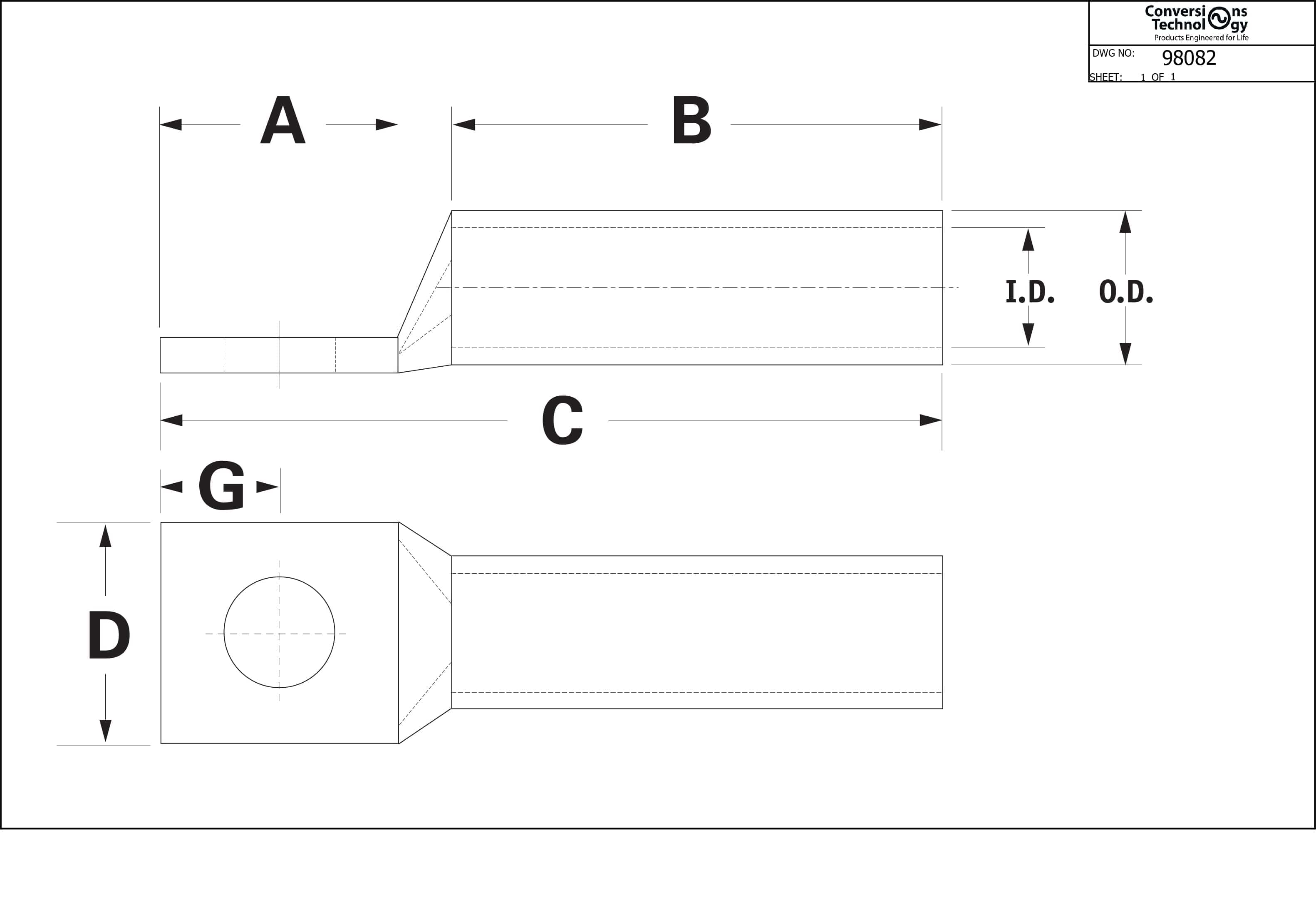

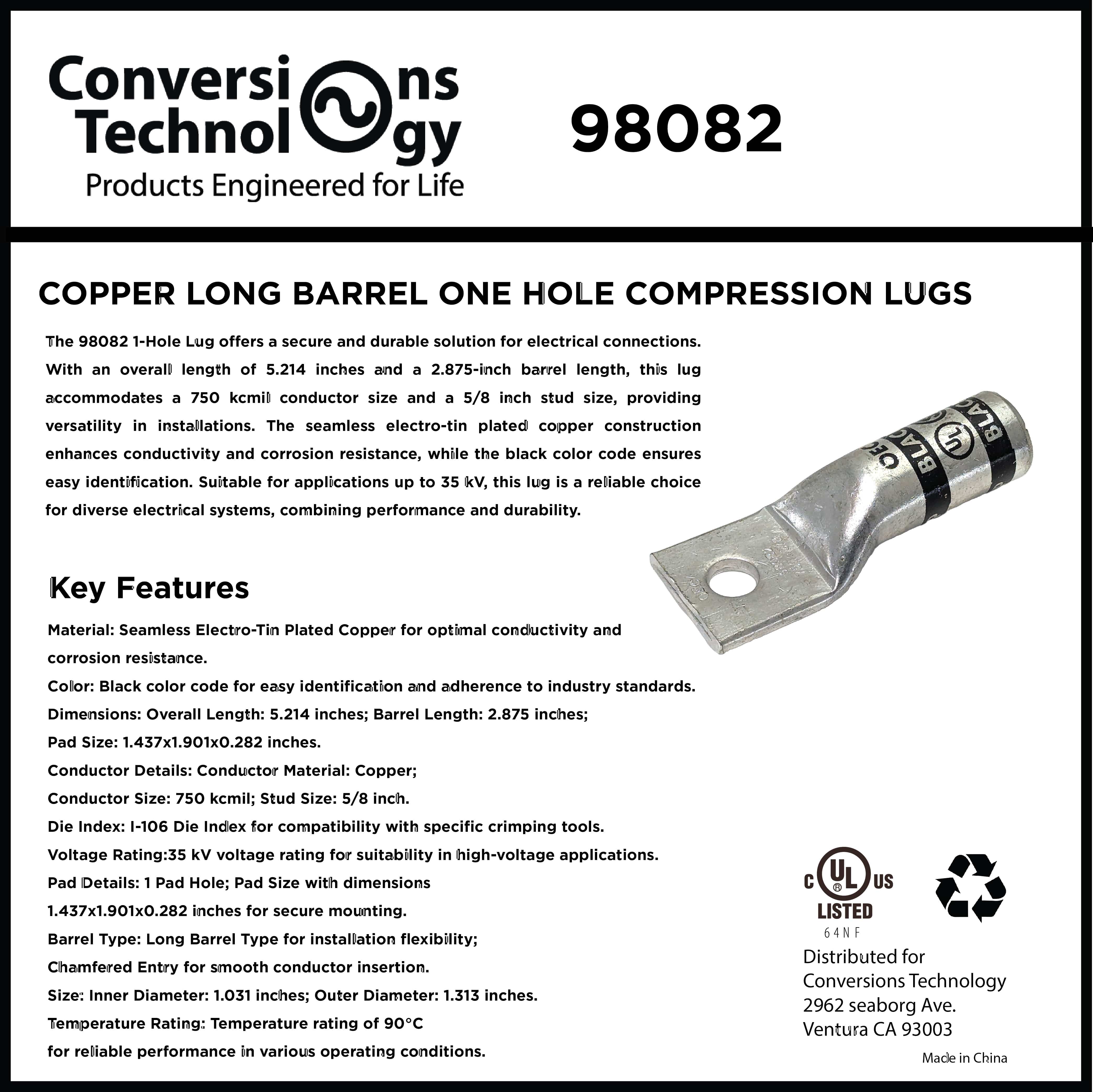

Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Black for easy identification |
| Overall Length | 5.214 inches |
| Barrel Length | 2.875 inches |
| Conductor Size | 750 MCM |
| Stud Size | 5/8 inch |
| Die Index | I-106 |
| Voltage Rating | Up to 35 kV |
| Pad Details | One hole; Size: 1.437 x 1.901 x 0.282 inches |
| Barrel Type | Long with chamfered entry |
| Inner Diameter | 1.031 inches |
| Outer Diameter | 1.313 inches |
| Temperature Rating | 90°C |
