Copper Long Barrel Two Hole Compression Lugs 1/0 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09966
1000 in stock
Open here

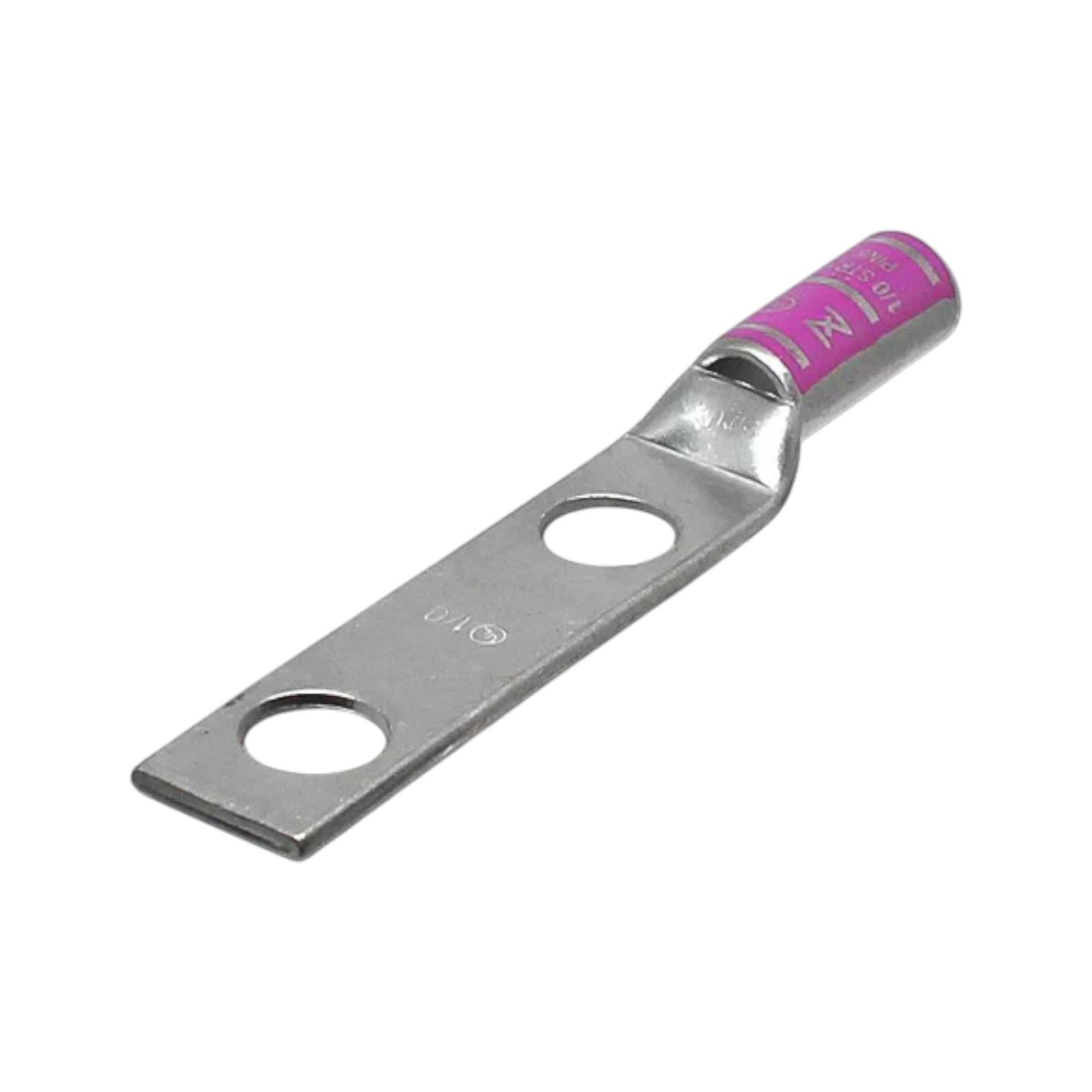

The Conversions Tech robust copper compression lug is engineered for secure, efficient, and long-lasting electrical connections with 1/0 AWG conductors. Designed with a 3/8-inch bolt size, 1-inch hole spacing, and a long barrel for enhanced stability, this high-quality lug ensures a firm and reliable connection. Its tin-plated finish provides superior conductivity and corrosion resistance, ensuring optimal performance in demanding environments. The vibrant pink color code not only simplifies identification but also enhances installation efficiency, making it an excellent choice for a wide range of electrical applications requiring durability and reliability.
Key Features
-
Seamless Electro-Tin Plated Copper Material: Ensures conductivity and corrosion resistance for reliable electrical connections.
-
Pink Color: Facilitates easy identification with a distinctive color code.
-
3.793 Inch Overall Length: Provides ample length for secure conductor termination.
-
1.5 Inch Barrel Length: Accommodates 1/0 AWG conductors for efficient crimping.
-
35 kV Voltage Rating: Suitable for applications requiring high voltage resistance.
-
1/0 AWG Conductor Size: Designed to handle 1/0 AWG conductors for versatility.
-
3/8 Inch Stud Size: Compatible with common stud sizes for easy installation.
-
I-42 Die Index: Indicates compatibility information for proper crimping tools.
-
1.937 Inch L x 0.738 Inch W x 0.125 Inch Thk Pad Size: Provides a stable mounting surface for the lug.
-
2 Pad Holes: Allows flexibility in conductor termination and installation.
-
1 Inch Pad Hole Spacing: Facilitates consistent and efficient spacing in various applications.
-
Long Barrel Type: Enhances flexibility and ease of use during installation.
-
0.39 Inch Inner Diameter x 0.515 Inch Outer Diameter: Accommodates specific wire dimensions for secure connections.
-
Barrel Type Chamfered Entry: Streamlines conductor insertion, improving installation efficiency.
- Temperature Rating 90°C: Suitable for applications with elevated temperature requirements.
Technical Specifications
| Wire Size | 1/0 AWG |
|---|---|
| Stud Size | 3/8" |
| Color | Pink |
| Overall Length (L) | 101.7mm (4.01") |
| Neck Length (L1) | 65.5mm (2.58") |
| Neck Length (L2) | 44.5mm (1.75") |
| Outer Diameter (D) | 18.4mm (0.73") |
| Inner Diameter (D1) | 13.0mm (0.51") |
| Hole Diameter (D2) | 10.2mm (0.40") |
| Width (B) | 29.8mm (1.18") |
| Hole Spacing (E) | 10.4mm (0.41") |
| Thickness (F) | 2.7mm (0.11") |
| Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 230A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
