Copper Long Barrel Two Hole Compression Lugs 4/0 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98102
999 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

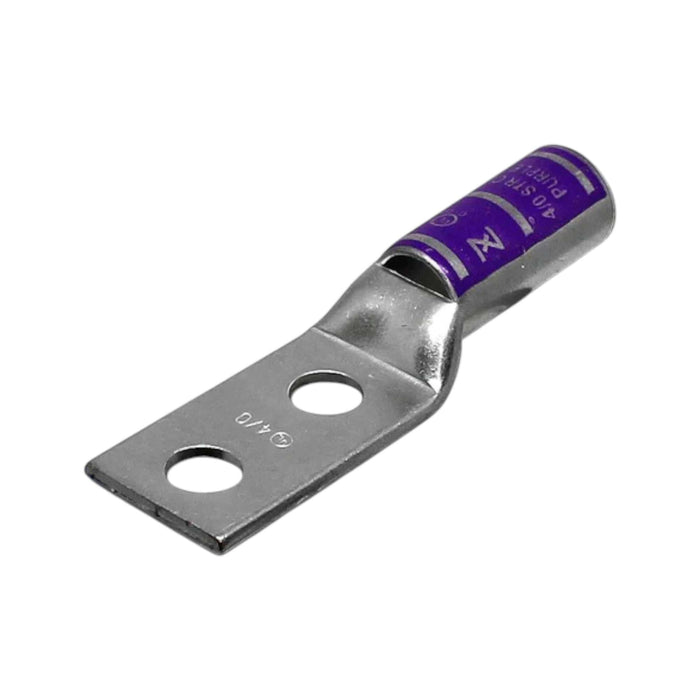

The Conversions Tech Copper Compression Lug is designed for secure and efficient electrical connections with 4/0 AWG conductors. Featuring a long barrel, dual holes, and a 3/8-inch bolt size, this tin-plated lug ensures reliable performance even in demanding conditions. The distinctive purple color code provides easy identification, making it perfect for high-performance electrical applications that require durability, safety, and optimal conductivity.
Key Features
-
Electro Tin Plated Seamless Copper Material: Provides durable and efficient conductivity for electrical connections.
-
Purple Color: Facilitates easy identification in electrical installations.
-
4.991 Inch Overall Length: Offers a compact and versatile size for various applications.
-
1.5 Inch Barrel Length: Ensures secure and reliable connections for 4/0 AWG conductors.
-
35 Kilovolt Voltage Rating: Suitable for applications requiring higher voltage capabilities.
-
4/0 AWG Conductor Size: Accommodates larger conductors for diverse electrical setups.
-
3/8 Inch Stud Size: Provides flexibility in installation options, accommodating different stud sizes.
-
I-54 Die Index: Indicates compatibility with specific crimping tools for proper installation.
-
3 Inch Length x 0.999 Inch Width x 0.141 Inch Thickness Pad Size: Offers a suitable surface for conductor attachment.
-
2 Pad Holes with 1-3/4 Inch Pad Hole Spacing: Allows for versatile and secure conductor connections.
-
Long, Chamfered Entry Barrel Type: Enhances suitability for different applications with a long barrel design and easy cable entry.
-
0.546 Inch Inner Diameter x 0.687 Inch Outer Diameter: Specifies dimensions for compatibility with various cable sizes.
- Temperature Rating 90 Degrees Celsius: Suitable for applications with higher temperature requirements.
Technical Specifications
| Wire Size | 4/0 AWG |
|---|---|
| Stud Size | 3/8" |
| Color | Purple |
| Overall Length (L) | 86.2mm (3.40") |
| Neck Length (L1) | 40.1mm (1.58") |
| Hole Length (L2) | 18.9mm (0.744") |
| Outer Diameter (D) | 25.4mm (1.00") |
| Inner Diameter (D1) | 17.4mm (0.69") |
| Hole Diameter (D2) | 14.2mm (0.56") |
| Width (B) | 37.2mm (1.47") |
| Hole Spacing (E) | 10.4mm (0.41") |
| Thickness (F) | 3.1mm (0.12") |
| Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 230A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
