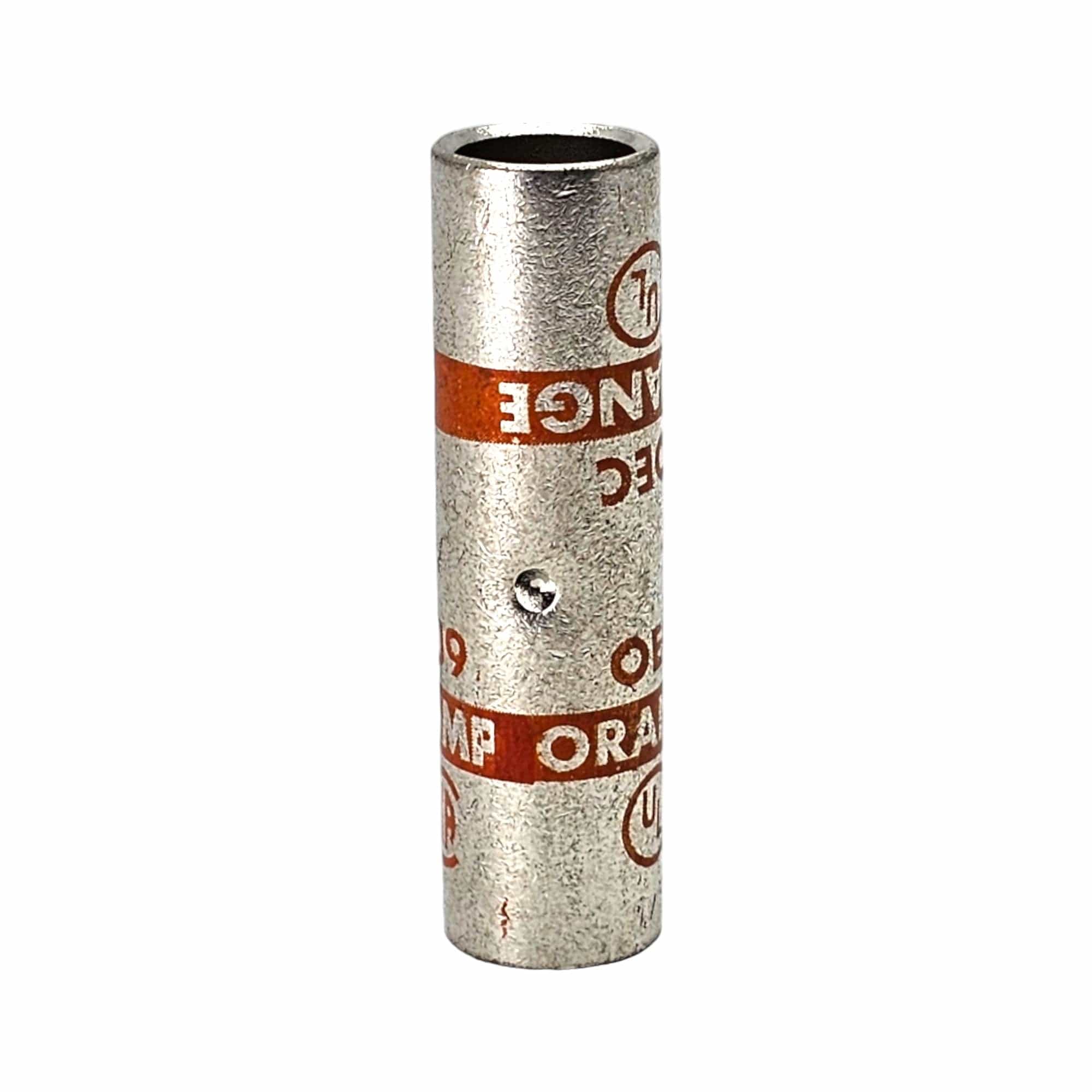

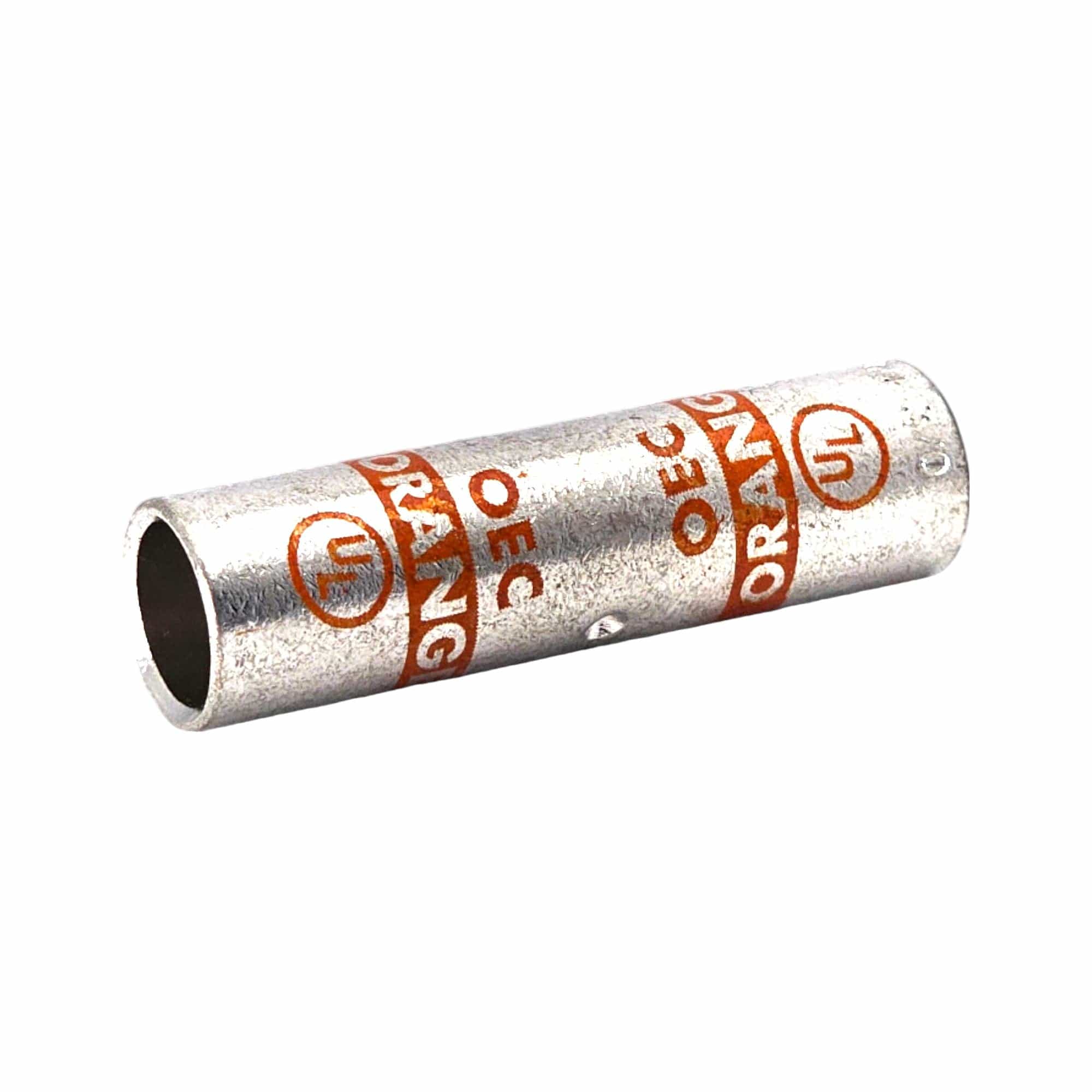

Copper Long Length Compression Connector 3/0 AWG
Shipping calculated at checkout
SKU: 210-98134
30 in stock
Open here
The Conversions Tech Copper Compression Connector is designed specifically for 3/0 conductor sizes, enhancing your electrical system's conductivity and stability. This high-quality connector boasts a long barrel design, tin-plated copper for exceptional corrosion resistance, and a bright orange color code for easy identification, making it an ideal choice for demanding electrical applications.
Specifications
- Type: Center Wire Stop
- Length: 3.125 inches
- Inner Diameter: 0.484 inch
- Outer Diameter: 0.609 inch
- Conductor Material: Copper
- Voltage Rating: 35 kV
- Body Material: Electro-Tin Plated High Strength Seamless Copper
- Conductor Size: 3/0 AWG
- Color Code: Orange
- Barrel Type: Long with Chamfered End
- Application: Grounding and Bonding
- Temperature Rating: 90°C
Applications
- Industrial Machinery
- Power Distribution Systems
- Renewable Energy Installations
- Electrical Cabinets and Enclosures
- Commercial Buildings
- Construction Sites
- Telecommunications Infrastructure
- Data Centers
- Grounding and Bonding Applications
Key Features
- Perfectly fits 3/0 AWG conductors, ensuring a secure and precise connection.
- Constructed from high-strength electro-tin plated copper, offering superior durability and conductivity.
- Long barrel design with a chamfered end enhances the crimping process for a more secure connection.
- The distinctive orange color coding facilitates quick and easy identification during installations.
