1-Hole Copper Compression Lug 2 AWG 1/2" Bolt | 35kV Tin-Plated
Shipping calculated at checkout
SKU: 210-09824
95 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

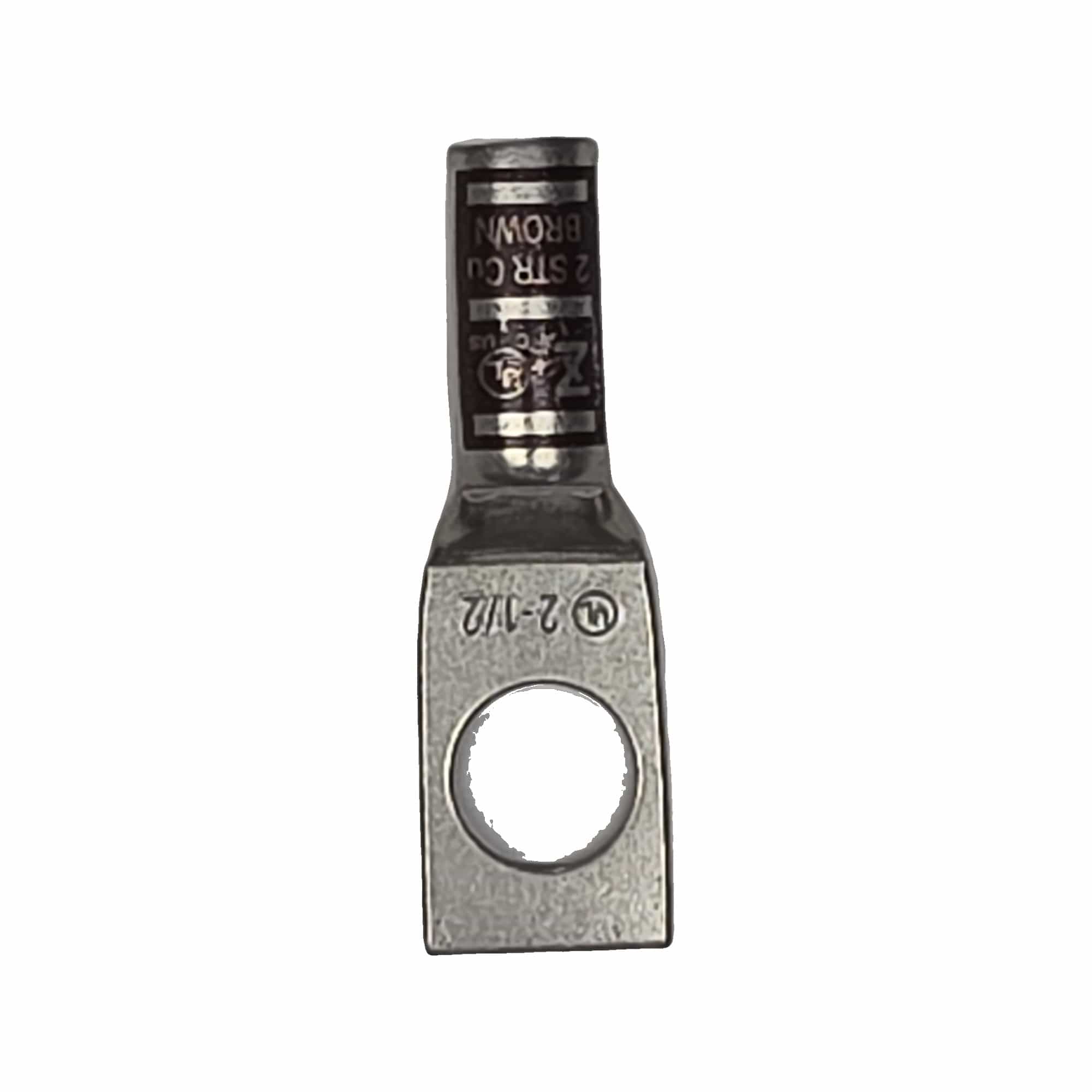

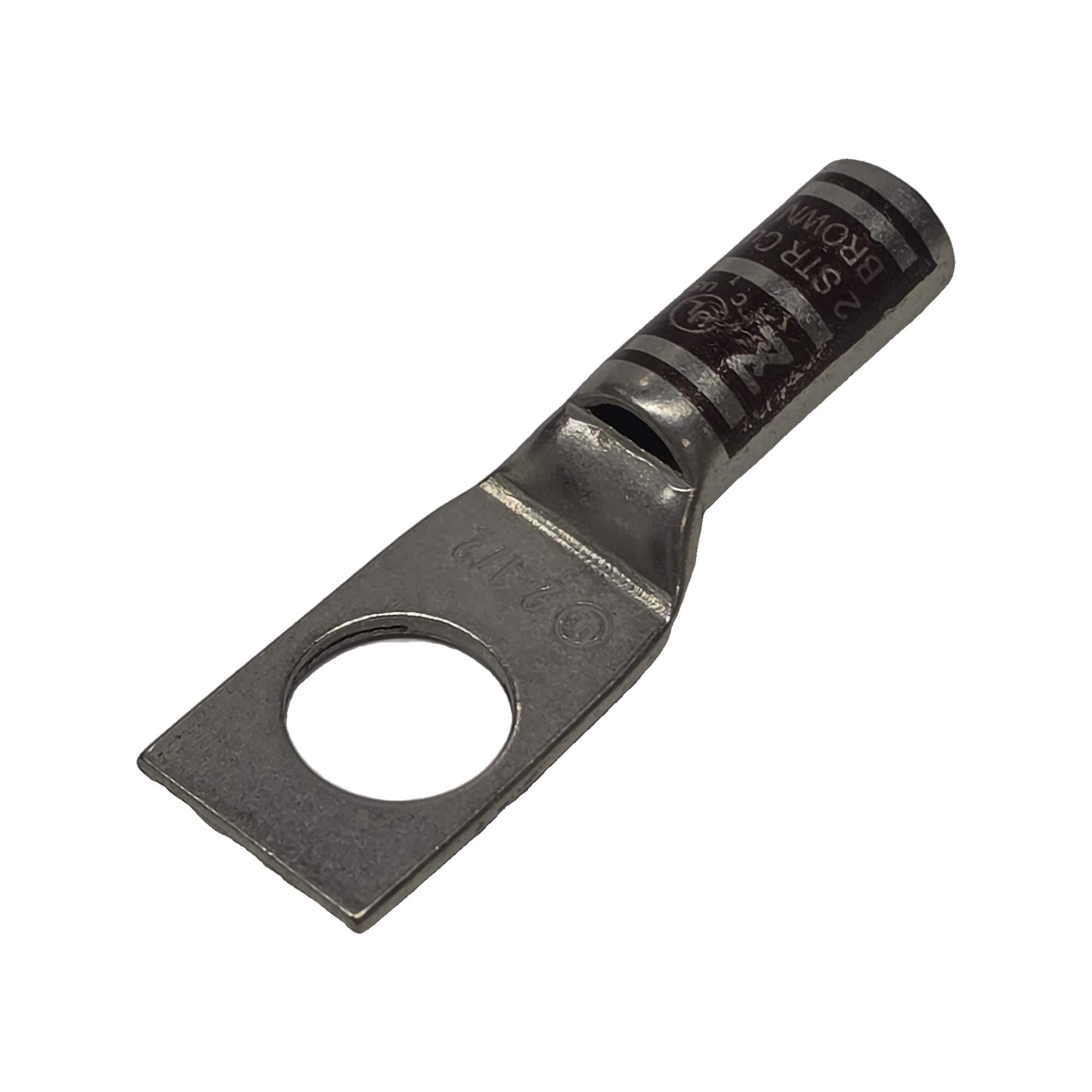

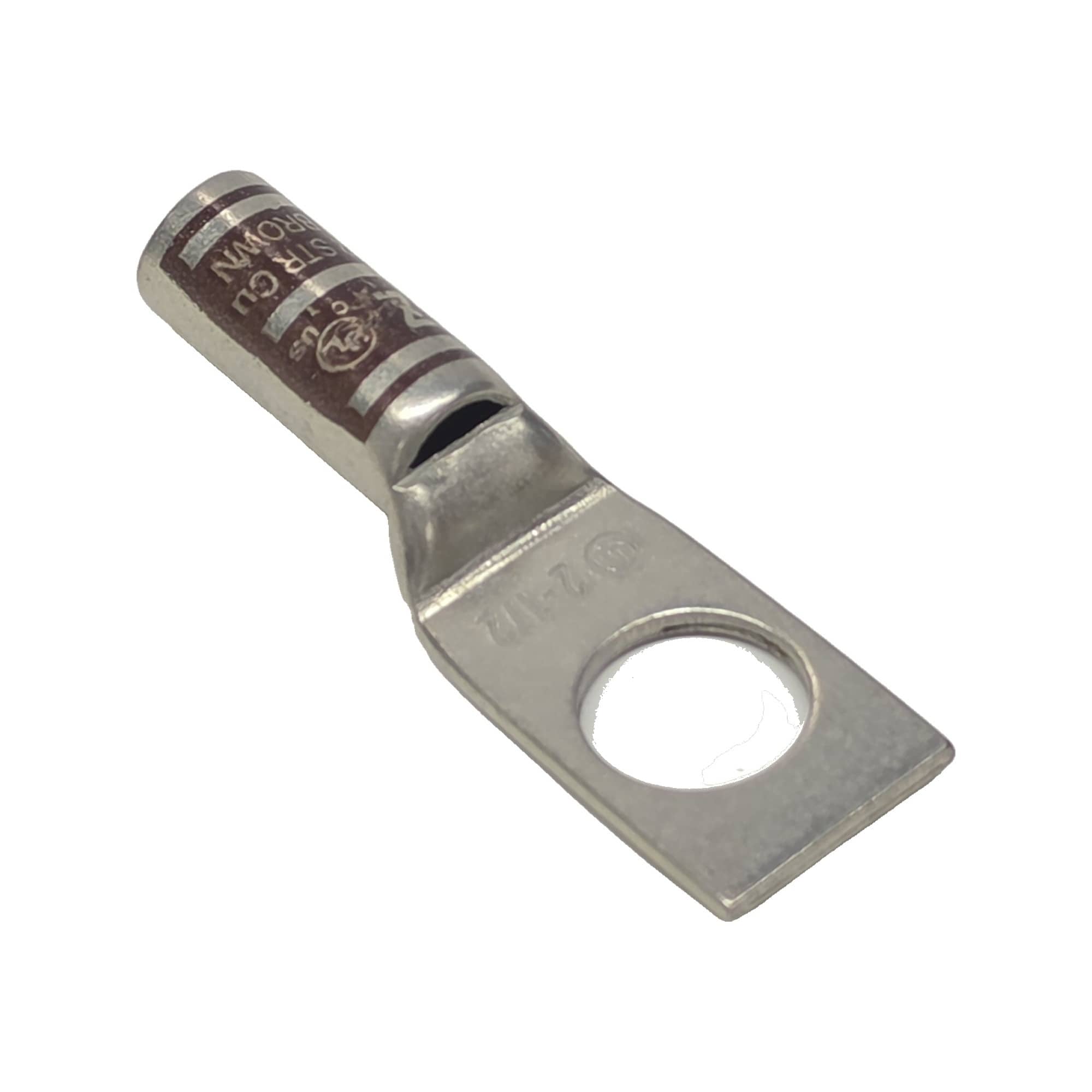

The Conversions Tech 1-Hole Copper Compression Lug is a short-barrel compression connector engineered for terminating 2 AWG copper conductors in medium-voltage electrical systems. Designed for use with 1/2-inch bolts, this lug provides secure, low-resistance connections in switchgear, transformers, panelboards, and industrial equipment. The tin-plated seamless copper construction delivers corrosion resistance for extended service life, while the integrated sight window enables visual verification of proper conductor insertion and crimp completion.
Specifications
- Conductor Size: 2 AWG
- Stud Size: 1/2 inches
- Configuration: 1-hole
- Material: Electro Tin Plated Seamless Copper
- Conductor Material: Copper
- Voltage Rating: 35 Kilovolt
- Overall Length: 2.439 inches
- Barrel Length: 0.75 inches
- Color Code: Brown
- Barrel Type: Standard (short barrel)
- Features: Sight window for installation inspection
Cross-Reference
Equivalent to standard one-hole short-barrel compression lugs from major manufacturers. Form factor compatible with tooling and installation practices used with Burndy, Panduit, and Ilsco 2 AWG compression connectors. Provides comparable electrical performance and dimensional specifications at competitive distributor pricing.
FAQ
What crimping tool is required for this 2 AWG compression lug?
Use a standard compression tool with dies sized for 2 AWG short-barrel copper lugs. The 0.75-inch barrel length requires standard-indent crimping; follow the die manufacturer's chart for color code brown or 2 AWG copper.
Is this lug rated for medium-voltage applications?
Yes. The 35 kilovolt voltage rating supports medium-voltage terminations up to 35kV when installed per applicable codes and standards. Verify system voltage and clearances against your specific application requirements.
Why is there a sight window on the barrel?
The sight window allows visual confirmation that the conductor is fully inserted to the proper depth before crimping, and permits post-crimp inspection to verify die alignment and compression completeness—reducing installation errors and connection failures.
