Short Barrel Copper Compression Lug 1/0 AWG 1/4" | 2-Hole, 90°C
Shipping calculated at checkout
SKU: 210-09933
1000 in stock
Open here

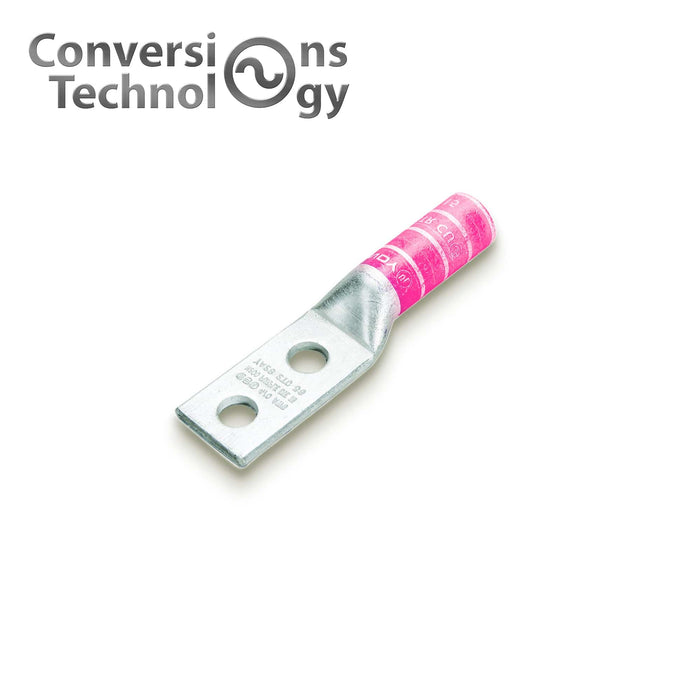

The Conversions Tech Copper Compression Lug is a short barrel, two-hole compression terminal designed for secure termination of 1/0 AWG conductors. Engineered for demanding electrical applications, this lug features a 1/4-inch bolt size and dual pad holes for flexible mounting configurations. The standard barrel design with chamfered entry facilitates wire insertion, while the integrated sight window enables visual confirmation of proper conductor placement during crimping. A tin-plated finish provides corrosion resistance, and the pink color code allows for quick field identification.
Specifications
- Conductor Size: 1/0 AWG
- Stud/Bolt Size: 1/4 inch
- Pad Configuration: 2 holes
- Pad Hole Spacing: 1 inch

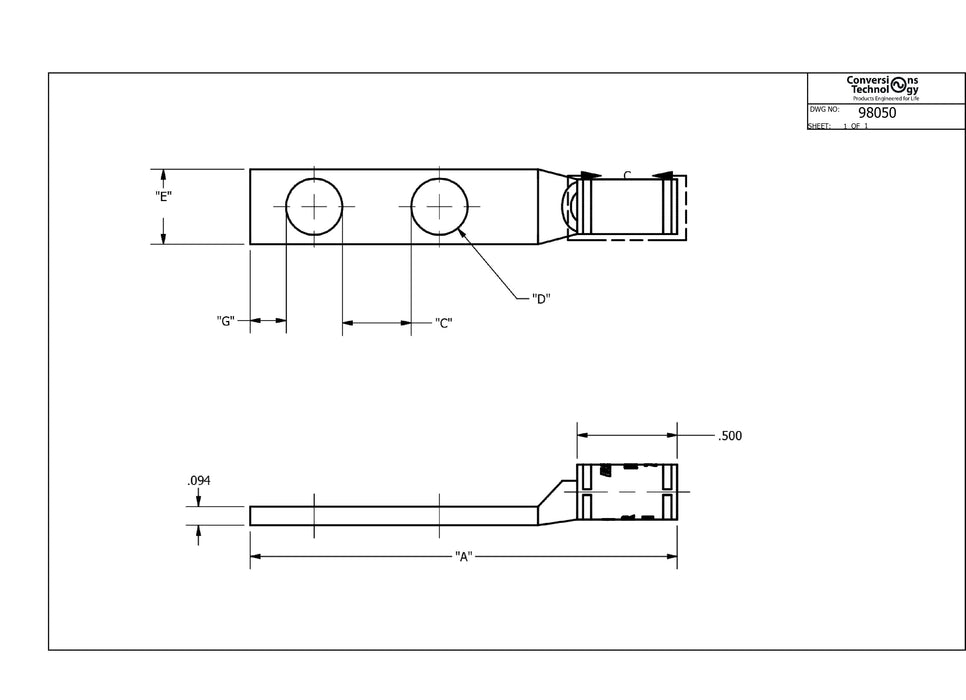

- Pad Dimensions: 1.937" L x 0.738" W x 0.125" thick
- Overall Length: 3.043 inches
- Barrel Length: 0.75 inch
- Barrel Type: Standard with chamfered entry
- Barrel Dimensions: 0.39" ID x 0.515" OD
- Material: Seamless electro-tin plated copper
- Color Code: Pink
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-42
Cross-Reference
Equivalent to standard two-hole compression lug forms from major manufacturers including Burndy, Panduit, and Ilsco. Comparable performance to industry-standard short barrel copper lugs at reduced cost.
FAQ
What crimping tool and die should I use for this lug?
Use a compression tool with die index I-42. Verify proper die selection against the manufacturer's compatibility chart before crimping.
Is this lug rated for 90°C conductor ampacity?
Yes. The 90°C temperature rating supports full ampacity of 1/0 AWG copper conductors per NEC Table 310.16 when installed in approved conditions.
Can this lug be used in 35 kV medium voltage applications?
The 35 kV voltage rating applies to the lug's insulation properties. Actual application voltage limits depend on complete assembly configuration, clearances, and installation conditions per applicable standards.
