Short Barrel Copper Compression Lug 2-Hole 6 AWG 1/4" Stud | 90°C
Shipping calculated at checkout
SKU: 210-09912
1000 in stock
Open here

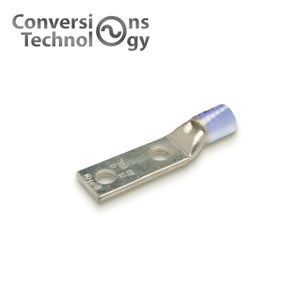

The Conversions Tech Copper Short Barrel Two-Hole Compression Lug is a compression connector engineered for terminating 6 AWG copper conductors in medium-power electrical systems. The two-hole pad design with 1/4-inch stud size provides dual attachment points for secure mechanical and electrical connection to bus bars, switchgear, and distribution equipment. The short barrel configuration accommodates applications with limited clearance while maintaining full electrical performance. A chamfered cable entry facilitates conductor insertion, and the integrated sight window allows visual verification of proper conductor seating prior to crimping. The tin-plated copper construction resists oxidation and corrosion in industrial environments.
Specifications
- Material: Seamless Electro-Tin Plated Copper
- Conductor Size: 6 AWG
- Stud Size: 1/4 Inch
- Pad Holes: 2
- Pad Hole Spacing: 1 Inch
- Pad Size: 1.687 Inches L x 0.44 Inches W x 0.087 Inches Thk
- Overall Length: 2.382 Inches
- Barrel Length: 0.5 Inch
- Barrel Type: Standard
- Inner Diameter: 0.203 Inch
- Outer Diameter: 0.295 Inch
- Cable Entry: Chamfered Type
- Voltage Rating: 35 kV
- Temperature Rating: 90 Deg C
- Die Index: I-24
- Color Code: Blue
Cross-Reference
Equivalent to standard two-hole short barrel compression lug form factors from major manufacturers including Panduit, Burndy, and Ilsco. Specified by Conversions Tech US engineering for equivalent electrical and mechanical performance at lower total cost of ownership.
FAQ
What crimping tool and die are required for this lug?
Use compression tooling with die index I-24. The sight window allows visual confirmation that the conductor is fully inserted to the proper depth before crimping.
Is this lug rated for 90°C conductor ampacity?
Yes. The 90°C temperature rating supports full ampacity of 6 AWG copper conductors per NEC ampacity tables when installed in approved conditions.
Why choose a short barrel design over a long barrel?
The 0.5-inch barrel length provides adequate contact area for 6 AWG conductors while fitting in confined spaces where standard or long barrel lugs cannot be installed.
