Short Barrel 2-Hole Copper Compression Lug 6 AWG 1/4" Bolt | 90°C
Shipping calculated at checkout
SKU: 210-09911
1000 in stock
Open here

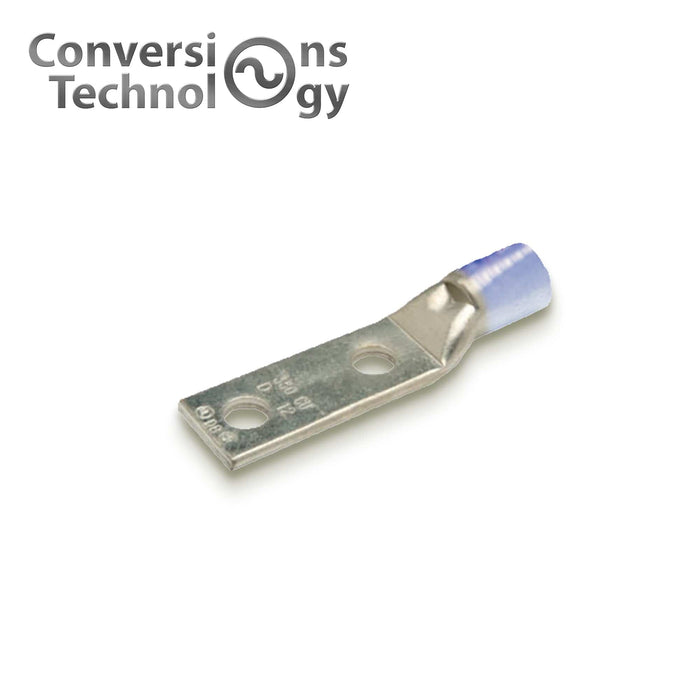

The Conversions Tech short barrel two-hole compression lug terminates 6 AWG copper conductors in medium-voltage power distribution, industrial control panels, and transformer terminations. The dual-hole pad design distributes mechanical load across two 1/4-inch mounting points, reducing stress on bus bars and equipment studs. A chamfered cable entry eases conductor insertion, while the integrated sight window allows visual confirmation of full conductor insertion before crimping.
Specifications
- Conductor size: 6 AWG copper
- Stud size: 1/4 inch
- Pad holes: 2
- Pad hole spacing: 1 inch
- Pad dimensions: 1.687" L x 0.44" W x 0.087" thick
- Overall length: 2.382 inches
- Barrel length: 0.5 inch
- Inner diameter: 0.203 inch
- Outer diameter: 0.295 inch
- Material: seamless electro-tin plated copper
- Color code: blue
- Voltage rating: 35 kV
- Temperature rating: 90°C
- Die index: I-24
- Cable entry: chamfered type
Cross-Reference
Equivalent to Burndy YAV, Ilsco CTL, and Panduit LCCX two-hole compression lug form factors for 6 AWG applications. Conversions Tech lugs are engineered to matching dimensional and electrical specifications at reduced cost.
FAQ
What crimping tool and die should I use?
Use a compression tool with die index I-24. The die index is marked on the lug barrel; match this to your tool's die set for proper compression.
Is this lug rated for medium voltage applications?
Yes. The 35 kV voltage rating suits medium-voltage terminations including switchgear, transformers, and substation equipment when installed per applicable codes.
Why does the pad have two holes?
The 2-hole configuration provides redundant mechanical attachment and distributes torque load across two 1/4-inch studs or bolts, reducing stress concentration on single-stud connections.
